2001 In Ear Earphone
User Manual
FOR GAMING WITH RGB LIGHTING
PLEASE READ THIS MANUAL CAREFULLY BEFORE 0SING HE PRODUCT AND kKEP IT PROPERTY.

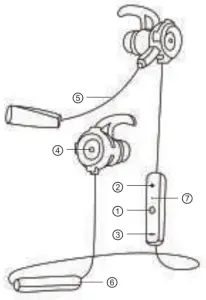

PRODUCT OVERVIEW
| 1. Power button | 5. Microphone |
| 2. Volume up button | 6. Battery 0over |
| 3. Volume down button | 7. Indicator light |
| 4. Blinking ear shell |
PARAMETERS
| BT VERSION | 5.0 | FREQUENCY RANGE | 20Hz-20KHz |
| NAME OF BLUETOOTH DEVICE | MINISO-2001 | SENSITIVITY | 98±3dB |
| FUNCTION | Media player, phone call. | CHARGING PORT | Micro USB |
| INPUT | DC 5V 50Ma | TRANSMISSION DISTANCE | 10 meters |
| BATTERY CAPACITY | 80mAh | CHARGING TIME | 1.5H |
| MUSIC PLAYBACK TIME | 3H | TALK TIME | 3H |
| STANDBY TIME | 10H |
INSTRUCTIONS
| FUNCTIONS | INSTRUCTIONS |
| TURN ON | Long press the power button for 3s. |
| TURN OFF | Long press the power button for 5s. |
| PAIRING MODE | The indicator light blinks in red and blue alternately when it enters pairing mode. When pairing is successful, the light will flash slowly in blue. |
| PREVIOUS TRACK /VOLUME DOWN | Long press the volume down button to skip to the previous track. Short press the volume down button to lower the volume. |
| PLAY/PAUSE | Short press the power button to play/pause the music. |
| NEXT TRACK/VOLUME UP | Long press volume up button to skip to next track. Short press the volume up button to raise the volume. |
| ANSWER/END A CALL | Short press the power button to answer or end a call. |
| REJECT A CALL | Double click the power button to reject a call. |
CAUTIONS
- Reasonable control of the volume and time of usage is required to avoid hearing damage.
- For your safety, do not use it in potentially hazardous conditions.
- Do not listen to music, call up, or answer the phone while driving to avoid danger caused by distraction.
- Keep it out of reach of children to avoid danger caused by improper use.
- Do not throw it to avoid damage caused by dropping.
- Do not store or use it under -20°C or above 45°C to avoid shortening the lifespan of earphones and batteries.
- Do not modify, disassemble or repair the product.
- Irreplaceable battery. It should be disposed of according to local rules & regulations or be recycled by a professional institute. Do not throw away or toss it into the fire.
- When not in use for a long time, charge the earphones every 3 months to extend their service life.
TROUBLESHOOTING
- Fail to pair the wireless earphones with your cell phone. Solution: Check if the earphones are in pairing mode and whether the phone has a BT function. Check the list on your phone, remove the earphones from the list, follow the instructions of the user manual to pair the earphones with your phone again.
- Cannot turn on the wireless earphones.
Solution: Check the battery to see if it is low. - Can the battery of the wireless earphones be replaced?
Answer: No. The lithium-polymer battery in the earphones is irreplaceable. - The wireless earphones got disconnected from the phone within 10 meters.
Solution: BT is wireless so it is very sensitive to objects between the earphones and the connected device. Check if there are any metal or other objects that may affect the connection within the effective distance. - Cannot hear audio playing when the earphones are connected to the computer or phone.
Solution: Check whether the computer’s audio output is already connected to the wireless device and whether the Bluetooth in the computer supports the A2DP protocol. Make sure the volume is up on your phone or computer. - Can I operate the Apps of my phone through the earphones after connecting the wireless earphones to the phone?
Answer: Some apps may not support being operated through earphones due to their settings.
ACCESSORIES
Productx1;
User Manualxl.
FCC Warning:
This device complies with Part 15 of the FCC Rules, Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
IC Warning: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions:
- This device may not cause interference, and
- This device must accept any interference, including interference that may cause undesired operation of the device.
WARNING:
This product can expose you to chemicals including Bisphenol A(BPA), which is known to the State of California to cause birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FCC ID 2AR4-2001
MADE IN CHINA
