Redline LED Tailgate Brake Light Bar
Installation Guide

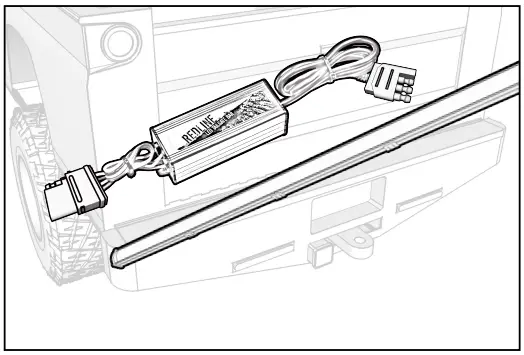

WHAT’S INCLUDED
STEP1

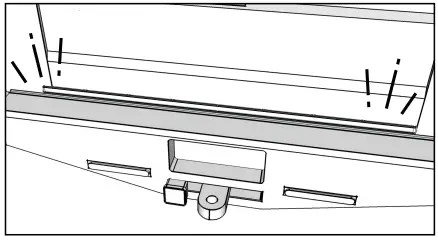

Test the Redline LED Bar for function before mounting on vehicle.
STEP2

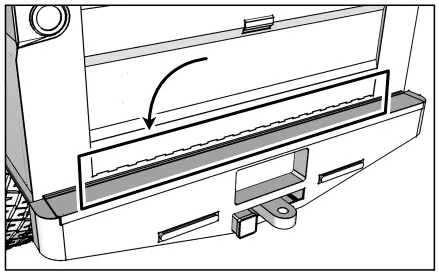

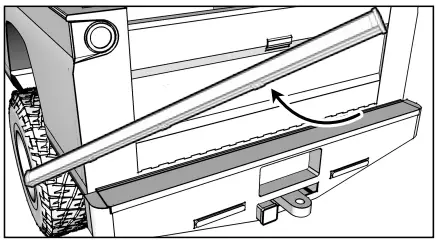

Remove tailgate from vehicle
STEP3
Thoroughly clean the area where the Redline LED Bar will be mounted.
OPTION 1
STEP4

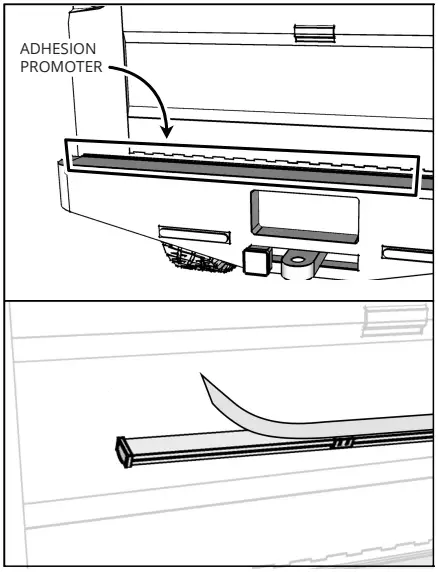

Apply the Adhesive Promoter to the cleaned area.
STEP5
On the Redline LED Bar, peel the back off of the adhesive and apply firmly to the cleaned area.
OPTION 2
STEP4

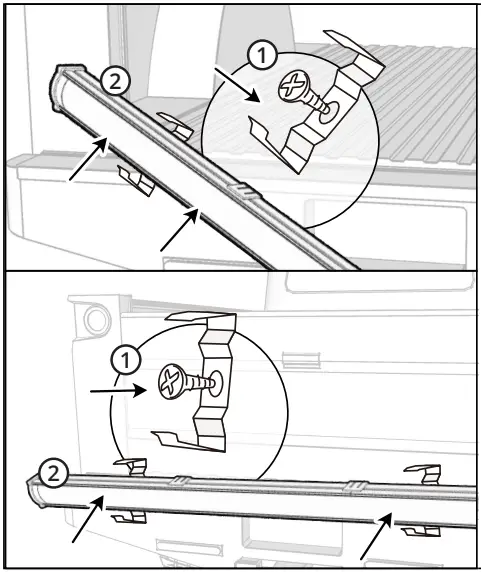

Mark out where you want to mount the included clips taking straightness and placement into consideration.
STEP5
Use the included screws and clips to solidly mount the Redline LED bar to the vehicle. OPTION 2
STEP6

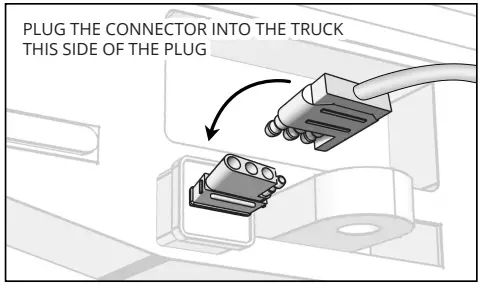

Plug the 4-pin flat connector into the proper receptacle on the vehicle. Refer to the wiring diagram below.

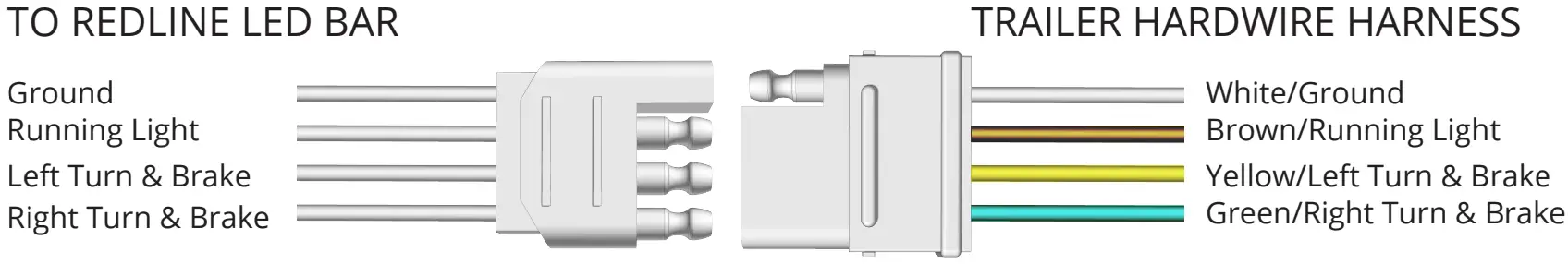

Optional: If hard-wiring, use image below to identify wire color functions and pair them to appropriately identified wires on vehicle.
STEP7 WHERE TO CONNECT THE REVERSE SIGNAL ?

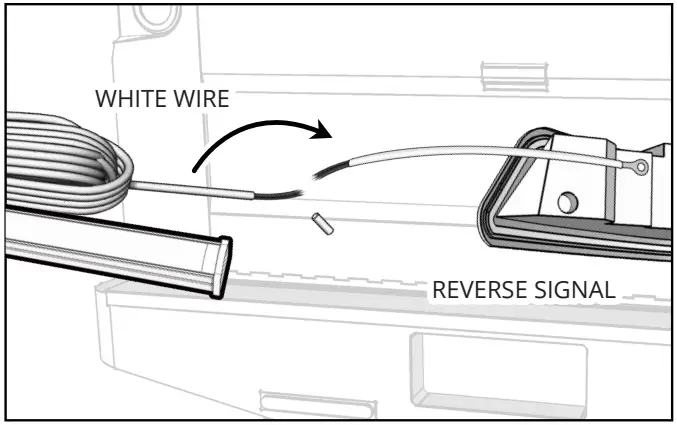

Splice the white wire coming from the Redline LED Bar to the factory tail light or the 7PIN trailer towing socket (Middle PIN) using the SCOTCH-LOK wiring connector we provided.
STEP8

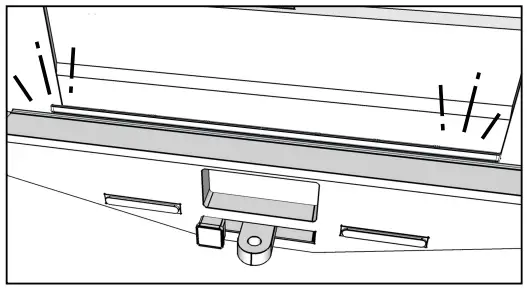

Test the Redline LED Bar again for function.
NOTE
If you experience any error codes or dash lights, please install the optional Tailgate Module between the vehicle and Redline LED bar sold separately.
DISCLAIMER
OPT7 Lighting is not liable for damages, injuries, or death while installing this product. The Installation Guide is intended as assistance to reduce setup time. OPT7 Lighting assumes no responsibility for improper installation. If you are unfamiliar with your vehicle or inexperienced with aftermarket upgrades, please seek professional assistance.
2 YEAR WARRANTY
