Toolcraft 2522106 Rechargeable Led Work Light Instructions

2522106 Rechargeable LED Work Light
Instructions Manual

Rechargeable LED Work Light
Item no: 2522106

1 Dismantling recommendations

• Disconnect from the power supply.
• Ask for help from a professional if needed.

2 Dismantling instructions
Step 1

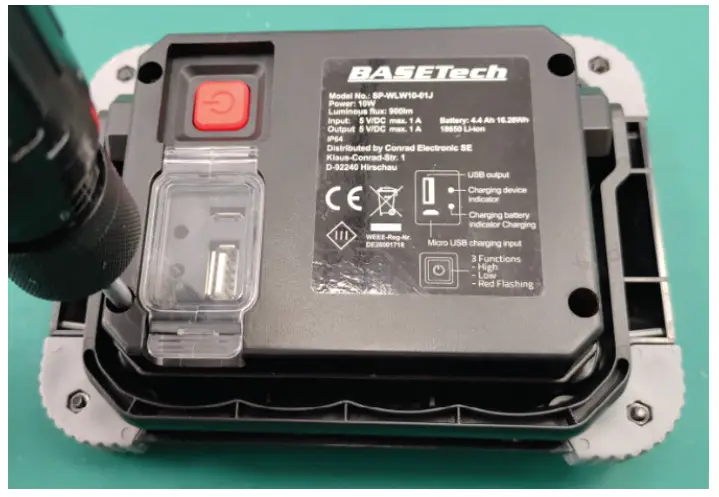

Remove 4x screws. Step 2

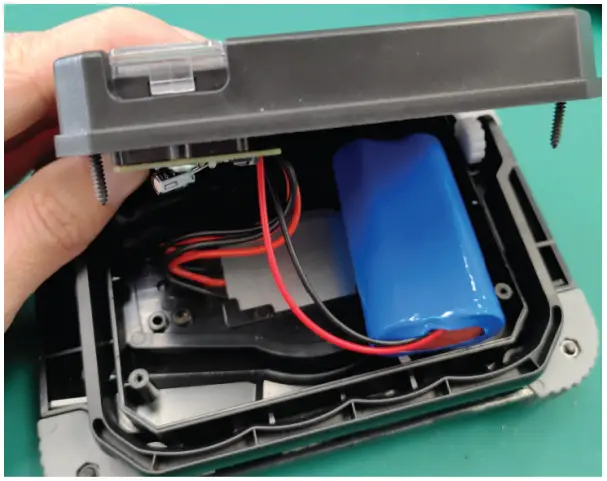

Open the back shell.
Step 3

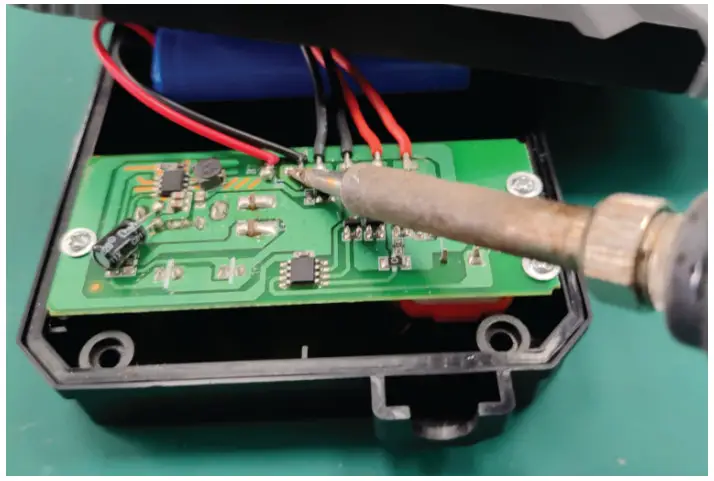

Desolder the cables from the battery.

Step 4

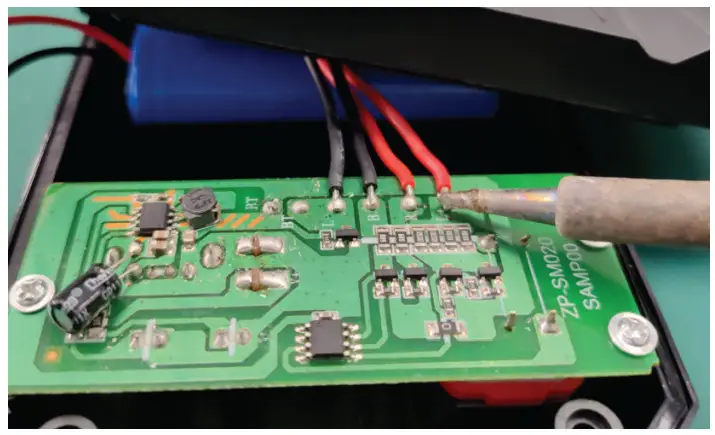

Desolder the cables from the PCB board.

Step 5

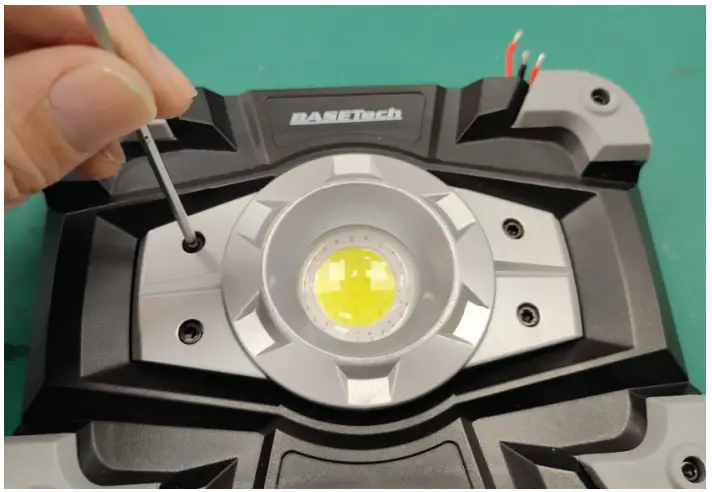

Remove the screws in the silver part.

Step 6

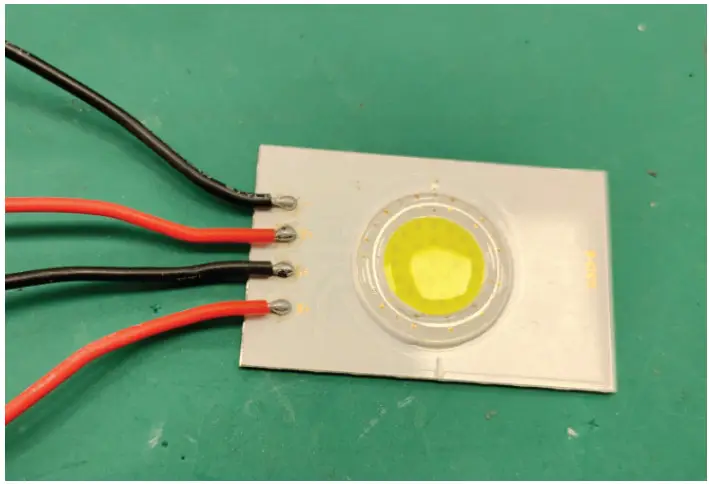

Take out the COB and PCB board.
