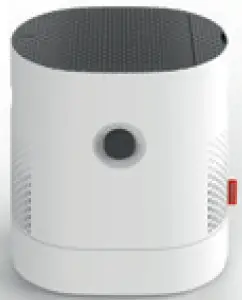

Boneco W220 Humidifier Air Washer Instruction Manual

healthy air

W220 MANUAL
Read and save these instructions

ITEMS INCLUDED

HEALTHY AIR IS A BASIC NEED.
There is little to which we react with greater sensitivity
than poor air. And yet many people do not pay enough attention to air quality, which has consequences for health and quality of life. This makes us all the more pleased that you have chosen a  TOP-BONECO  appliance to ensure that the basic need for healthy room air is satisfied for you and the people around you.
AVAILABILITY OF ACCESSORIES
You can obtain replacements for worn-out accessories as well as additional accessories from:
• Your BONECO specialist dealer,
• At www.shop.boneco.com or
• Directly via the “BONECO healthy air” app.

OVERVIEW AND PART NAMES

1 On /Off, output level
2 Pre-filter
3 Cover/air inlet
4 Fragrance container*
5 Drum*
6 AW200 Evaporator mat**
7 Air outlet
8 A7017 Ionic Silver Stick
9 Water base*
10 Float gage*
Washable in the dishwasher up to 50 °C
* Washable in the washing machine up to 40 °C

TECHNICAL DATA

FIRST CLEANING
Production-related residue on the water base may
lead to foaming, and thereby to water escaping. For this reason, before the first use, the water base must be cleaned with warm water and dish detergent then thoroughly rinse the water base under running water.

PUTTING INTO OPERATION

HANDLING

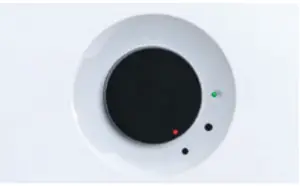

OPERATING MODES
The BONECO appliance has two operating modes and the user can switch between them using the knob.

• In position, the BONECO appliance works at normal capacity (day mode).
• In position the BONECO appliance works quietly(night mode).
A green LED indicates that the BONECO appliance is operating correctly. The LED is red if the water tank is empty

FRAGRANCE CONTAINER BASICS
Commercially available fragrances and essential oils can be inserted into the fragrance container on the rear side.
Never mix any additives into the water base itself, since doing so can decrease the performance of the BONECO appliance and even cause damage. This damage is not covered by the warranty.
USE

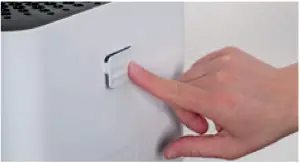

1. Press down on the fragrance container to take out the drawer.

2. Sprinkle the felt insert in the drawer with the fragrance of your choice.
3. Reinsert the fragrance container.
The fragrance container can be cleaned in the dishwasher. The temperature may not exceed 50 °C.

NOTES ON CLEANING
ABOUT CLEANING
This means regular maintenance and cleaning is necessary toensure unimpaired and clean operation.
Recommended cleaning and maintenance intervals vary depending on air and water quality, and operating time.
A soft cloth, dish detergent, and a scrub brush are recommended for cleaning by hand.
Always unplug the BONECO appliance from the power outlet before you begin cleaning. Failure to do so can result in electric shock and fatal injury!
In the case of cleaning the drum and the water base in the dishwasher, a temperature of 50 °C may not be exceeded, as temperatures higher than this can cause the plastic parts to deform.

RECOMMENDED CLEANING INTERVALS

CLEANING THE APPLIANCE
DISASSEMBLY AND CLEANING
1. Take off the upper part of the BONECO appliance.
2. Remove the drum with the AW200 evaporator mat.

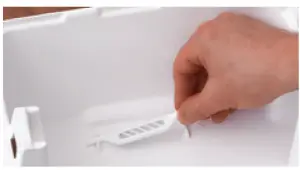

3. Take out the A7017 Ionic Silver Stick

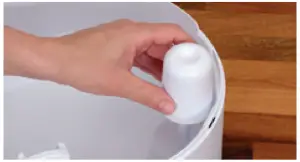

4. Remove the float gage.

5. Rotate both drum discs to loosen. In doing so, observe the markings on the outer side of the disc.

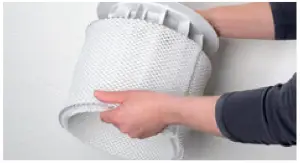

6. Remove the AW200 evaporator mat from the drum.

7. Clean the water base, the floating gate, and the drum either by hand or in the dishwasher at max. the temperature of  50°C.

8. Put the appliance back together by following the steps in reverse order.

CLEANING THE AW200 EVAPORATOR MAT

ABOUT THE AW200 EVAPORATOR MAT

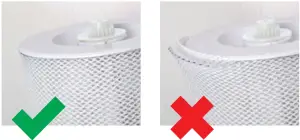

The AW200 evaporator mat can be cleaned in the washing machine. Uses any commercially available detergent We recommend putting the AW200 evaporator mat into a laundry bag or washing it separately because it will collect loose fibers from other pieces of laundry otherwise. When stretching the AW200 evaporator mat on the drum after cleaning, take note of correct positioning:

CLEANING IN THE WASHING MACHINE
The AW200 evaporator mat can be cleaned in the washing machine. Commercially available detergents can be used.
The AW200 evaporator mat may not be washed at a temperature higher than 40 °C.
Do not dry the AW200 evaporator mat in the clothes dryer.

CLEANING BY HAND
1. Tumble the AW200 evaporator mat thoroughly in warm water so that the entire mat makes contact with some detergent.2. Continue to rinse out the AW200 evaporator mat in clean hand-warm water until foam no longer forms.

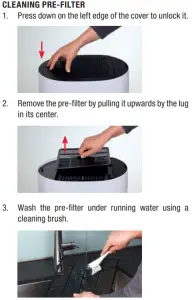

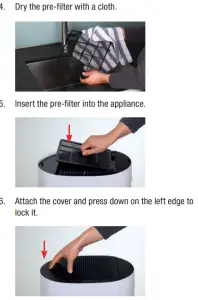

PRE-FILTER
ABOUT THE PRE-FILTER
The pre-filter cleans the air from coarse contaminants. Clean the pre-filter if it is dusty or dirty.

REPLACING THE ACCESSORIES A7017 IONIC SILVER STICK

The A7017 Ionic Silver Stick utilizes the antimicrobial property of silver to significantly improve water hygiene. It is effective as soon as the water comes into contact with it – even if the BONECO W220 is switched off.

Replace the A7017 Ionic Silver Stick annually to guarantee antimicrobial effectiveness. The used A7017 Ionic Silver Stick ® can be thrown out with your regular household waste.

AVAILABILITY OF ACCESSORIES
You can obtain replacements for worn-out accessories as well as additional accessories from:
• Your BONECO specialist dealer,
• At www.shop.boneco.com or
• Directly via the “BONECO healthy air” app.

HEALTHY AIR
www.boneco.com
B O N E C O is a registered trademark of B O N E C O AG, Switzerland
B O N E C O AG, Espenstrasse 85, 9443 Widnau, Switzerland
