S200
MANUAL

Read and save these instructions

Always observe all safety notes (included separately in delivery).

INSTRUCTION FOR USE

ITEMS INCLUDED

HEALTHY AIR IS A BASIC NEED.

There is little to which we react with greater sensitivity than poor air. And yet many people do not pay enough attention to air quality, which has consequences for health and quality of life. This makes us all the more pleased that you have chosen a TOPBONECO appliance to ensure that the basic need for healthy room air is satisfied for you and the people around you.

AVAILABILITY OF ACCESSORIES

You can obtain replacements for worn-out accessories as well as additional accessories from:

At your BONECO specialist dealer,
At www.shop.boneco.com or
Directly via the “BONECO healthy air” app.

ITEMS INCLUDED

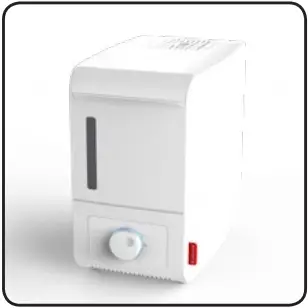

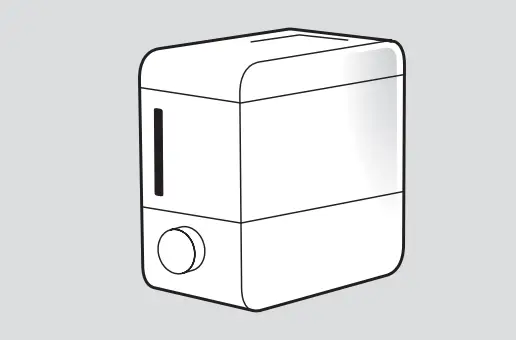

BONECO S200 A7417 CalcOff®

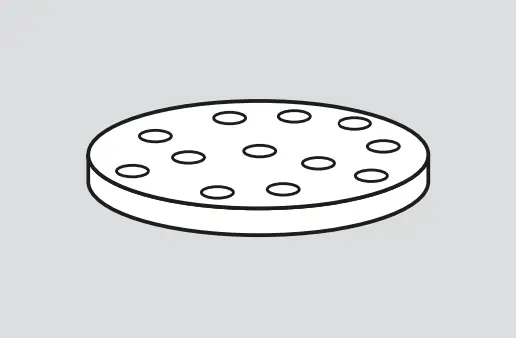

A451 anti-mineral pad Quick Manual

Safety instructions

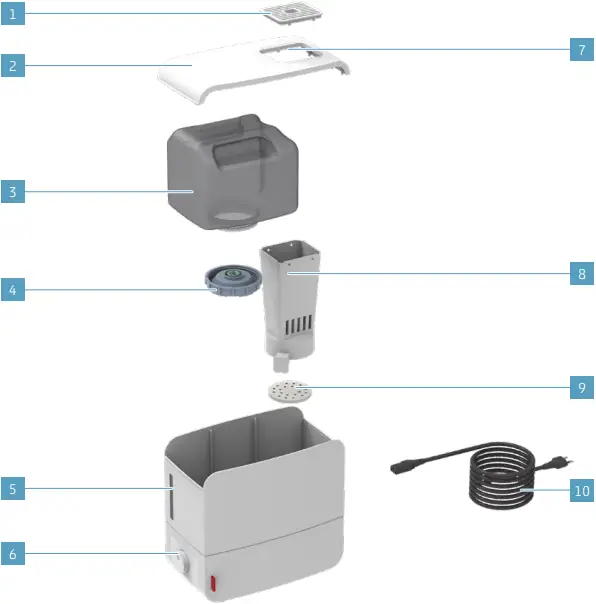

OVERVIEW AND PART NAMES

1 Steam tube cover with fragrance container
2 Appliance cover
3 Water tank
4 Water tank cap
5 Water level indicator
6 Output regulator
7 Steam output
8 Steam tube
9 A451 Anti-Mineral-Pad
10 Power cord

TECHNICAL DATA

TECHNICAL DATA*

Mains voltage	220 – 240V ~ 50/60Hz
Power consumption	145 W / 285 W
Humidity output	300 g/h **
For rooms up to	50 m² / 125 m³
Water capacity	3.0 liters
Dimensions L×W×H	172×316× 281 millimeters
Weight (empty)	2.8 kg
Operation noise level	< 42 dB(A)

* Subject to change
** @ 230V ~ 50 Hz

PUTTING INTO OPERATION

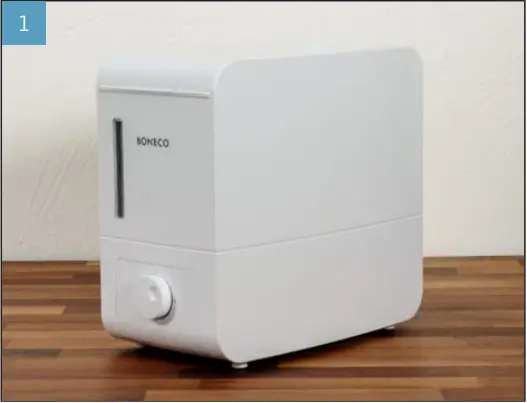

Place the BONECO S200 on a stable surface.

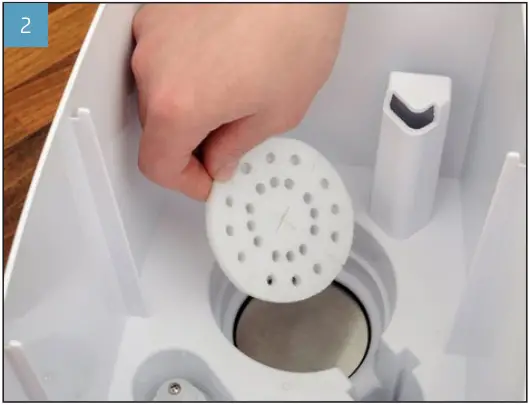

Place the included anti-mineral pad on the heating plate.

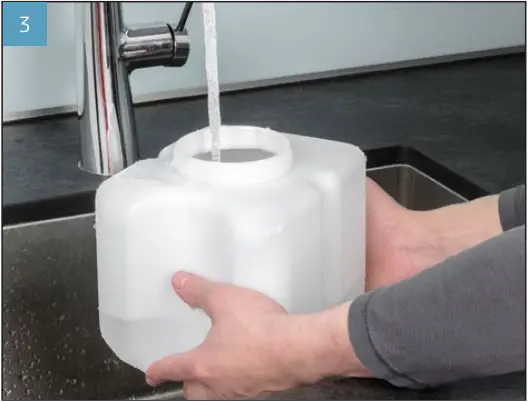

Fill the water tank with cold tap water.

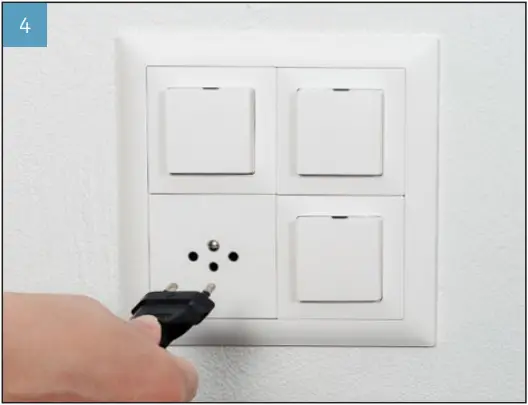

Plug the power cord into a power outlet.

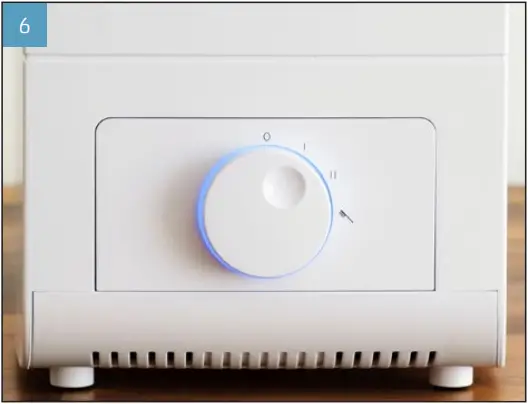

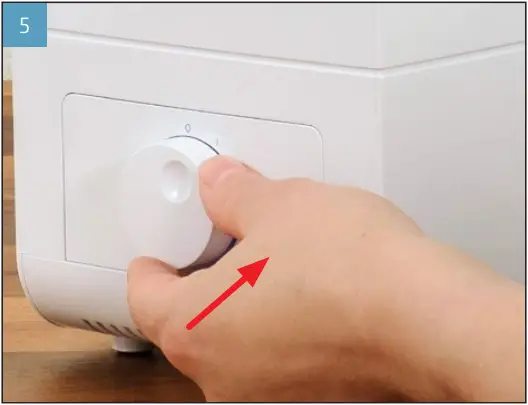

Switch on the BONECO S200 with the output regulator.

Select level 1 or level 2 for the steam output.

HANDLING

SWITCHING ON AND OFF

The BONECO S200 is operated manually. The appliance will run until the control knob is moved to the “0” position.

If the water tank is empty, automatic shut-off prevents the appliance from overheating or becoming damaged.

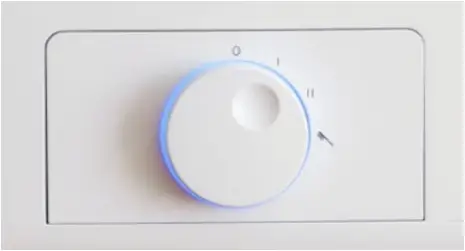

1. Switch on the BONECO S200 by moving the control knob from the “0” position to the “I” position.

2. Increase the humidity output by moving the control knob to the “II” position.
3. Switch off the appliance once the desired humidity has been reached.

DISPLAY DURING OPERATION

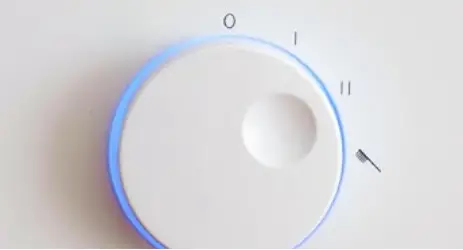

The LED ring on the control knob indicates the operating state.

Blue (constant): The appliance is functioning normally; there is water in the tank.

Red (constant): The appliance is switched on. However, the humidifying function has been switched off automatically because the water tank is empty.

Blue (pulsing): Cleaning mode is active.

CLEANING

SAFETY INSTRUCTIONS

Always unplug the BONECO S200 before you start cleaning it! Failure to do so can result in electric shock and fatal injury!

Do not use alcohol or corrosive cleaning agents for cleaning.

CLEANING THE HOUSING

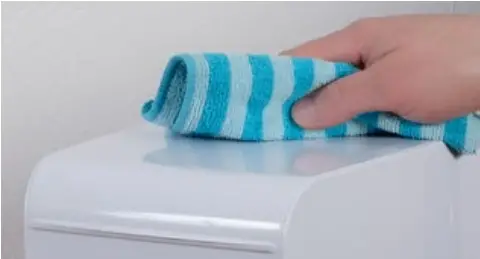

In most cases, a dry cloth can be used for cleaning. If stubborn dirt is present, clean the housing using a damp cloth. Add a small amount of dishwashing detergent to the water. Household cloths and window cleaners can also be used.

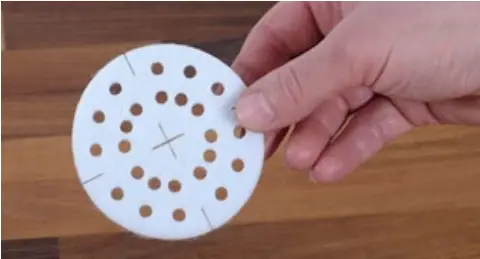

REPLACING THE ANTI-MINERAL PAD

The anti-mineral pad absorbs lime in the water so that the heating plate does not become coated in limescale as quickly. This allows the BONECO S200 to function optimally at all times and descaling is required less frequently.

Over time, the anti-mineral pad becomes hard and less effective due to the absorbed lime.

Check the anti-mineral pad after each cleaning. Replace the anti-mineral pad if it feels hard and rigid.

You can find replacements at your BONECO specialist dealer or in our online store at this address:
www.shop.boneco.com

CLEANING FUNCTION

SAFETY INSTRUCTIONS

Always unplug the BONECO S200 and wait one hour so the remaining water can cool down.
Failure to do so can result in severe burns!

PROCEDURE

Although the anti-mineral pad absorbs most of the lime in the water, the heating plate of the BONECO S200 experiences limescale build-up after an extended operating time.

The BONECO S200 is equipped with a cleaning function for simple and convenient descaling. This warms and cools the heating plate multiple times in order that the lime becomes crumbly and can be easily removed.

DURATION OF THE CLEANING

The cleaning usually lasts between 1 and 4 hours. However, the duration can be adjusted at your discretion until the desired effect is achieved.

STARTING THE CLEANING

1. Switch off the BONECO S200 and let it cool down for 1 hour.
2. Remove the anti-mineral pad and empty the water tank.
3. Mix 1 bag CalcOff® with 1 liter (about 1 quart) of

warm tap water.

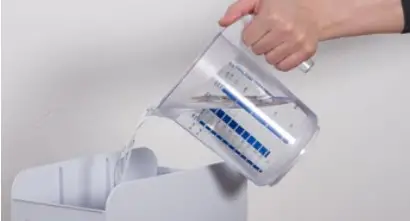

4. Add the mixture to the BONECO S200.

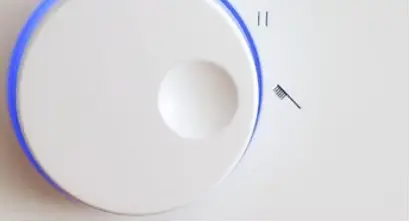

5. Move the control knob to the position to start the cleaning.

6. Switch off the BONECO S200 after the desired cleaning time.
7. Unplug the BONECO S200 and rinse the water base with tap water.
8. Place the anti-mineral pad back in the water base.

REPLACING THE ACCESSORIES

A7417 CalcOff® A451 anti-mineral pad

AVAILABILITY OF ACCESSORIES

You can obtain replacements for worn-out accessories as well as additional accessories from:

At your BONECO specialist dealer,
At www.shop.boneco.com or
Directly via the “BONECO healthy air” app.

CLEANING INTERVALS

RECOMMENDED CLEANING INTERVALS

Interval	Action
After the third day without operation	Empty water base and water tank and fill with fresh water
Every 2 weeks	Clean water tank, appliance cover, fragrance container and steam tube with dish detergent and a soft plastic brush and rinse well
Every 2 to 4 weeks	Check A451 Anti-Mineral-Pad and replace if necessary
Annually	Clean the housing with a damp cleaning cloth and wipe dry; use a cleaning agent suitable for plastic as necessary

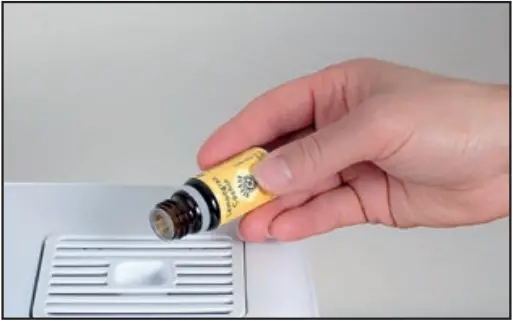

FRAGRANCE CONTAINER

ABOUT THE FRAGRANCE CONTAINER

The fragrance container is integrated into the steam tube cover.

Fill only a small amount of fragrances into the fragrance container and make sure not to overfill it.

Fragrances must not be directly added to the water tank, water base or evaporator basin because the material and, consequently, the appliance are damaged.
