AZ700T
Quick Start guide

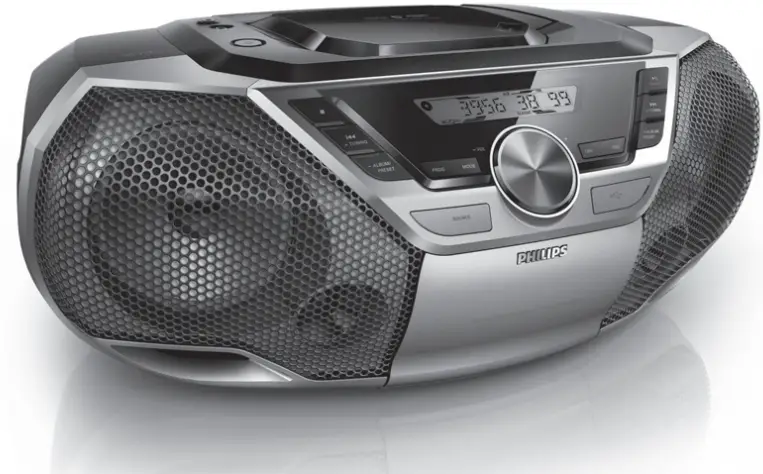

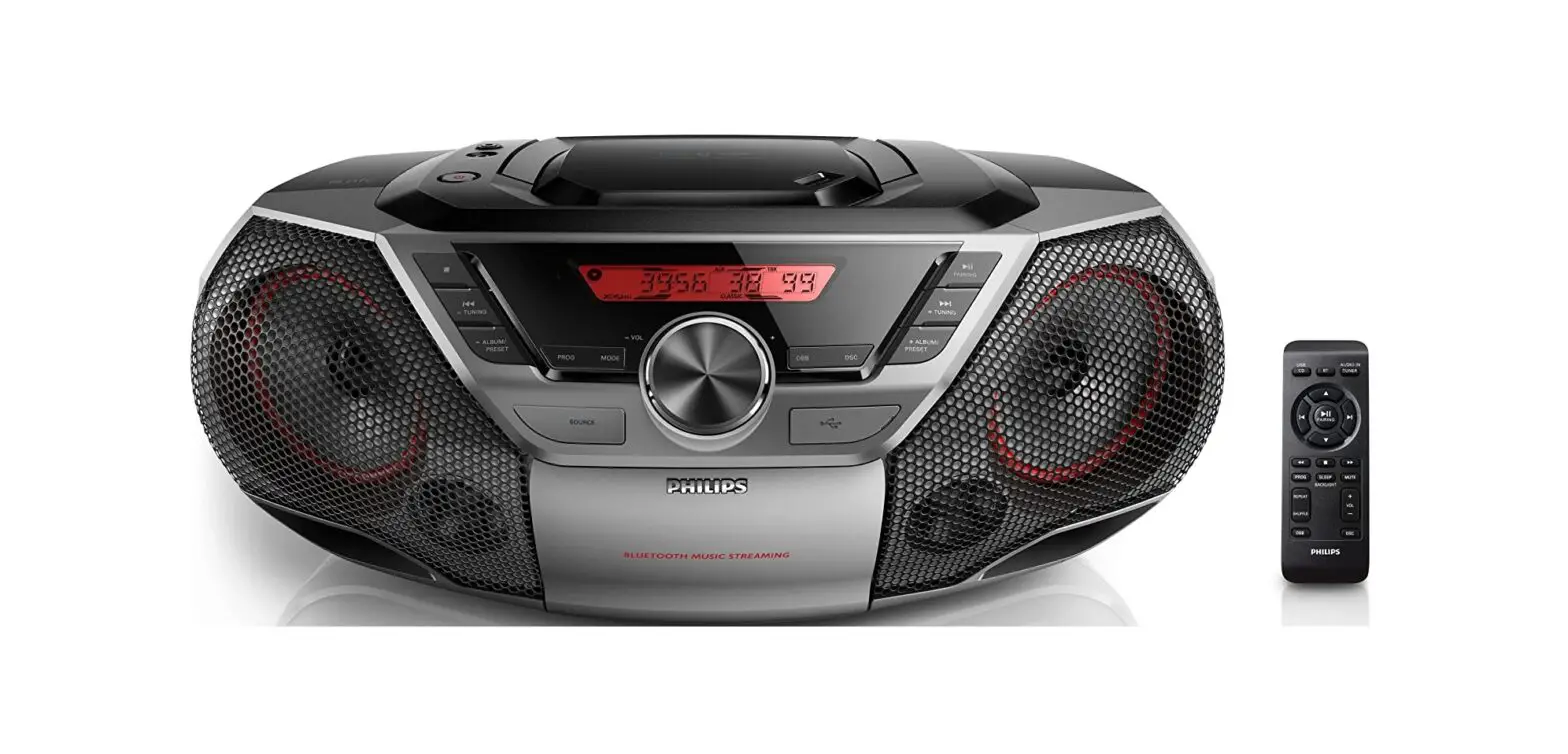

AZ700T CD Sound Machine

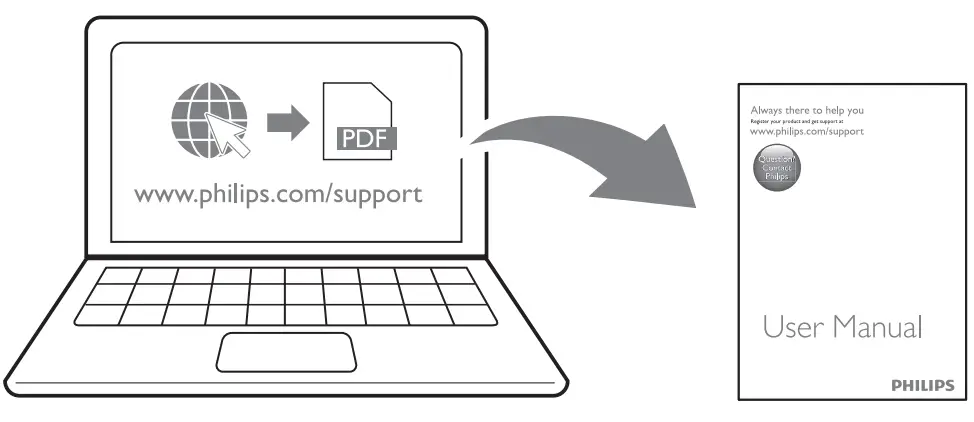

To download the full user manual, visit www.philips.com/support

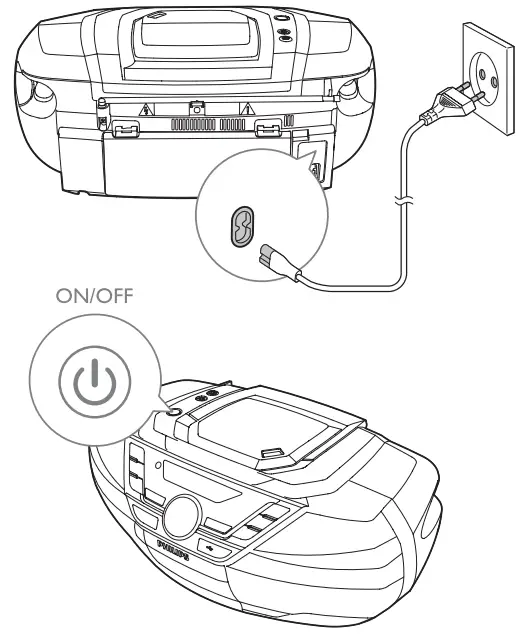

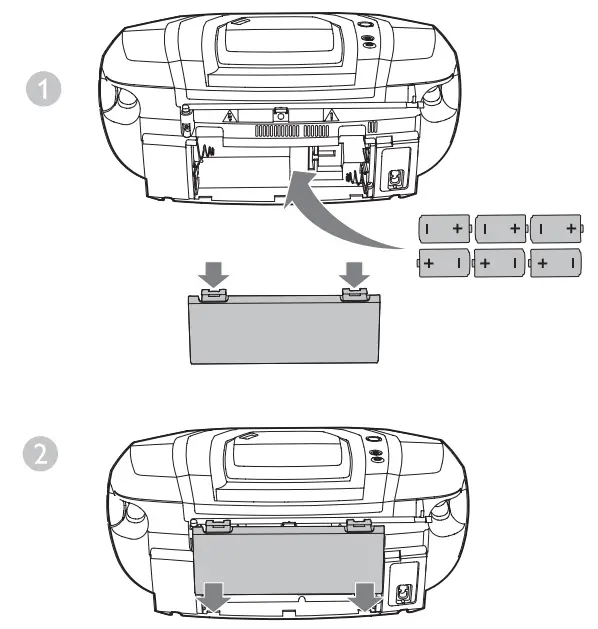

To operate this device, you can use either batteries (type: R-20 or 0-cells) or AC power

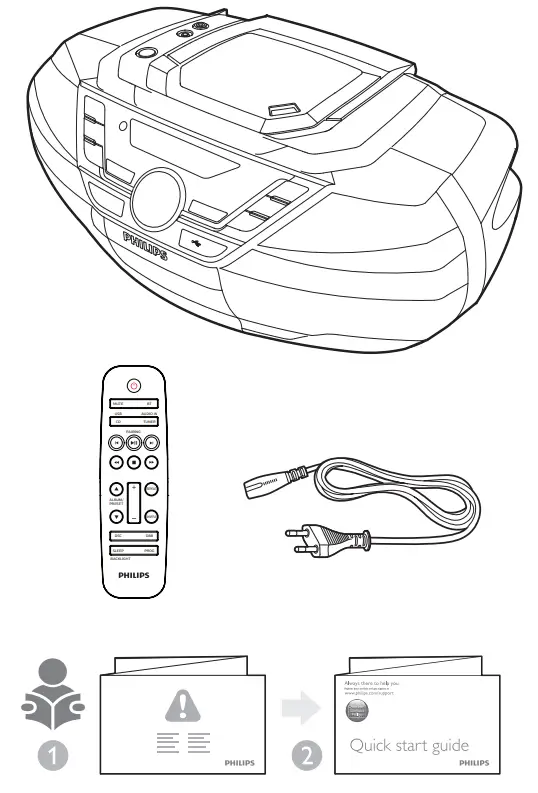

For first-time use

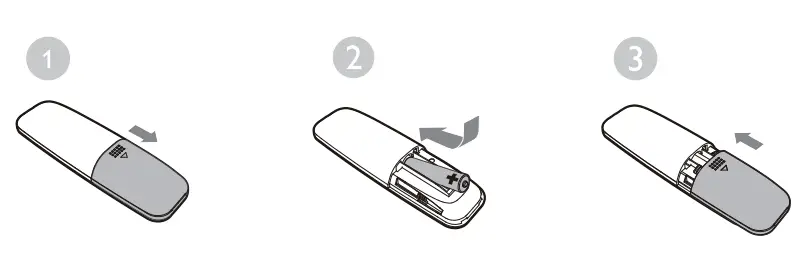

Replace battery

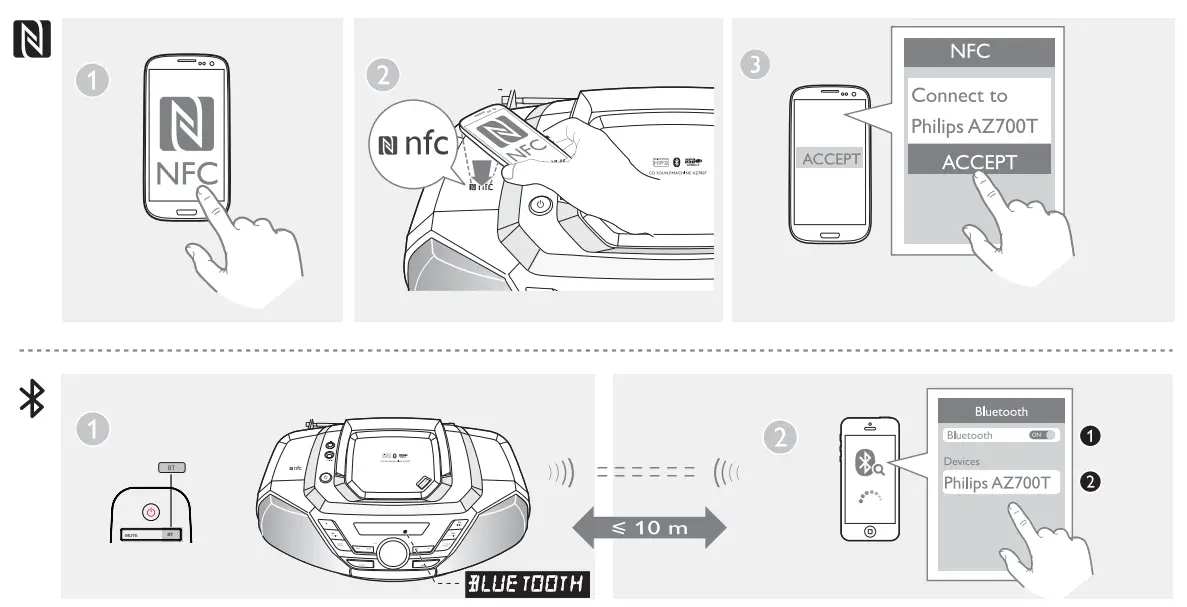

Connect through NFC
- Enable the NFC feature on your Bluetooth-enabled device.
- Touch the NFC tag on the top of the CD sound machine with back of your Bluetooth device.
- On your Bluetooth device, accept the pairing request with “PhilipsAZ700T”. If necessary, input “0000” as the pairing password.
Connect manually through Bluetooth
- Press BT to select Bluetooth source.
↳ [BLUETOOTH](Bluetooth) is displayed.
↳ The CD sound machine enters pairing mode, and [PAIRING] (pairing) is displayed on the screen. - On your Bluetooth device, enable Bluetooth and search for Bluetooth devices.
- In the device list, select [Philips AZ700T]. If necessary, enter the default password “0000”.
↳ After successful pairing and connection, the product beeps twice, and [CONNECTED] (connected) ) is displayed on the screen.
Note: • If you cannot find [Philips AZ700T] on your device, press
/PAIRING for 2 seconds to enter pairing mode,[PAIRING] (Pairing) is displayed on the screen.

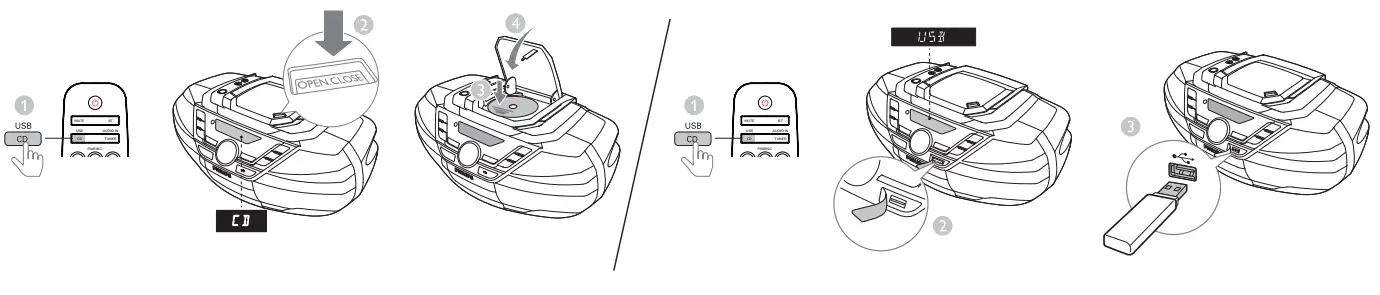

Control play ( CD/USB mode only)
 | Press and hold to fast-forward or fast-reverse the track during playback then release to resume play. |
 | Skip to the previous or next MP3 album. |
 | Skip to the previous or next track |
 | Start or pause play. |
 | Stop play. |
| REPEAT | Press repeatedly to select a repeat play mode. |
| SHUFFLE | Press to select shuffle play. |

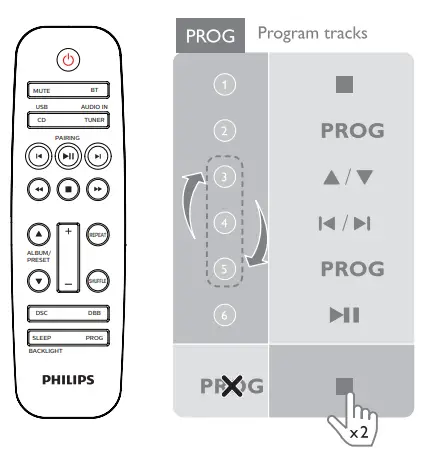

Program tracks
Note:
- To erase the program, press
twice. - Only [
] and [ ALL ] can be selected when you play the programmed tracks.
] and [

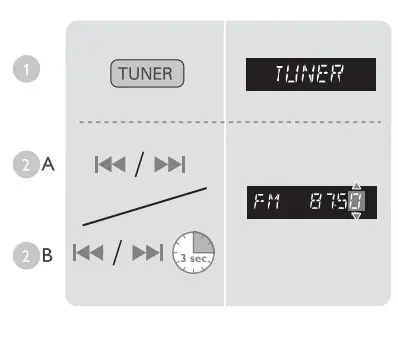

Tune to FM radio stations

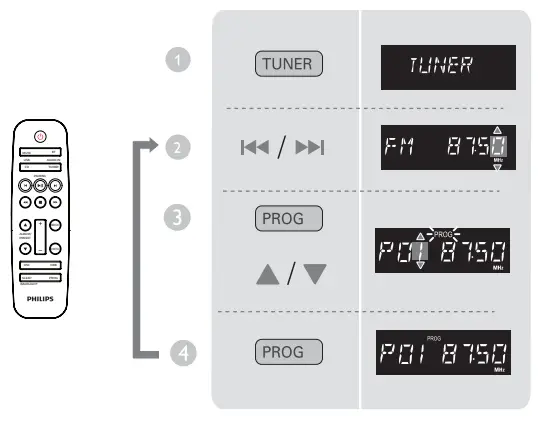

Store FM radio stations manually

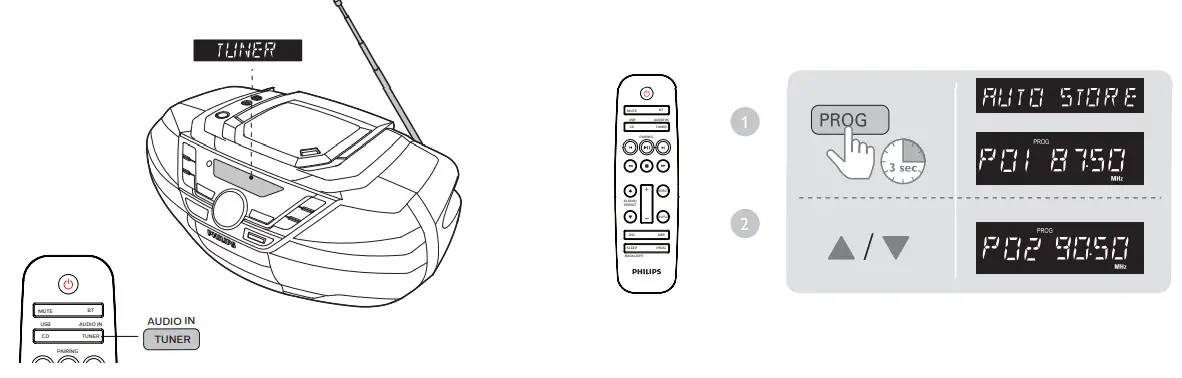

Store FM radio stations automatically
Specifications
Specifications| Amplifier | |
| Max Output Power | 12 W |
| Frequency Response | 125 -16000 Hz, -3dB |
| Signal to Noise Ratio | >66 dBA |
| Total Harmonic Distortion | <1 % |
| Audio-in Input | 650 mV RMS |
| Disc | |
| LaserType | Semiconductor |
| Disc Diameter | 12cm/8cm |
| Support Disc | CD-DA, CD-R, CD-RVV, MP3-CD |
| Audio DAC | 24Bits / 44.1 kHz |
| Total Harmonic Distortion | <1% |
| Frequency Response | 125 -16000 Hz, -3dB |
| S/N Ratio | >66 dBA |
| Tuner | |
| Tuning Range | 87.5 – 108MHz |
| Tuning grid | 50 kHz |
| Sensitivity: – Mono, 26dB S/N Ratio – Stereo, 46dB S/N Ratio | <22 dBf <43 dBf |
| Search Selectivity | 26dBf |
| Total Harmonic Distortion | <3% |
| Signal-to-Noise Ratio | >50 dBA |
| Bluetooth | |
| Bluetooth Version | V4.2 + EDR |
| Range | 10 m (Free space) |
| Frequency band/Output power | 2.400GHz – 2.483GHz ISM Band / 4dBm (Class 2) |
| NFC frequency | 13.56 MHz |
| General | |
| Power supply – AC Power – Battery | 220-240V—, 50/60 Hz; DC 9 V, 6 x 1.5 V/R20 /D CELL |
| Operation Power Consumption | 15W |
| Standby Power Consumption | < 0.5 W |
| Dimensions – Main Unit (W x H x D) | 435 x 170 x 271 mm |
| Weight (Main Unit) | 2.7 kg |
Register your product and get support at
www.philips.com/support
Philips and the Philips Shield Emblem have registered trademarks of Koninklijke Philips N.V. and are used under license. This product has been manufactured by and is sold under the responsibility of MMD Hong Kong Holding Limited. or one of its affiliates, and MMD Hong Kong Holding Limited. is the warrantor in relation to this product
AZ700T_12_QSG_V5.0
