Socket Mobile D700 Barcode Reader User Guide (+ PDF)

Get Started With Your Socket Mobile
Barcode Reader
D700 Barcode Reader
User Guide

Contents hide

1 socket mobile D700 Barcode Reader

2 Bluetooth Connection Modes

3 Factory Reset

4 Documents / Resources

4.1 References

5 Related Posts

socket mobile D700 Barcode Reader

For best results, please follow instructions below:

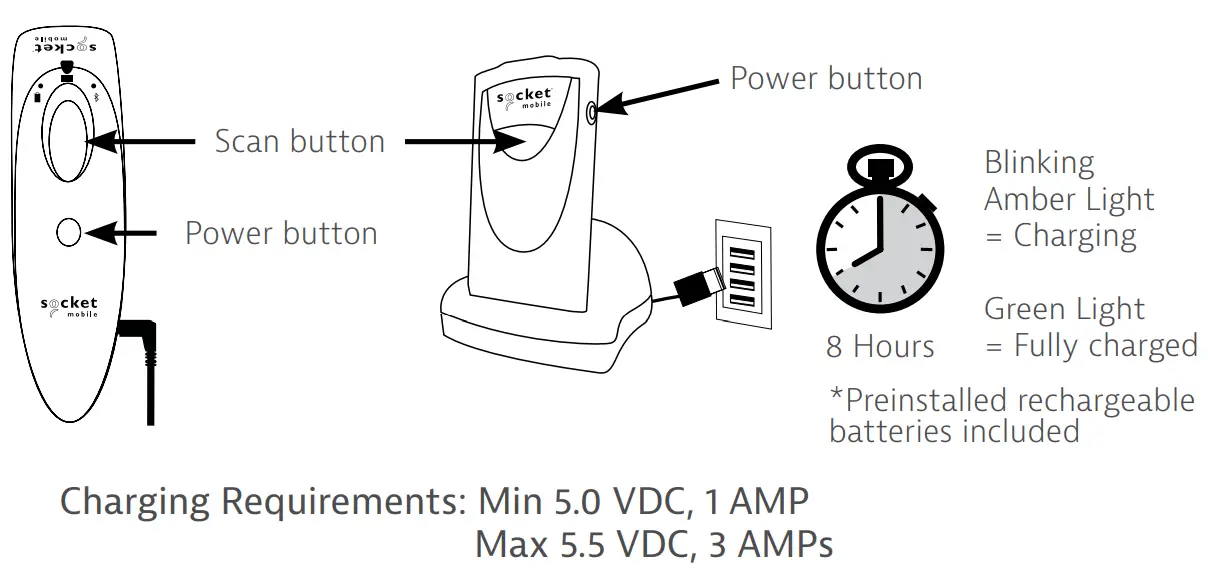

Prior to first use – Fully charge your barcode reader.
Use a wall charger to charge batteries until the battery light turns solid green (up to 8 hours).
Download the Socket Mobile Companion app to set-up your barcode reader.
https://www.socketmobile.com/support/companion
Scan QR Code with your device to visit the Companion app download page, or go to socketmobile.com/companion
Register your barcode reader to activate a 90-day warranty extension.

If the Companion app cannot be installed, pair your barcode reader directly to the host device.

On host device – turn off Bluetooth.
Power on the barcode reader.
Select and scan a Bluetooth connection mode barcode (see following page).
On host device – turn Bluetooth back on and pair barcode reader.
You are now ready to start scanning!
For a complete user guide: socketmobile.com/downloads

Need help?
Visit socketmobile.com/support
For device set-up: socketmobile.com/device-set-up

Bluetooth Connection Modes

iOS Application Mode (Default) Use this mode with an Apple app designed for Socket Mobile barcode readers.
Android/Windows Application Mode Use this mode with an Android app designed for Socket Mobile barcode readers.
Basic Keyboard Mode Configures the barcode reader to Human Interface Device (HID).

Factory Reset

Revert all settings to factory defaults. The barcode reader will power off after scanning this barcode.

socket mobile D700 Barcode Reader - bar code

Add SocketCare extended warranty coverage: socketmobile.com/socketcare

Purchase SocketCare within 60 days from the date of purchase of the barcode reader.
Product Warranty: The barcode reader’s warranty period is one year from the date of purchase.
Consumables such as batteries and charging cables have a limited warranty of 90 days. Extend your barcode reader’s standard one-year limited warranty coverage up to five years from the date of purchase. Additional service features are available to further enhance your warranty coverage:

Warranty period extension only
Express Replacement Service
One-Time Accidental Coverage
Premium Service

Environment
Socket Mobile is committed to combating global climate change. We back up this commitment with sensible, sustainable policies dedicated to achieving tangible results. Learn about the specifics of our environmental practices here: socketmobile.com/recycling
Important Information – Safety, Compliance and Warranty
Safety and Handling
See Safety and Handling in the User Guide: socketmobile.com/downloads
Regulatory Compliance
Regulatory information, certification and compliance marks specific to the Socket Mobile barcode scanner are available in Regulatory Compliance: socketmobile.com/downloads.
IC and FCC Compliance Statement
This device complies with Industry Canada license exempt RSS standard(s). This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may cause interference, and (2) this device must accept any interference, including interference that may cause undesired operations.
EU Compliance Statement
Socket Mobile hereby declares that this wireless device is in compliance with the essential requirements and other relevant provisions. Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:
CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES

Low Voltage Directives: 2014/35/EU
RED Directive: 2014/53/EU
EMC Directive: 2014/30/EU
RoHS Directive: 2015/863
WEEE Directive: 2012/19/EC

Battery and Power Supply
The barcode reader contains a rechargeable battery which may present a risk of fire or chemical burn if mistreated.
Do not charge or use the unit in a car or similar place where the inside temperature may be over 60 degrees C or 140 degrees F.
Limited Warranty Summary
Socket Mobile Incorporated warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Products must be purchased new from a Socket Mobile authorized distributor, reseller or from the SocketStore on Socket Mobile’s website: socketmobile.com. Used products and products purchased through non-authorized channels are not eligible for this warranty support. Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.
For more warranty information: socketmobile.com/socketcare

Add SocketCare extended warranty coverage: socketmobile.co.jp/socketcare
Purchase SocketCare within 60 days from the date of purchase of the barcode reader.
Product Warranty: The barcode reader’s warranty period is one year from the date of purchase.
Consumables such as batteries and charging cables have a limited warranty of 90 days. Extend your barcode reader’s standard one-year limited warranty coverage up to five years from the date of purchase. Additional service features are available to further enhance your warranty coverage:

Warranty period extension only
Express Replacement Service
One-Time Accidental Coverage
Premium Service

Environment
Socket Mobile is committed to combating global climate change. We back up this commitment with sensible, sustainable policies dedicated to achieving tangible results. Learn about the specifics of our environmental practices here: socketmobile.co.jp/recycling.
Important Information – Safety, Compliance and Warranty
Safety and Handling
See Safety and Handling in the User Guide: socketmobile.com/downloads
Regulatory Compliance
Regulatory information, certification and compliance marks specific to the Socket Mobile barcode scanner are available in Regulatory Compliance: socketmobile.com/downloads.
IC and FCC Compliance Statement
This device complies with Industry Canada license exempt RSS standard(s). This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1) this device may cause interference, and (2) this device must accept any interference, including interference that may cause undesired operations.
EU Compliance Statement
Socket Mobile hereby declares that this wireless device is in compliance with the essential requirements and other relevant provisions. Products intended for sale within the European Union are marked with a CE Mark, which indicates compliance to applicable Directives and European Normes (EN), as follows. Amendments to these Directives or ENs are included: Normes (EN), as follows:
CONFORMS TO THE FOLLOWING EUROPEAN DIRECTIVES

Low Voltage Directives: 2014/35/EU
RED Directive: 2014/53/EU
EMC Directive: 2014/30/EU
RoHS Directive: 2015/863
WEEE Directive: 2012/19/EC

Battery and Power Supply
The barcode reader contains a rechargeable battery which may present a risk of fire or chemical burn if mistreated. Do not charge or use the unit in a car or similar place where the inside temperature may be over 60 degrees C or 140 degrees F.
Limited Warranty Summary
Socket Mobile Incorporated warrants this product against defects in material and workmanship, under normal use and service, for one (1) year from the date of purchase. Products must be purchased new from a Socket Mobile authorized distributor, reseller or from the SocketStore on Socket Mobile’s website: socketmobile.co.jp. Used products and products purchased through non-authorized channels are not eligible for this warranty support. Warranty benefits are in addition to rights provided under local consumer laws. You may be required to furnish proof of purchase details when making a claim under this warranty.
For more warranty information: socketmobile.co.jp/socketcare

6430-00418A
