KF210153-03 L Shaped Wooden 3 Drawer Desk
Instruction Manual
IMPORTANT INFORMATION!
please read the entire manual before starting to assemble and/or using this product.follow the manual thoroughly and keep it for further reference.
AVOID SCRATCHES!

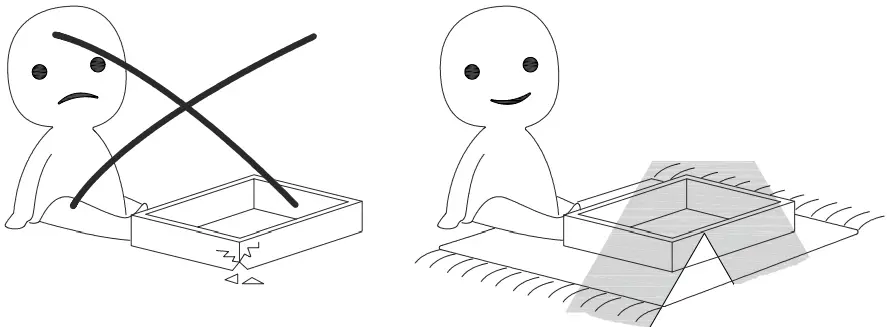

In order to avoid scratching this furniture should be assembled on a soft layer-could be a rug.
IMPROVE EFFICIENCY!
Try to find a partner to install with you, which can speed up the installation efficiency and shorten the time.

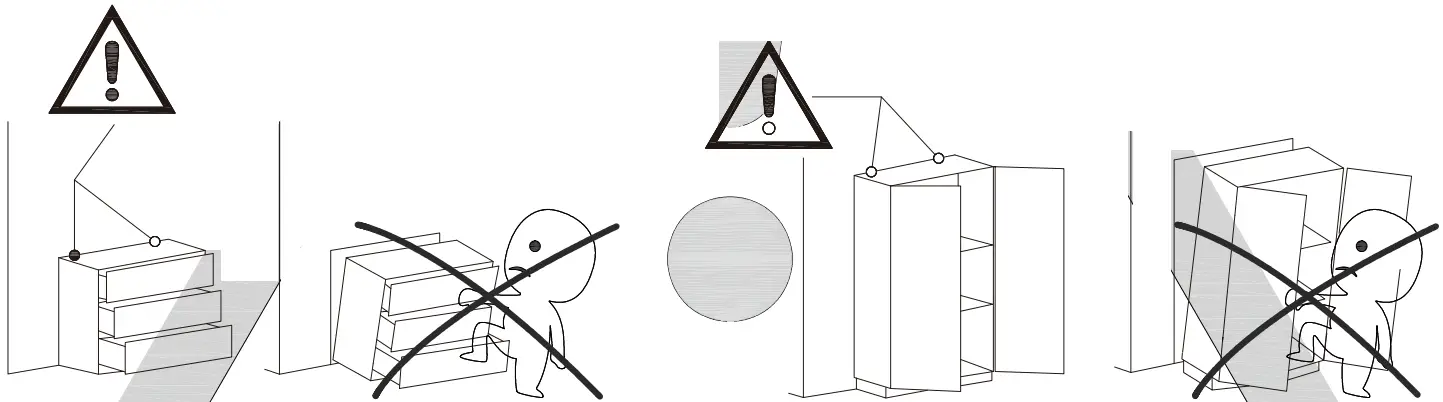

ANTI -TOPPLE WARNING!
Overturned furniture can cause serious or fatal crush injuries. To prevent tipping over, be sure to use the wall attachment, if not included with this product. Please purchase the wall attachment that fit your wall. If unsure, seek professional advice. Please read and follow each step of the instructions carefully.

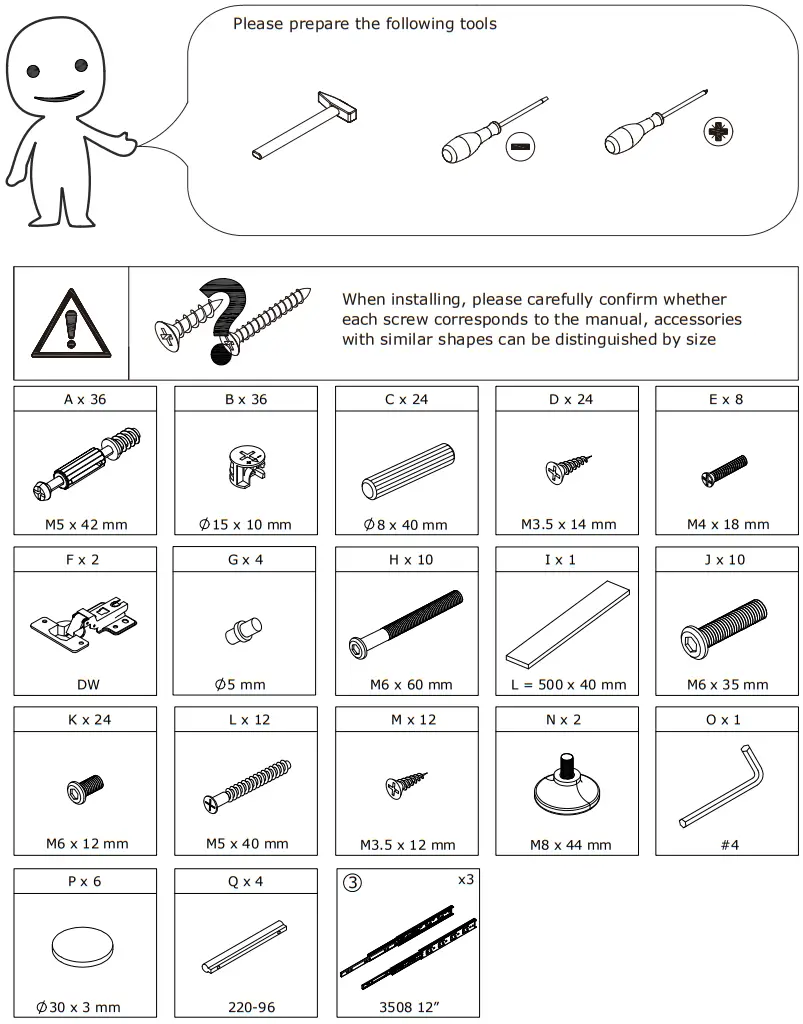

Slides Must Be Separated Before Assembly.
After Separated, Set Aside Until Needed for Assembly.

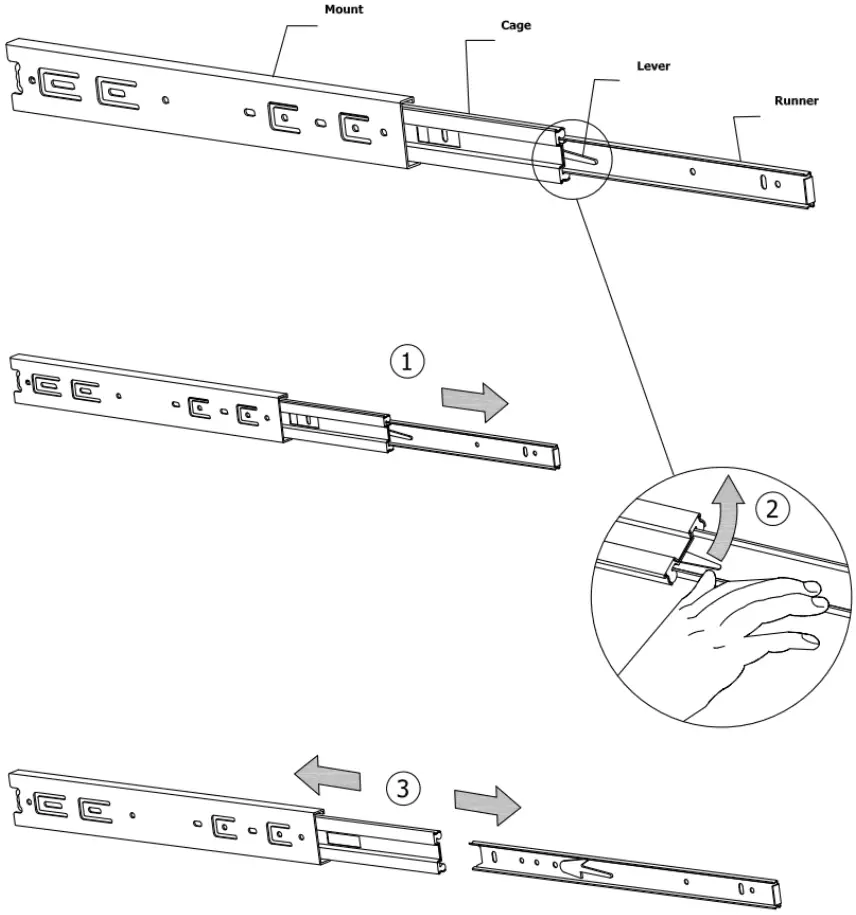

STEP 1: Extend Slide
STEP 2: Push Lever UP
STEP 3: Remove Runner
Separate glide into two parts.

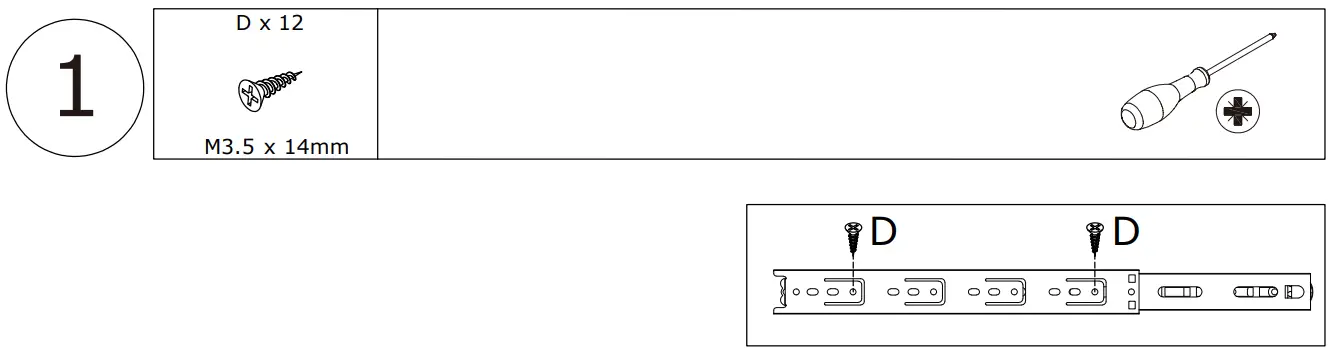

Fix No.3 slide rail to No.12 and No.13 plate with screw(D) as shown.

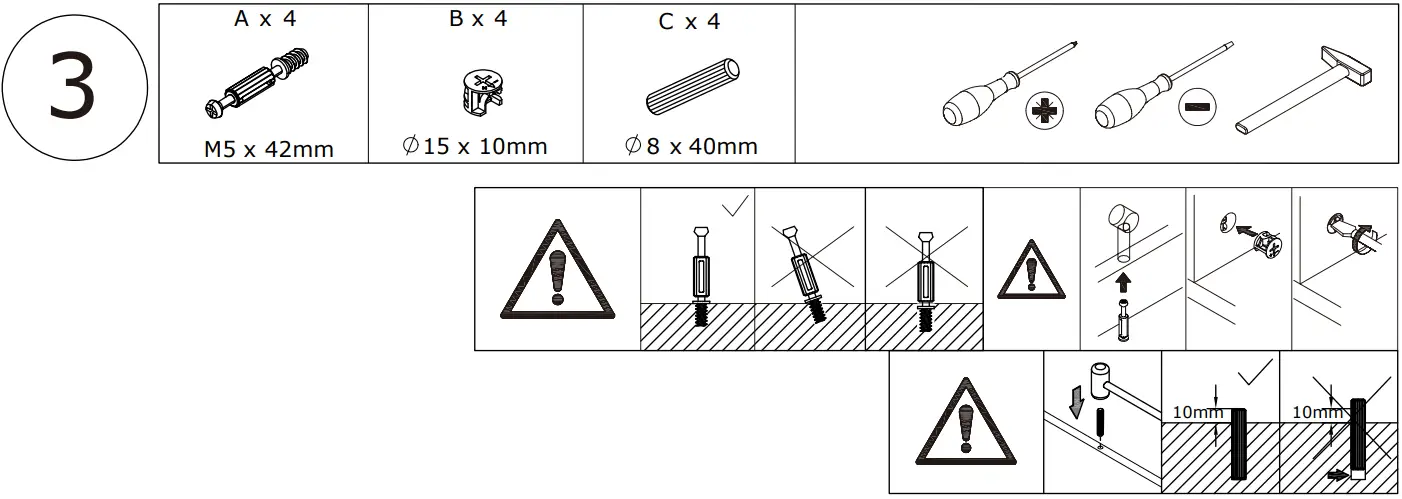

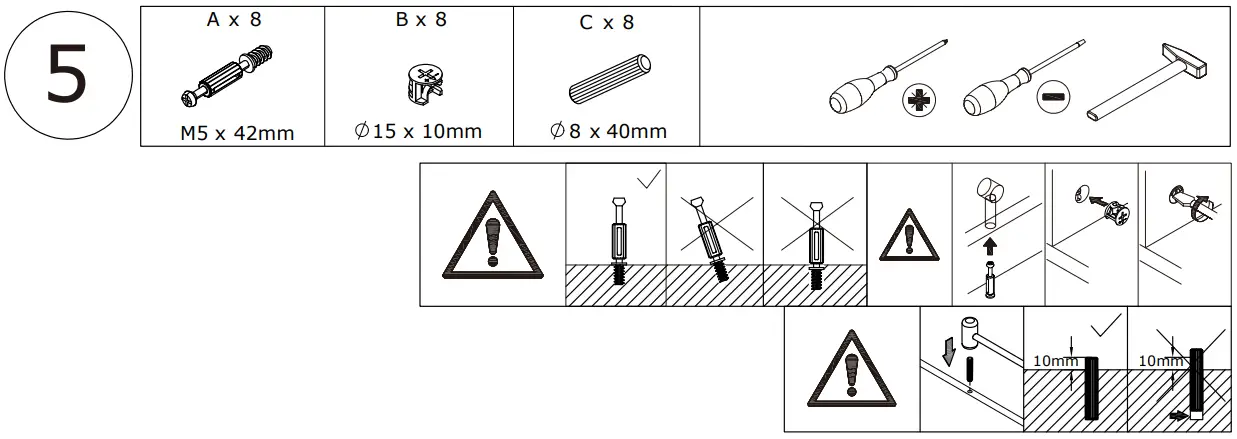

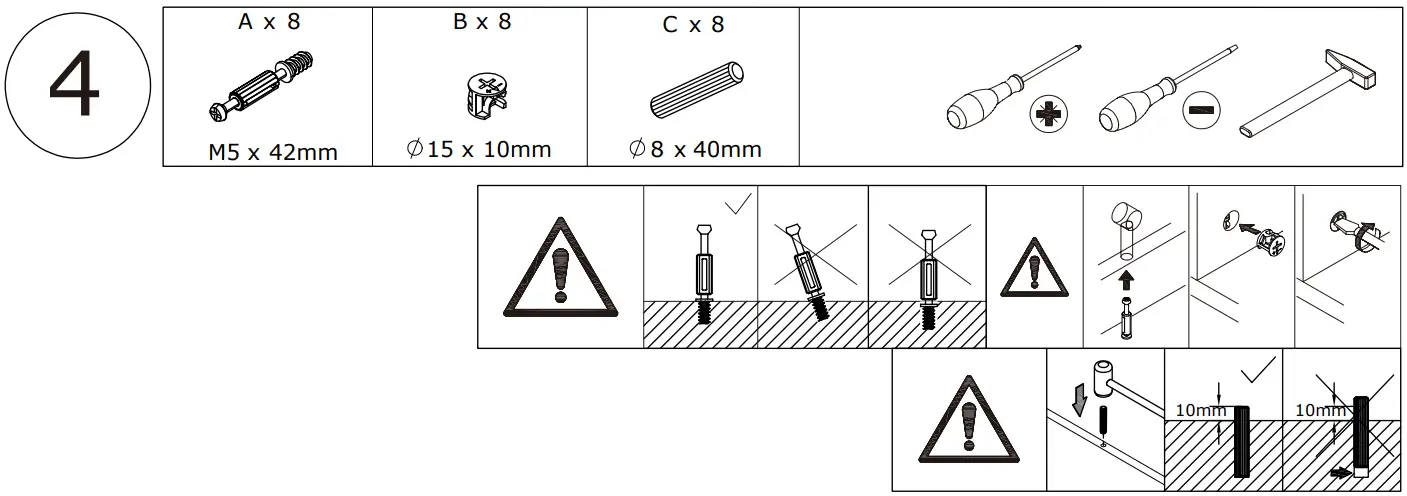

Insert quick fit screw(A) into corresponding holes in No.13 and No.14 plate with a screwdriver as shown.
Connect No.13 and No.14 plate with
No.16 using wooden dowel(C) and turn cam locks(B) clockwise to tighten as shown.

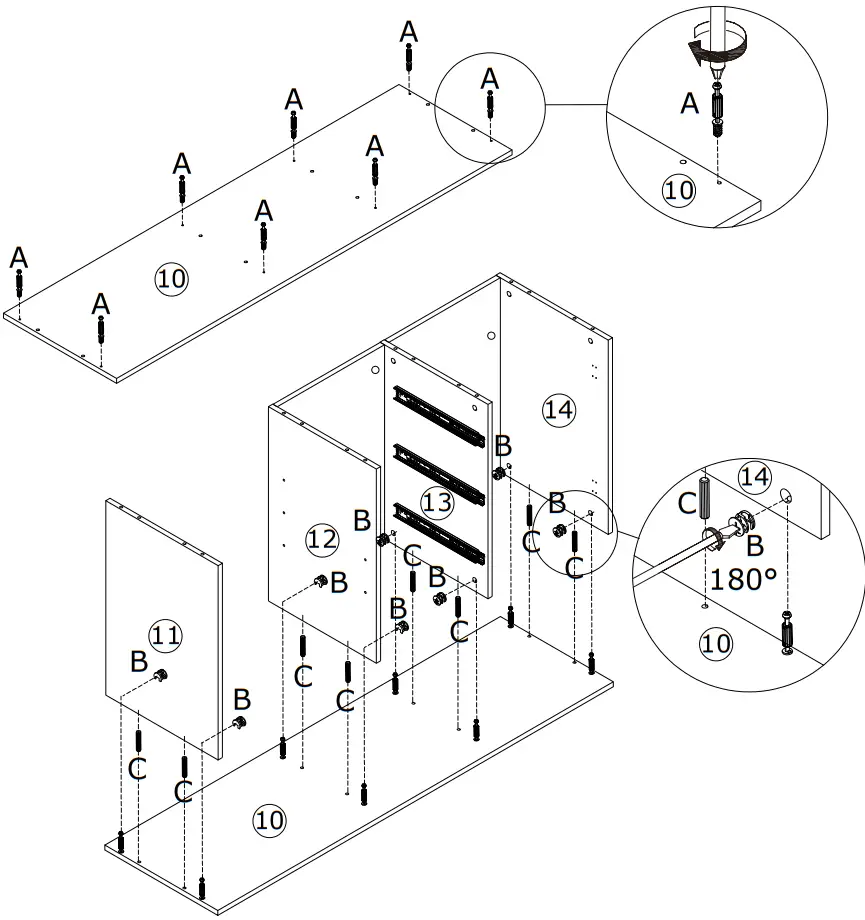

Insert quick fit screw(A) into corresponding holes in No.12 plate with a screwdriver as shown.Connect No.13 and No.12 plate with No.15 using wooden dowel(C) and turn cam locks(B) clockwise to tighten as shown.

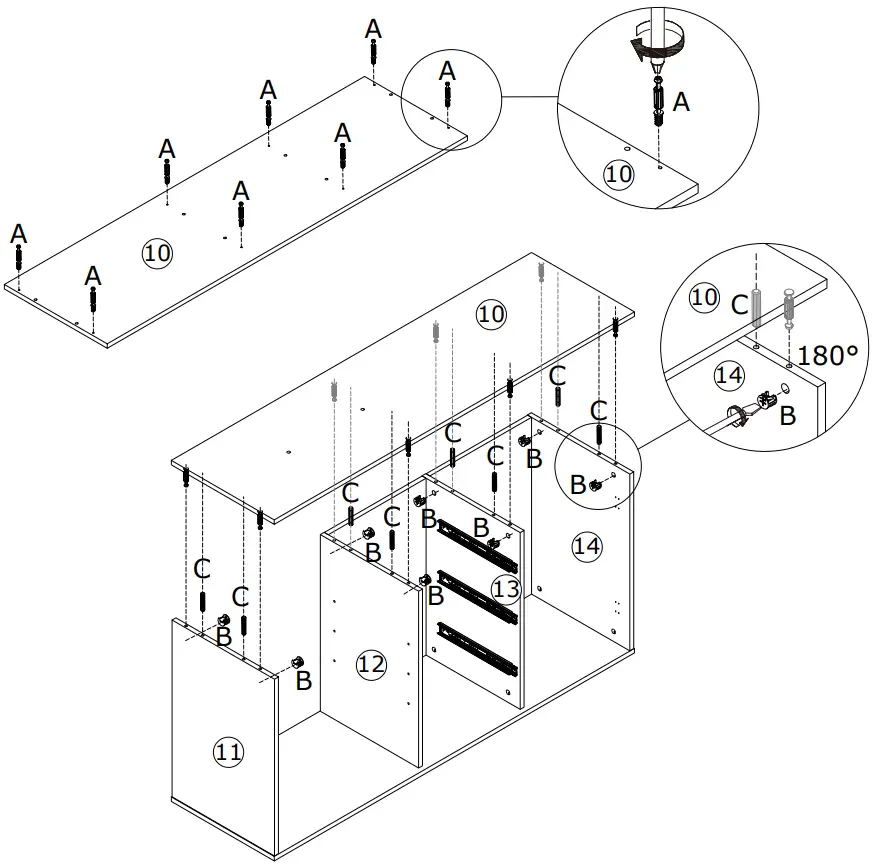

Insert quick fit screw(A) into corresponding holes in No.10 plate with a screwdriver as shown. Attach No.10 plate to No.11, No.12, No.13 and No.14 using wooden dowel(C) and turn cam locks(B) clockwise to tighten as shown.
Insert quick fit screw(A) into corresponding holes in another No.10 plate with a screwdriver as shown.
Cover No.10 plate to No.11, No.12, No.13 and No.14 using wooden dowel(C) and turn cam locks(B) clockwise to tighten as shown.
Please don’t use an electric drill or use force to rotate, may cause crack.

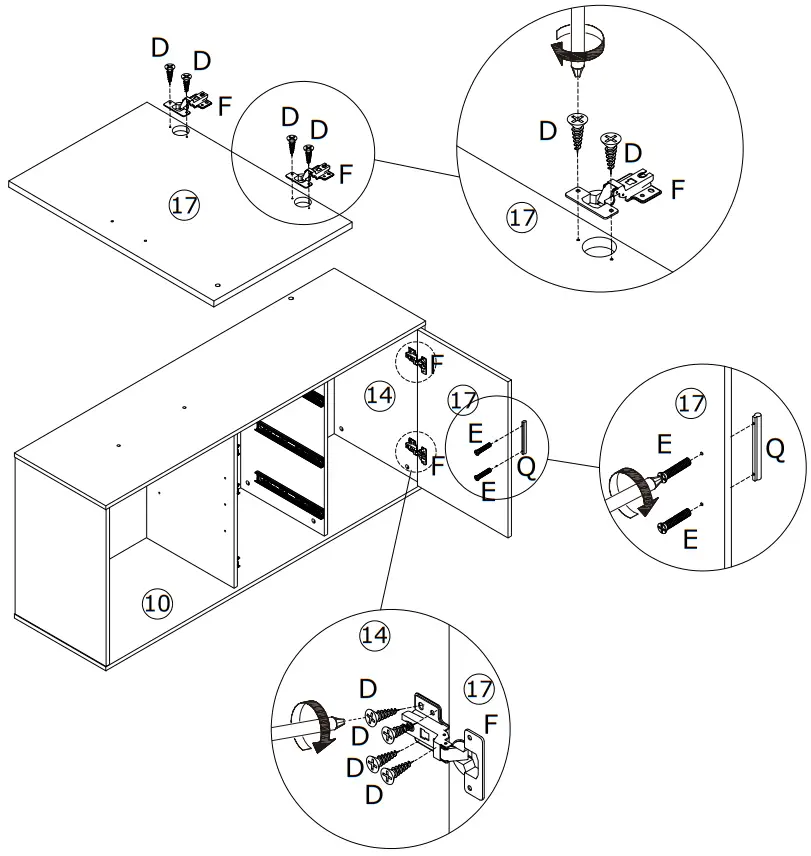

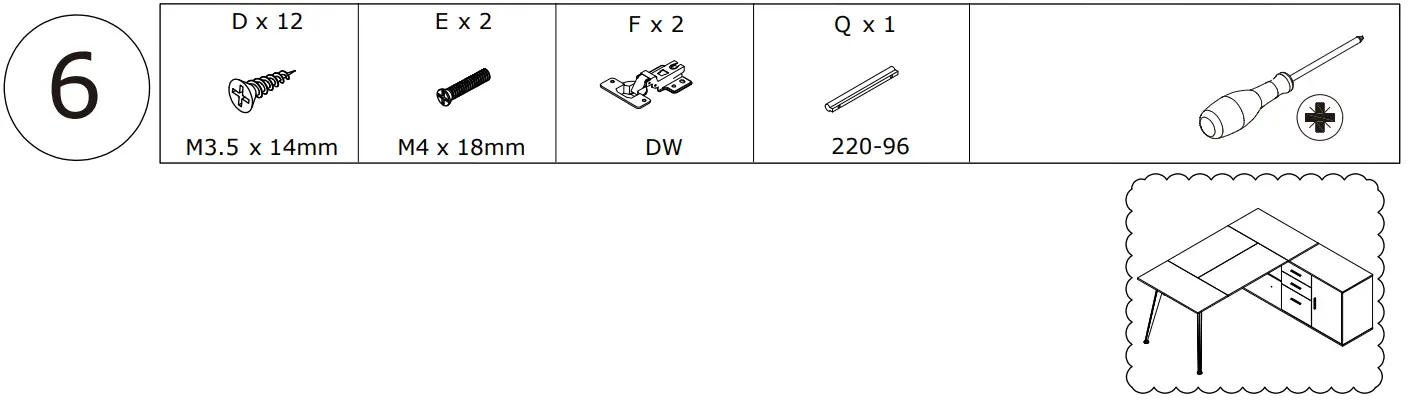

Fix hinge(F) to No.17 plate with screw(D) as shown.
Attach No.17 plate to No.14 by fixing hinge with screw(D).
Fix handle(Q) with screw(E).

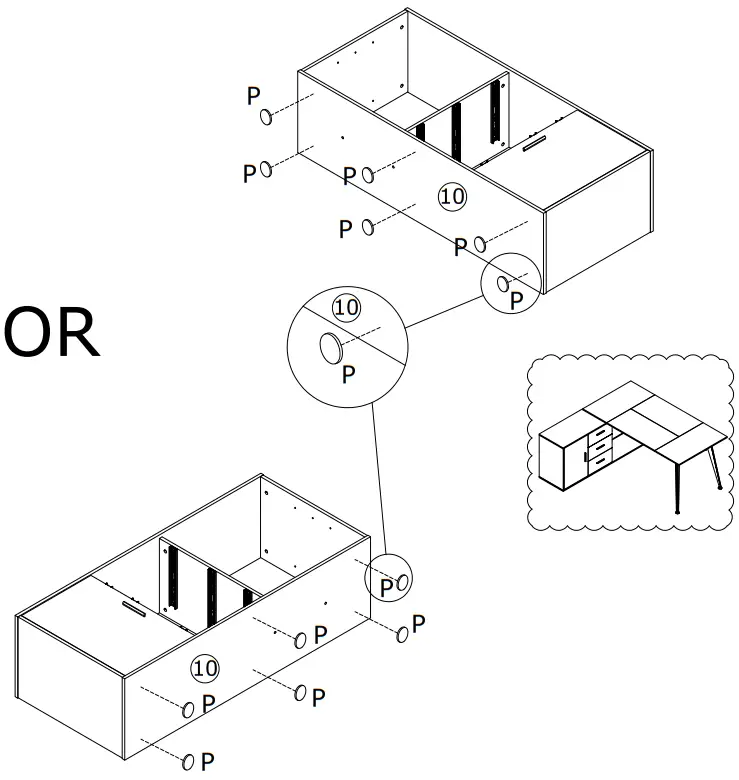

Stick foot pad(P) to the bottom as shown.

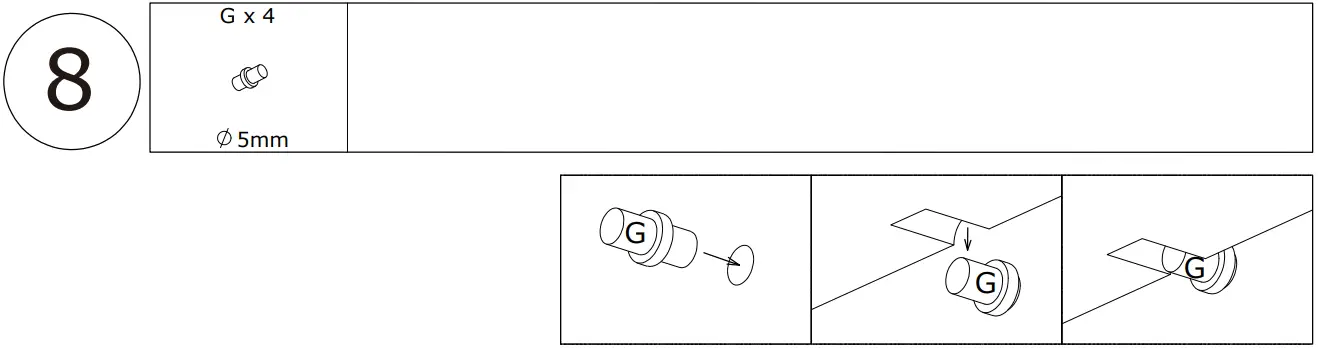

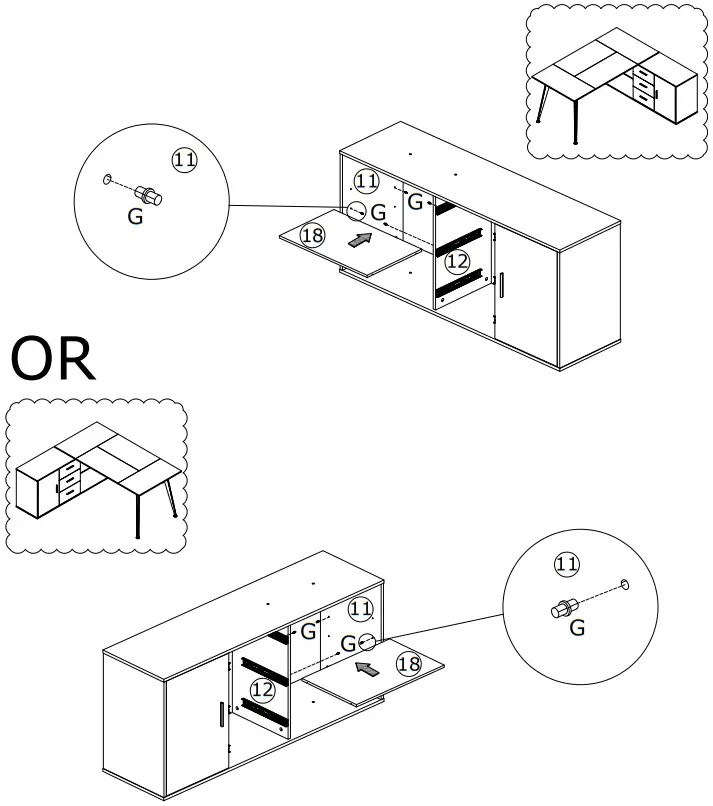

Insert part(G) into No.11 and No.12 plate, place No.18 shelf in as shown.

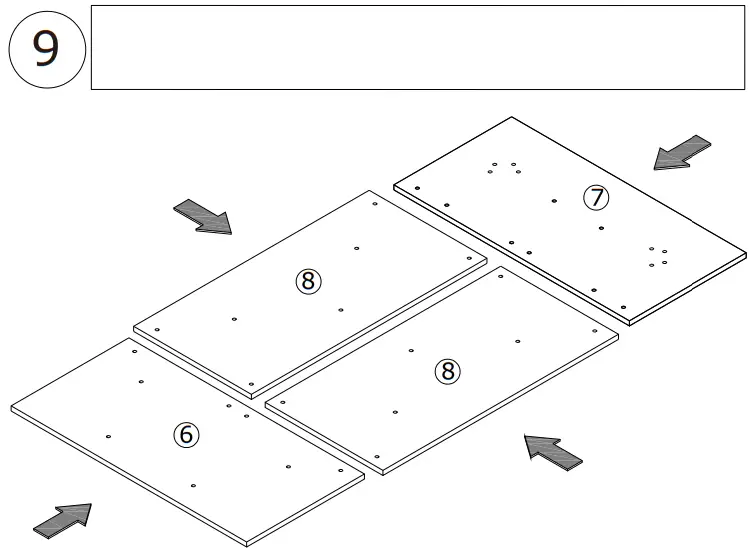

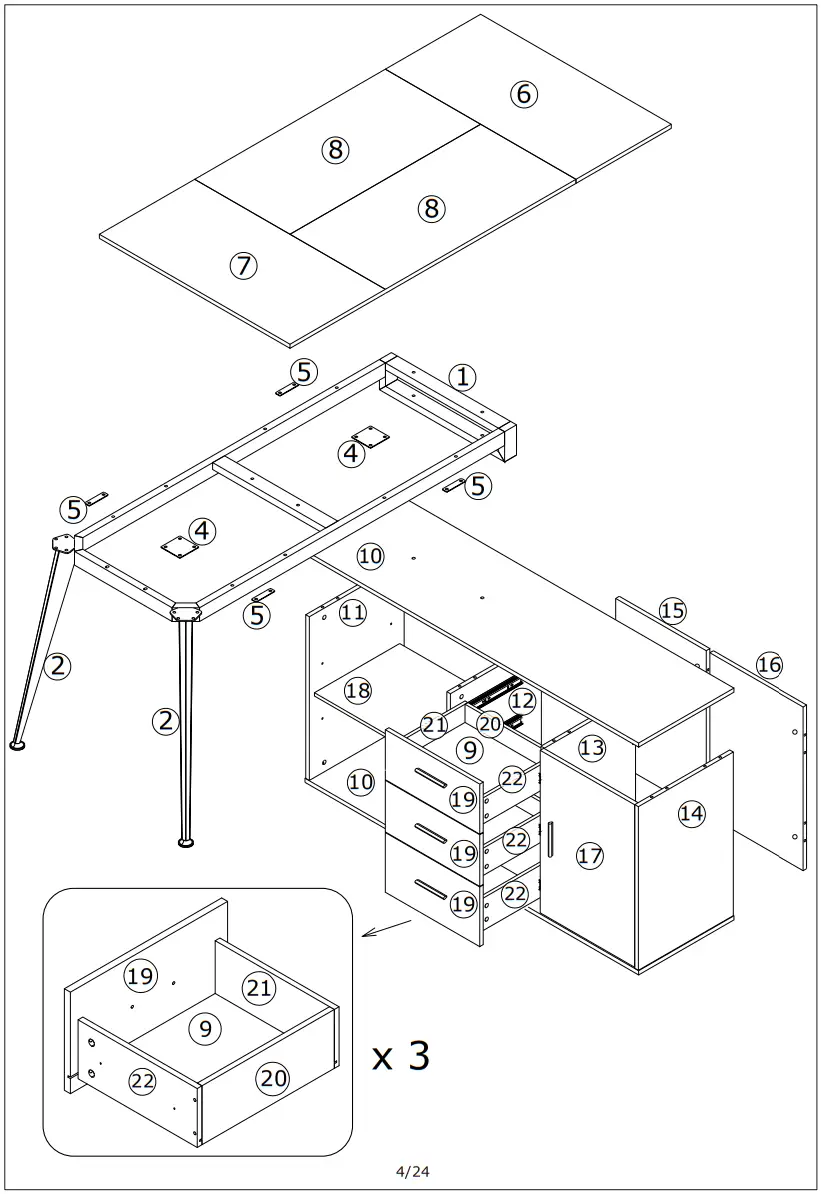

Assemble No.6, No.7 and No.8 plate together as shown.

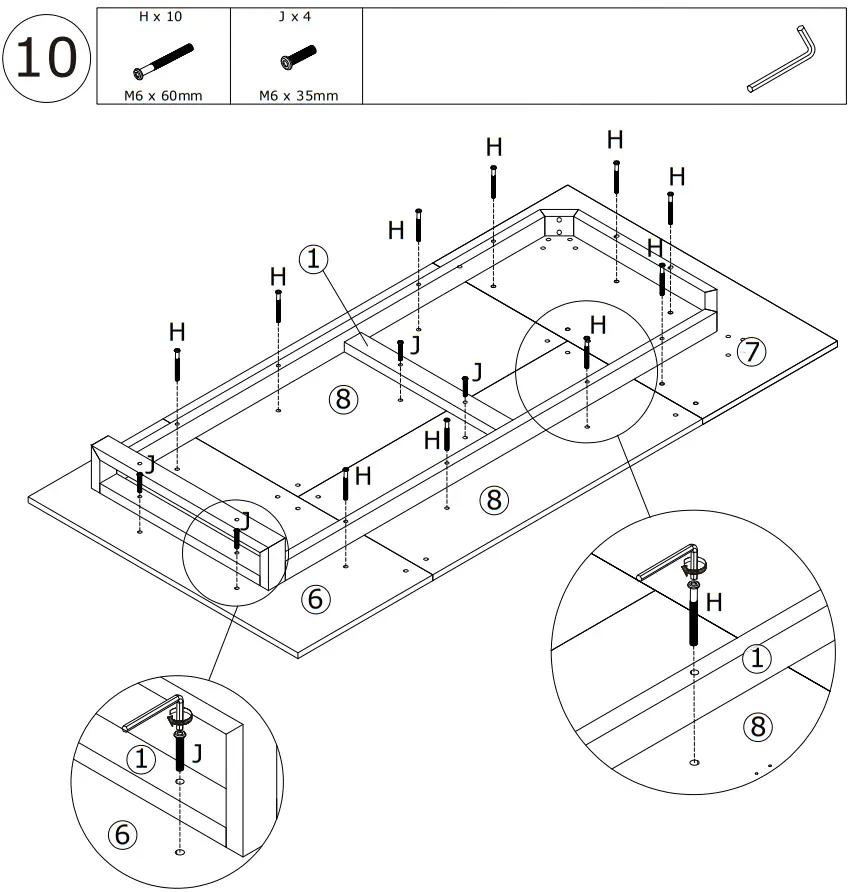

Attach No.1 iron frame to these plates and fix with screw(H) and (J) as shown.

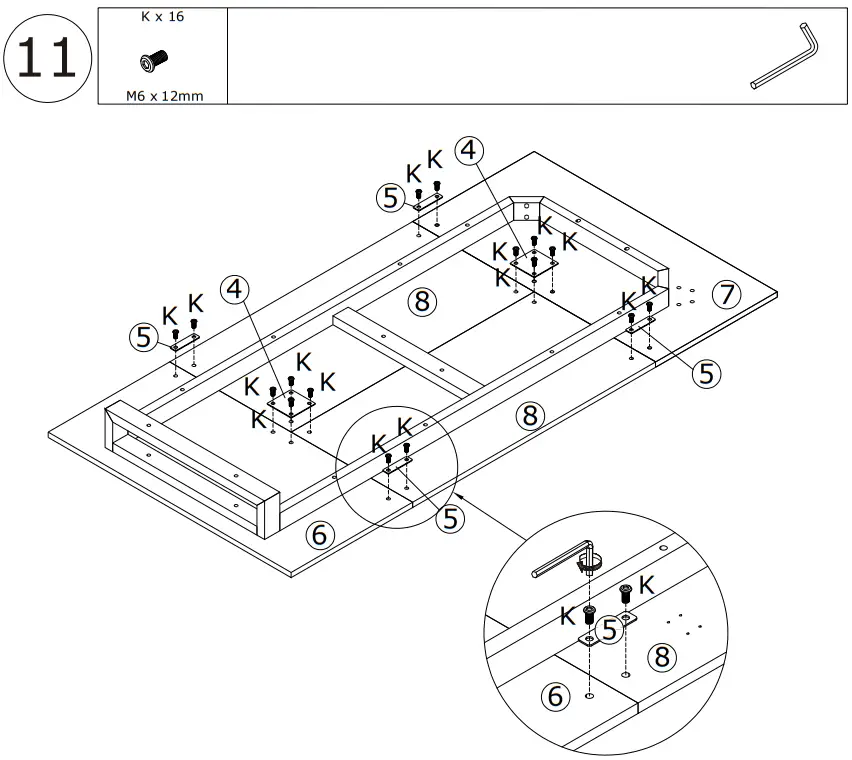

Fix No.4 and No.5 iron sheet to the component with screw(K) as shown.

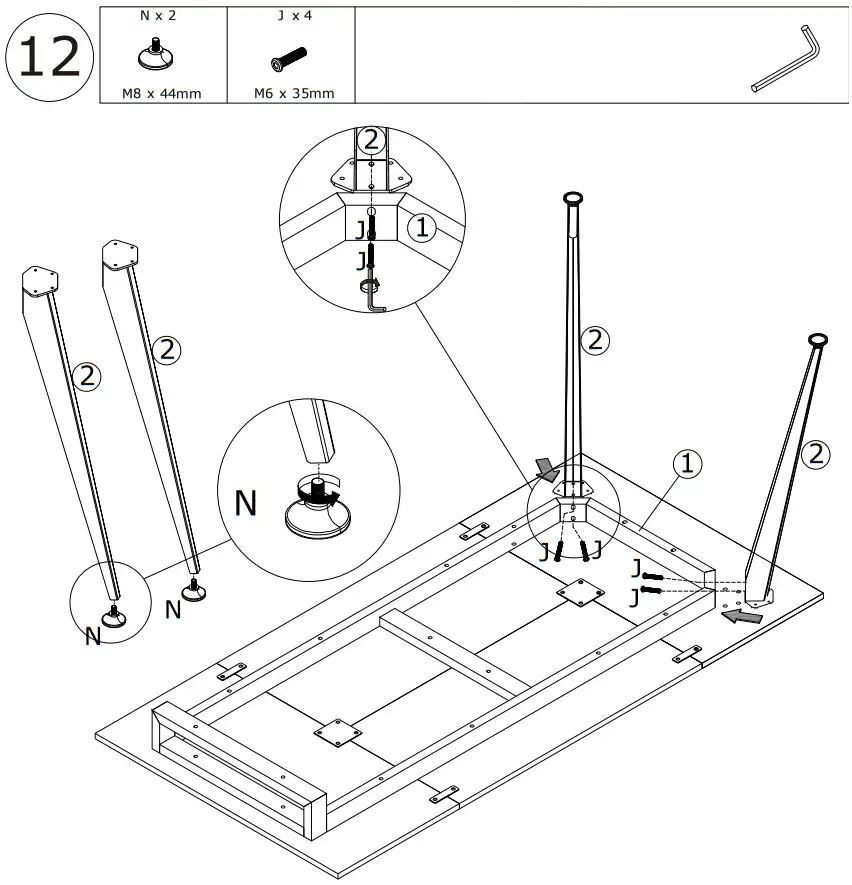

Rotate foot pegs(N) into No.2 leg at first.
Assemble No.2 leg to the iron frame with screw(J) as shown.
Fix No.2 leg with No.7 plate together using screw(K) as shown.

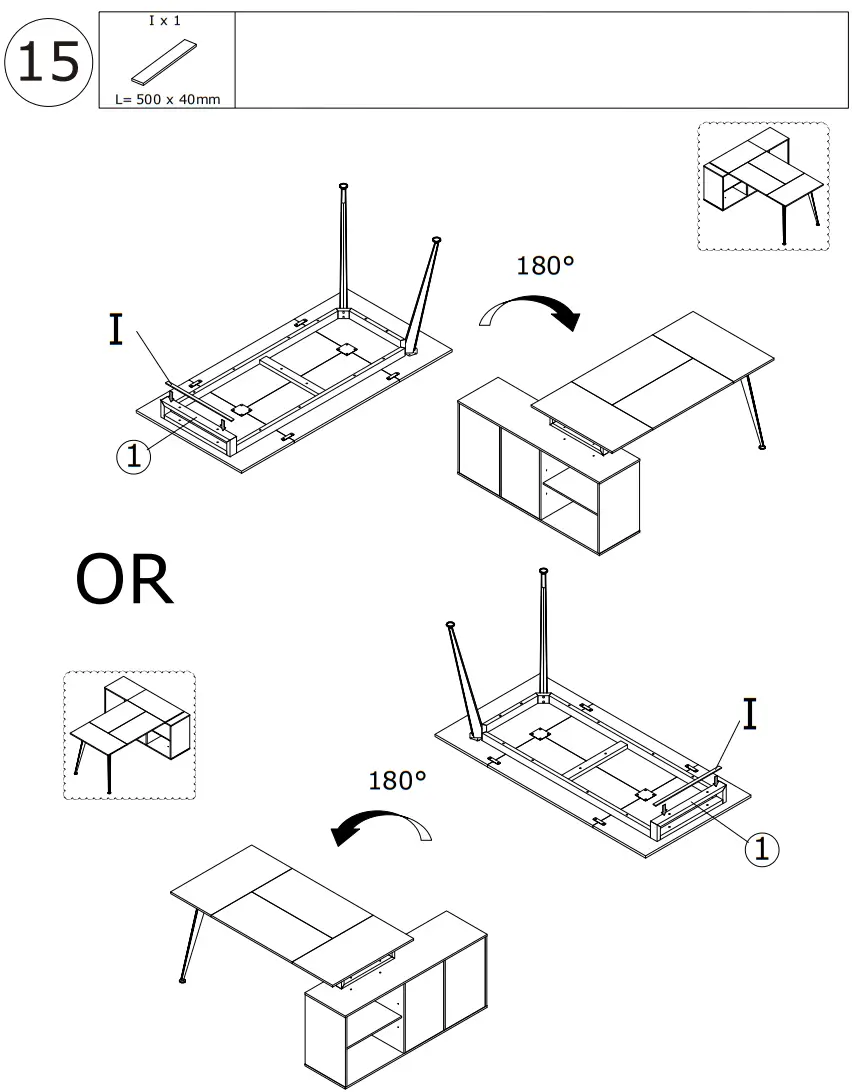

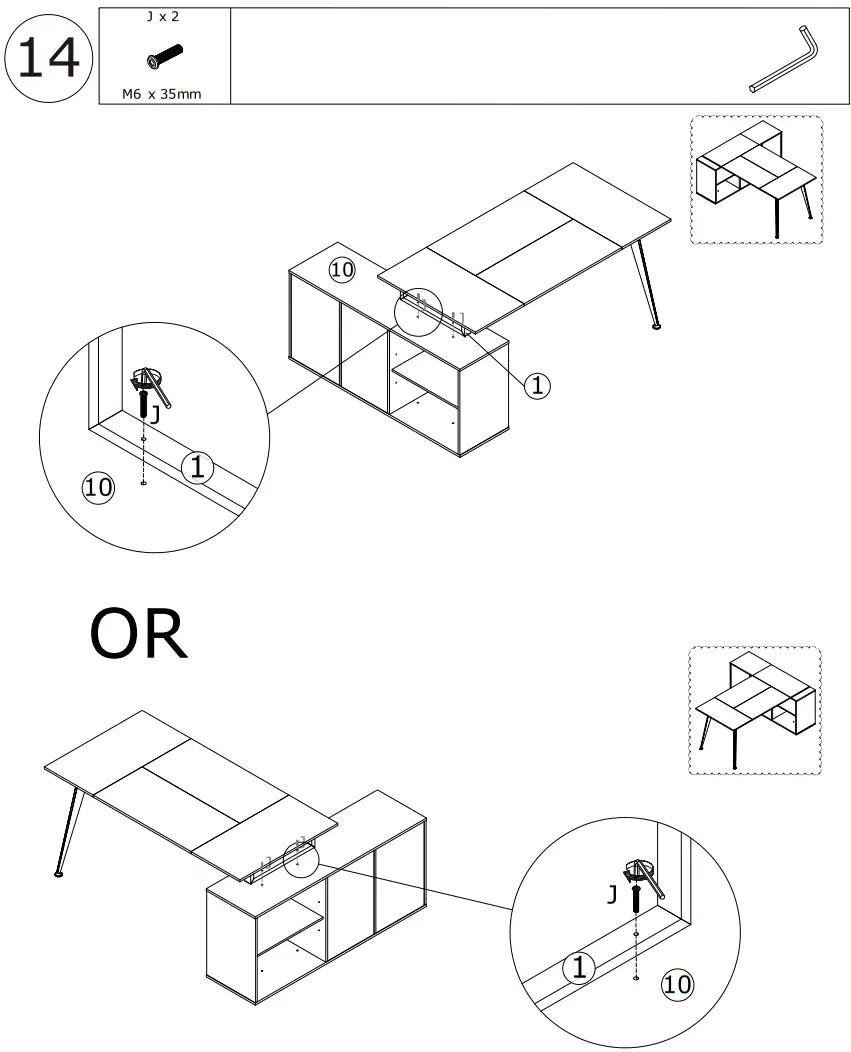

Fix the desk to sideboard using screw(J) as shown.
Or if you wanna the item is flexible, just stick nonslip mat(I) to corresponding position, then attach the desk to sideboard.

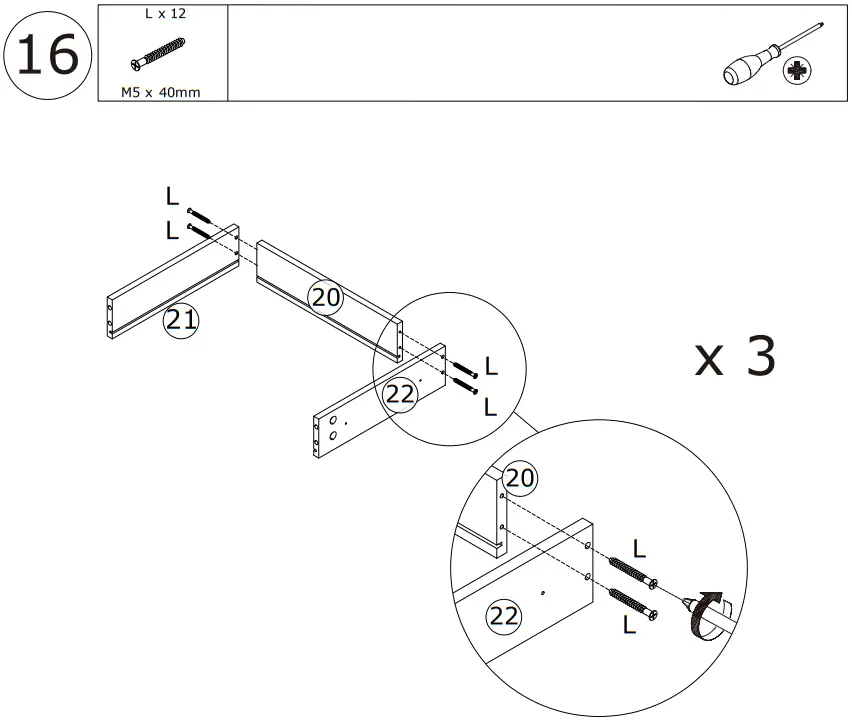

Connect No.21 and No.22 plate with No.20 using screw(L) as shown.

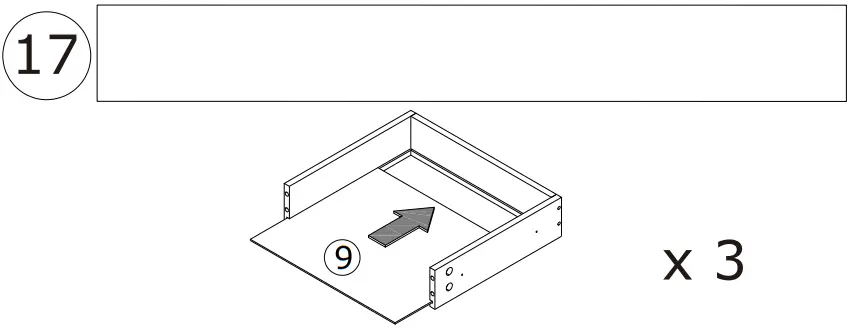

Slide No.9 plate into available slots as shown.

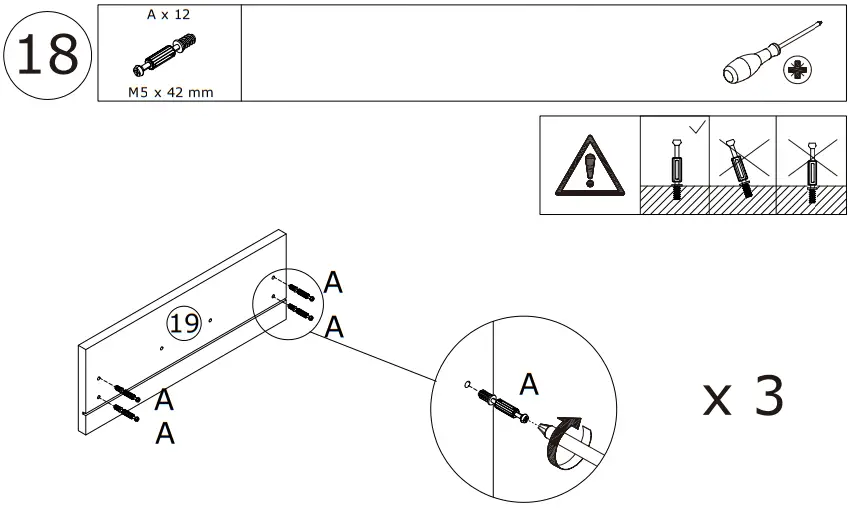

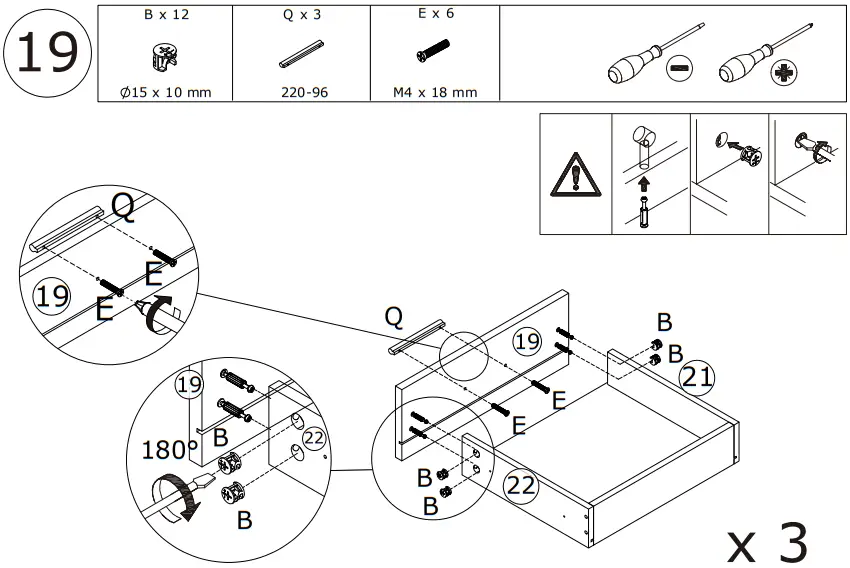

Insert quickfit screw(A) into No.19 plate as shown.
Attach No.19 plate to the component and turn cam lock(B) clockwise to tighten as shown.
Fix handle(Q) to No.19 plate with screw(E).

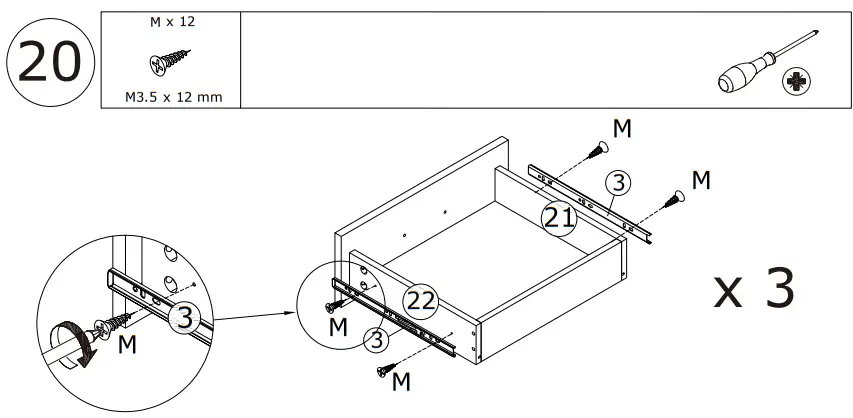

Fix No.3 runner to No.21 and No.22 plate with screw(M) as shown.

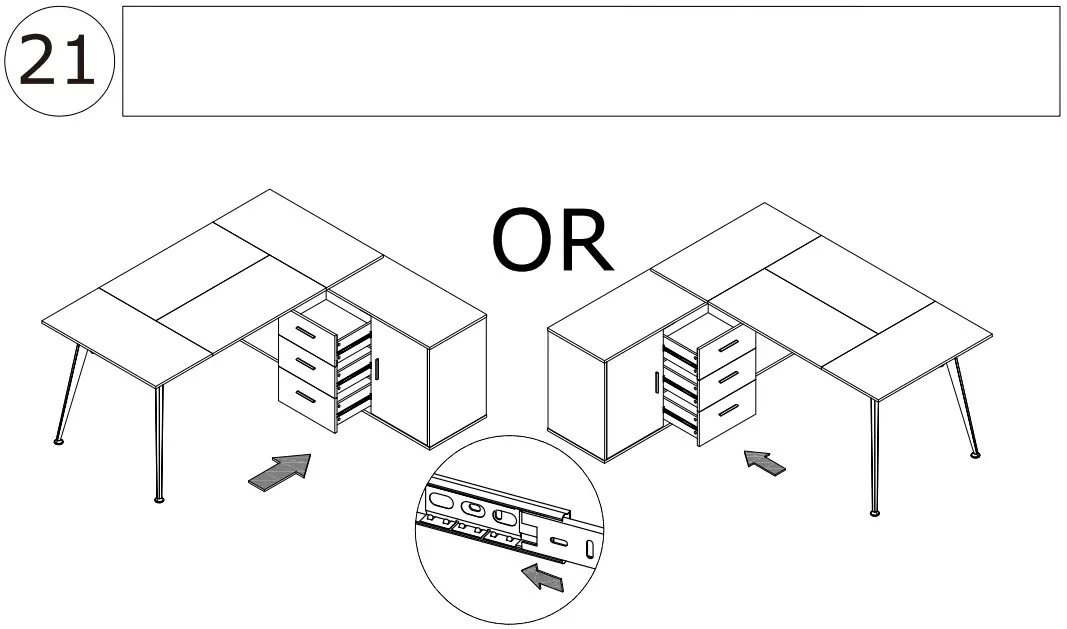

Align rails, slide all drawers.

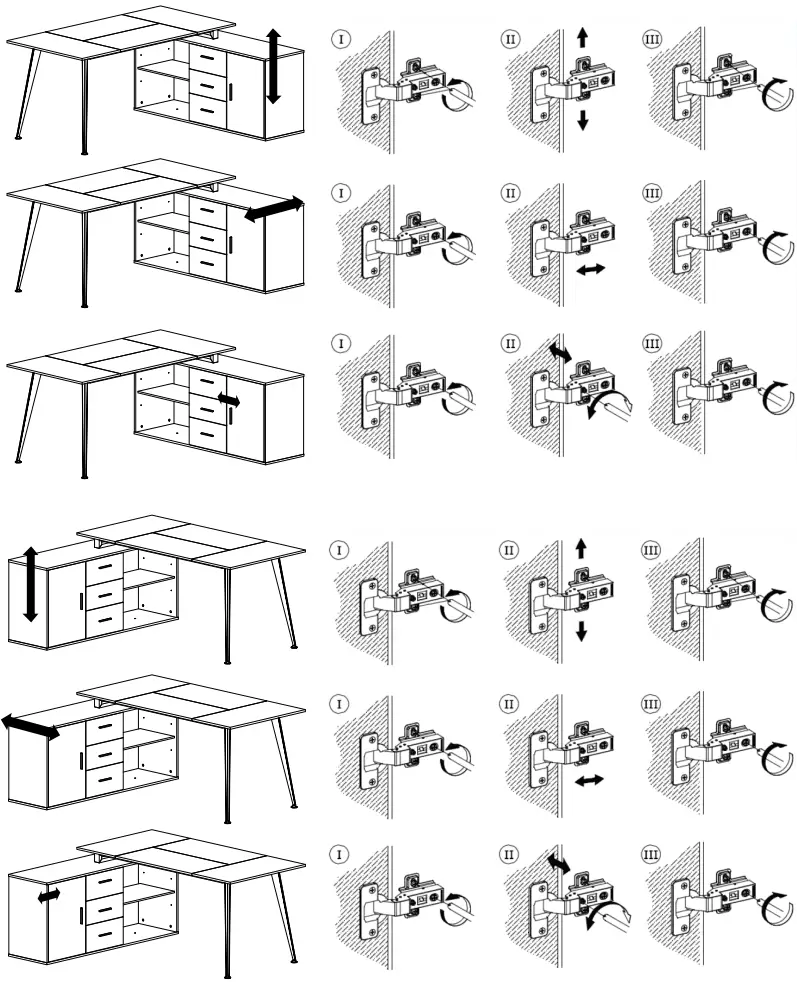

If there is misalignment after you install, adjust the screw to the best condition
