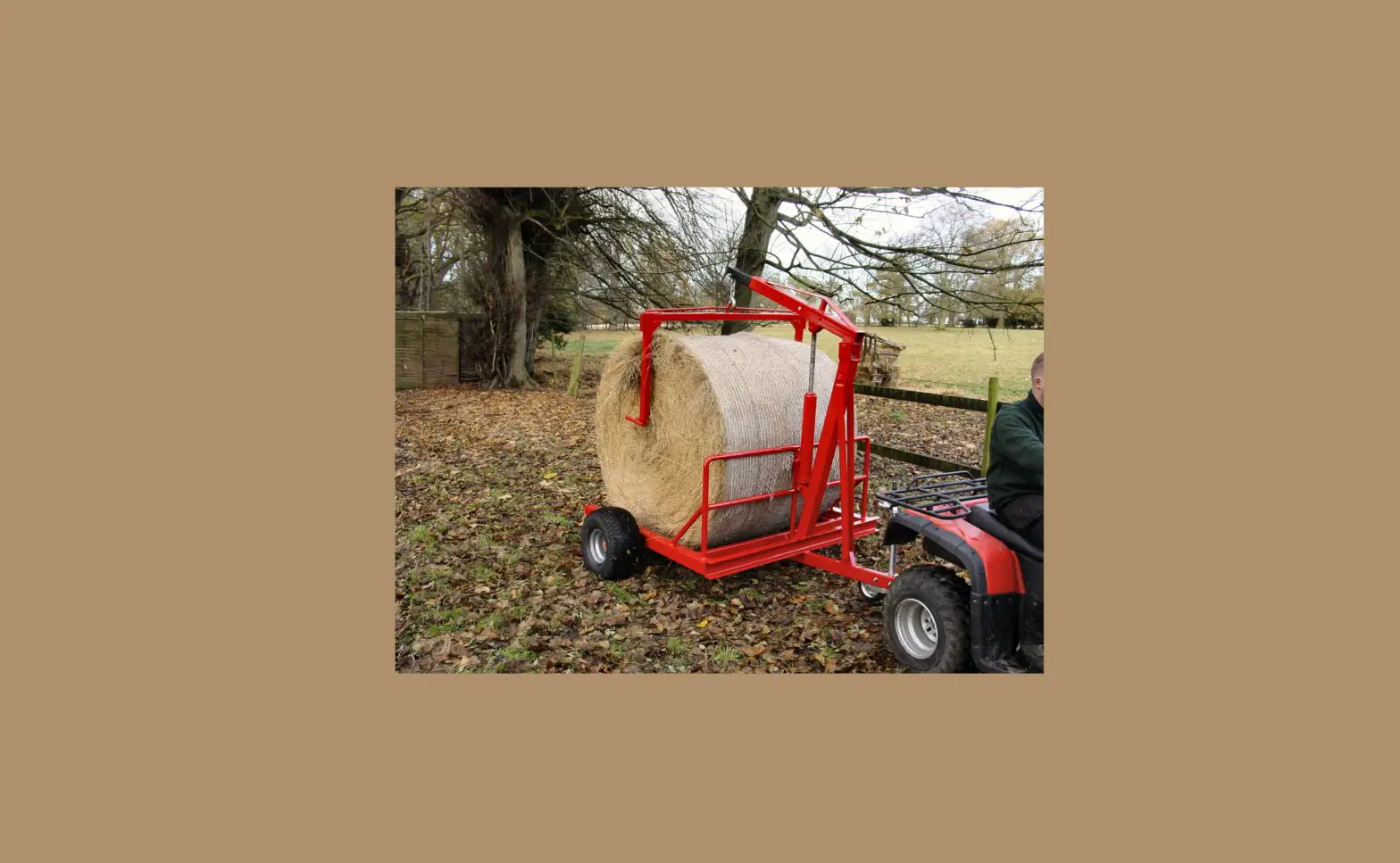

SCH Big Bale Transporter Instruction Manual

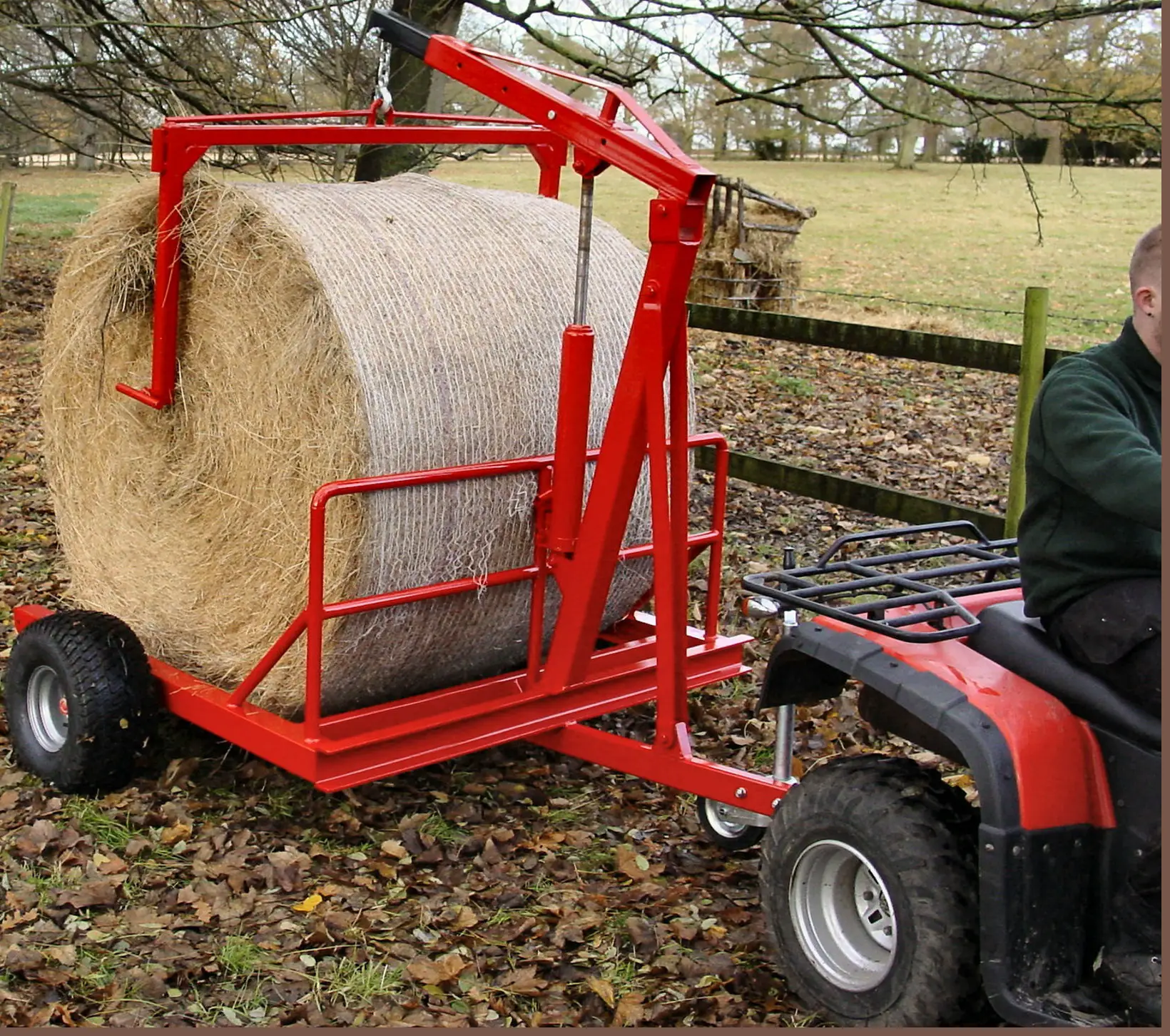

DESCRIPTION
The Big Bale Transporter will pick up a large bale ready to be transported to the
required site. The large low ground pressure wheels will allow the unit to be towed over unfriendly ground.
SPECIFICATIONS
| Overall width | 2000mm (80”) |
| Overall Length (inc tow bar) | 2400mm (96”) |
| Unladen Weight | 200kg |
| Carrying Capacity | 1000kg |
| Wheel Size | 20×10-8.4 stud pneumatic |
| Lifting jib | Hydraulic manual pump |
| Tow Hitch | 50mm Ball hitch |
OPERATION
Step 1. With the wooden base removed, reverse carrier to the bale

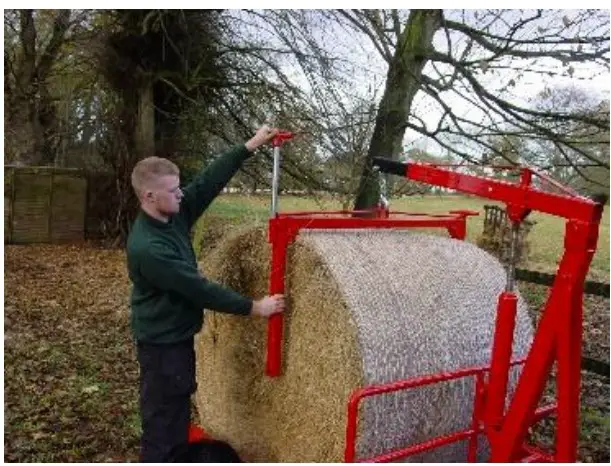

Step 2. Remove the two bale lifting pins

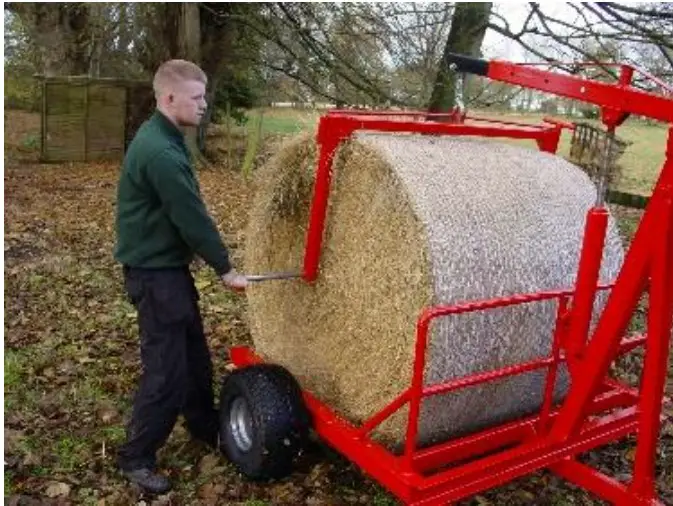

Step 3. Insert the pins into the centre of the bale from both sides

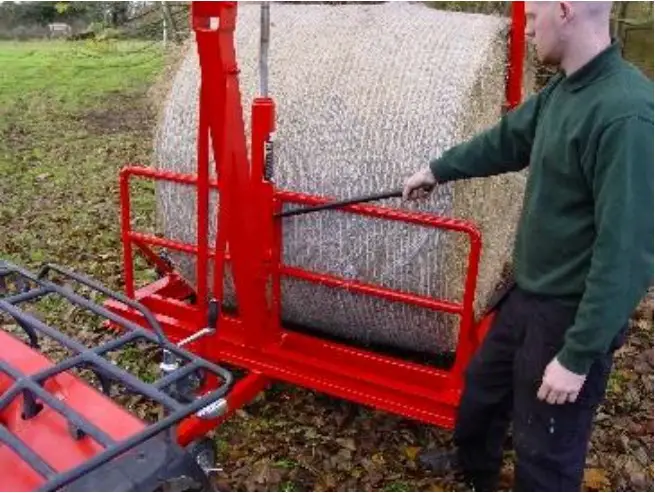

Step 4. Pump the crane to lift the bale

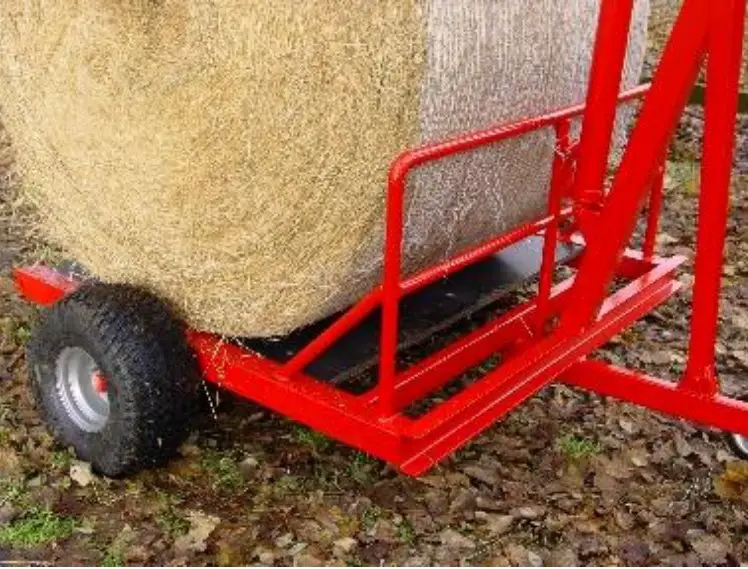

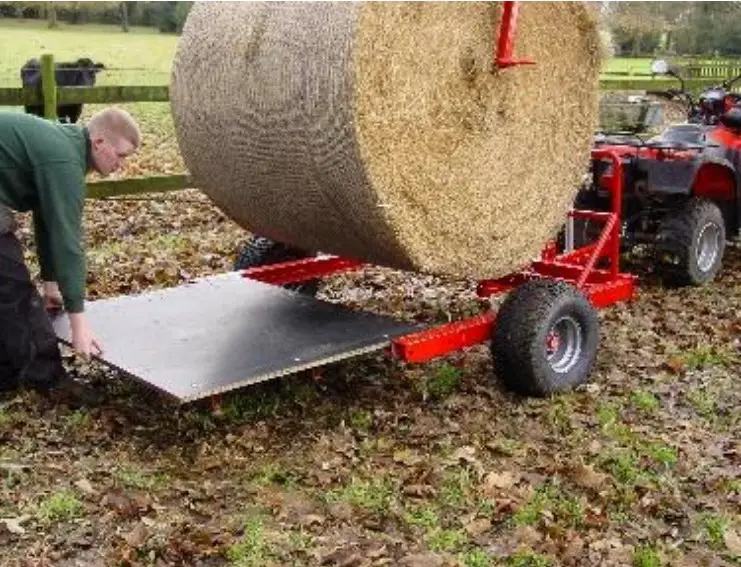

Step 5. Replace the wooden base into frame under bale
Step 6. Lower bale to floor of trailer before moving
SAFETY INSTRUCTIONS
- Be aware of your surroundings and do not use the transporter in close roximity to other people.
- Never allow people to ride on the frame
- Always secure the bale before moving
- Do not move off before lowering bale onto the trailer base
- Do not travel at speeds which would allow the unit to bounce
If in doubt, please call the SCH customer help line at 01473 328272.
WARRANTY
Your Artificial Surface Grooming Rake is guaranteed for 12 months from the date of purchase. This guarantee covers faults which may occur from defective parts or manufacture.
Damage caused by inability to follow instructions will void warranty.
f you are missing your free brochure contact us on
01473 328272,
email [email protected], or
visit our website www.schsupplies.co.uk
