FCC Fiber Cleaners Instruction

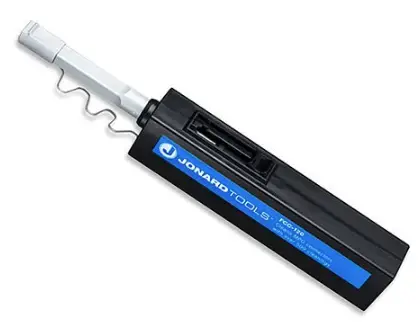

The Jonard Tools FCC-120, FCC-125 and FCC-250 quick click ferrule end face cleaners are designed to provide exceptional cleaning performance
- The blue-tipped FCC-250 cleans FC, SC, and ST connectors beyond the critical fiber core area and cleans deep into the contact area of the bulkhead adapter or connectors on fiber optic cables
- The orange-tipped FCC-125 does the same for LC and MU connectors
- The white-tipped FCC-120 does the same for MPO connectors
- The tethered dustcap provides protection for the micro fiber cleaning fabric and is an adapter for connector end face cleaning
- They feature a patented 360-degree rotational tip for extra wide cleaning
- Easy one-push operation
- Extendable nozzle providing an additional 1.5 inches (for a nozzle length of 4 inches) to aid in accessing deep ports or crowded access panels
- All these cleaners use a non-woven micro fiber that is lint free and provides 800+ clean-ings (FCC-120 provides 500+ cleanings)
- The outer body is made from static dissipative material for safe ESD work
PATENTED CLEANING TECHNOLOGY
- Slide-Guide™ non-slip micro tape feeder guarantees high reliability
- Dual Rotational tip provides quick, repeatable and superior ferrule end face cleaning
EASY TO USE
For bulkhead applications:
- Remove the end cap
- Insert end into bulkhead and push forward
- When you hear the audible “click” sound cleaning is complete
- For tight spaces you can extend the nozzle forward with the slide button on the body of the tool
To Clean End Faces:
- Open the top of the cap exposing the connector adapter
- Insert connector into adapter and pull connector towards the tool until you hear an audible “click”
- The cleaning process is now complete
ACTUAL CLEANING RESULTS
- Competitor (at 200x)
- Jonard Fiber Cleaners (at 200x)
Tel 914.793.0700 | Fax 914.793.4527 | jonard.com
