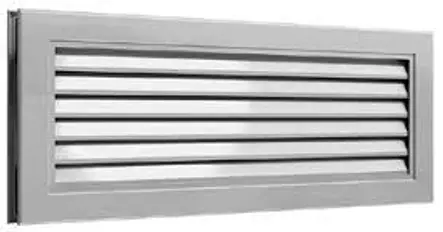

Lindab AD Global Version Aluminium Grilles

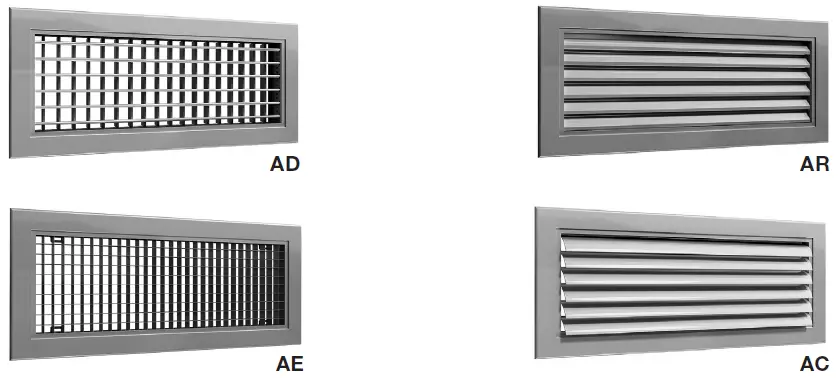

Overview

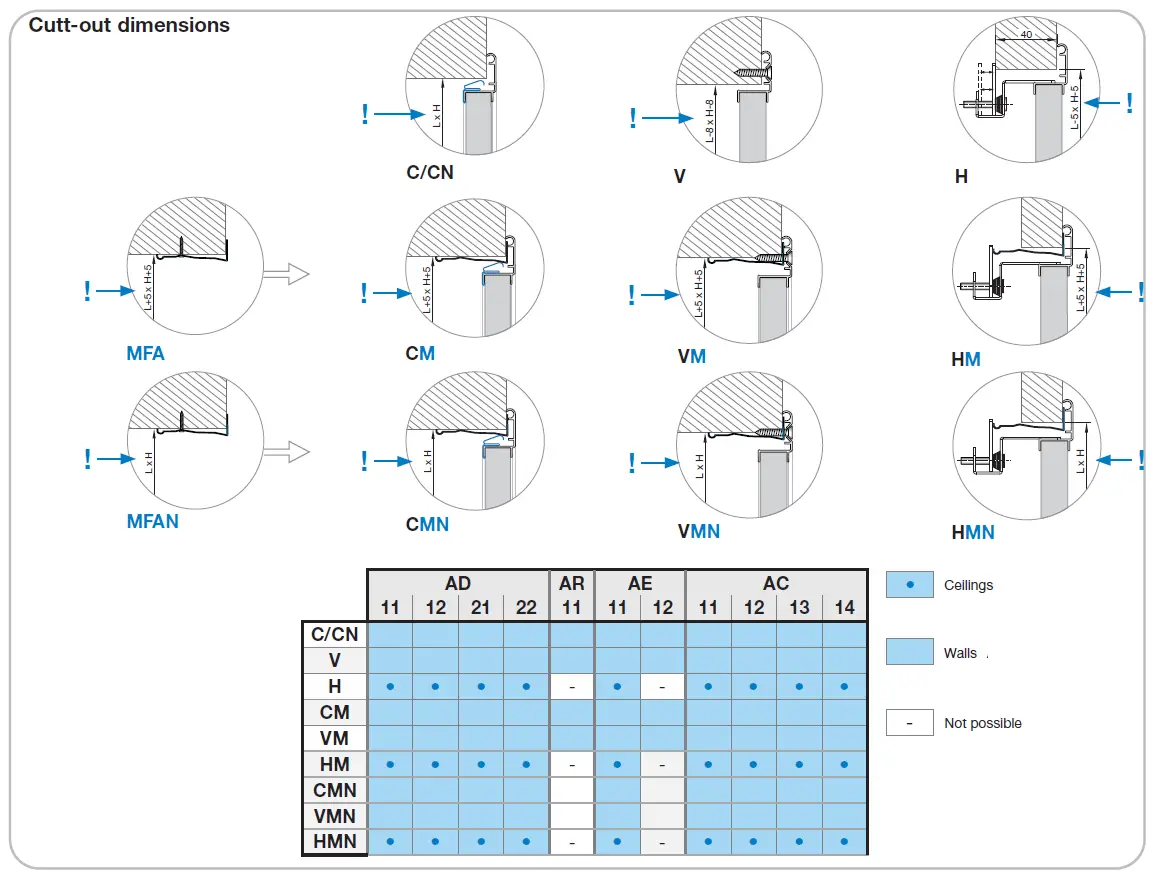

Cutt-out dimensions
Symbols

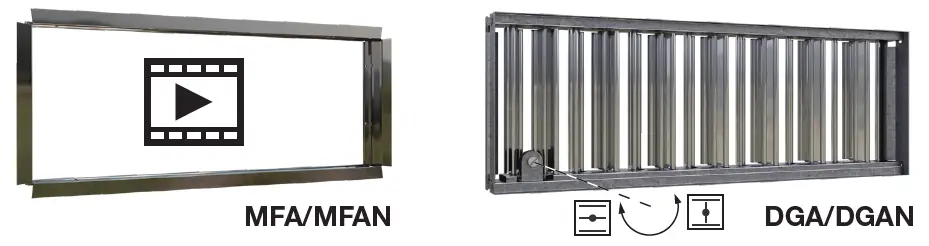

Accessories

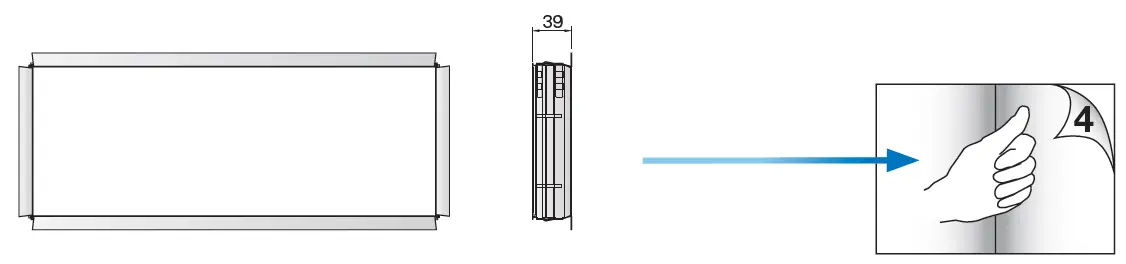

MFA/MFAN (M)
DGA/DGAN (D/DN)

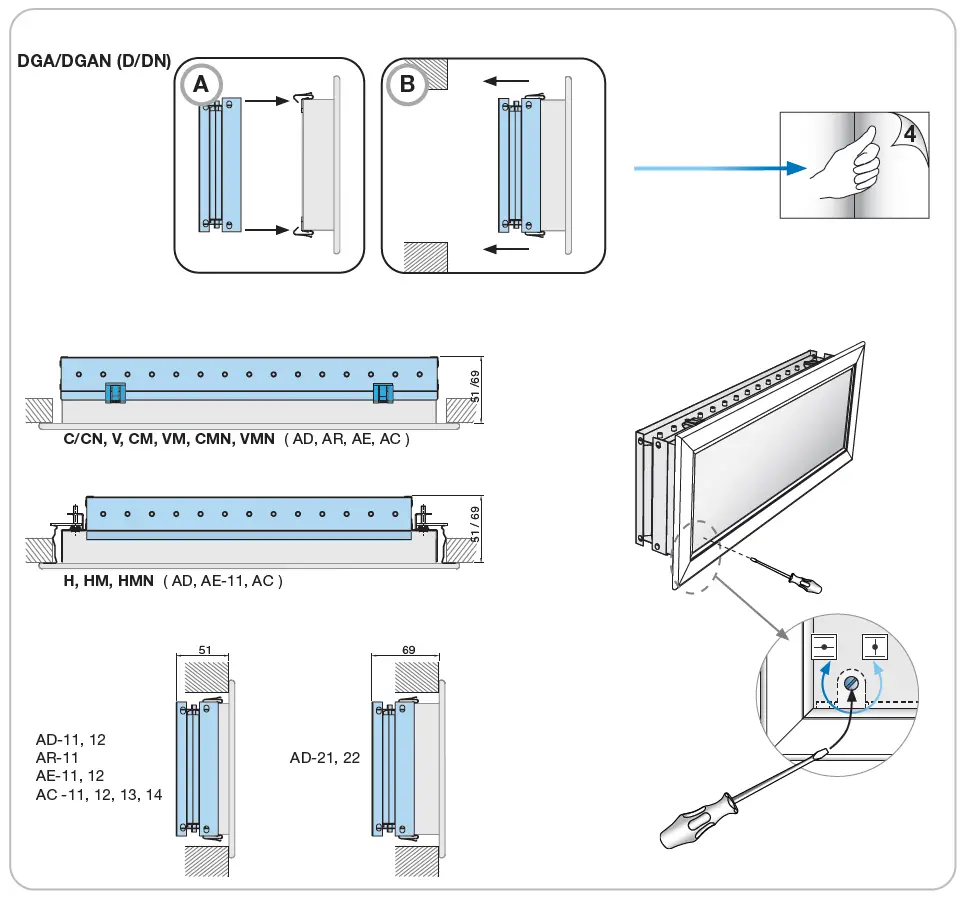

Installation instruction

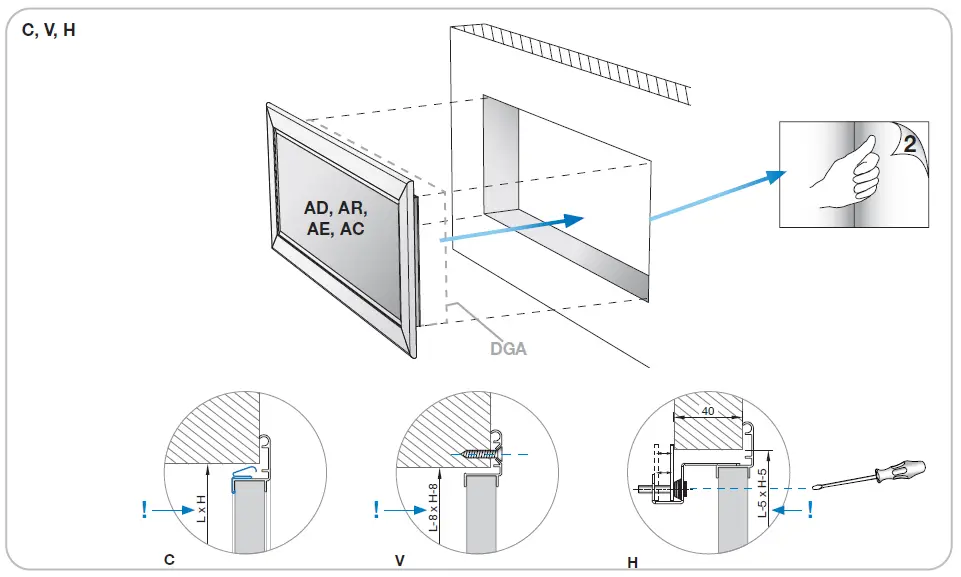

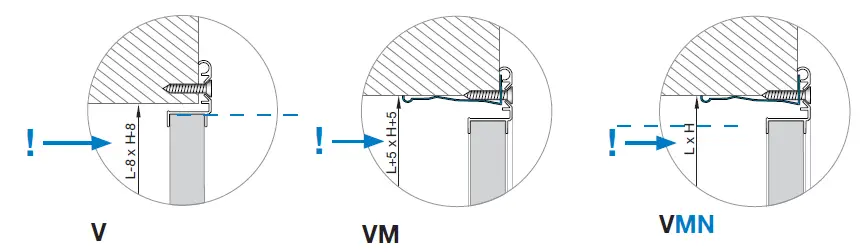

C, V, H
CM, VM, HM (MFA)

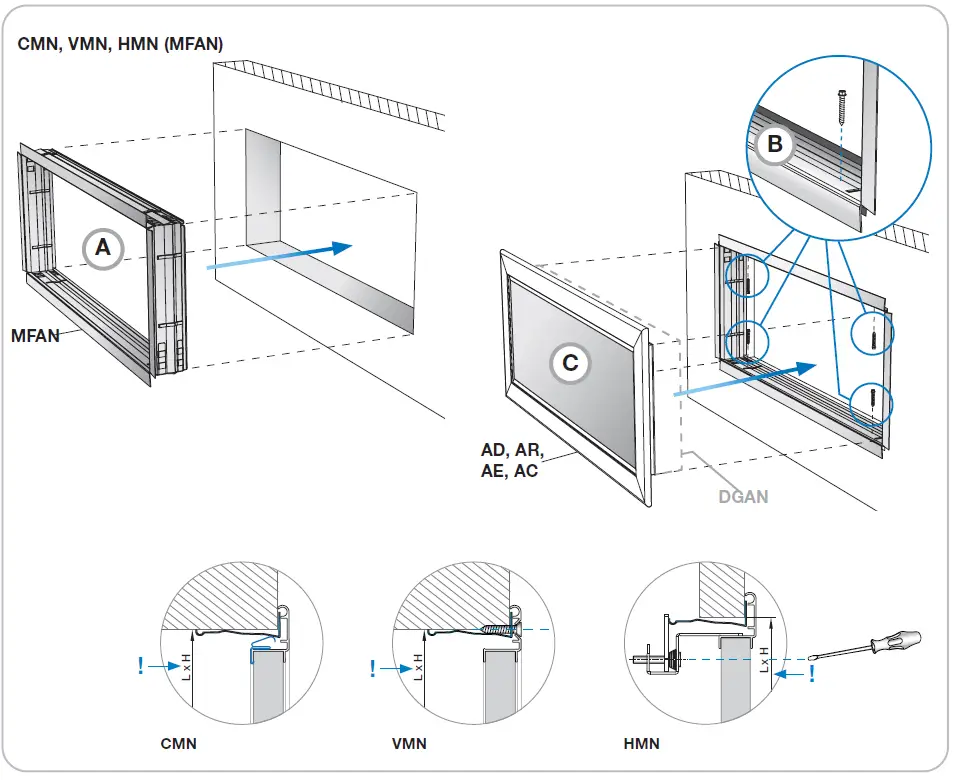

CMN, VMN, HMN (MFAN)

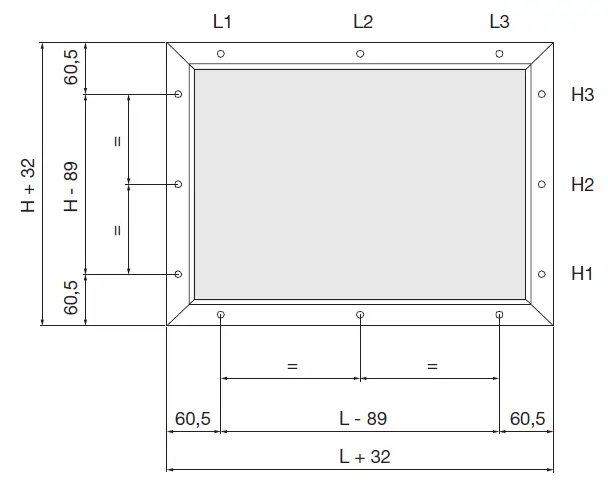

Number of Visible screw holes
AD, AR, AE, AC ( L x H )
Nominal dimensions
L ≤ 400 mm
| L | H | ||||||
| mm | L1 | L2 | L3 | mm | H1 | H2 | H3 |
| 100 – 400 * | 75 – 300 ** | • | |||||
| 400 – 700 | • | • | |||||
| 800 – 1400 *** | • | • | • |
- AC: Min. L = 200 mm
- AC-11 / AC-13: Min. H = 100 mm
- AC-12 / AC-14: Min. H = 150 mm
- AR, AE, AC: Max. H = 1200 mm
L > 400 mm
| L | H | |||||||
| mm | L1 | L2 | L3 | mm | H1 | H2 | H3 | |
| 500 – 700 | • | • | 75 – 500 ** | |||||
| 600 – 900 | • | |||||||
| 800 – 1500 * | • | • | • | |||||
| 1000 – 1500 *** | • | • | • |
- AR, AE, AC: Max. L = 1200 mm
- AD : Max. L = 1500 mm
- AC-11 / AC-13: Min. H = 100 mm
- AC-12 / AC-14: Min. H = 150 mm
- AR, AE, AC: Max. H = 1200 mm

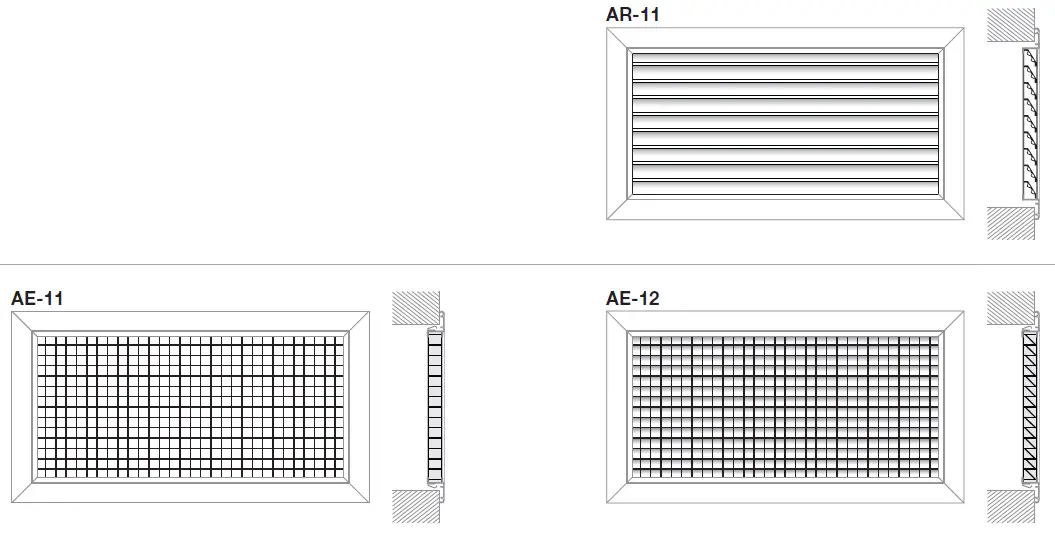

Fixed blades

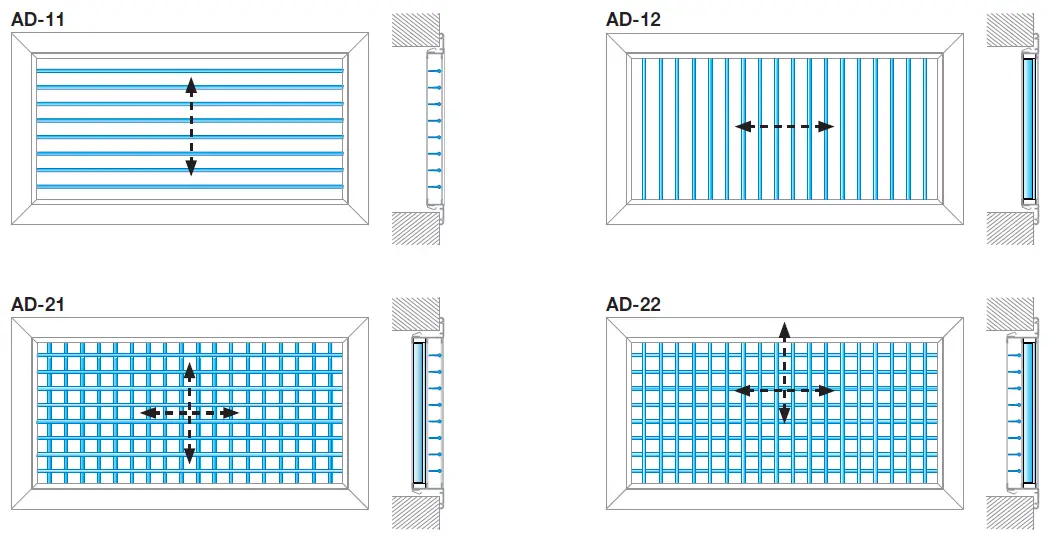

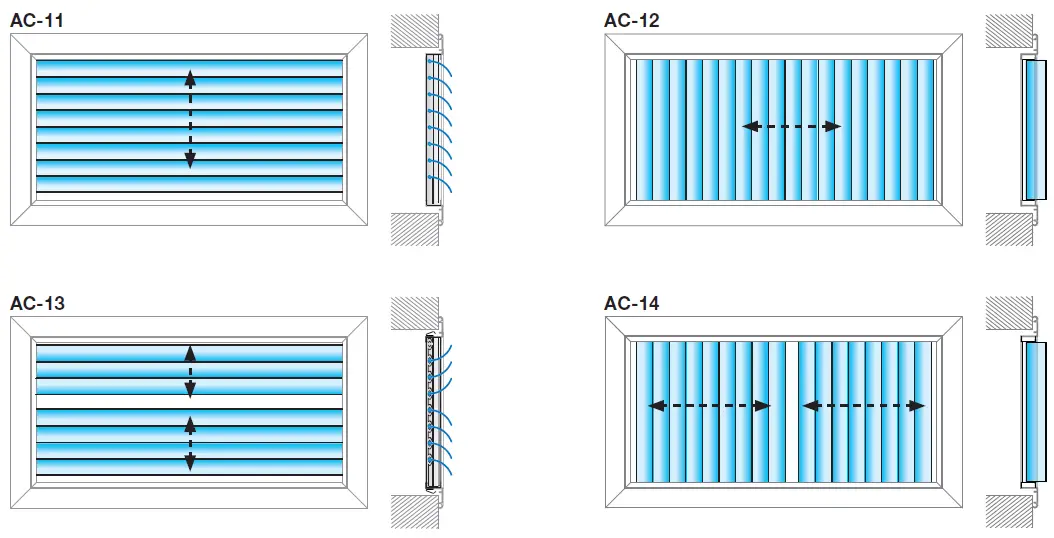

Adjustable blades
