E-IMAGE EP880S Pneumatic Pedestal Owner’s Manual

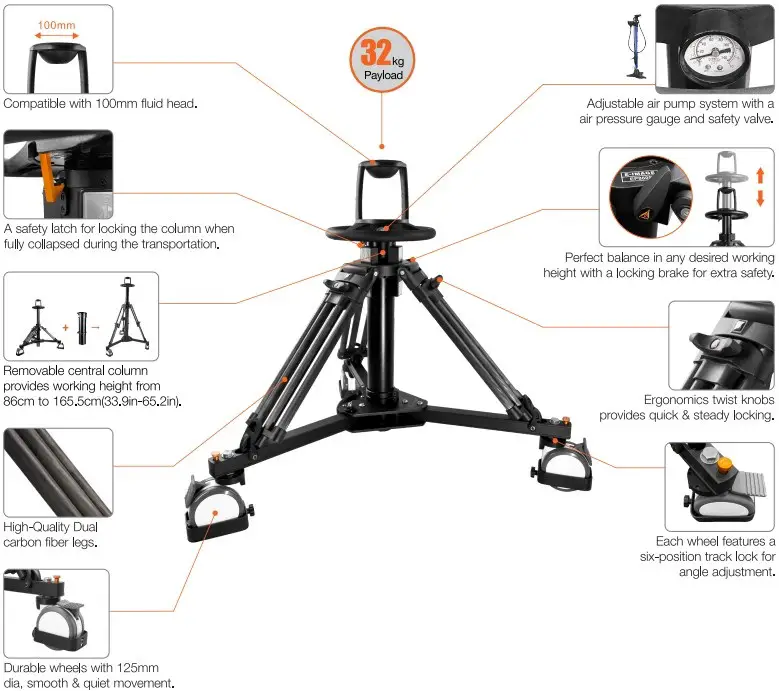

Instruction
The EP880S pneumatic pedestal provides stability, smoothness and jerk-free operation. It includes an air pressure gauge, locking brake, safety latch and safety air pressure valve. The sturdy foldable dolly has position track lock, foot operated brake and cable guard on each of the 125mm wheel to provide smooth movements in any desired direction. Also, an additional hand pump is equipped for the air be set in manually.

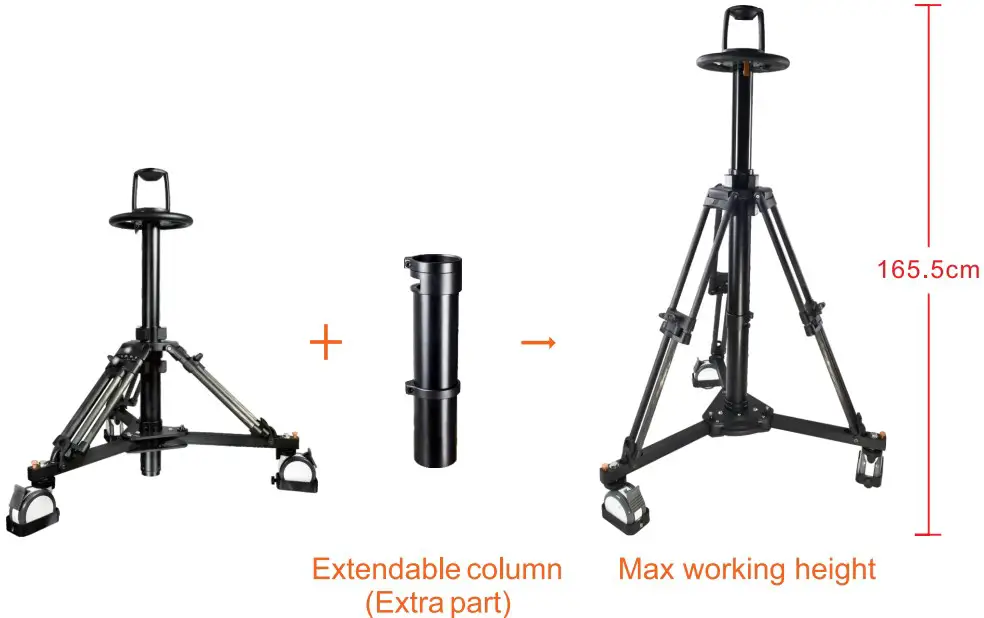

Dimension
Specification
| Model | EP8803 (includes El-7007 dolly) |
| Payload | 32.0kg / 70.4Ibs |
| Height range | 86.0-165.5cm / 33.9-65.2in |
| On-shot stroke | 38.0cm / 15.0in |
| Net weight | 23.9kg / 52.7Ibs |
| Bowl size | 100mm |
| Packing | Pedestal (Aluminum case) Dolly (Box packing) |
