Operation Manual
iON Wireless Plus
Fast Charging Pad
Love your iOttie product?
Let us know by leaving a review online, or connect with us on our social platforms.
Having issues?
Our Customer Service Team is waiting to assist you! Please reach out to us at: [email protected]
Getting Started At a Glance
Follow the detailed instructions within this manual when using the iON Wireless Plus Fast Charging Pad.
Please make sure your device is Qi Wireless compatible. Compatible devices include iPhone X, 8 Plus, 8, Samsung Galaxy S9, S9+, Note 8, S8, S8+, S7, S7 Edge, S6, S6 Edge, and any other Qi-enabled devices. Not all smartphones can receive a wireless fast charge, however, they will receive a standard wireless charger. Check your phone’s charging features for fast charge capabilities. Please only use the included cable and power adapter. Third-party components may impact wireless charging performance. If using a third-party charger, please only use a Qualcomm Quick Charge 3.0 or equivalent adapter. Plugging the Charging Pad into a computer will not provide adequate power to support wireless fast charging. Please only plug directly into a Power Adapter.
iOttie is not liable for possible damages due to product misuse.

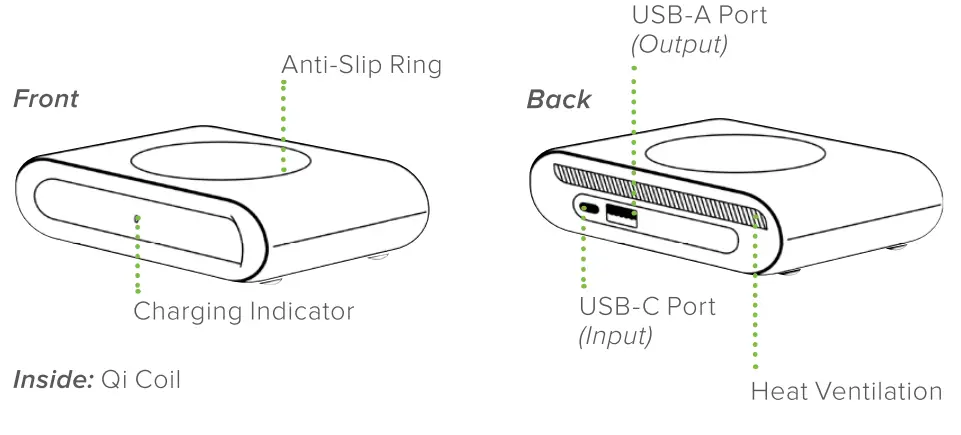

At a Glance
what’s in the Box:.
Power adapter type may vary by country
Key Features
Qi Wireless Fast Charging
Charge smartphones faster than a standard wireless charger. Max Wireless Charging Capacity: 7.5W iPhone, 10W Android

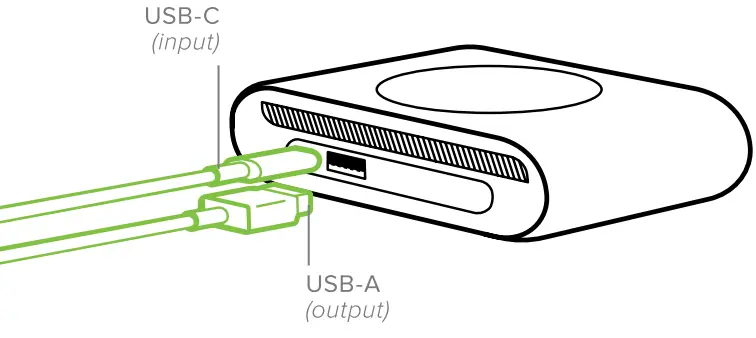

Charging Hub
Powerful 18W USB-C input allows simultaneous wireless and wired charging. Charge a second device via USB-A output. Max USB-A Charging Capacity: 12W

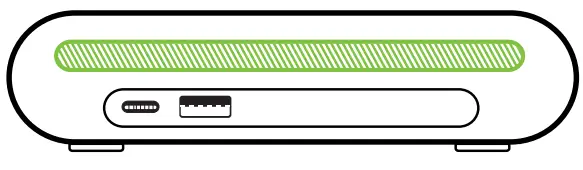

Heat Ventilation
Internal air vent structure reduces heat to maximize wireless charging efficiency.
Slip Resistant
Charging surface features an Anti-Slip Ring to prevent smartphones from shifting while charging wirelessly.
Preparation
Please only use the included cable and power adapter. Using third-party components may impact wireless charging performance.

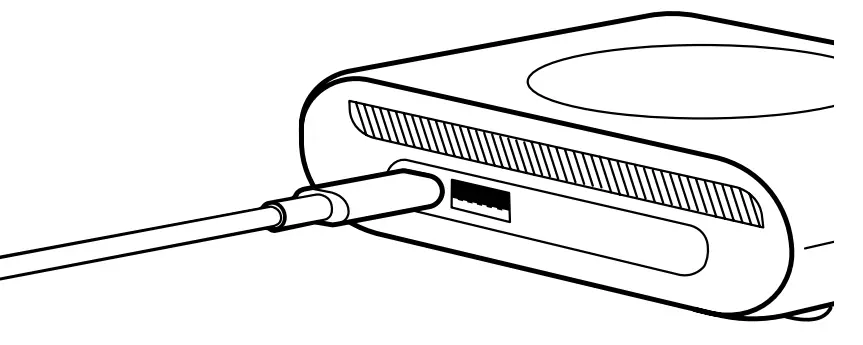

- Plug the Charging Cable into the USB-C port on the back of the charging pad and connect the USB-A side to the Power Adapter.
- Plug the Power Adapter into an AC outlet. The Charging Indicator will turn on and then fade to inform you the pad has received power.
Please do not plug Charging Pad into a computer, as this will not provide adequate power to support wireless fast charging.
Oi Alignment Guide
Use the guide below to receive an efficient wireless fast charge.

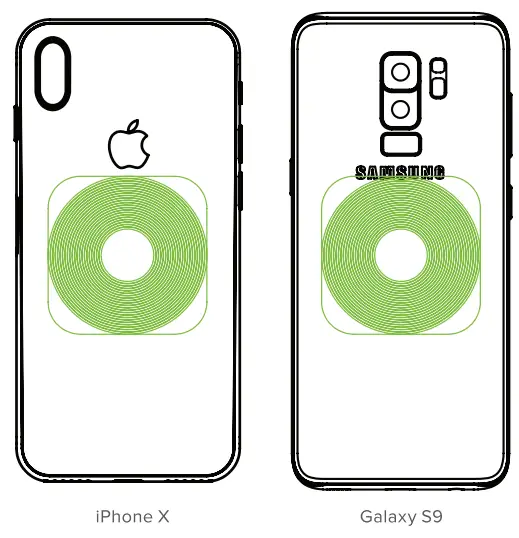

Qi Coil Location
The Qi coil is generally found in the center of most smartphone models.
Smartphone alignment

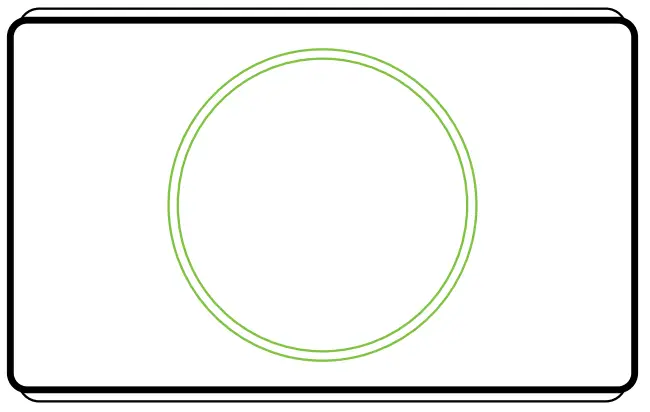

Center the back of the smartphone in the center of the Anti-Slip Ring for a fast and efficient wireless charge.

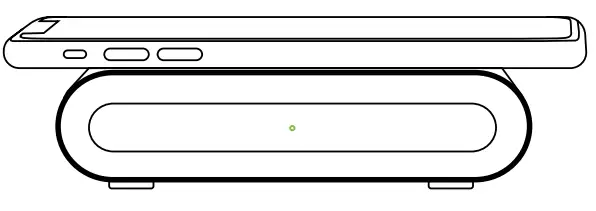

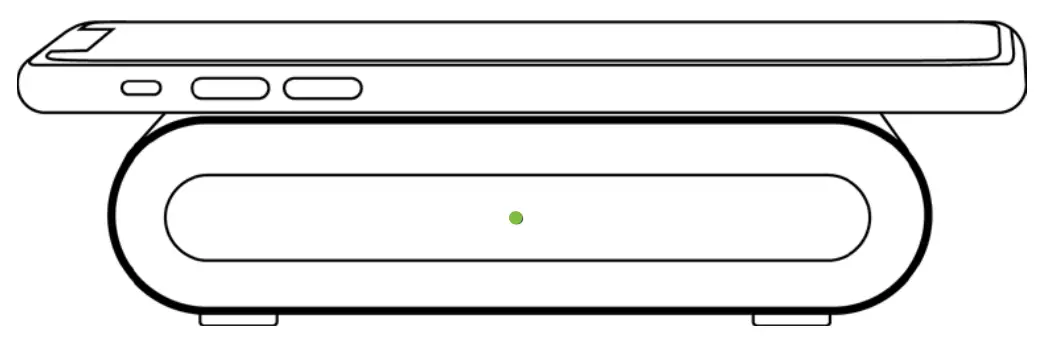

Rest your smartphone on the charging surface parallel to the Charging Pad.
Troubleshooting

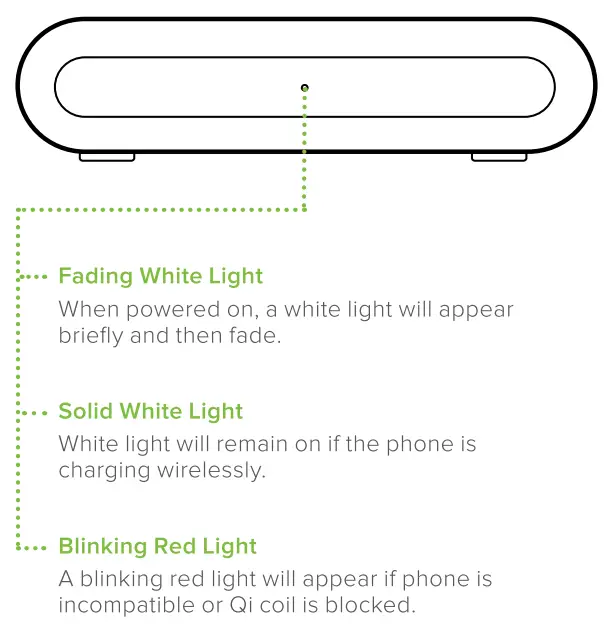

Your device’s screen will show that it is charging. If your phone is not charging, check the Charging Indicator on the front of the device:
Please contact customer service at [email protected] if you have any questions.
Specifications
Charging Pad
| ITEM | DESCRIPTION |
5V 3A | |
| INPUT | 9V2A |
| OUTPUT | WIRELESS: 5V1A / 9V1A USB: MAX 5V 14 5W |
| LENGTH | 4.4″ |
| WIDTH | 2.7″ |
| HEIGHT | 1.1″ |
| WEIGHT | 130g |
Wall Charger
| INPUT | OUTPUT |
| 110’250V 600mA | 3.6’6V34 6∼19V 24 9″12V1.5A |
Declaration of Conformity (FCC)
NOTE: This equipment has been tested and found to comply with the limits for a wireless power charger, pursuant to Part 18 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and the receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the product.
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Operational Warnings
During the charging process, the transfer of electricity gives off heat. Your device may become warm, but should not become exceedingly hot.If the device gets wet, please cease charging immediately. Remove all plugs and dry the product completely. Device is only to be operated in a dry, indoor environment.Please be careful of excessive drops, dents, punctures, or deformities on the device. If you are concerned, please unplug the device and contact the manufacturer.Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.Operating this device in a hot environment or in direct sunlight for a long period of time may cause malfunctions. We recommend keeping the product in cooler temperatures.Please use included components for an optimal experience. To support Qi fast charge when using a third-party car charger or a USB Power Adapter use a Qualcomm Quick Charge or 3.0 equivalent adapter.If your phone is misaligned when wireless charging, your device may become warm due to inefficient wireless output. It is important to always properly align your smartphone, especially when charging 2 devices via wireless and wired connections.
CAUTION
OLD ELECTRICAL APPLIANCES MUST NOT BE DISPOSED OF TOGETHER WITH THE RESIDUAL WASTE, BUT HAVE TO BE DISPOSED OF SEPARATELY.
Manufacturer:
iOttie, Inc.
20 West 37th Street
6th Floor
New York, NY 10018
