Installation instructions for pet bathtub
Parts list
| 1 bathtub cabinet 2 bathtub tailgate 3 the boom 4 bathtub left and right baffles 6 Electric lifting base 7 Door plank of 7 8 the pedal 9 M8 hexagon nuts 10 M8 head screw 11 the faucet | 12 connector 13 flower is aspersed 14 shower hose 15 soap box 16 inlet hose 17 water leakage 18 cushions 19 rubber washer 20 plastic retaining ring 21 outlet |
Assembly instructions

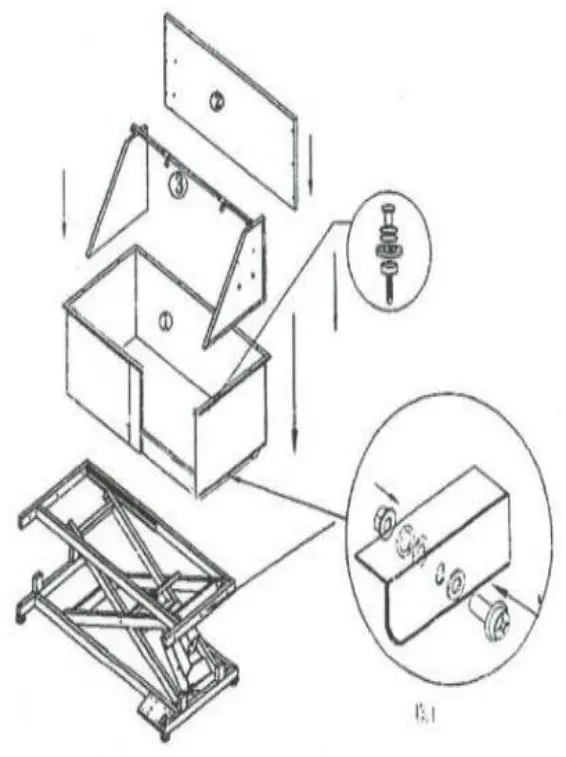

- As shown in the figure, place the bathtub cabinet body on the lifting chassis correctly, and lock the cabinet body with the chassis with bolts (as shown in the figure).
- Put the sponge cushion into the hole at the bottom of the bathtub with the water leakage, and put the rubber washer (threaded side down) from the bottom of the bathtub box Plug in the water leakage and tighten it with the plastic fixing ring. Finally connect the outlet hose and tighten the screws on the hose to prevent it from falling off

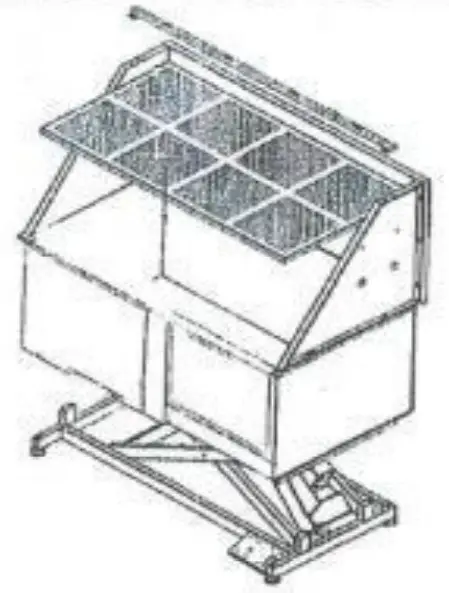

- Place the left and right baffles and the back baffle sponge MATS on the upper part of the box body and fix them with bolts
- Place the horizontal bar on the assembled left and right side plates to align with the hole position and tighten it with bolts
Place the pedals into the tub cabinet.

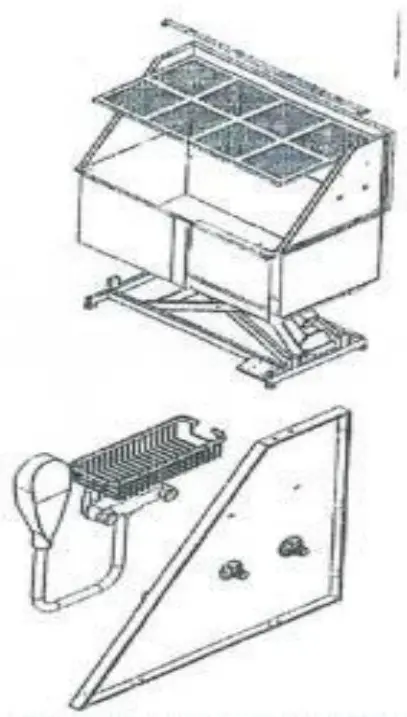

Bolt the soap box onto the two long waist holes on the right panel and adjust the position to lock the bolt.
Pass the tap inlet through two large round holes in the side plate and screw the adapter on the other side of the side plate.
Connect the two ends of the hose respectively on the faucet outlet, the sprinkler inlet, and tighten the sprinkler card into the sprinkler rack.
Connect the two inlet pipes to the other side of the adapter and tighten by the screwdriver wrench for preventing water leakage.
Pay special attention to Avoid acids, bases and salts These are corrosive things Contact box.
