SDC HDB1V Glass Door Mounting Kit Instruction Manual

INSTALLATION INSTRUCTIONS

HDB1V
GLASS DOOR MOUNTING KIT

STEP 1

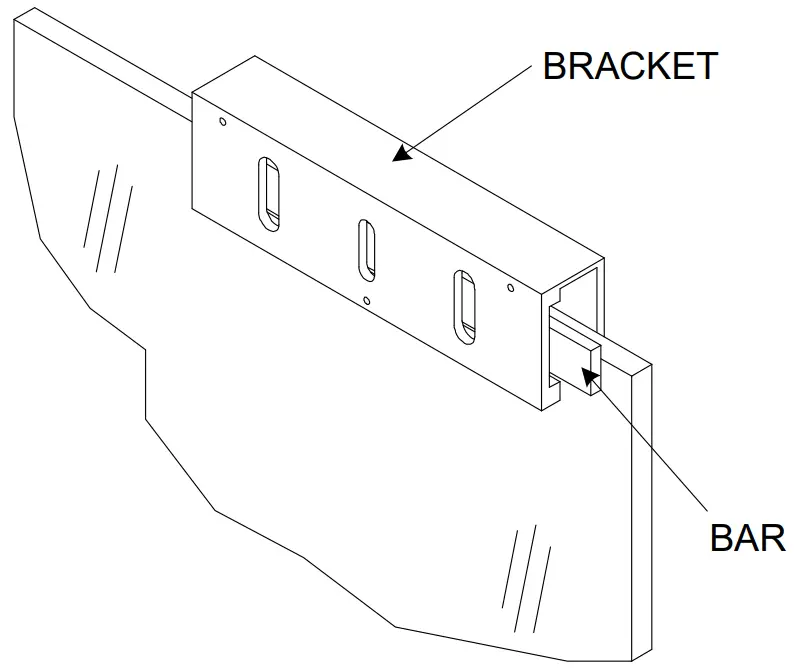

INSTALL BRACKET AND BAR TO GLASS DOOR

FOR 3/8” & 1/2″ GLASS

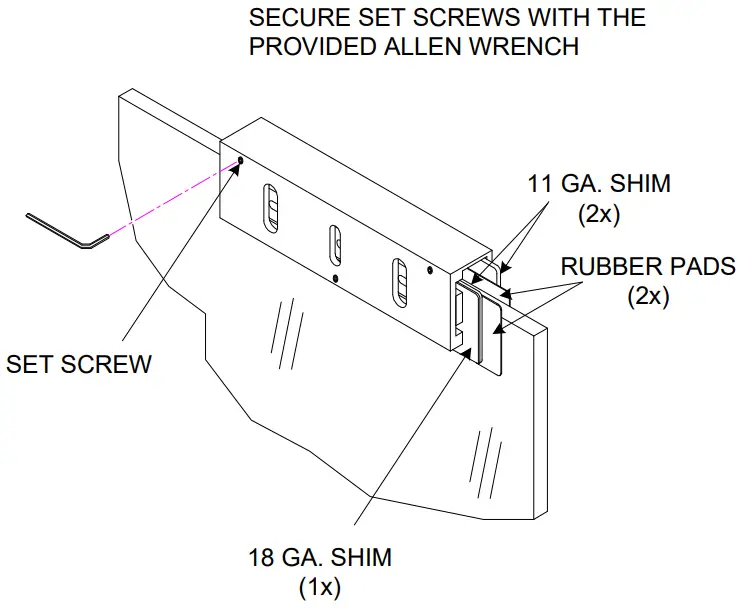

DOORS: PLACE RUBBER PAD & 11 GA. SHIMS ON BOTH SIDES. PLACE 18 GA. SHIM ON SET SCREW SIDE.

FOR 5/8” GLASS DOORS:
PLACE RUBBER PAD ON BOTH SIDES (1) 11GA. SHIM & (1) 18 GA. SHIM ON EACH SIDES OF BRACKET.

STEP 2

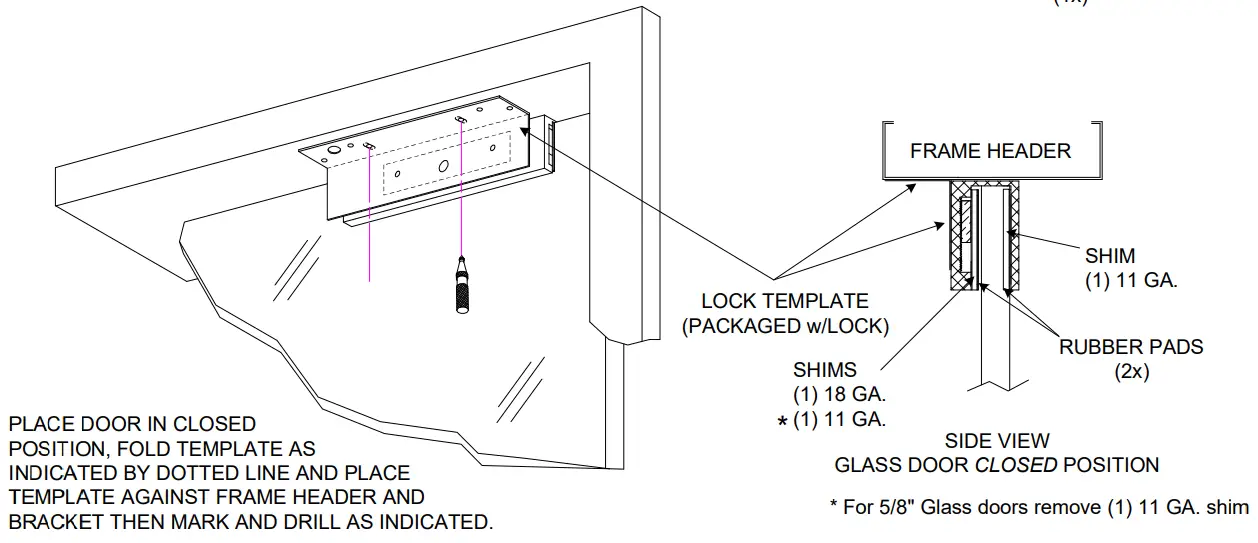

STEP 3

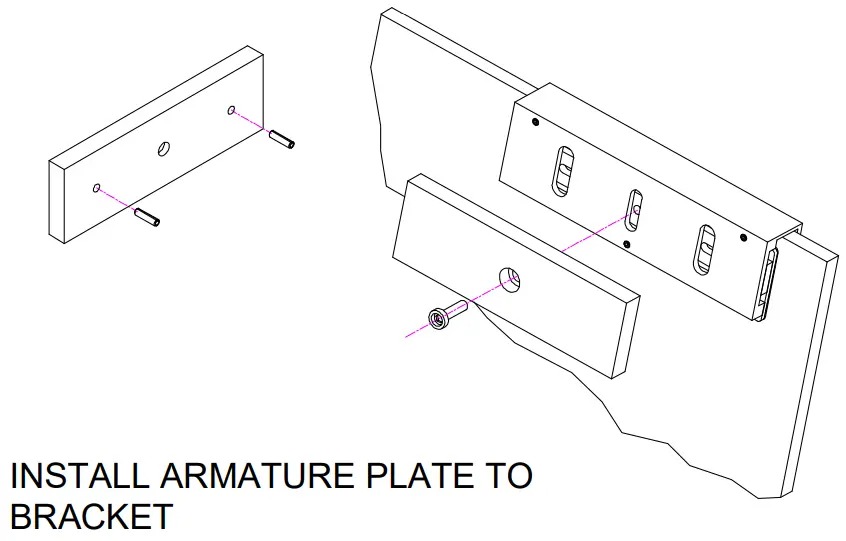

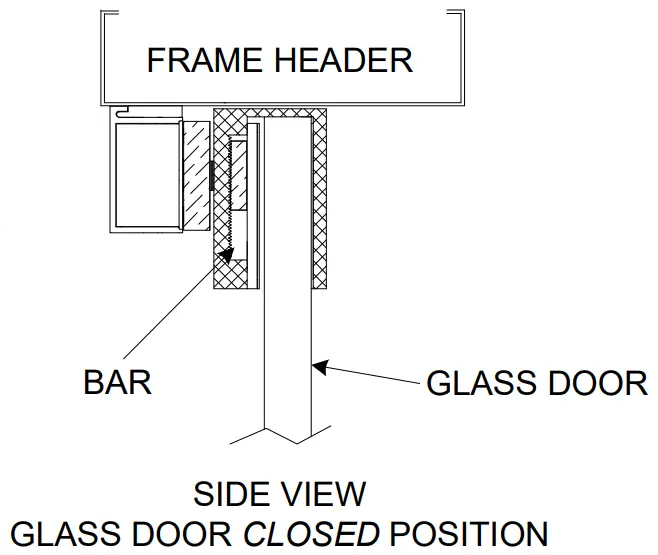

STEP 4

STEP 5

Any suggestions or comments to this instruction or product are welcome. Please contact us through our website.
