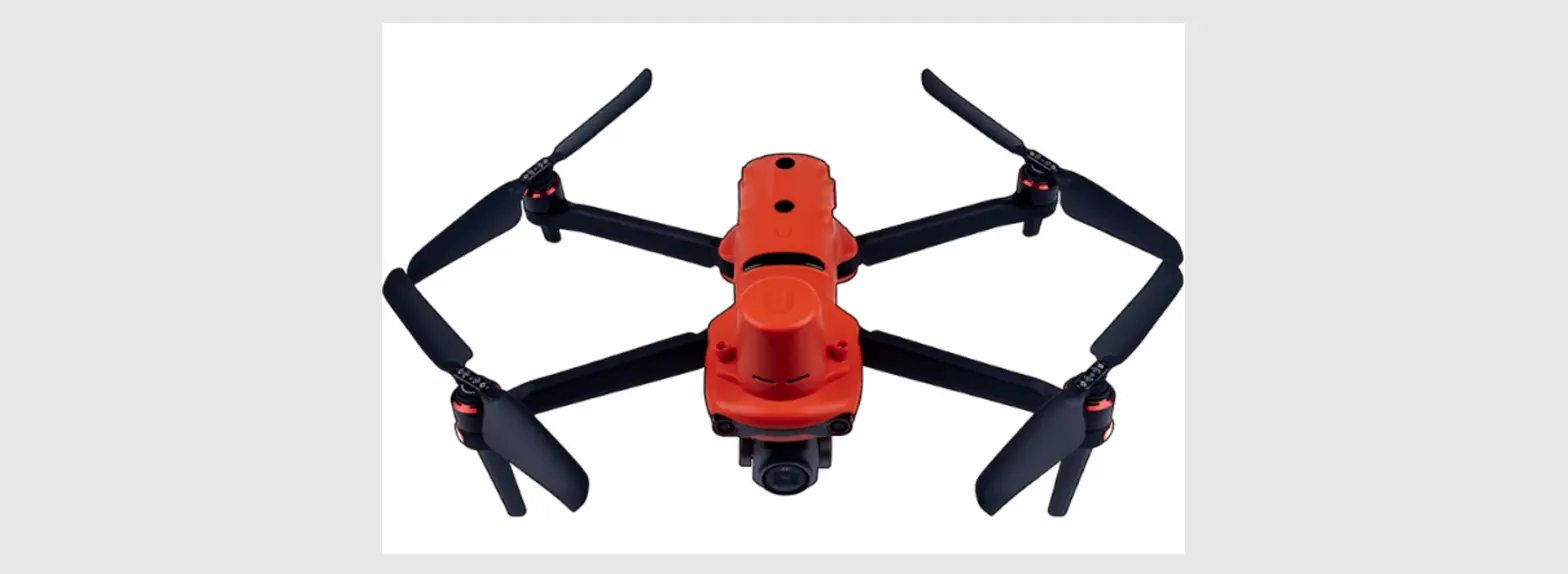

EVO2-640T-RTK-V3-BUN Rugged Drone

Product Information: The EVO II RTK Series V3 is a
professional-grade drone that offers unrivaled accuracy and
control. It features a brand-new RTK module that provides real-time
centimeter-level positioning data and supports Post-Processing
Kinematic (PPK). The drone can record satellite observation data,
camera exposure parameters, and more. The positioning system
supports RTK base stations and NTRIP RTK network, ensuring accurate
and stable data acquisition in complex operation environments. The
drone has a horizontal positioning accuracy of 1cm+1ppm and a
vertical positioning accuracy of 1.5cm+1ppm. It does not require
Ground Control Points (GCPs) for achieving centimeter-grade
accuracy. The EVO II RTK Series V3 supports third-party base
stations and offers robust partnerships with Autel Explorer for
Mapping. The EVO II Pro RTK V3 is equipped with a high dynamic
range and powerful low light performance, allowing users to capture
clear detail sets with minimal distortion and noise. It features a
1-inch ultra-sensitive sensor with a maximum of 20 megapixels. The
drone’s updated CMOS image sensor and ultra-sensitive algorithm
enable clean, detailed, low-noise data capture even in twilight or
night conditions. The lens aperture is adjustable from F2.8 to F11,
providing flexibility in adapting to lighting changes. The drone’s
datasets are optimized for easy adjustment with post-processing
software applications. It also supports 4x lossless zoom and 16x
digital zoom, allowing users to obtain clear intel from farther
away without detection. The EVO II Dual 640T RTK V3 is equipped
with a high-resolution thermal imaging camera and a Sony 50
megapixel RYYB sensor. The thermal imaging camera has a resolution
of 640*512 and features a 13mm focal length lens and 16x digital
zoom, making it easy to observe distant targets. The drone’s image
processing algorithm enhances thermal imaging details, providing
clearer and more discernible results compared to similar resolution
and hardware competitors. It also offers precise temperature
measurement capabilities. Product Usage Instructions: 1.
Positioning System Setup: – Connect the EVO II RTK Series V3 to an
RTK base station or NTRIP RTK network for accurate and stable data
acquisition. – Ensure the drone records the original satellite
observation data and camera exposure parameters for optimal
positioning accuracy. – Use the Autel Explorer for Mapping app to
access the positioning system settings and configure the desired
options. 2. Flight Planning and Execution: – Use the Autel Explorer
for Mapping app to create rectangular or polygonal missions based
on your mapping requirements. – Utilize the double grid mapping
feature for additional angles and improved mapping coverage. –
Customize course headings to meet orientation requirements. – Take
advantage of the nonstop turning on corners feature to save time
and battery life during missions. – Save multiple NTRIP profiles
for different locations in the Explorer app to avoid manually
inputting account information for each travel. 3. Camera Control
and Settings: – Enjoy complete manual control over camera settings
for precise capture. – Adjust the lens aperture size (F2.8 to F11)
to adapt to lighting changes and gain more shutter speed control.
4. Zoom Functionality: – Utilize the 4x lossless zoom and 16x
digital zoom features of the EVO II Pro RTK V3 for capturing clear
intel from farther distances without detection. 5. Thermal Imaging
and Temperature Measurement: – Use the EVO II Dual 640T RTK V3’s
high-resolution thermal imaging camera for observing distant
targets. – Take advantage of the 16x digital zoom feature for
enhanced observation capabilities. – Leverage the precise
temperature measurement capabilities of the drone for accurate
thermal analysis. Please refer to the user manual for detailed
instructions on firmware updates, troubleshooting, and additional
features.

View Fullscreen

www.autelrobotics.cn

Series V
Unrivaled Accuracy and Control

Centimeter-Level Positioning
The EVO II RTK Series V3 introduces a brand-new RTK module, which provides real-time centimeter-level positioning data, and supports Post-Processing Kinematic (PPK). The aircraft can record the original satellite observation data, camera exposure parameters and more. The positioning system supports RTK base station and NTRIP RTK network, which helps to achieve accurate and stable data acquisition in complex operation environments.
RTK Horizontal Positioning Accuracy: 1cm+1ppm
RTK Vertical Positioning Accuracy: 1.5cm+1ppm

No GCP Required
EVO II RTK Series V3 connects to NTRIP network and does not need GCPs to provide centimeter-grade accuracy.

3rd Party Base Station Support
EVO II RTK Series V3 supports all NTRIP compatible base stations.

Robust Partnerships

Autel Explorer for Mapping
Multi-NTRIP Profile Saving
The EVO II RTK Series V3 returns to where it left off in multi-battery missions without starting from the beginning.
Photo Replication
For repeatable missions, you can record the drone’s previous shooting parameters. The gimbal, camera, and movement settings will be replicated, allowing missions to be easily duplicated.
Multi-Battery Missions
The Explorer app allows the user to create and save multiple NTRIP profiles for different locations without having to manually input account info every travel.
Advanced Feature Sets

Create Rectangular or Polygonal Missions

Supports Double grid mapping for additional angles

Have complete manual control over camera settings

Nonstop turning on corners saves time and battery life

Customizable course headings to meet orientation requirements

V
Capture Every Detail
EVO II Pro RTK V3 has high dynamic range and powerful low light performance, enabling users to capture clear detail sets with minimal distortion and noise.
1-Inch Ultra-Sensitive Sensor
The EVO II PRO RTK V3 comes with a NEW updated 1-inch 6K CMOS image sensor with a maximum of 20 megapixels. Thanks to the ultra-sensitive algorithm, you can still shoot clean, detailed, low-noise data sets under twilight or night conditions.
F2.8~F11 Adjustable Aperture
Adapt to lighting changes by adjusting the lens aperture size, giving the pilot more shutter speed control.

Optomized for Software Image Correction
EVO II PRO RTK V3 has optimized its datasets to be easily adjusted with post processing software applications.

Zoom in for the Detail
EVO II Pro V3 supports 4x lossless zoom and 16x digital zoom. Obtain clear intel from farther away without detection.

V
Dual Cameras, Accurate Temperature Measurement
The EVO II Dual 640T RTK V3 is equipped with a highresolution thermal imaging camera and an all new Sony .8″ 50 megapixel RYYB sensor.
High-Resolution Thermal Imaging Sensor
Equipped with 640*512 high-resolution thermal imaging camera featuring a 13mm focal length lens and 16x digital zoom, it is easy to observe distant targets. The system uses a new image processing algorithm, making thermal imaging details clearer and more discernible than competition with the similar resolution and hardware.
Precise Temperature Measurement
The EVO II Dual 640T RTK V3 can accurately detect heat sources within 2-20 meters. By leveraging the compensation algorithm of infrared temperature measurement, the 640T RTK can regulate temperature deviations within 3 degrees Celsius.

Radiometric

New Image Processing Algorithm
The V3 system uses a brand new image processing algorithm, making thermal imaging details sharper and more discernible than the competition with the similar resolution and hardware.

30hz Refresh Rate for Videogrammetry
The EVO II RTK Dual provides high refresh rates for accurate and detailed 3D thermal maps.

16X

Zoom in for the Detail
Focus in on critical areas with the EVO II RTK’s 4x lossless zoom and 16x digital zoom.

SkyLink 2.0 Video Transmission
EVO II RTK Series V3 is upgraded with Autel’s all new SkyLink 2.0 Video Transmission technology.
Fly farther with HD video transmission up to 15km.
QHD
Obtain critical details with QHD video within 1km.
2.4G/5.8G/900MHz
Support tri-band communication and can automatically frequency hop for maximum anti-interference capability
*900MHz is only applicable for FCC countries.

360° Obstacle Avoidance
Equipped with 19 groups of sensors, including 12 visual sensors, the main camera, ultrasound, and IMUs. The EVO II V3 can build three-dimensional maps and plan paths in real time.

Portable and Easy to Use

The EVO II RTK Series V3 folds up for ease of transport and deployment.

Trouble Free Daily Workflows
Deploy in under a minute. The EVO II 640T V3 can go from its case to the air in 45 seconds.

Safe and Sturdy

EVO II’s smaller cross section and powerful motors allows greater stability and control in windy conditions.

No Forced Updates
EVO II RTK Series V3 does not need to be on the latest hardware or app version in order to take off unlike other competitors.

Enjoy up to 38 minutes of flight time – 20%~30% more than the next leading competitor for more area coverage and longer missions.

No-Fly Zones
The EVO II V3 series does not have no-fly zones, so pilots can take off anywhere.

*Please fly safely and consult your local laws and regulations. Autel Robotics is not liable for any unauthorized flights. **Please refer to the manual for details on obstacle avoidance and its limitations, which may or may not work in limited lighting environments, under direct strong sunlight, or across thin tree branches or wires.

Smart Controller V3’s 7.9-inch, 2000nit high-brightness screen is clearly visible even under direct sunlight. SkyLink 2.0 Transmission technology guarantees long-distance operations from up to 15km away and enhances anti-interference abilities with triple band frequency hopping. The customized Android system allows for additional flexibility with 3rd party apps and an IP43 rating ensures all weather performance.

15km Transmission Range
Up to 4.5 Operating Hours

Maximum 2000nit Brightness
IP43 Resistance

Broadcast with Live Deck 2
Broadcast live mission intel to other personel in the operation for enhanced situational awareness and faster decision making. The EVO II Dual 640T V3 is compatible with Live Deck 2, which offers multiport streaming to
monitors and Wifi support for multiple smart phones.

1080P Video Stream

Three Auto-Switch Bands

12KM Transmission Range

IP43 Resistance

Applications
Powerline Inspection Law Enforcement

Photogrammetry Firefighting

Specifications

Aircraft

Weight (With Propeller 2.75 lbs (1250g) EVO II DUAL 640T RTK V3

and Battery)

2.73 lbs (1237g) EVO II PRO RTK V3

Size

230*130*143 mmcfolded 260*355*143 mmcunfolded

Max Flight Time
Operating Temperature Range
Wind Resistance

36 min 14-104°F (-10-40°C) Level 8

Hovering Accuracy

When RTK is enabled and works normally: Vertical: ± 0.1 m, Horizontal: ± 0.1 m RTK is not enabled: Vertical: ±0.1 m (visual positioning), ±0.5 m (GNSS) Horizontal: ±0.3 m (visual positioning), ±1.5 m (GNSS)

GNSS

GPS+BeiDou+Galileo (Asian Region) GPS+GLONASS+Galileo (Other Region)

EVO II Dual 640T RTK V3 Visual Camera

Sensor

1/1.28″(0.8″) CMOS; 50M effective pixels

Lens

FOV: 85° 35 mm format equivalent focal length: 23 mm Aperture: f/1.9 Focus range: 0.5 m to infinity (with auto focus)

Zoom

1-16x (up to 4x lossless zoom)

EVO II Dual 640T RTK V3 Thermal Camera

Lens

FOV H33°V26° Focal length 13mm

Zoom Wavelength Range

1-16x 8~14m

Temperature Measurement Accuracy

±3 or ±3% of reading (whichever is greater) @Environmental temperature-20~60

Sensor Lens

EVO II Pro RTK V3 Camera
1 inch CMOS; 20M pixels
Fov: 82° 35 mm format equivalent focal length: 29 mm Aperture: F/2.8 – F/11 Focus Range: 0.5 m To Infinity

ISO Range Zoom

Video: 100-44000 Photo: 100-6400
1-16x (up to 3x lossless zoom)

RC and Image Transmission

Max Transmission Distance (Unobstructed, Free of Interference)

FCC: 15km CE: 8km

Display Screen Operating Time Charging Time Internal Storage

2048×1536 60fps ~2 hours (max. brightness) ~4 hours (50% brightness) 120 minutes
ROM 128GB
