POE606 Powerful High Load Gigabit Switch
User Guide
POE606 – Quick Start Guide
User Information
- The PoE Switch must be installed in a clean, dry environment where it will not be exposed to high temperatures, moisture or excessive dust.
- Do not touch the PoE Switch or any of its connections with wet hands.
- Ensure the power is switched off if the PoE Switch is not in use for a long period of time.
- There are no user-serviceable parts in the PoE Switch and opening or attempting to repair the product will void the warranty.
- Only use the PSU originally supplied with the product.
- Do not install or use the device if the power cable is damaged.

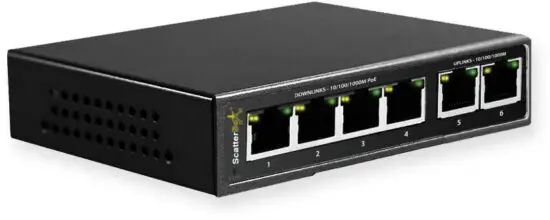

The POE606 is a power 1Gbps 4-way switch that can supply up to 71W of power per port.
Designed for higher load POE CCTV Equipment such as PTZs or you can use it to power other devices such as PoE extenders.
Because of the very high 71W output per port, the power supply is external to the switch supplied with it.
Setup Options

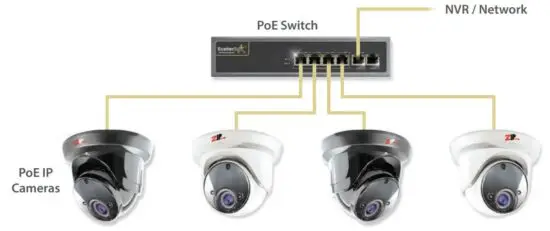

Option 1
To power, IP Cameras using the PoE switch then connect the IP Cameras using CAT5e/CAT6 Ethernet Cable, for longer distances we recommend using a high-quality cable, with solid copper cores.

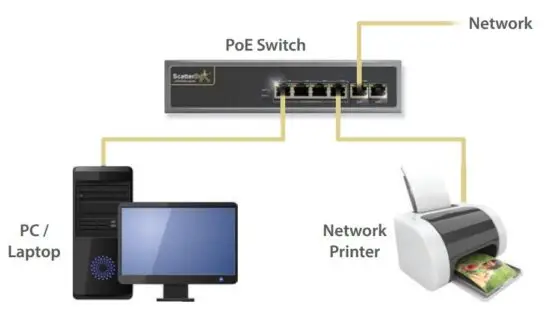

Option 2
Provide network infrastructure to PoE and non-PoE Devices, like computers, and other network devices.
LED Status Indicators
| LED | Condition | Status |
| Power |  On | The switch is receiving power |
 Off | The switch is not receiving power | |
| Network / Link |  On | The port is connected |
 Off | No connection to the port | |
| Flashing | The port is transmitting or receiving data | |
| PoE |  On | The port is linked and provides power to a device |
| Off | The port is not providing power to a device |
Troubleshooting
| Problem | Possible Cause | Solution |
| No Power light on the Switch | No power to the device | Check power to the device from an external source. Check that the power lead (IEC lead) is plugged into the PSU and the PSU is plugged into the switch. |
| Loose connection | Check that the power lead (IEC lead) is plugged into the PSU and the PSU is plugged into the switch. | |
| Network light not flashing | Poor quality cable or termination | Check the Ethernet cabling to your device is of good quality and is terminated correctly. |
| No PoE on the connected device | Poor quality cable or termination | Check the Ethernet cabling to your device is of good quality and is terminated correctly |
| Total power consumption exceeded | Check the load devices are not above the total power consumption of the switch. | |
| Cable length | Check the distance of the Ethernet cable to your device. Ethernet cables have a 100m maximum length. | |
| Slow flashing LEDs, No Network or PoE on load devices | Faulty cable or device | Turn the power off to the switch & unplug the load devices (Check Ethernet cabling to load devices). Leave the switch turned off for 10 seconds and then power the switch back up, plug each device back into the switch individually to help troubleshoot the suspect cable. |
Specification
| Downlinks | 4 x RJ45 |
| Uplinks | 2 x RJ45 |
| PoE | 71W (Max per port) |
| Power | 250W (Whole device maximum) |
| Bandwidth | 10/100Mbps/Full Gigabit |
| Use | Internal Use Only |
| Working Temperature | 0°C ~ 40°C |
| Power Input | 240V AC (PSU and Lead supplied) |
| Dimensions | W118 x D95 x H28mm |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance of the equipment referred to.
Copyright 2021 System Q Ltd
This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery, and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
POE152 – Quick Start Guide
User Information
- The POE152 must be installed in a clean, dry environment where it will not be exposed to high temperatures, moisture, or excessive dust.
- Do not touch the POE152 or any of its connections with wet hands.
- There are no user-serviceable parts in the POE152 and opening or attempting to repair the product will void the warranty.
- Do not install or use the device if the CAT5e/CAT6 Ethernet Cables connected are damaged.

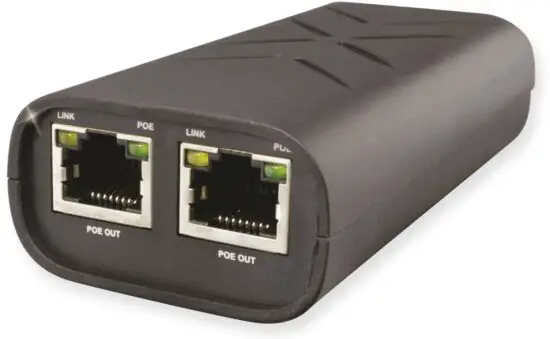

The POE152 is a high-speed IP PoE extender and 2-way splitter.
Full 1Gbps in and out this is a really useful piece of kit for both extending PoE past the 100m mark and also adding on a 2nd IP device or connection.
Powered by the inbound IP for ease of installation.

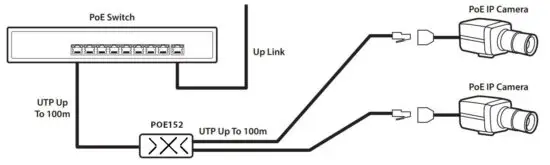

How It Works
The POE152 is easy to install into an IP CCTV system as shown below. It can be installed at the end of a 100 meters network cable to extend the network and PoE supply by 100 meters at full speed.
LED Status Indicators
| LED | Condition | Status |
| POE IN – Network Link | On | The port is connected |
 Off | No connection to the port | |
| Flashing | The port is transmitting or receiving data | |
| POE IN – POE | On | The port is linked and provides power to a device |
| Off | The is not providing power to a device |
Troubleshooting
| Problem | Possible Cause | Solution |
| No Power light on the Switch | No power to the device | Check power to the device from an external source. Check that the power lead (IEC lead) is plugged into the PSU and the PSU is plugged into the switch. |
| Loose connection | Check that the power lead (IEC lead) is plugged into the PSU and the PSU is plugged into the switch. | |
| Network light not flashing | Poor quality cable or termination | Check the Ethernet cabling to your device is of good quality and is terminated correctly. |
| No PoE on the connected device | Poor quality cable or termination | Check the Ethernet cabling to your device is of good quality and is terminated correctly |
| Total power consumption exceeded | Check the load devices are not above the total power consumption of the switch. | |
| Cable length | Check the distance of the Ethernet cable to your device. Ethernet cables have a 100m maximum length. | |
| Slow flashing LEDs, No Network or PoE on load devices | Faulty cable or device | Turn the power off to the switch & unplug the load devices (Check Ethernet cabling to load devices). Leave the switch turned off for 10 seconds and then power the switch back up, plug each device back into the switch individually to help troubleshoot the suspect cable. |
Specification
| Max Cable Run | Max 100m |
| Input Power | 25W |
| Output Power | 25W |
| Bandwidth | 10/100Mbps/Full Gigabit |
| Use | Internal Use Only |
| Dimensions | W50×D103×H29mm |
All specifications are approximate. System Q Ltd reserves the right to change product specifications or features without notice. Whilst every effort is made to ensure that these instructions are complete and accurate, System Q Ltd cannot be held responsible for any losses, no matter how they arise, from errors or omissions in these instructions, or the performance or non-performance ofthe equipment referred to.This symbol indicates that equipment must not be mixed with general household waste. For treatment, recovery, and recycling please return to your local designated WEE/CG0783SS collection point as defined by your local council.
