Zebra Tc21 / Tc26 Accessory Guide User Guide

ZEBRA TC21 / TC26 Accessory Guide

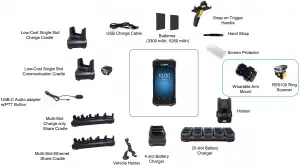

TC21/TC26 Accessory Overview

Cradle System

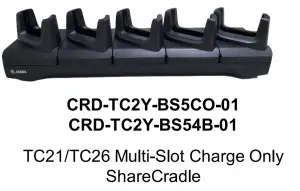

1 & 5 Slot Charge Cradles

• Charges Trigger Handle and Terminal together
• Multi-slot – 19” Rack: Rack Mountable (Mounting accessory required – BRKT-SCRD-SMRK-01)

• 5-slot available in 2 options;
• 5 slot terminal only
• 4 slot terminal plus 4 slot battery

• Single Slot Base Cradle requires USB C Cable
  (CBL-TC5X-USBC2A-01, PS: PWRWUA5V12W0XX (US, EU, GB, AU, CN, BR, KR, IN)

• 5-Slot Cradles requires power supply PWRBGA12V108W0WW, DC Line Cord CBL-DC381A1-0 & country specific AC Line Cord (sold separately)

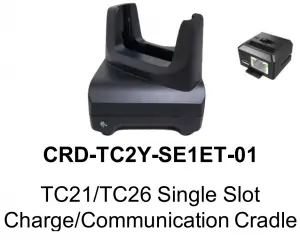

1 & 5-Slot Communication Cradles

• Charge Trigger Handle and Terminal Together
• Multi-slot 19-inch Rack Mountable (Mounting accessory required – BRKT-SCRD-SMRK-01)
• NOTE: Single Slot Communication Cradle to utilize Ethernet requires MOD-MT2-EU1-0 or to utilize USB requires UBB cable 25-124330-01R. (Both Sold Separately)

• Single Slot Charge and Ethernet Communication Cradle requires power supply PWR-BGA12V50W0WW & CBLDC-388A1-01 & country specific AC Line Cord (sold separately)

• 5-Slot Cradles requires power supply PWRBGA12V108W0WW, DC Line Cord CBL-DC-381A1-0 & country specific AC Line Cord (sold separately)

Batteries and Chargers

4-Slot Battery Charger

• Charges 1X or 2X Batteries; can mix & match battery per slot
• 4-Slot requires power supply PWR-BGA12V50W0WW; DC Line Cord CBL-DC-388A1-01 & country specific AC Line Cord (sold separately)

• 20-slot required power supply PWR-BGA12V108W0WW; DC Line Cord CBL-DC-381A1-01 & country specific AC Line Cord (sold separately)

• 20-slot Rack Mountable (requires BRKT-SCRD-SMRK-01 sold separately)

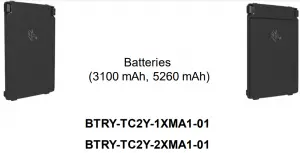

1X and 2X Batteries

Basic Battery 3300 mAh
Extended Battery 5260 mAh

• Basic Battery 3300 mAh
• Extended Battery 5260 mAh
• Country Specific Batteries available: “-BR” Brazil, “-IA” India
• Both compatible with battery charger SAC-TC2Y-4SCHG-01

Data Capture

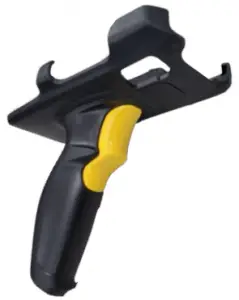

Trigger Handle

TRG-TC2Y-SNP1-01

TC21/TC26 Snap-On Trigger Handle

Transforms device into all-touch handle style terminal for use in interim high-volume scanning operations

• Easily attaches to TC21/TC26 top housing
• Exposed Contacts provide ability to charge with the 5- Slot & Single Slot Cradles
• Optional Wrist Tether (sold separately) 50-12500-066

• The Trigger Handle is only available to be used on the TC21 and TC26 devices equipped with the 2-pin rear I/O connector.
• Does not block rear camera

Screen Protector

SG-TC2Y-SCRNPT1-01

TC21/TC26 Tempered Glass Screen Protector

• Protects Display on TC21 & TC26
• Single Protector to a Package

Trigger Handle Service Plan

Soft Goods

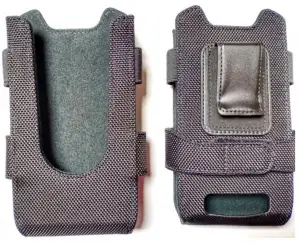

Soft Holsters

TC21/TC26 Soft Holster

• TC2X Open Bucket design to accommodate hand strap + Snap-on’s for easy insertion/removal
• Opening for audio & drainage
• Non-rotating clip
• Adjustable belt to fit the TC21/TC26 with Basic or Extended Battery


Hand Strap

SG-TC2Y-HSTRP1-01

TC21/TC26 Hand Strap

• Plastic clip that snap into towel bar for easy insertion/removal
• Leather and Hypalon Pad for maximum comfort & wear resistance with Adjustable Velcro design


Arm Mount

SG-TC2Y-ARMNT-01

• Enables the TC21/TC26 to be mounted to the arm for hands free operation
• Scan with the hands free RS5100 Bluetooth Ring Scanner


Audio and Vehicle Accessories

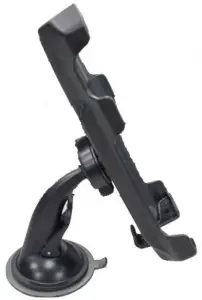

In-Vehicle Holder

CRD-TC2Y-VCH1-01

TC21/TC26 In-Vehicle Holder

• Suction Cup for Easy Window or Dashboard Mount
• Supports device with 1X or 2X Batteries
• USB-C jack accessible
• Does Not support Snap-On Accessories
• Work with USB Cigarette Lighter Adapter (CHG-AUTOUSB1-01) – sold separately

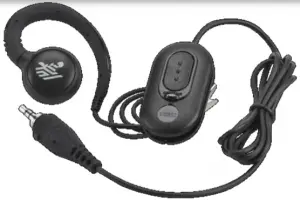

Headset

HDST-35MM-PTVP-01

Over the ear headset with MIC and PTT 3.5mm Requires USB-C adapter cable, ADPUSBC-35MM1-0 (sold separately)

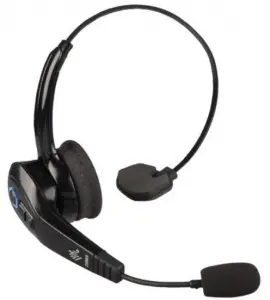

Bluetooth Headset

HS3100-OTH

HS3100 Rugged Bluetooth Headset Over-The Head Headband includes HS3100 Boom Module and HSX100 OTH Headband Module

Audio Adapter Cable

ADP-USBC-35MM1-01

USB to 3.5MM adapter with PTT Headset button support

Chargers and Cables

USB C Cable

CBL-TC5X-USBC2A-01

TC21/TC26 USB C Cable to be used for charging and communications

Wall Charger – Power Supply

WR-WUA5V12W0XX

Power Supply-100-240 VAC, 5 V, 2.5 A with country specific plugs.

AC Line Cords – Country Specific
