The Quality Choice
Model 72118
LED Speaker Module
User Manual

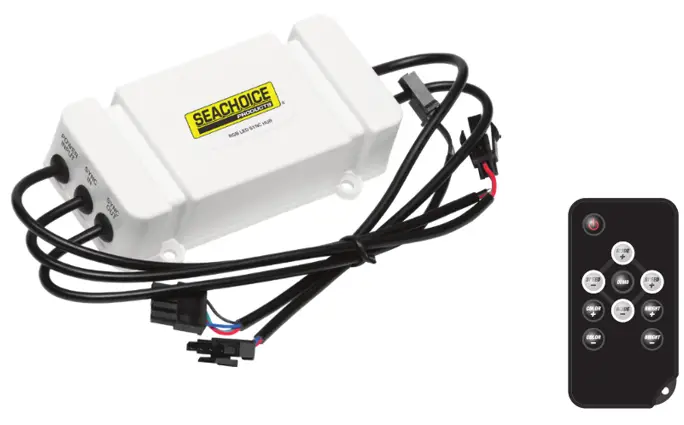

LED SPEAKER MODULE
SYNCS MULTI-COLOR ILLUMINATION & LIGHTING PATTERNS
SEACHOICE PRODUCTS
GETTING STARTED

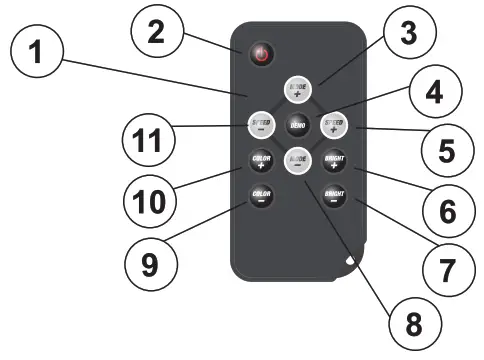

GETTING TO KNOW YOUR RF CONTROLLER
| 1 RF CONTROLLER | 7 BRIGHTNESS DOWN |
| 2 POWER ON / OFF | 8 MODE DOWN |
| 3 MODE UP | 9 COLOR DOWN |
| 4 AUTO DEMO | 10 COLOR UP |
| 5 SPEED UP | 11 SPEED DOWN |
| 6 BRIGHTNESS UP |
- RF controller range: Up to 25ft (LoS)
- Do not obstruct the RF remote with metal
- Always keep away from small children
- Do not store in direct sunlight
REPLACEMENT BATTERY – CR2025
BEFORE INSTALLING THIS PRODUCT

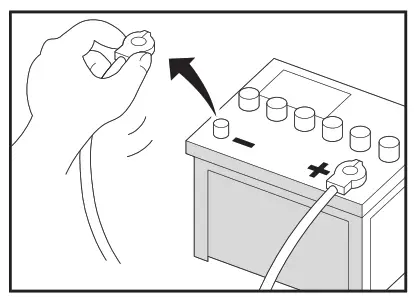

To avoid potential shorts in the electrical system, be sure to disconnect the (–) battery cable before installation. Use this unit with a 12-volt battery and negative grounding only.
Failure to do so may result in a fire or malfunction.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
When replacing the fuse, be sure to only use a fuse of the rating specified on this product.
To avoid short-circuiting, cover any disconnected leads with insulating tape. It is especially important to insulate any unused wires, which if left uncovered may cause a short circuit. When connecting other devices to this product, refer to the manual for the product to be connected. The black cable is ground, make sure to connect the ground wire first.
Ensure that the ground cable is properly connected to metal parts of the vehicles body frame or direct to the battery if your vehicle does not have a grounded chassis frame The ground cable of this units power amp and a second powered system must be connected to the frame separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire or malfunction.
TOOLS NEEDED:
- Wrench and/or Pliers
- #2 Phillips screwdriver
- Crimp tool
- Handsaw / Jig Saw
- Electrical tape
WIRE DIAGRAM
- Do not touch the speaker flex wire
- Secure all wiring with wire ties
- Properly seal connections to ensure water tight connections
CAUTION!! Do not ground or short the RGB wires
TROUBLE SHOOTING GUIDE
| TROUBLE | CAUSE | SOLUTION |
| RGB Unit will not turn on | The fuse is blown | Check / replace the fuse |
| Switch not engaged | Turn to on position | |
| No sound is heard | Blown speaker | Replace faulty speaker |
| Volume is low / muted | Press the volume level up | |
| Device is paused or muted | Check your devices playing / volume status | |
| Unit has become unresponsive | Power glitch or interference | Disconnect power for 10 seconds to reset |
SPECIFICATIONS
RGB HUB GENERAL SPEC
- Power source: 14.4VDC (10.8V ~ 16V allowable)
- Grounding System: Negative type
- Maximum Current Consumption: 1.5A
- Storage Temperature: 5° F to 113°F / -15°C to 45°C
- Operation Temperature: 14°F to 104°F / -10°C to 40° C
CAUTION!!
ADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
