Seachoice 72111 5.25 Inch Round Led Speakers User Manual

5.25 Inch Round LED Speakers
User Manual

Model 7211

2-WAY 51/4″ MULTI-COLOR ROUND LED SPEAKERS

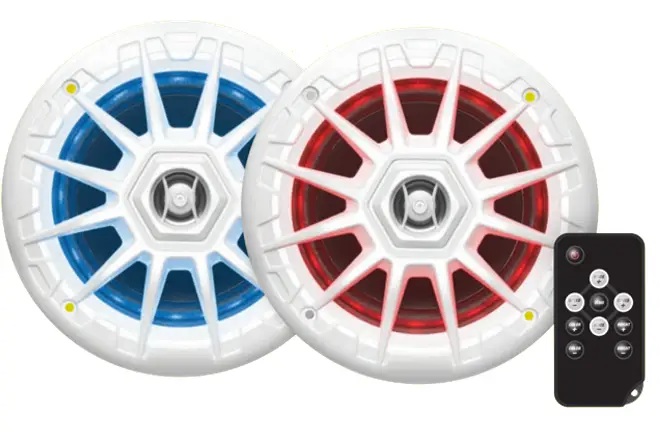

72111 5.25 Inch Round LED Speakers

Thank you for purchasing this
5.25” Coax Speakers w/ RGB LED RF Controller
Please read through these instructions carefully so you will know how to operate your model properly.
After you have finished reading these instructions, keep this document in a safe place for future reference.

THIS PACKAGE CONTAINS

2x- Coax Speakers
1x- RF Remote Controller
2x- Mounting Hardware Kit
1x- User Manual

FCC COMPLIANCE STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

IMPORTANT SAFETY PRECAUTIONS

BE SURE TO OBSERVE THE FOLLOWING GUIDELINES:
– Do not turn up the volume so high that you can’t hear what’s around you.
– Use caution or temporarily discontinue use in potentially hazardous situations.

• Do not operate mobile video equipment while driving a motorized vehicle
• Safe vehicle operation and safety consideration of others should always be your highest priority.
• Set your volume control at a low setting, then slowly increase the sound until you can hear it comfortably without distortion, or ear discomfort.
• In the event you should notice smoke, strange noises or odor from this product, or any other abnormal signs, immediately turn off the power and consult your dealer or the nearest authorized BOSS AUDIO Service Center. Using this product in this condition may result in permanent damage to the system.

CINSTALLATION PRECAUTIONS
WARNING – Always consult with a professional installer

• Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons without professional training and experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, injury or other hazards
• The LED RGB HUB should be wired directly to a normally open switch or relay.
• When wiring directly to the vehicles battery, be sure to disconnect the batteries negative terminal wire before starting any wiring procedures,if ex-tending the main power wire, it is suggested that an optional fuse and fuse holder (not included) with minimum rating of 10 Amperes be in-line with the positive battery terminal
• The LED RGB HUB power cable length should be short as possible
• The speakers has a weather resistant design, it should not be submerged in or under water under any circumstances
• Use only the installation parts provided with the speakers

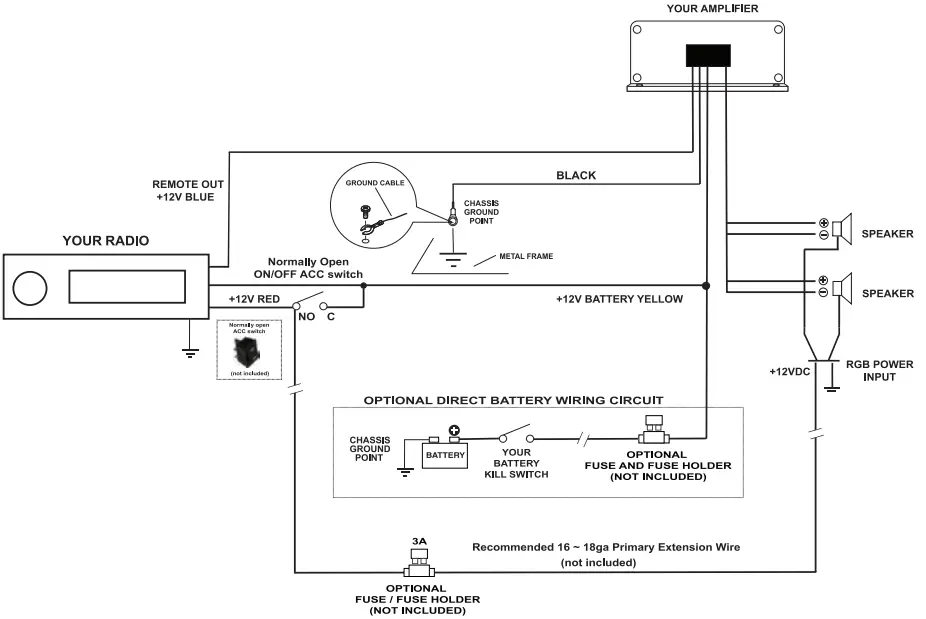

WIRE DIAGRAM

– Do not touch the speaker flex wire Secure all wiring with wire ties Properly seal connections to ensure water tight connections
CAUTION!! Do not ground or short the RGB wires

BEFORE INSTALLING THIS PRODUCT

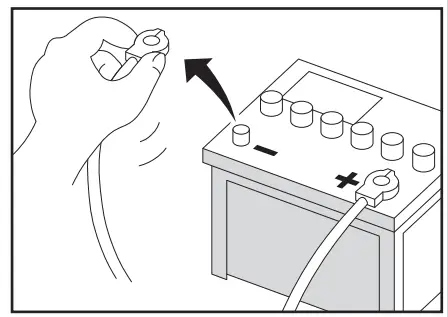

To avoid potential shorts in the electrical system, be sure to disconnect the (—) battery cable before installation. Use this unit with a 12-volt battery and negative grounding only.
Failure to do so may result in a fire or malfunction.

When replacing the fuse, be sure to only use a fuse of the rating specified on this product.
To avoid short-circuiting, cover any disconnected leads with insulating tape. It is especially important to insulate any unused wires, which if left uncovered may cause a short circuit. When connecting other devices to this product, refer to the manual for the product to be connected. The black cable is ground, make sure to connect the ground wire first.
Ensure that the ground cable is properly connected to metal parts of the vehicles body frame or direct to the battery if your vehicle does not have a grounded chassis frame The ground cable of this units power amp and a second powered system must be connected to the frame separately with different screws. If the screw for the ground wire loosens or falls out, it could result in fire or malfunction.

TOOLS NEEDED:

– Wrench and/or Pliers
– #2 Phillips screwdriver
– Crimp tool – Handsaw / Jig Saw
– Electrical tape

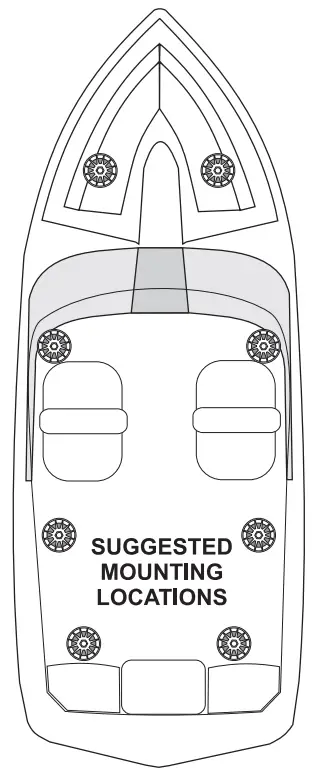

SUGGESTED MOUNTING LOCATIONS

The speakers can mounted in three different configurations:
Always double check for mounting depth limitations, never cut before you check

CAUTION!! Using other mounting methods may void this warranty

GETTING STARTED

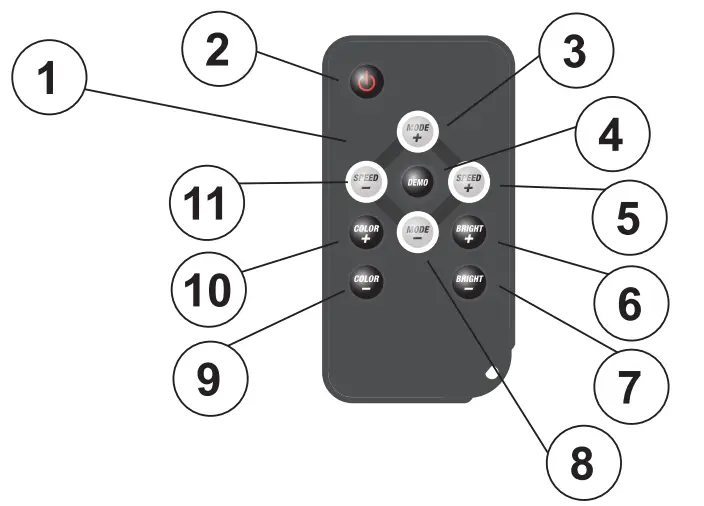

GETTING TO KNOW YOUR RF CONTROLLER

1. RF CONTROLLER
2. POWER ON / OFF
3. MODE UP
4. AUTO DEMO
5. SPEED UP
6. BRIGHTNESS UP
7. BRIGHTNESS DOWN
8. MODE DOWN
9. COLOR DOWN
10. COLOR UP
11. SPEED DOWN

1. RF controller range: Up to 25ft (LoS)
2. Do not obstruct the RF remote with metal
3. Always keep away from small children
4. Do not store in direct sunlight

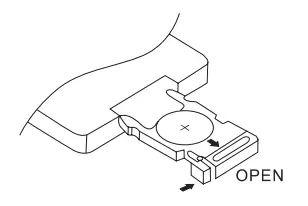

REPLACEMENT BATTERY – CR2025

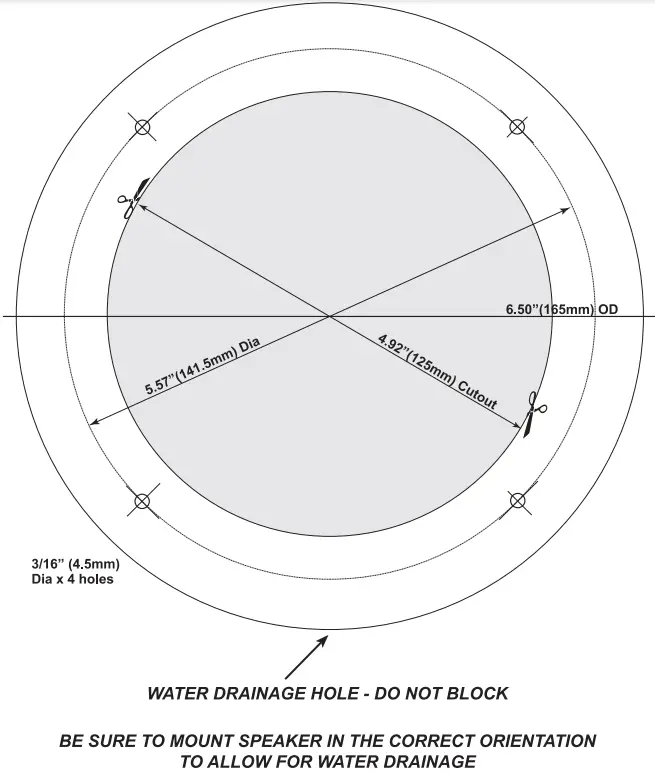

SPEAKER TEMPLATE

TEMPLATE FOR REEFERENCE ONLY- NOT TO SCALE

To avoid battery exhaustion be sure to run the vehicles engine while using this product. Using this product without running the engine can drain the battery.

TROUBLE SHOOTING GUIDE

SPECIFICATIONS

SPEAKER GENERAL SPEC

• Speaker Type: Full Range
• Configuration: Coaxial
• Woofer Size: 5.25″
• Tweeter Size: 1″
• Mounting Depth: 2-1/8″
• Mounting Diameter: 5-1/2″
• Peak Power Handling: 150 Watts
• Impedance: 40
• Sensitivity (1W/1M): 88dB
• Frequency Response: 80 Hz to 20 kHz, ±3 dB

RGB HUB GENERAL SPEC

• Power source: 14.4VDC (10.8V — 16V allowable)
• Grounding System: Negative type
• Maximum Current Consumption: 1.5A
• Unit Weight: 2.08Ibs / 0.94kg
• Storage Temperature: 5°F to 113°F / -15°C to 45°C
• Operation Temperature: 14°F to 104°F / -10°C to 40°C

CAUTION!! AADJUSTMENT OR ALTERATIONS OF THIS DEVICE MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

SEACHOICE PRODUCTS
Pompano Beach, FL U.S.A.
Made in China • Hecho en China • Fait aux Chine
Copyright © 2020 PRINTED IN CHINA
