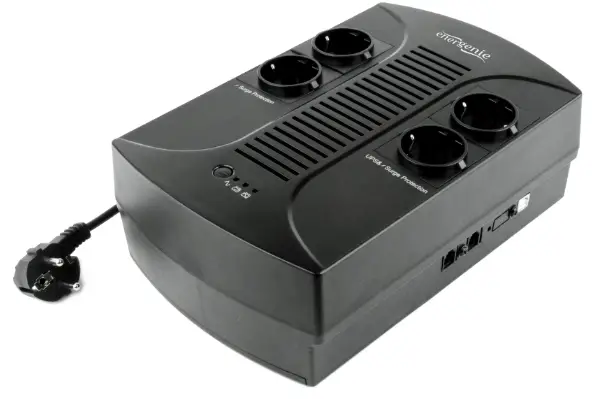

energenie EG-UPS-001 650VA UPS with AVR

Features

Uninterruptable 650 VA (850VA for EG-UPS-002) power supply with modified sine wave output
Automatic AC voltage regulation (AVR)
Intelligent surge-, overload- and short-circuit protection
USB port for PC connection (only for EG-UPS-002)
Audible and visual alarms
LED status indication
Intelligent battery management with overcharge and over-discharge protection
Wall mountable

Specifications

Type: line interactive
Waveform: sine wave (AC mains), modified (square) sine wave (battery)
Input: 220 V AC ± 25%, 50 / 60 Hz ± 10%
Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode)
Switching time: less than 10 ms
Backup time: 10…30 mins (depends on the load)
Battery: sealed lead-acid 12 V DC / 7Ah (8 Ah for EG-UPS-002)
Charge time: up to 12 hours
Sockets: 1 x C13 (input), 4 x Schuko (output)
Operating conditions: 0°C~40°C, at humidity 20~90%RH non condensing
Power: 650 VA (390 W) (850 VA (510 W) – for EG-UPS-002)
Charging current: up to 1.2 A
Noise: < 45 dB at 1 m distance
Dimensions: 280 x 185 x 95 mm
Product weight: 4.5 kg (5.6 kg for EG-UPS-002)

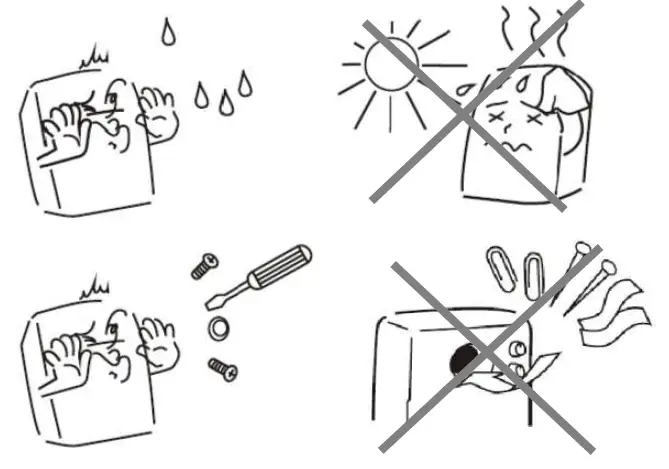

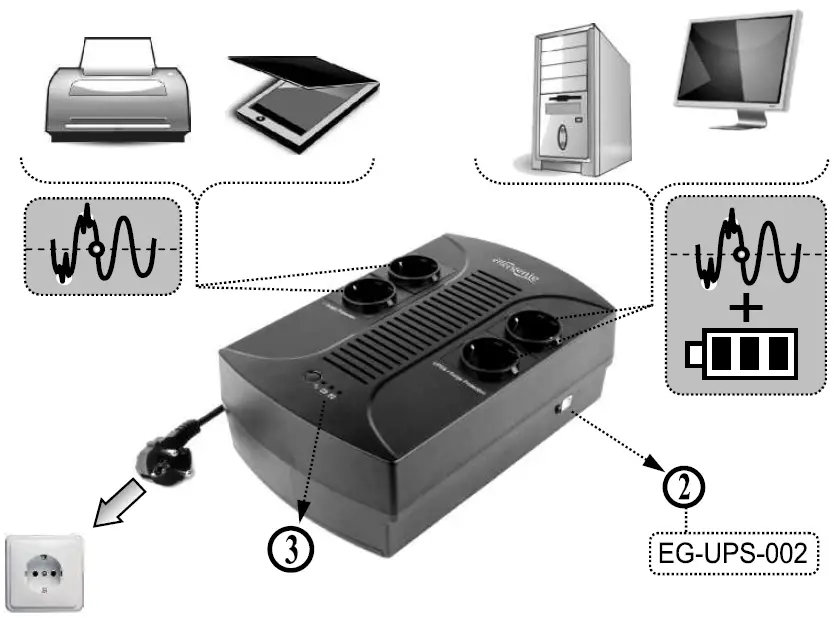

INSTALLATION INSTRUCTIONS

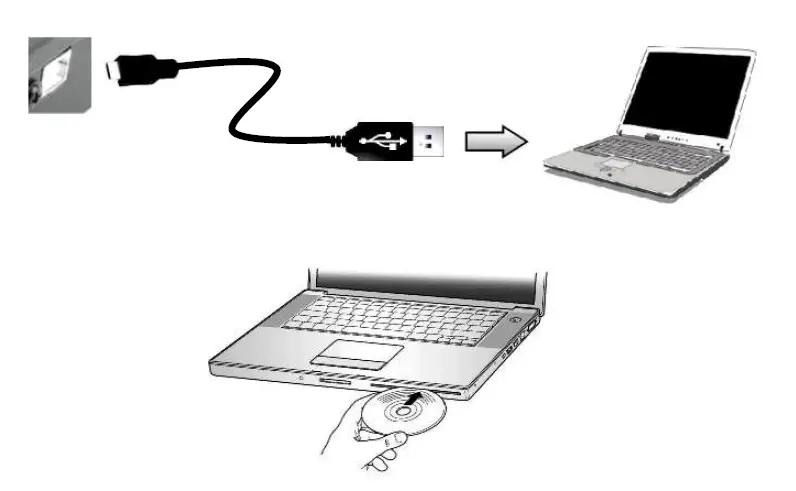

CONNECTIVITY

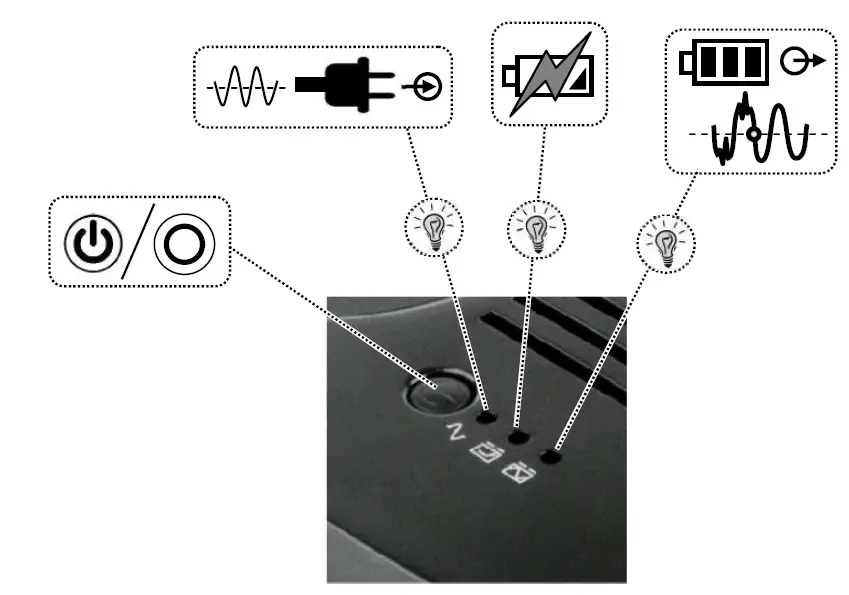

BUTTONS FUNCTION

This product is tested and complies with the essential requirements of the laws of member states concerning LVD(2006/95/EC), EMC(2004/108/EC). The CE declaration can be found under www.gembird.eu

Waste disposal:
Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reserves the right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingress of water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V. reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will always be calculated on the basis of the current market value of the defective products

Gembird Europe B.V. Wittevrouwen 56, 1358CD Almere The Netherlands
