HAMRON 002677 Strap Instruction
SAFETY INSTRUCTIONS
- Check load before use.
- Never exceed the maximum permitted load.
- Check the belt and tensioner before using.
- Do not use damaged equipment.
- Keep the strap away from hot surfaces, sharp edges, etc. Discard the strap if scratched, cut, unstitched, deformed by heat, etc.
TECHNICAL DATA
Max load 68 kg
Dimensions 2.4 mX\ll 6 mm
USE

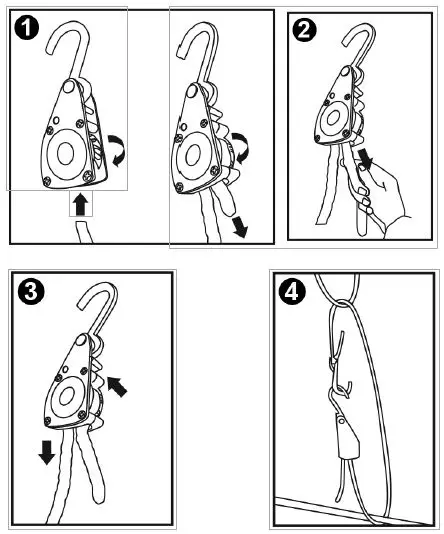

- Insert the free end of the strap through the tensioner from underneath. Rotate the spool anticlockwise.
- Fasten the hook. Wind the strap around the load. Fasten the hook. Pull tight the free end.
- To release the strap, press the lever on the inside of the tensioner.
- To secure the load better, fasten the hooks together on the strap and tensioner, and pull tight.
MAINTENANCE
REPLACING STRAP
If the strap is worn or if you need a longer strap, lift up the lever and rotate the spool to release. Feed-in a new strap. The product can be used with approved, woven r/J 6 mm straps.
