Kobalt 59188 High Carbon Wire Drain Auger User Manual

KOBALT 59188 High Carbon Wire Drain Auger

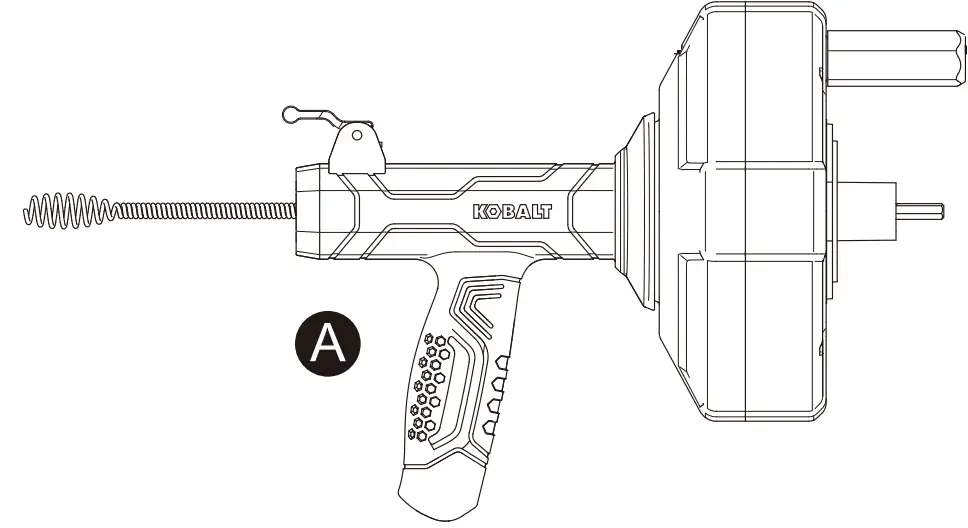

PACKAGE CONTENTS

WARNINGS

• Do not use this product until you read and understand all instructions.
• Failure to follow these instructions may result in personal injury, property damage or product failure.
• Do not use this drum auger in a drain if chemical cleaners have just been used .

CAUTION: Always use drill at consistent lower speed. (less than 400 rpm).

PREPARATION

• Before operating product, make sure all parts are present.
• Compare parts with package contents list and hardware contents list.
• If any part is missing or damaged, do not attempt to operate the product.

OPERATING INSTRUCTIONS

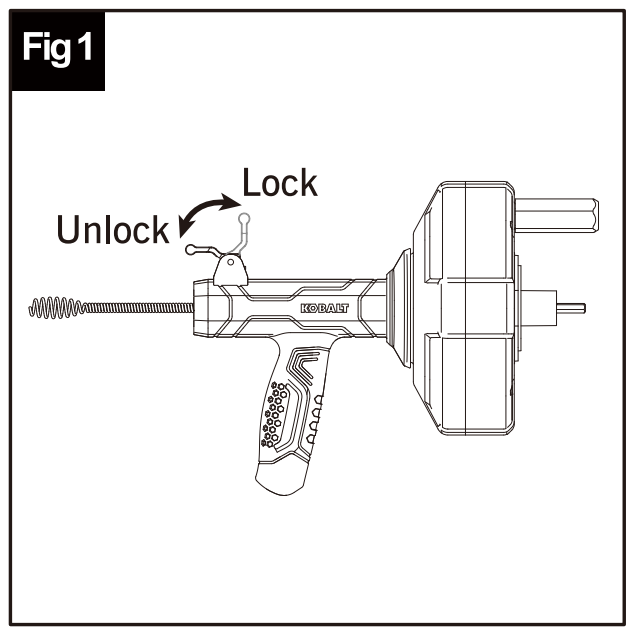

1. Push toggle switch to unlock cable (see Fig. 1!Unlock).

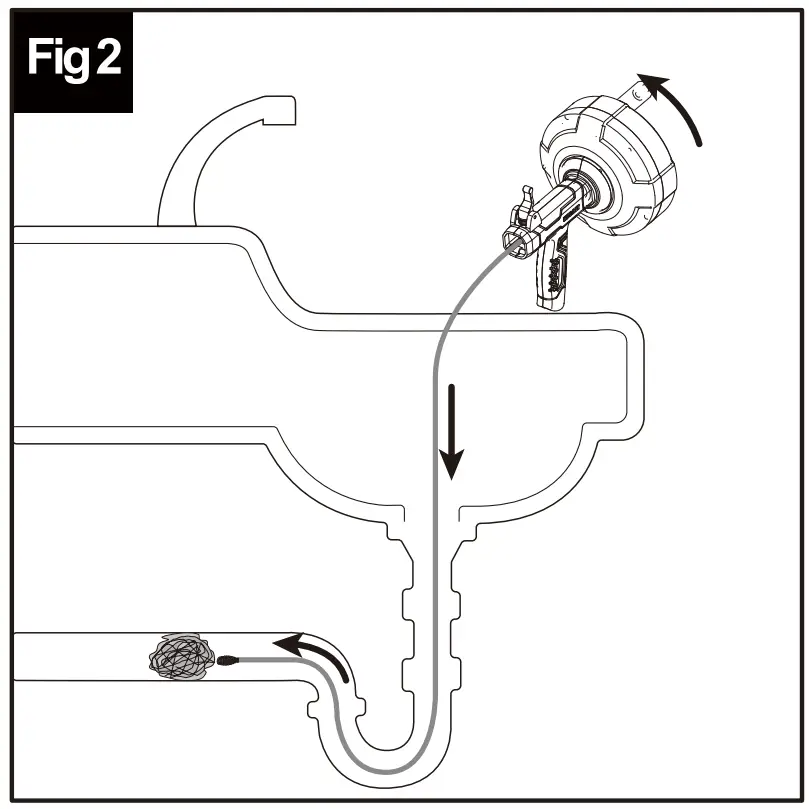

2. Pull cable out of the drum and push into drain as far as it will go (see Fig. 2).

3. Pull toggle switch to engage auto feed mechanism (see Fig. 1 Lock).

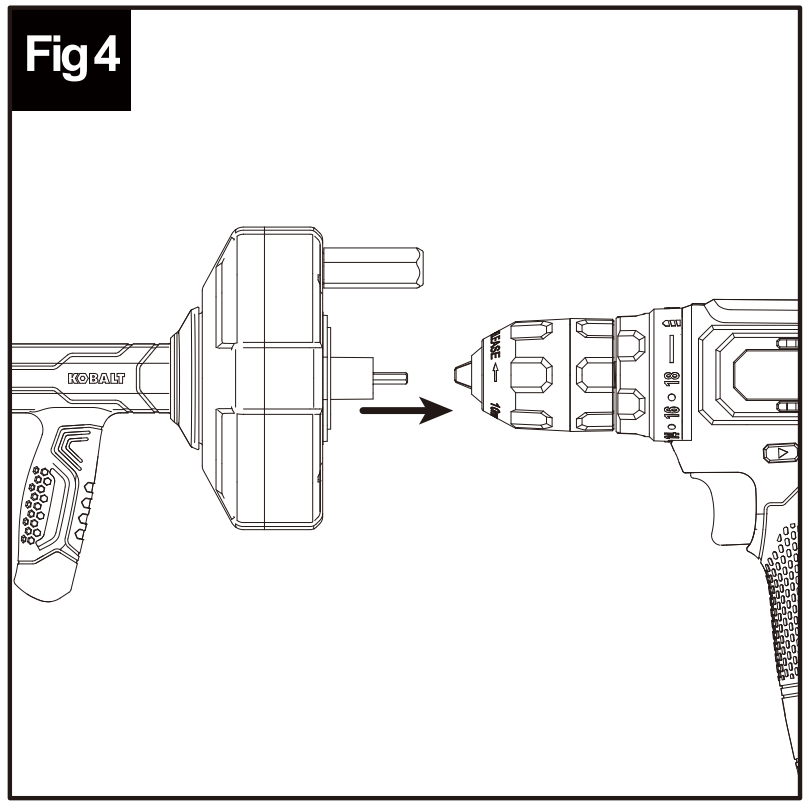

4. If using a power drill (see Fig. 4), always use drill at consistent lower speed (less than 400 rpm).

5. Turn the drum clockwise and the cable will gradually feed into the drain until it reaches a clog or elbow (see Fig. 2). Cable can also be rapidly advanced/retracted by feeding in and out of the drum by hand.
6. Carefully work the cable through the clog. Do not force the cable. If the cable stops turning, spin the cable without advancing it, or advancing the cable very slowly. If the cable becomes stuck in the clog, back the cable out of the clog by turning the drum in reverse. Repeat above steps, if necessary.

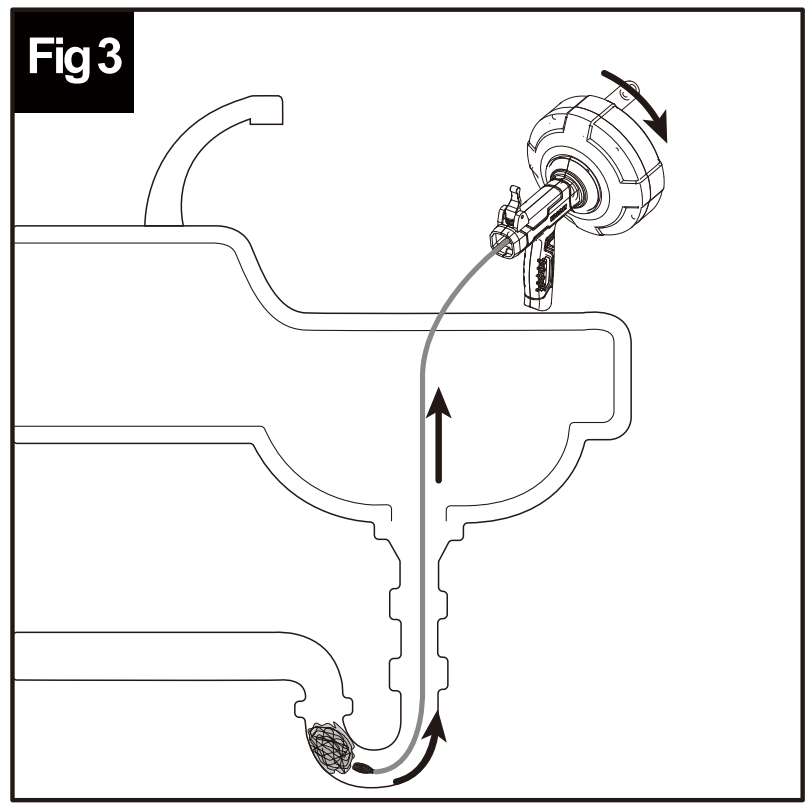

7. Once clog is cleared, turn the drum in reverse, retrieve cable back into drum (see Fig. 3).

8. Flush Drain.

CARE AND MAINTENANCE

Wash, air dry and oil tool before storing.

WARRANTY

Lifetime Hassle-Free Guarantee. You should never have a problem with your Kobalt™ tools. However if you do, return the item to the place of purchase for a free replacement. No questions asked .This warranty excludes incidental/ inconsequential damages and failures due to misuse, abuse, normal wear and tear and dulling of the blade ( s ).For warranty information, call l-888-3KOBALT, 8 a.m. -8 p.m , EST, Monday-Sunday. You could also contact us at [email protected]. AS22214

Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-888 3KOBAL T ~ (1-888-356-2258), 8 a.m. – 8 p.m., EST, Monday- Sunday. You could also contact us at [email protected].
