PBD WA-2608+18M Digital Amplified HDTV Antenna
PBD WA-2608+18M Digital Amplified HDTV Antenna
Specification
- Antenna Television
- Brand Pingbingding
- Model WA-2608+18M
- Color Silver, Black, and Grey
- Number of Channels 69
- Impedance 75 Ohm
- Maximum Range 150 Miles
- Package Dimensions 17.8 x 13.35 x 3.7 inches
- Item Weight 5.33 pounds

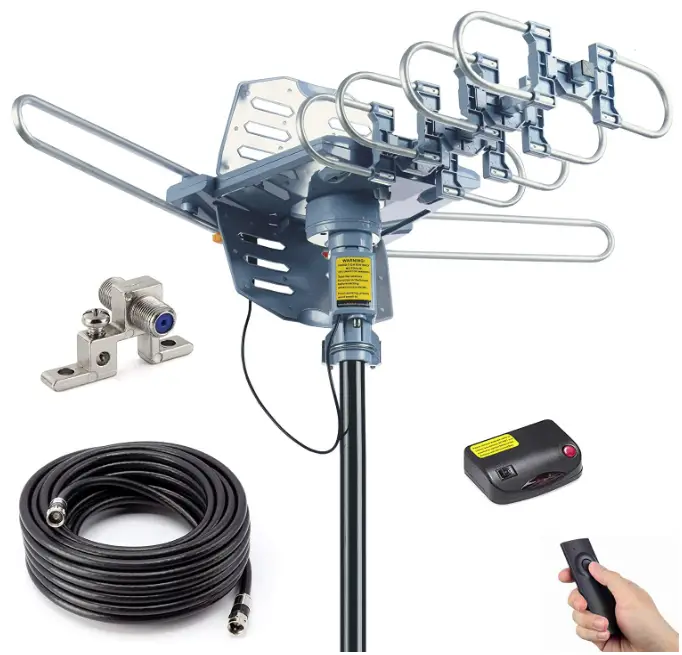

What’s In the Box
- PBD outdoor Antenna with Wireless Remote
- Power Supply Adapter
- 59FT Coaxial Cable and Coaxial Grounding Block
Product Description
This outdoor HDTV antenna is made to accept UHF/VHF digital TV signals and deliver high-definition HDTV images. You may enjoy high-definition television without the hefty expense of cable or satellite. Use the infrared remote control to rotate the device a complete 360 degrees thanks to a built-in rotor.

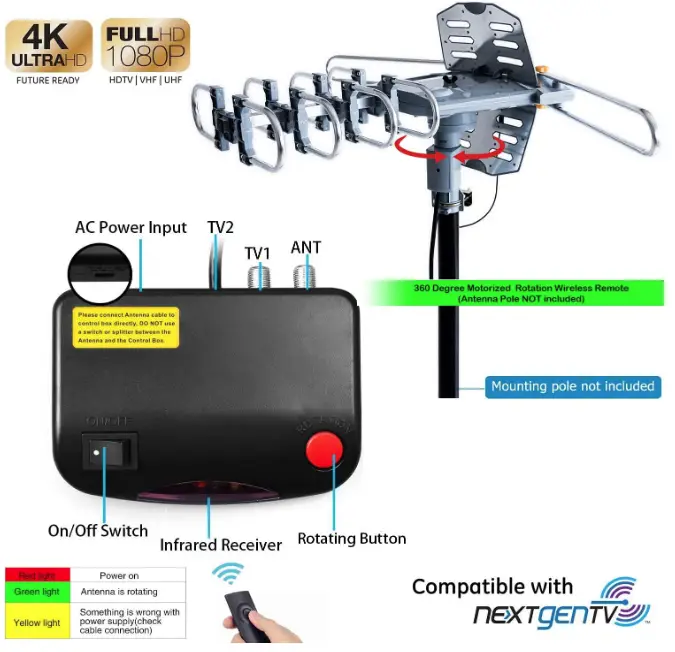

Layout

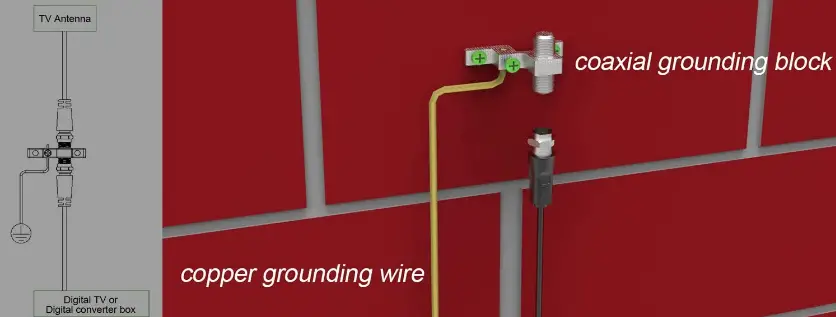

LUMINOSITY PROTECTION
Even in inclement weather, a coaxial grounding block protector device aids in consistent signal reception.

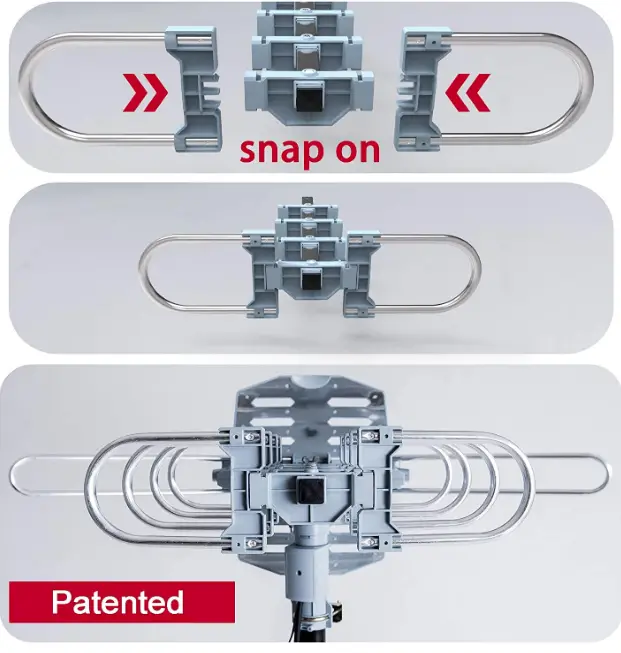

Snap-On Installation
A Pioneer In Modern Technology
Why perform our antennas better than those of the competition? The patented SNAP-ON design is the evidence. The 2608 series’ broad beam angle and ability to respond to a wider frequency range eliminate the requirement for rotation.
With this outdoor HDTV antenna, you may get digital TV UHF/VHF signals without having to pay for a cable subscription every year. Now you may watch a free 4K HDTV without having to pay a lot for cable or satellite. Also, we developed it to be motorized, allowing you to easily rotate the antenna 360 degrees using the infrared remote control.

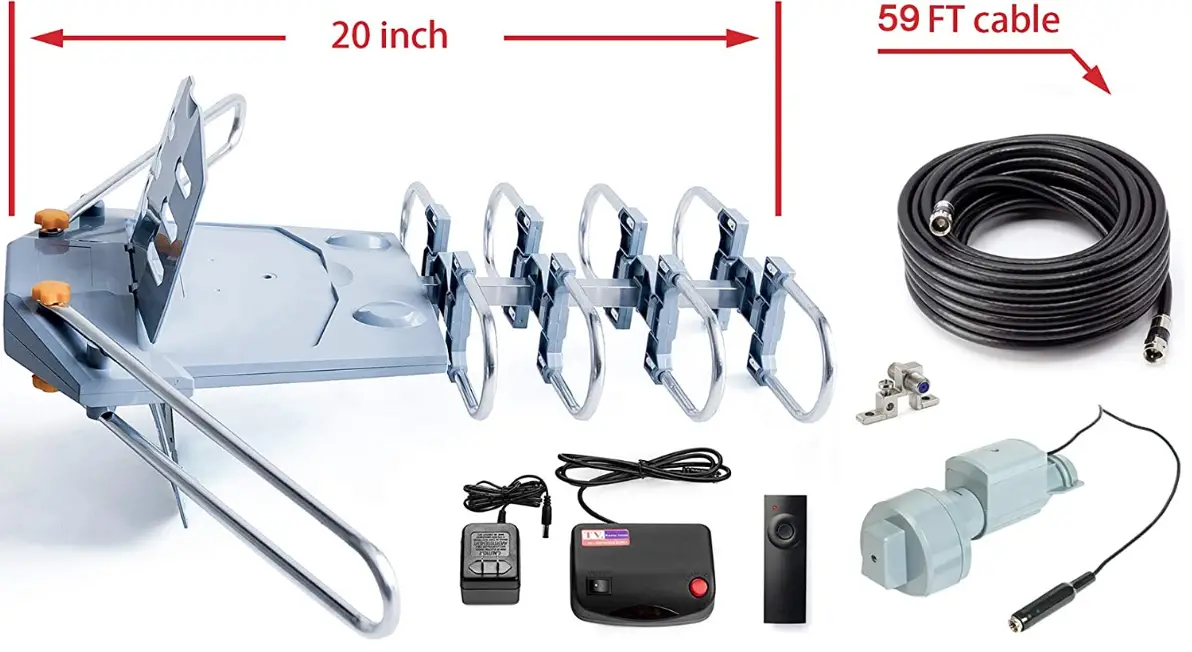

Dimension

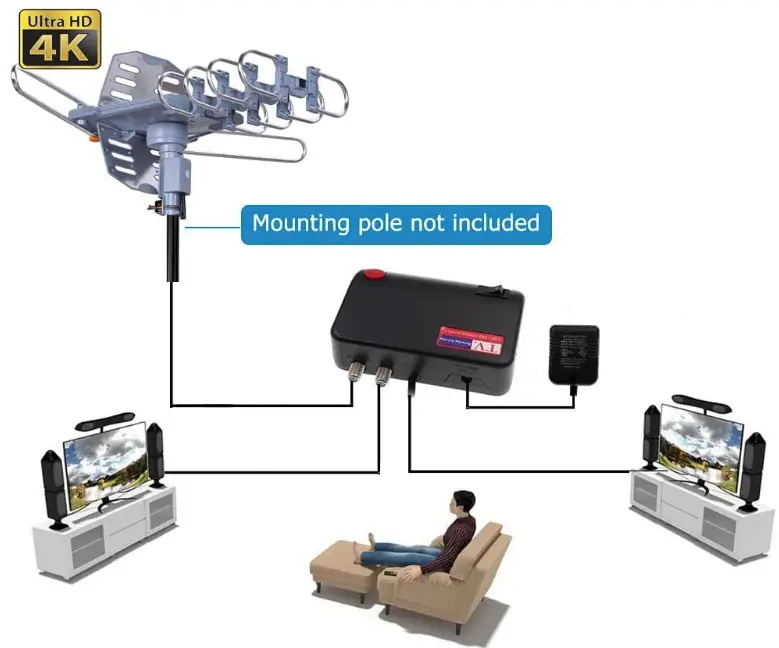

Assist Two Televisions
Allow the simultaneous use of two TVs without a splitter.

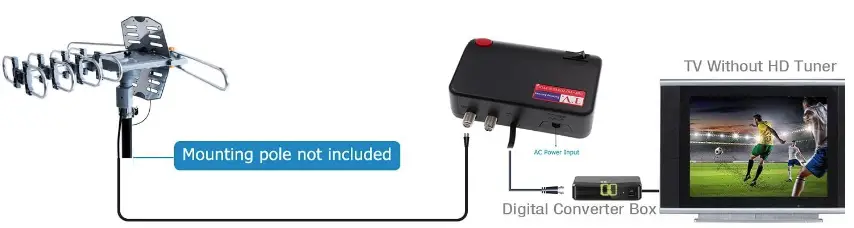

Check to see if your TV has an HDTV tuner; if not, we kindly recommend that you purchase a digital converter box.
Connection
Technical Specification
- Working Frequency VHF 170~230MHz | UHF 470~890MHz
- Noise Figure < =2.5dB
- Typical Antenna Gain VHF 28~32dB | UHF 32~36dB
- Impedance 75Ohm
- Max Output Level105dB u V
- Main Voltage AC120V±10%/60Hz
- Operation Temperature -10° C ~ 50° C
- Coaxial Cable Length 59FT RG6
You can receive up to 69 channels.
Yes, you can use it for cable TV.
The coaxial cable is 59 feet in length.
The size of this product is 17.8 x 13.35 x 3.7 inches.
Yes, you can install it on your roof.
More always means higher. For best results, mount the antenna in the attic or on your roof. These areas are more likely to have fewer obstructions that interfere with the signal between the antenna and broadcast towers. Turn the antenna’s front towards the broadcast towers.
An outdoor antenna’s range is around 60 to 80 miles, but inside antennas can only pick up channels from broadcast stations within a 20 to 30-mile radius.
You’ll probably need an outside or boosted antenna if you live far from a TV station. Antennas are typically classed by range. Signals from 50 miles away can be received via a 50-mile antenna. Some long-range antennas have a 125-mile signal reception range.
In the end, a signal that isn’t already reaching your antenna won’t be picked up by an amplifier. Nonetheless, it can strengthen the signal to go over a long cable run or get past a splitter to provide reception to many TVs.
Higher is preferable: Ideal height is between 10 and 20 feet. Avoid obstacles like hills, trees, and high buildings since they might reduce signals before they reach your antenna. For optimum reception, even a multidirectional antenna must be able to be pointed at the TV signal’s source.
The best performance is often provided by outdoor antennas, particularly those mounted on a roof or pole, especially if you are far from the closest broadcast towers. But, installing an indoor TV antenna is simpler, and for others, it’s the only realistic choice.
As long as the antenna has been carefully installed from the beginning to provide a reliable signal, the number of TV outlets that may be powered by one TV antenna is potentially limitless.
