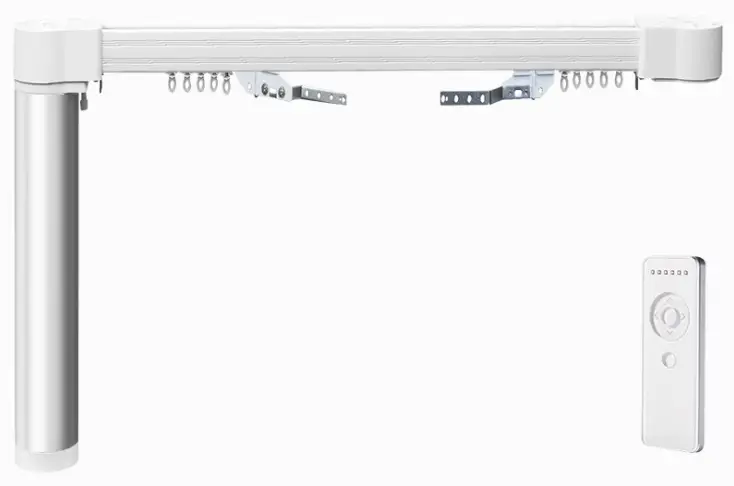

Smart Curtain Kit installation instructions

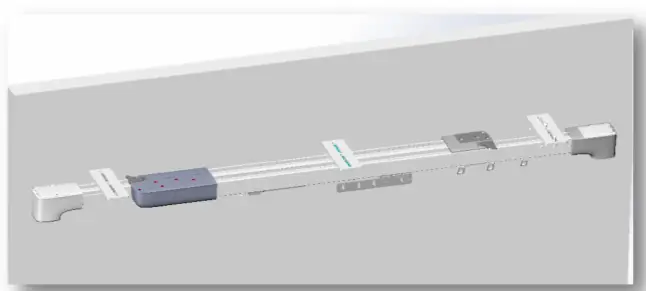

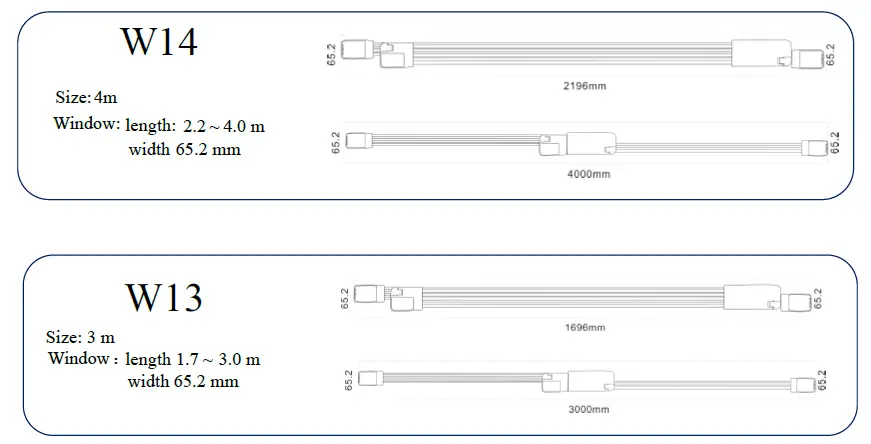

Telescopic rail si size (window length)

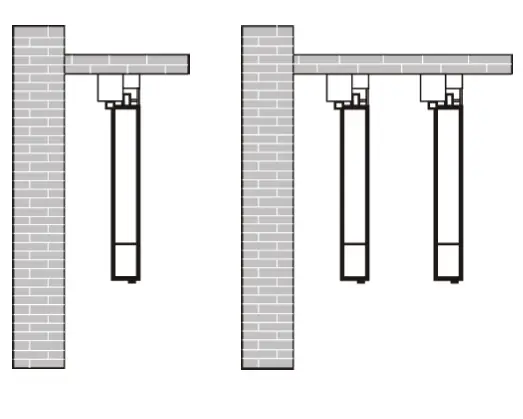

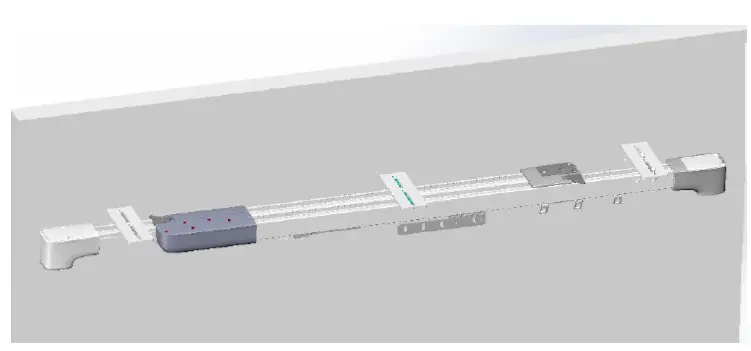

- Top loading 1: The width of single-layer curtain box is at least 8cm. It is most suitable when the width is 14 cm.

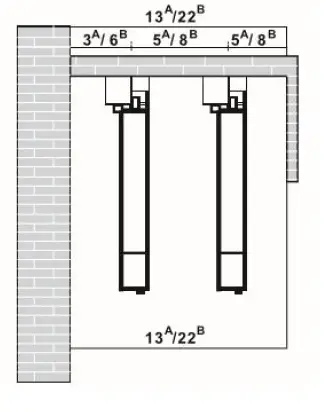

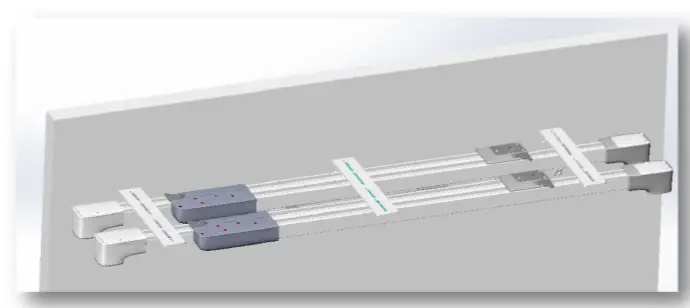

- Top load 2: The width of the double curtain box is at least 13 cm. It is most suitable when the width is 22 cm.
- Top load 3: No curtain box No size requirements
- Side-mounted 1: Single-layer side-mounted curtains Need to configure the unit to install the side code
Note: The Side mounted needs to be purchased separately

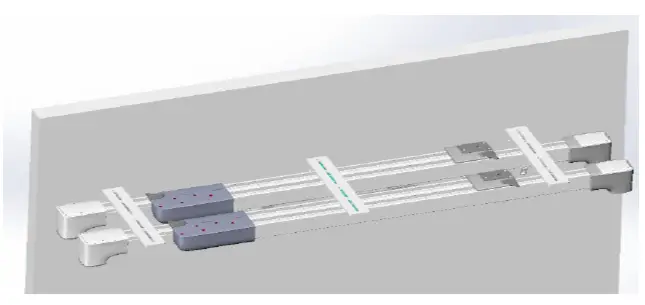

- Side-mounted 2: Double-layer side-mounted curtains Need to configure double-digit installation si decode
- Side-mounted 1: Single-layer side-mounted curtains Need to configure the unit to install the side code
- Side-mounted 2:Double-layer side-mounted curtains Need to configure double-digit installation side code

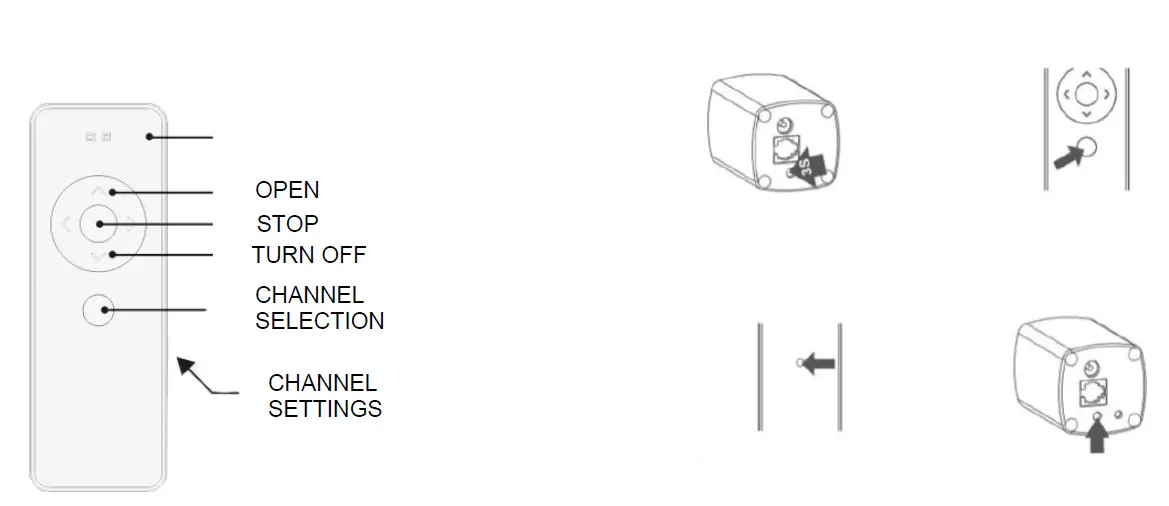

Remote control code sending rules: channel address + function + check

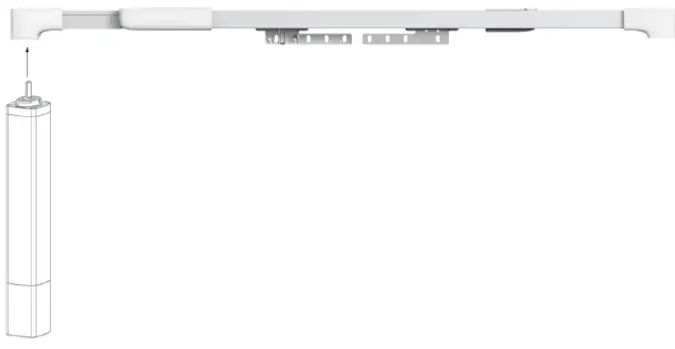

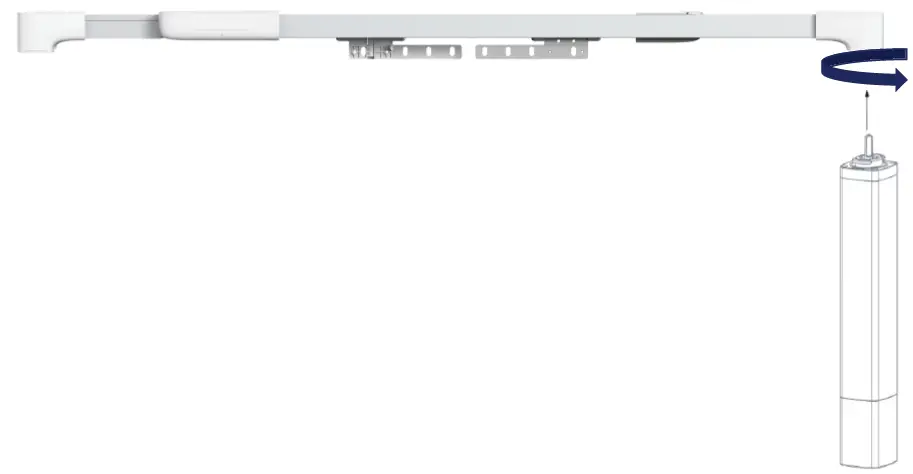

Motor-installation direction (reserved position of power supply)
Note: The curtain motor comes with a 70cm power cord, please pay attention to the distance between the socket and the motor

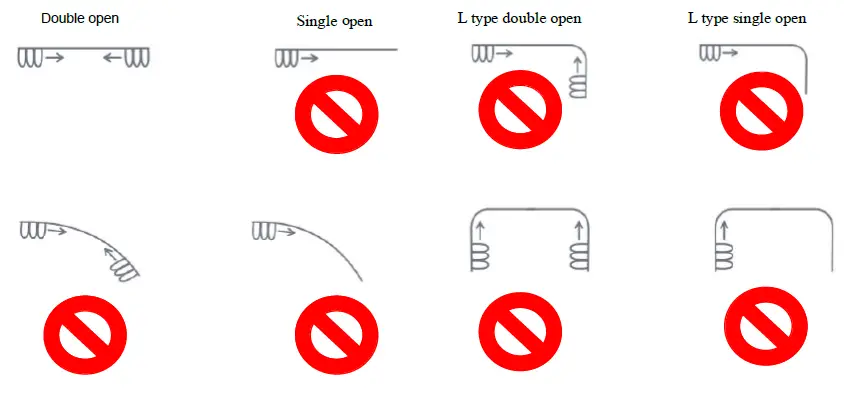

NOT APPLICABLE

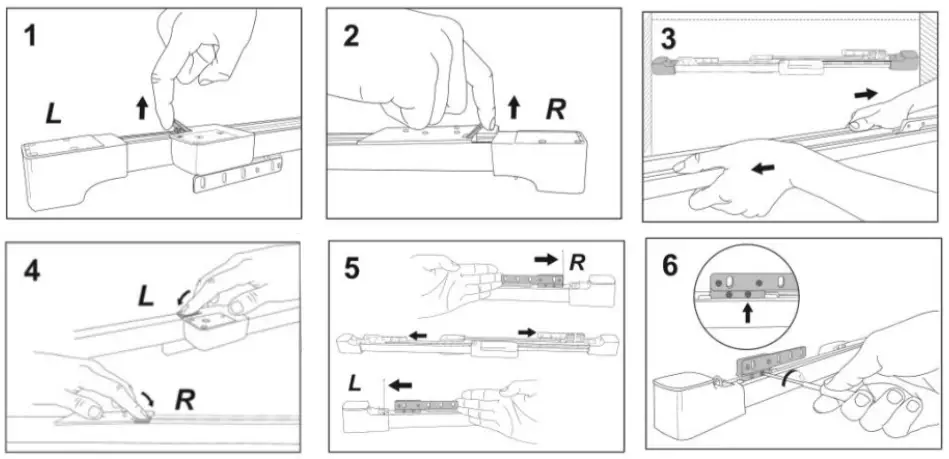

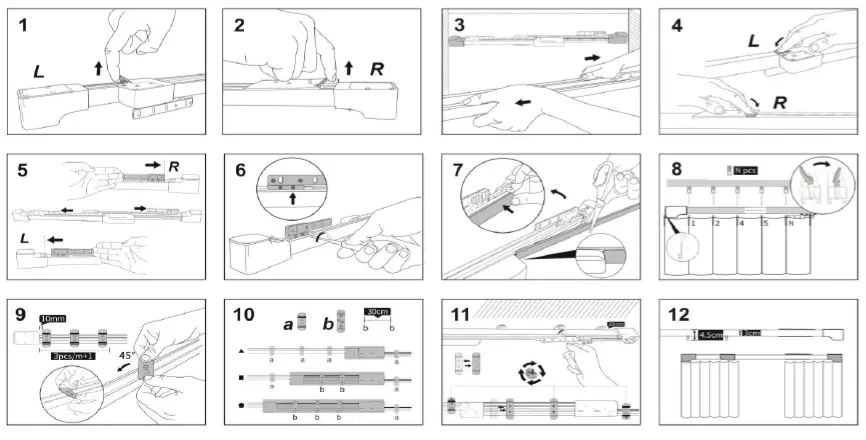

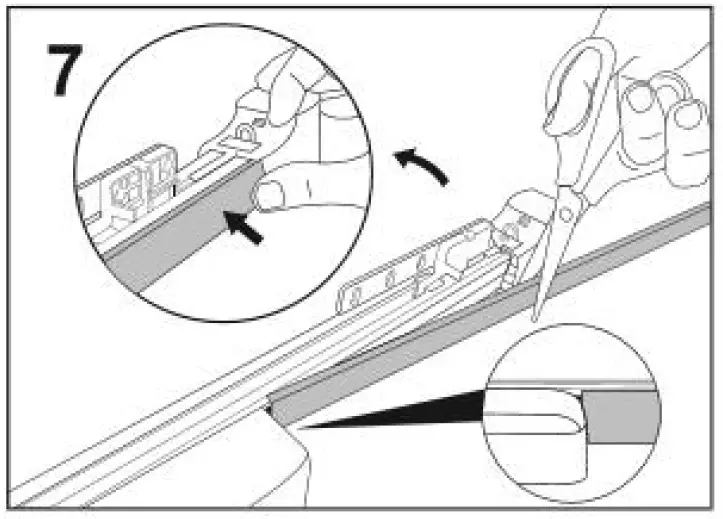

track installation
Smart Curtain Kit after sales
motor control direction (reverse)
When installed on t he left, the direction of the mot or curtain opening is opposite to the actual

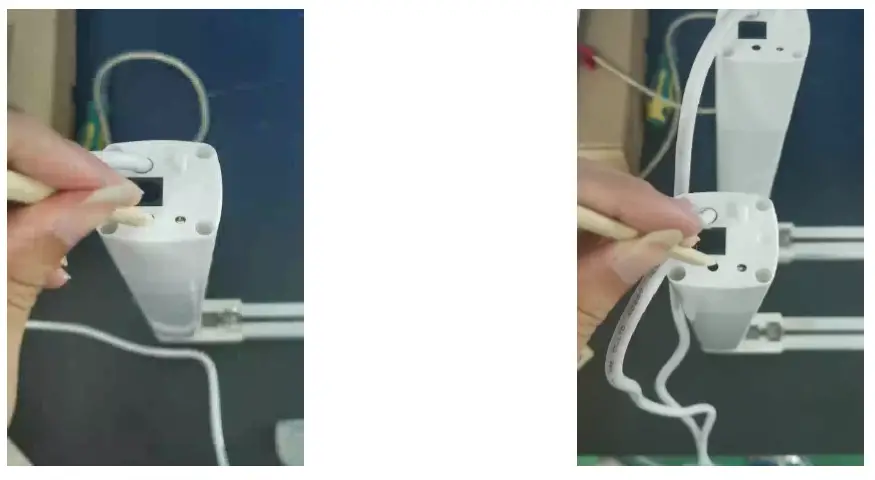

LED motor distribution network, power on LED flashes
how the motor remembers the stroke
- After the motor is connected to the track, it turns to the collision position of the pulley for the first time/ the end collision position is marked as the starting point
- The number of laps memorized from the starting point to the position of the second collision is the entire trip
- According to the lap ratio to achieve slow start and slow stop function , reduce the number of motor collisions, effectively extend the service life
After the motor is p owe redon for the first time, when their it is hand pull, remote control, or APP control, the motor will automatically remember the stroke when it is started fort he first time.
motor can not be control led
| Troubleshooting method | priority | ||
| Is it normal to start and close manually | 1 | NG |
If all 5 are NG, you can directly consider returning to the factory. |
| The remote control controls whether the motor LED flashes red or the curtain moves | 1 | NG | |
| APP control, whether the motor LED flashes red or whether the curtain moves | 1 | NG | |
| Short press the motor button, whether the LED flashes red | 1 | NG | |
| After unplugging the power plug, let stand for 5S, power on again, whether the LED flash | 1 | NG |
| Question | Reason | Elimination method |
|
Remote control is invalid | Remote control setting error | After the motor clears the code, re-set the remote control |
| battery is low | Replacement battery | |
| The remote control is too far away | Do not use it away from the remote control | |
| Signal interference | Eliminate sources of signal interference | |
| Curtains closed | The remote control direction is not close to the direction of the curtain | Motor commutation |
| Confusion | Restart after power off /Clear itinerary | |
| Curtain blocked | Check if there is any obstacle in the movement of the curtain | |
|
APP cannot control | The router network is normal | Is the router connected to the phone normal? |
| Router name change | 4 After short and long, whether the LED indicator corresponds to the prompt | |
| Router channel is occupied | Elimination method |
Possible problems with track installation:
- When the side is installed, he not fastened properly. However, after the motor is placedon the track it will cause the track to automatically expand and contract, and failure to prevent it in time will damage the track system.
- After adjusting the track length, the left and right pulleys must be moved to the end position. If it is not moved to the end position, it will cause the curtain to not close, and the operation will damage the telescopic rail system and cause product problems. ng-term
- There are two fixing screws on the auxiliary carriage. Mainly function as a fixed belt.

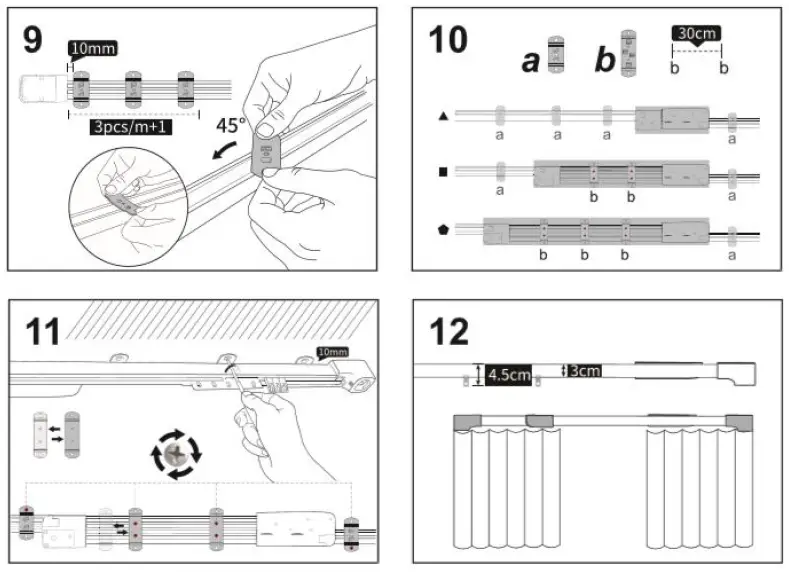

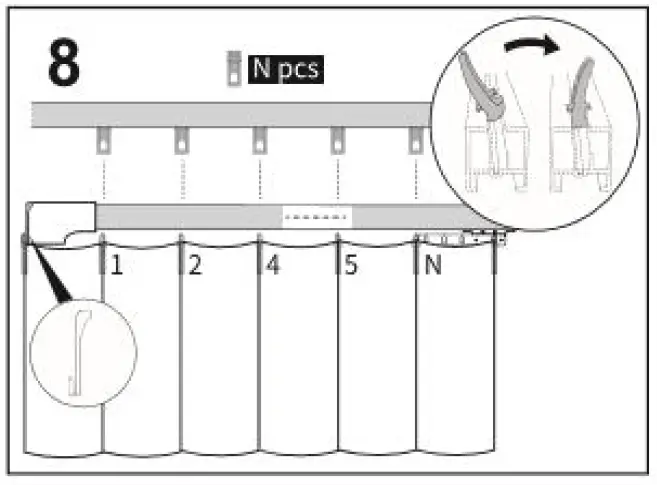

The number of hanging wheels should be consistent with the number of curtain fabrics Try not to appear redundant.

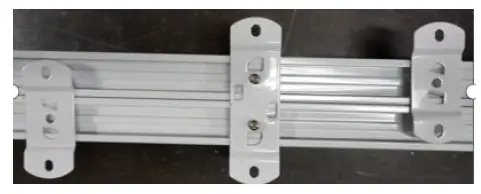

The standard of the installation code is 30CM / PCS The unit installation code can also be i n stalled on double digits.
The height of the track is 3CM, plus the hanging wheel is 4.5CM. Pay attention when making curtain fabrics.

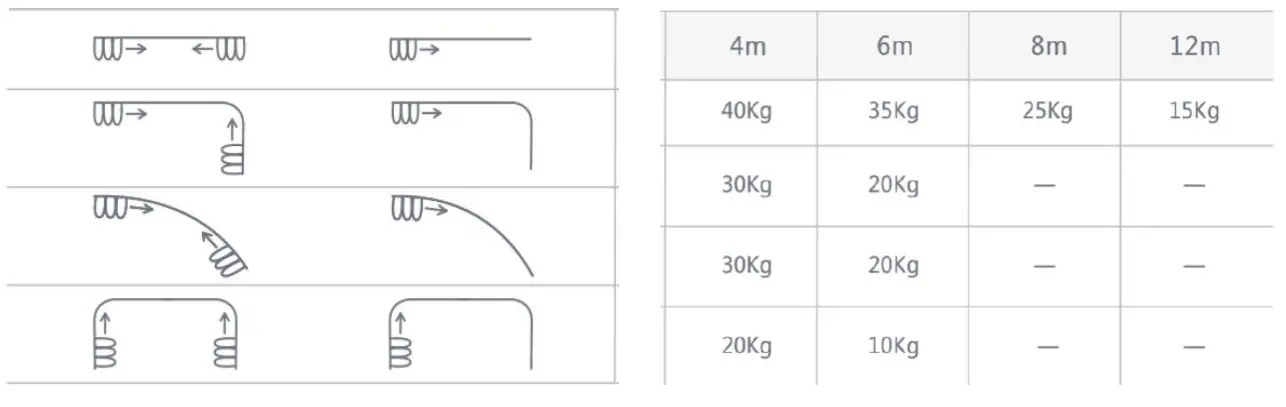

Load table description:
Load table 1.0NM
