Jabra LOGOJabra Elite 75t – Titanium Black

How do I pair my Jabra earbuds with my mobile device?

To pair it with your smartphone, tablet, or mobile device, follow these steps.

  1. Turn on the Bluetooth setting on your mobile device.
  2. Turn on your earbuds by removing them from the charging case.
    Alternatively, simultaneously press and hold (1 second) the Left and Right buttons.
    The LEDs on both earbuds will flash green.

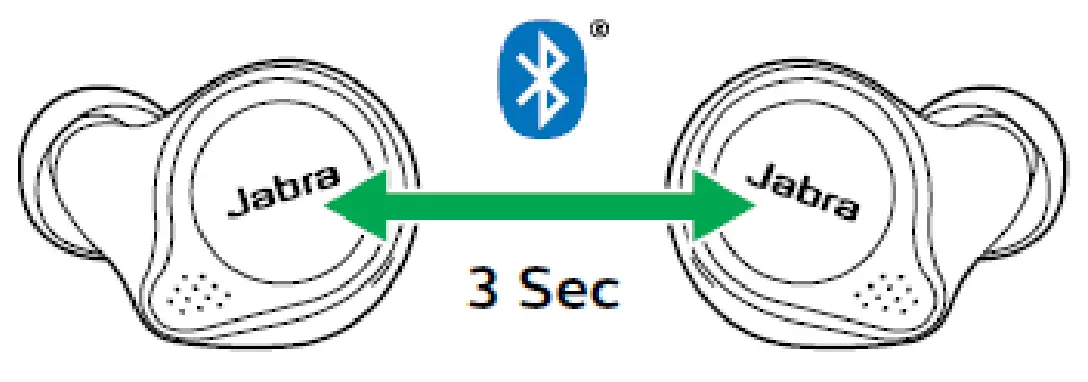

  3. To enter pairing mode, simultaneously press and hold (3 seconds) the Left and Right buttons on the earbuds, until the LED on the right earbud flashes blue.
    The earbuds are now ready to pair with your mobile device.Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 1
  4. To pair, go to the Bluetooth menu on your mobile device and select the Jabra earbuds from the list. Alternatively, wear the earbuds to hear the voice-guided instructions.
    Enter “0000” (four zeros) if you are asked for a pin code.

In daily use, when you turn on the earbuds, they will automatically reconnect with the last previously paired device, if it is turned on and within range.

To pair with your smartphone, tablet, or mobile device using only the right earbud, follow these steps.

  1. Turn on the Bluetooth setting on your mobile device.
  2. Turn off the right earbud manually by pressing and holding the Right button until the LED flashes red.
  3. To enter pairing mode, press and hold (3 seconds) the Right button until the LED flashes blue.
    The earbuds are now ready to pair with your mobile device.
  4. To pair, go to the Bluetooth menu on your mobile device and select the Jabra earbuds from the list. Alternatively, wear the earbud to hear the voice-guided instructions.
    Enter “0000” (four zeros) if you are asked for a pin code.
    If pairing is successful, your earbuds will appear on the list of connected Bluetooth devices on your mobile device. The Bluetooth connection will also be announced in the earbuds.

Note
Images are for guidance purposes only. The displayed image may differ slightly from your device, but the content is still relevant and accurate.

If pairing is not successful, try the pairing steps again, or try pairing with a different Bluetooth device. For troubleshooting tips, see here.

Optionally, try using the Bluetooth Pairing Guide which provides detailed steps for pairing with a mobile device.

Applicable products

Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 2Jabra Elite 75t – Gold BeigeJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 3Jabra Elite 75t – Gold Beige
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 4Jabra Elite 75t – BlackJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 5Jabra Elite Active 75t – Copper Black
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 6Jabra Elite Active 75t – GreyJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 7Jabra Elite Active 75t – Mint
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 8Jabra Elite Active 75t – NavyJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 9Jabra Elite Active 75t – Sienna
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 10Jabra Elite Active 75t – Titanium BlackJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 11Jabra Elite 75t Wireless Charging
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 12Jabra Elite 75t Wireless ChargingJabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 13Jabra Elite Active 75t Wireless Charging
Jabra 839802 Elite 75t Titanium Black True Wireless Earbuds - FIG 14Jabra Elite Active 75t Wireless Charging
