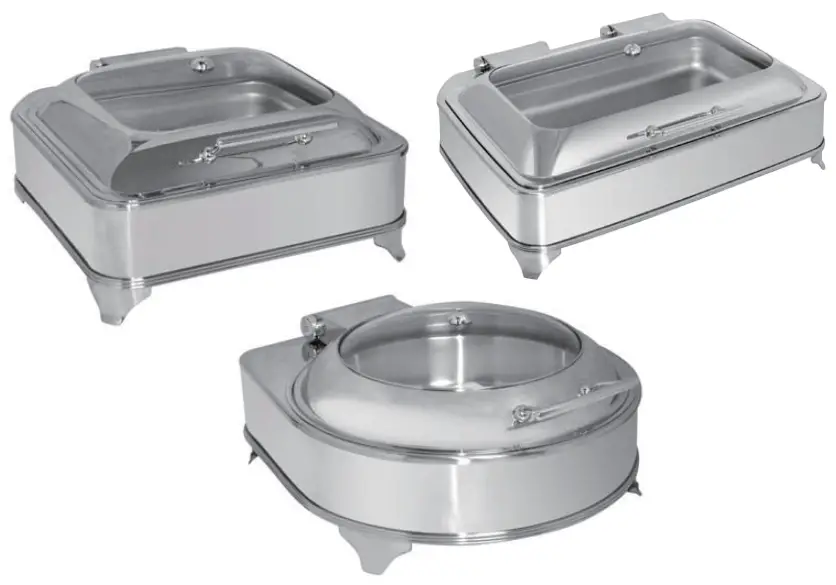

Olympia Cb729 Electric Chafer Instruction Manual

Electric Chafer
Instruction manualModel
CB729/CB730/GD128

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components on this product.
• Consult Local and National Standards to comply with the following:
  – Health and Safety at Work Legislation
  – BS EN Codes of Practice
  – Fire Precautions
  – IEE Wiring Regulations
  – Building Regulations
• The inner bowl and the heating plate on the underside of the appliance become hot during operation –
  DO NOT TOUCH!
• DO NOT allow to boil dry or use without water in the outer pan.
• Always switch off and disconnect the power supply to the appliance when not in use.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by an OLYMPIA agent or a recommended qualified technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• OLYMPIA recommends that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).
• OLYMPIA recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity, and Functional Testing.

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your OLYMPIA product.

Pack Contents

The following is included:

• OLYMPIA Electric Chafer
• Instruction Manual

OLYMPIA prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your OLYMPIA dealer immediately.

Operation

Before turning on ensure the heating plate is securely attached to the underside of the appliance.

1. Lift the lid and remove the inner bowl.
2. Fill the outer pan with hot water.
   WARNING: Ensure the water level is between the ‘MIN’ and ‘MAX’ levels.
3. Place the food in the inner bowl and replace the bowl in the outer pan.
4. Turn on the appliance at the mains power supply.

Cleaning, Care & Maintenance

Always turn off and disconnect the appliance from the power supply before cleaning.

• Use soapy water and a damp cloth to clean the exterior of the appliance.
• DO NOT immerse the appliance in water.
• The inner bowl can be removed and cleaned with warm, soapy water.
• At no point must the heating plate come into contact with water.
• Dry thoroughly after cleaning.

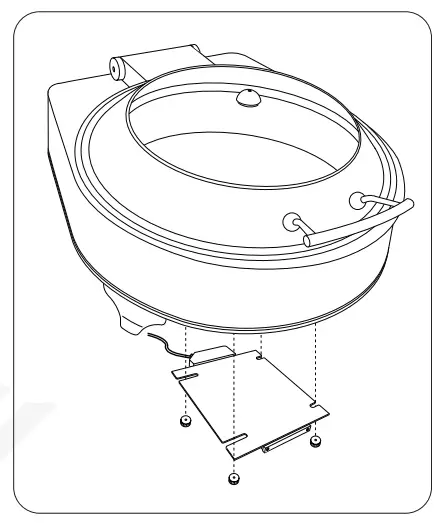

Fitting/Removing the Heating Plate

1. Disconnect the appliance from the power supply and allow it to cool.
   WARNING: Failure to allow the appliance to cool could result in burns!
2. Remove the inner bowl.
3. Lift the lid/outer pan section from the frame and place it gently on its side.
4. Unscrew the four nuts securing the heating plate to the underside of the appliance and remove the heating plate.
5. Fitting is a reversal of the above procedure.

Troubleshooting

Technical Specifications

Electrical Wiring

This appliance is supplied with a 3-pin BS1363 plug and lead.
The plug is to be connected to a suitable main socket.
OLYMPIA appliances are wired as follows:

• Live wire (colored brown) to the terminal marked L
• Neutral wire (colored blue) to the terminal marked N
• Earth wire (colored green/yellow) to terminal marked E
  If in doubt consult a qualified electrician.
  Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required, they must be readily accessible.

Compliance
The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.OLYMPIA parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.
OLYMPIA products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of OLYMPIA. Every effort is made to ensure all details are correct at the time of going to press, however, OLYMPIA reserve the right to
change specifications without notice.

DECLARATION OF CONFORMITY

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s), and Standard(s).

Date	20″ May 2021
Signature	DocuSign by:B30312COFDOC.176	DocuSign by:D352874F7FAB460 .
Full Name	Ashley Hooper	Eoghan Donnellan
Position	Technical & Quality Manager	Commercial Manager/ Importer
Producer Address	Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland

+44 (0)845 146 2887CB729_CB730_GD128_ML_A5_v6_20210525
