Radium LED Essence Strip Waterproof

Radium-LED-Essence-Strip-Waterproof-PRODUCT

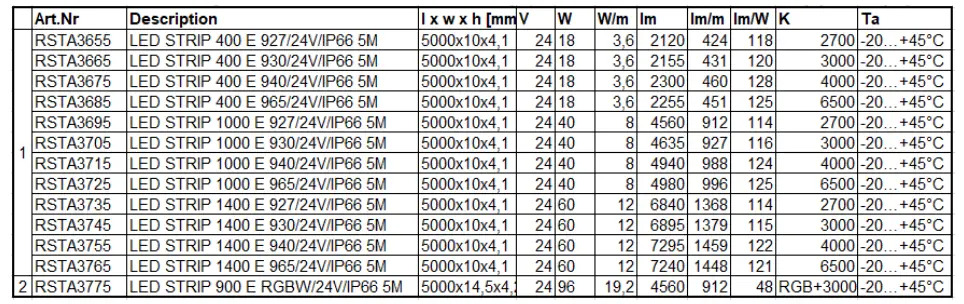

Radium-LED-Essence-Strip-Waterproof-FIG6

Max. meters of LED STRIP at 24V DC 1)Alu profile for heat dissipation needed?
LED STRIP 400 E Waterproof7 mNo
LED STRIP 1000 E Waterproof5,5mNo
LED STRIP 1400 E Waterproof5 mNo
LED STRIP 900 E RGB Waterproof5 mYes

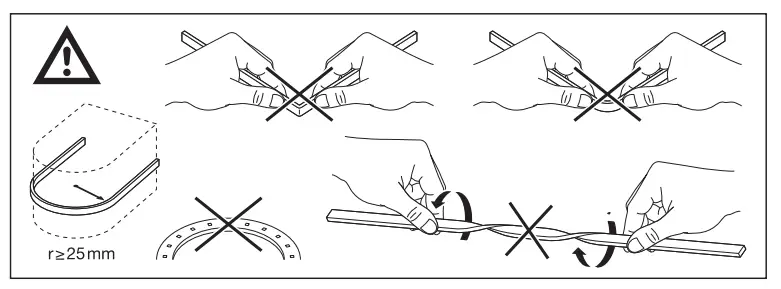

WARNING

Radium-LED-Essence-Strip-Waterproof-FIG1

The module is mounted using the double-sided adhesion tape on the reverse. Ensure the surfaces are clean and free of grease, oil, silicone and dirt particles: Ensure the protective tape is completely removed.

  1. Max. meters of LED STRIP at 24V DC

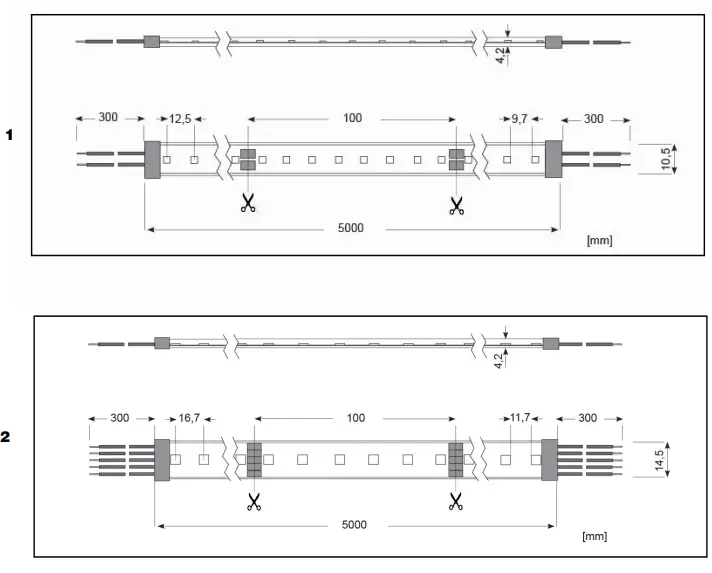

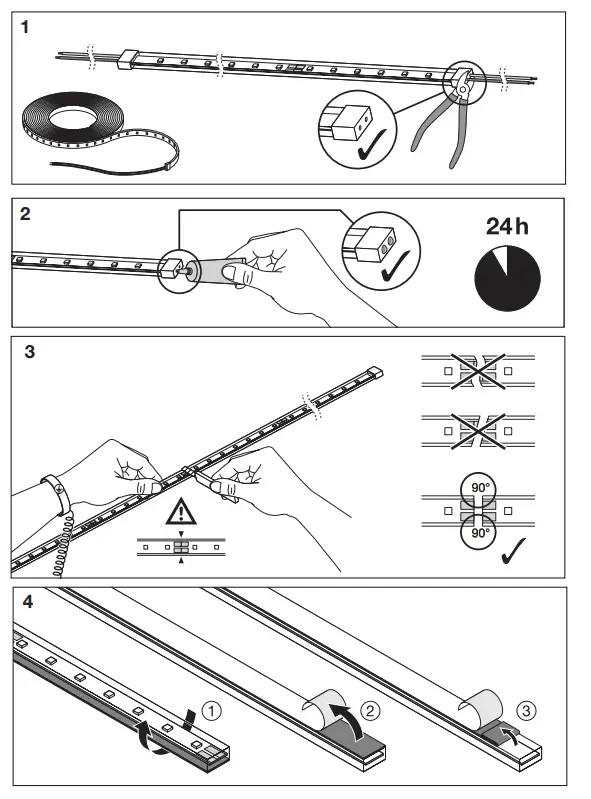

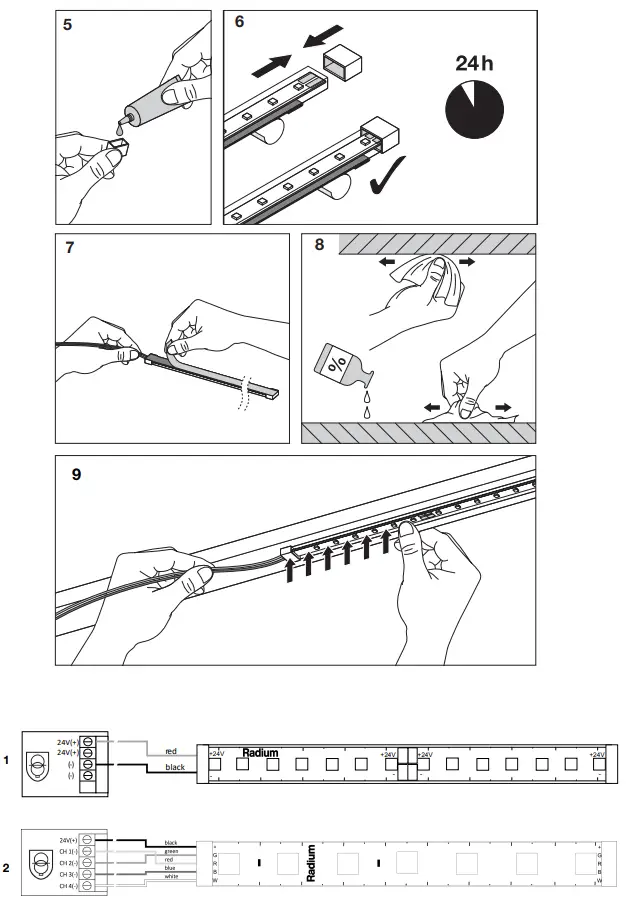

INSTALLATION

Radium-LED-Essence-Strip-Waterproof-FIG2Radium-LED-Essence-Strip-Waterproof-FIG3Radium-LED-Essence-Strip-Waterproof-FIG4

Radium Lampenwerk GmbH
Dr.-Eugen-Kersting-Straße 6
51688 WipperfürthRadium-LED-Essence-Strip-Waterproof-FIG5GERMANY
www.radium.de
