RV Supply 86480-21
Platinum Assist Handle 2022
User Manual

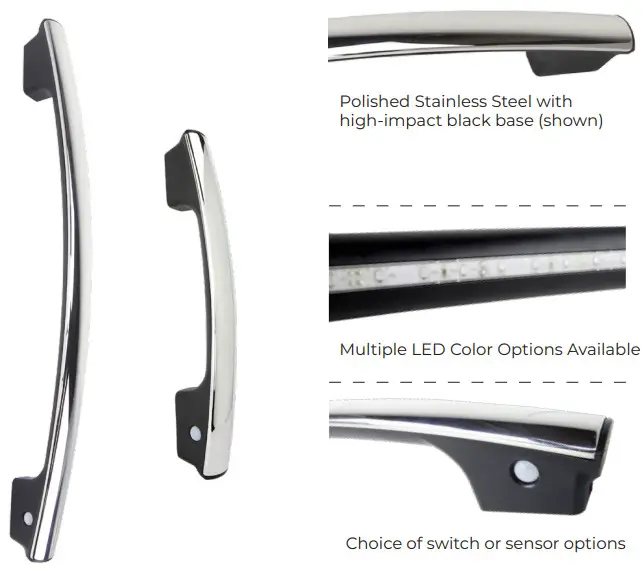

Features
- Four switch options including, Integrated push switch for easy on/off at the unit, no switch (OEM installed switch), dusk-to-dawn light activation, or PIR proximity sensor
- High-end construction and LEDs to withstand harsh environmental elements
- Stainless Steel handle cover in polished and brushed
- Black high-strength plastic base for stability Black high-strength plastic base for stability and security and security
- Hidden fasteners Hidden fasteners
- Handles are rated to 400 lb pull down, 300 lbs
- Handles are rated to 400 lb pull down, 300 lbs pull out and 200 lb fold over. pull out and 200 lb fold over.
Product Details
| Handle Cover Material | Stainless Steel |
| Handle Base Material | High Strength Black Plastic |
| LED Color | Blue, Amber, 3000K, 6300K |
| Wattage | 1.4W |
| Voltage | 13.6V |
| Current | 0.1A |
| Efficacy | 58 LM/W |
| IP Listing | IP64 |
| Sensor Distance | 6 Ft |
| Sensor Field of View | 120° |
| Sensor Timer | 10 minutes |
Specification Guide
| Base Part # | Handle Length | LED Color | Switch Option | Cover Finish |
| 86480 | 12 – 12” 21 – 21” | BL – Blue AM – Amber 3K – 3000K 6K – 6300K 00 – Unlit | 01 – PIR Switch 02 – Push Switch 03 – Light Sensor 04 – No Switch | SS1 – Polished SS2 – Brushed |

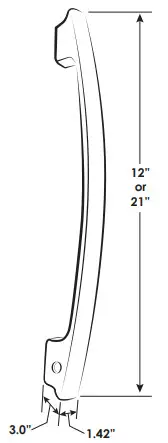

Product Dimensions
