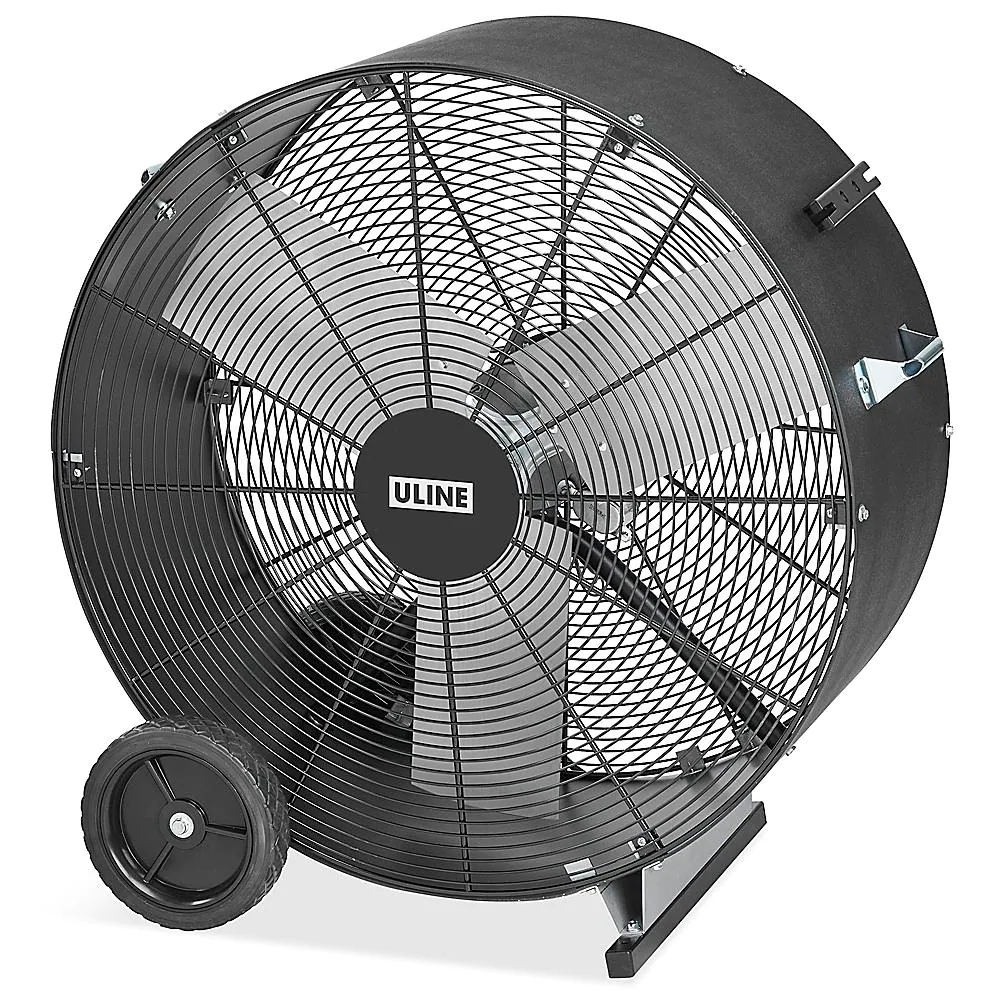

ULINE H-6984 Drum Fan – 30″

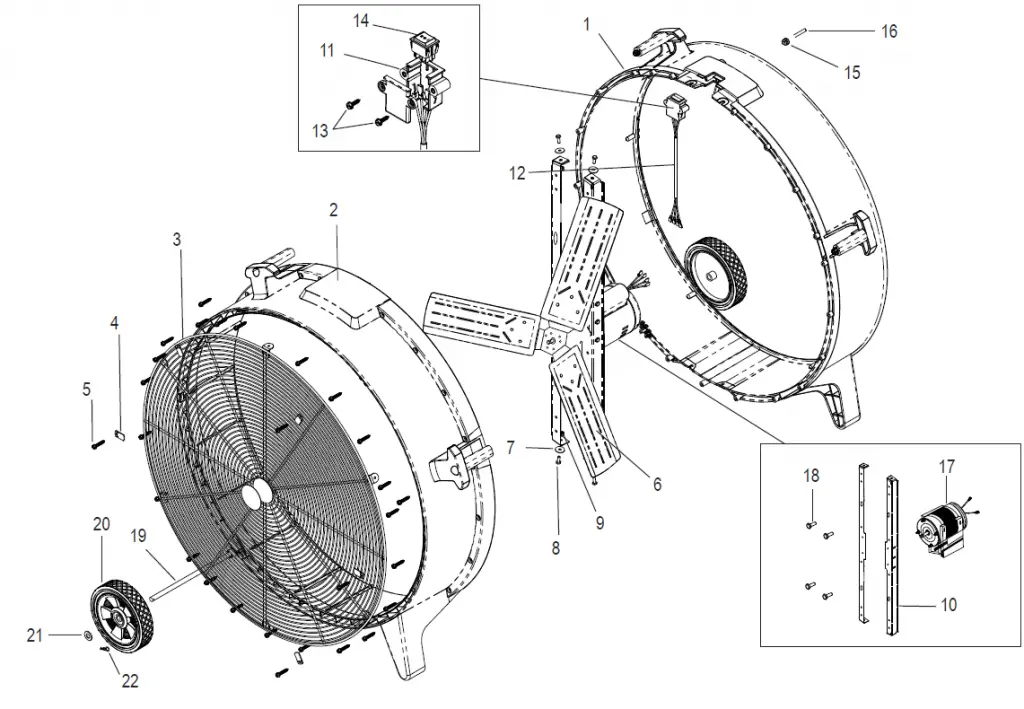

PARTS LIST
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Fan Body Rear | 1 | ———– | 4578300 |
| 2 | Fan Body Front | 1 | ———– | 4578360 |
| 3 | Grill | 1 | H-7104 | 4572697 |
| 4 | Grill Tabs package of 8 (Includes #5) | 1 | ———– | 4574697 |
| 5 | 1/4″ x 1-1/2″ Hex Head Washer Base Screw | 1 | ———– | 1519099 |
| 6 | Fan Blade Assembly | 1 | H-6984-BLADE | 4573497 |
| 7 | 1/4″ Washer | 1 | ———– | 0705299 |
| 8 | 1/4″ x 20-3/4″ Long Hex Head Cap Screw | 1 | ———– | 0902999 |
| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 9 | Hex Locknut 1/4″ – 20 with Nylon Insert | 1 | ———– | 1303499 |
| 10 | H-Frame Assembly (Includes #7-10 & 18) | 1 | ———– | 4572797 |
| 11 | Switch Box (Includes #13 & 14) | 1 | ———– | 4572897 |
| 12 | Cable Connector | 1 | ———– | 3715161 |
| 13 | 10 x 3/4″ Hex Washer Base, Type AB Screw | 1 | ———– | 1517699 |
| 14 | Switch | 1 | H-6984-14 | 4573197 |
| 15 | Strain Relief | 1 | ———– | 3400999 |
| 16 | Power Cord (Includes #15) | 1 | H-6988-PC | 4572997 |
| 17 | Motor | 1 | H-6984-MOTOR | 4573097 |
| 18 | Hex Nut | 1 | ———– | 1305099 |
| 19 | Axle | 1 | ———– | 2442301 |
| 20 | 8″ Wheels | 1 | ———– | 2425010 |
| 21 | Washer | 1 | H-6989-WASHR | 0701599 |
| 22 | Hair Pin Cotter | 1 | H-6989-HPC | 7000599 |
| 23 | Wheel & Axle Hardware Kit (Includes #19-22) | 1 | H-7110 | 1945515 |
