08710 Arial Stand-Alone Emergency Pack
Instruction Manual
Read these instructions before installation and retain for future reference
This equipment should be installed by a competent electrician
Battery replacement steps:
- Open the top cover first
- Take out the battery
- replace the battery
- Replace the cover
Note:
The battery should be changed when the required duration is not reached The battery is replaceable DO NOT cover with insulation
Important Information
We recommend that luminaires are installed by a qualified electrician ensuring the installation complies with current IEE wiring regulations BS7671:2018 & local building control.
- All tests should be carried out in accordance to EN 50172:2004.
- BELL will not accept responsibility for any claims arising from a poor installation. Important User Advice
- Always switch off mains supply before installing.
- Operating Temperature 0°C to +35°C.
- Do not cover with any insulation.
This product may contain substances that can be hazardous to the environment if not disposed of properly. Electrical and electronic equipment should never be disposed of with general household waste but must be separated for its correct treatment and recovery.
Where possible recycle your packaging.
Features
Output power :2.5W/3.5W/5W
Insulation Class: II
Ingress Protection:IP20
Emergency Duration: 1.5-3hours
Battery Recharge Time: 16h
Deep Discharge Protection DDP
Battery Discharge & Charge Specification
| Parameter | Min. | Typ. | Max. | Note |
| Battery discharge current | 300mA | – | 400mA | * Measured at 6.4V input from batteries and ” EM 2.5W” |
| Output voltage | 10Vdc | – | 90Vdc | |
| Output constant current | 13mA | – | 185mA | |
| Emergency power | 2W | – | 2.6W |
| Parameter | Min. | Typ. | Max. | Note |
| Battery discharge current | 500mA | – | 610mA | * Measured at 6.4V input from batteries and ” EM 3.5W” |
| Output voltage | 10Vdc | – | 90Vdc | |
| Output constant current | 30mA | – | 250mA | |
| Emergency power | 3.3W | – | 3.9W |
| Parameter | Min. | Typ. | Max. | Note |
| Battery discharge current | 700mA | – | 820mA | * Measured at 6.4V input from batteries and ” EM 5W” |
| Output voltage | 10Vdc | – | 90Vdc | |
| Output constant current | 34mA | – | 380mA | |
| Emergency power | 4.6W | – | 5.2W |
General Specification
| Rated supply voltage | 220-240VAC |
| Mains frequency | 50/60Hz |
| Ambient temperature ta | 0°C ~ +35°C |
| Max. Casing temperature tc | 60°C |
| Item Code | Batteries | Emergency Power | Emergency Duration | Charge Current | Charge Time |
| EEC30-2.5W-3H | 6.4V/1500mAhLiFePO4 battery | 2.5W | 3h | 200mA± 10% | 16h |
| EEC30-3.5W-2H | 6.4V/1500mAhLiFePO4 battery | 3.5W | 2h | 200mA± 10% | 16h |
| EEC30-5W-1.5H | 6.4V/1500mAhLiFePO4 battery | 5W | 1.5h | 200mA± 10% | 16h |

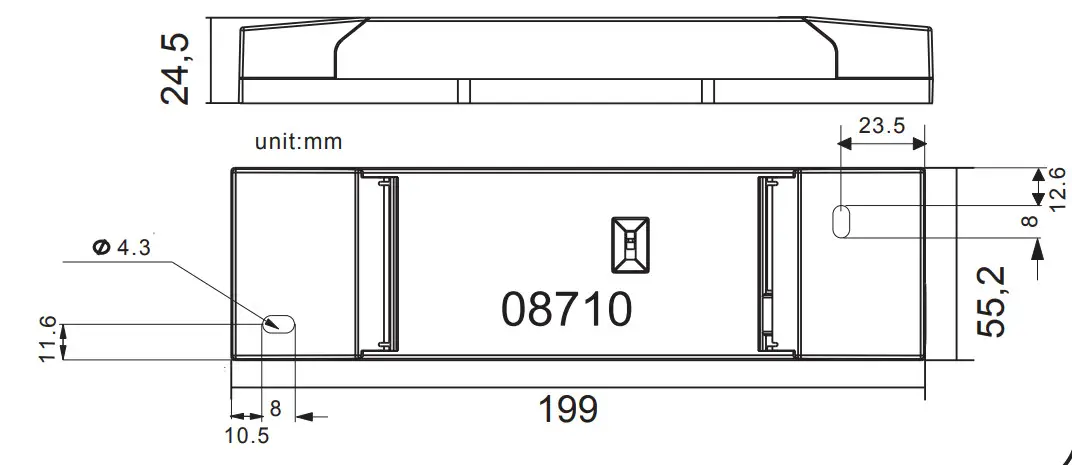

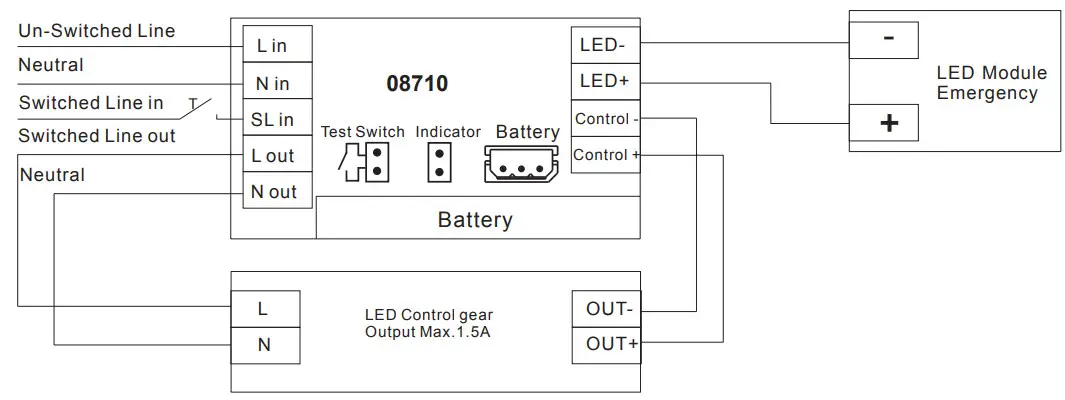

Wiring Diagram
The output current of LED driver is under 1.5A
The LED indicator light will not light if:
- Mains power off, the light goes into emergency mode
- Battery is disconnected when mains power on
- Battery to be connected with mains power on (Attention: Please re-connect the battery with mains power off, and then re-set the AC mains power)
British Electric Lamps Ltd
Unit A Foxbridge Way, Normanton Industrial Estate
Normanton, West Yorkshire. WF6 1TN
T: +44 (0)1924 893380
F: +44 (0)1924 894320
E: [email protected]
www.belllighting.co.uk
Manufacturers of quality lighting since 1920 - BELL Lighting
