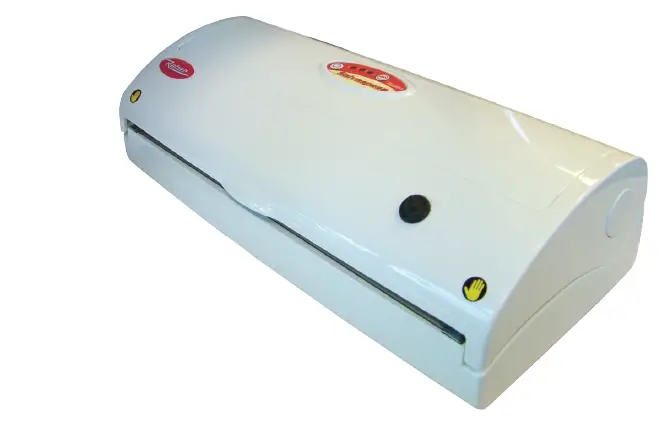

OMCAN VP-IT-0324 Vacuum Packaging Machine

General Information

Omcan Manufacturing and Distributing Company Inc., Food Machinery of America, Inc. dba Omcan and Omcan Inc. are not responsible for any harm or injury caused due to any person’s improper or negligent use of this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and not under the influence of any drugs or alcohol, who has been trained in the correct operation of this machine, and is wearing authorized, proper safety clothing. Any modification to the machine voids any warranty and may cause harm to individuals using the machine or in the vicinity of the machine while in operation.

CHECK PACKAGE UPON ARRIVAL
Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the external packaging, open carton to ensure all ordered items are within the box, and there is no concealed damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse for damaged products that were shipped collect or third party.

Safety and Warranty

Omcan is in the continuous development of its products to improve technical, safety, ecological and commercial features; products could be different from this data sheet due to this nonstop improvement.

IMPORTANT SAFEGUARDS

1. When using electrical appliances, basic safety precautions should always be followed including the following:
2. Do not operate any appliance with a damaged cord, plug, after the appliance malfunctions, is dropped or damaged in any manner. Return the unit to the nearest authorised service facility for examination, repair or electrical or mechanical adjustment.
3.  The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock or injury.
4. Do not use outdoors.
5. Do not let the power cord hang over the edge of a table or counter.
6.  Household or light commercial use only, except where differently indicated.
7. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge IF they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
8.  An acoustic level less than 60 dBA.
   •  Be careful during machine operation as heating elements are present on the welding bar.
   •  Only use compatible bags for food preservation or those supplied with the unit.
   • Do not put the unit into water and do not use it if the plug or power cable are wet to avoid risks of fire or electric shock.
   •  Do not overfill the bags to avoid risks of damage to the unit.
   •  Carry out any operations on the unit (cleaning included) with the power cable disconnected from the socket to avoid risks of electric shock.
   • Vacuum packaging does not replace other preservation methods but it can be combined with them.
   •  Perishable food requires cooling or freezing to prevent deterioration. Vacuum packaging prolongs preservation times and helps keep original quality of the food product.
   • Pre-packaged products must be used within the date indicated on packing.
   • A higher vacuum level corresponds to a lower oxygen quantity with resulting possibilities of better preservation.
   •  Liquids shall be refrigerated before packaging to prevent them from leakage which can be sucked into the vacuum chamber.
   •  Clean the vacuum chamber in case of liquids or powder. Make sure to let the vacuum chamber dry after cleaning.
   •  To reduce risks of electric shock, this product must be connected to a grounded plug. If the socket does not fit the plug, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.
   •  Close supervision is required when this product is used near children.
   •  Products in powder or grains shall be covered with a cloth before being vacuum-packaged so that they are not sucked into the vacuum chamber and do not obstruct the valve.
   • Containers unsuitable for vacuum packaging can implode through the effect of air pressure and cause damages and injuries. In case of storage in freezers, only special containers in toughened glass shall be used.
   • The air pump and the welding system are equipped with thermal protection: in case of overheating the unit stops automatically and can resume work after cooling.
   •  Experience and practice will enable you to obtain the best results with each product.
   •  Wrinkles and creases on the bag surface can prevent the package from reaching a satisfactory vacuum level. To avoid such inconveniences, place the bag in spread conditions within the vacuum chamber.
   • Adjustments related to operation are to be carried out by the manufacturer or authorised technician, both for safety and reliability purposes.
   • If you have not waited for the minimum time prescribed between connection and cycle starting, act as follows: unplug, plug again and wait as long as required.
   •  When containers are used particular attention should be paid to welding bar heating to prevent burns.
   •  For safety reasons, we recommend to operate manually when containers are used and the vacuum gauge pointer reaches the limit of the yellow area.
   •  If the power cable is damaged in any way, have it replaced by a qualified electrician with the same type of cable.
   •  With practice and experience you will be able to obtain the best results from the machine with any different kind of food.

RESIDENTIAL USERS:
Vendor assumes no liability for parts or labor coverage for component failure or other damages resulting from installation in non-commercial or residential applications. The right is reserved to deny shipment for residential usage; if this occurs, you will be notified as soon as possible.

1 YEAR PART AND LABOUR BENCH WARRANTY
Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. Unauthorized maintenance will void the warranty. The warranty covers electrical and part failures, not improper use. Please see the disclaimer for complete info.
WARNING:
The packaging components are classified as normal solid urban waste and can therefore be disposed of without difficulty. In any case, for suitable recycling, we suggest disposing of the products separately (differentiated waste) according to the current norms.
DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT

Technical Specifications

• LED displaying vacuum level.
•  Welding bar 32 cm. (for bags of 30 cm.).
•  Continuous duty.
• Power cord storing compartment. Air intake for container coupling.
•  Max. absorbed power: 250 W.
•  Max. vacuum level: -830 mbar.
• Aspiration capacity: 16 l./min.
•  Included in the package: 20 bags cm. 20 x 30 (6722 A)

CAUTION
These preservation periods are only a guideline and will depend upon the initial condition and freshness of the food and the cooking method. Pre-packed foods must be used within the “best before” date indicated on the packaging.

Operation

USE OF THE MACHINE
All numbers in brackets (#) refer to those listed in the “Figure Drawing” section of the manual on page 11. Plug the machine in, making sure the socket has suitable voltage for the unit. The unit is now ready for operation. Press switch (1) to start the air pump and air suction. Press the switch again to stop the unit. When the air pump is working, press switch (2) to operate the welding bar until the automatic relay switch on. The unit stops automatically after a pre-determined time or by pressing the on/off switch. The green LED (4) also acts as welding time meter: during welding it flashes as many times as the number of seconds set. The red LED lights up when a sufficient vacuum level has been achieved. Nevertheless welding can be postponed to reach a higher vacuum level; this operation does not cause any damage to the unit.

CHANGING THE DEFAULT SETTINGS SEALING TIME
To change the sealing power set, proceed as follows

• Connect the appliance to the electrical mains.
•  Press and release the sealing button (2) 10 times within 10 seconds; the green led, if on the model, will quickly flash to indicate you entered programming mode.
• If the green led is not flashing, it means the first part of the programming is not correctly executed.
•  Press and release the running button (1) as many times as the desired time/power unit; the green led, if on the model, flashes on each impulse.
• If the running switch is pressed for the first time (1) and the appliance starts the suction function, switch off the machine and repeat the programming procedure.
• Wait 10 seconds without pressing the buttons or disconnect the appliance from the electrical mains, (by doing so, the settings are saved).

Be careful! Don’t set more than 9 seconds or the Teflon protection of the sealing bar can burn.

TO SET TO DEFAULT AGAIN

•  Press and keep pressed the two switches.
•  Connect the unit.

TO CHANGE FROM THE AUTOMATIC TO MANUAL USE

•  Disconnect the unit.
•  Press and keep pressed the start switch.
•  Connect the unit.
•  Wait the green LED light.

TO CHANGE FROM THE MANUAL TO AUTOMATIC USE

• Disconnect the unit.
• Press and keep pressed the seal switch.
•  Connect the unit.
• Wait the green LED light.

VACUUM PACKAGING IN BAGS
Introduce the product into a bag suitable for vacuum food preservation; leave at least 3 cm free room from bag opening. Lift the cover (6) and place the bag (spread out well with no wrinkles) on the welding bar (9), on the left of the slide (11). Make sure that the open side of the bag is inserted in the vacuum chamber (8). Put the power cable into a socket and start the air pump by pressing switch (1). Slightly press your hands on the cover (6) to produce an initial depression in the vacuum chamber until the bag starts adhering to the product (pressing as long as vacuum packaging has been completed is not necessary). When the vacuum level is reached, the welding will start automatically. After welding the unit stops.
Cod. 9340 N – 9340 NAUS – 9340 NCSA– 9342 N (S-T-R-B): Push laterally the opening valve of the cover (7) to lift the cover and remove the bag.
Cod. 9346 N (F) – 9348 N (F): the opening of the cover is automatic. Before storing the bag, check that welding has been carried out correctly. No wrinkles capable of letting air in shall be present.

VACUUM LEVEL
The vacuum packaging unit is supplied with a vacuum sensor, installed in the electronic board, which makes a red LED light up when a certain vacuum level (varying between –680 mbar and –750 mbar) is reached. The vacuum level depends on the shape of bag content. It is possible to postpone welding to reach a higher vacuum level without causing any damage to the unit. The vacuum level which the unit can reach depends on food (or object) quality and shape. For example, a rigid structure of the material in the bag can produce air residuals that cannot be removed and will prevent the vacuum gauge from reaching the maximum level. There are also products (such as fish, tomatoes, etc.) containing liquids which, in case of compression, leak out and can be sucked by the machine with resulting damages. Other products that are not very compact can be damaged or crushed with an excessive vacuum level. We recommend checking the adherence of the bag and welding before operation.

OMCAN BAGS

Call your local food equipment dealer to purchase additional bags.

Motor Diagram

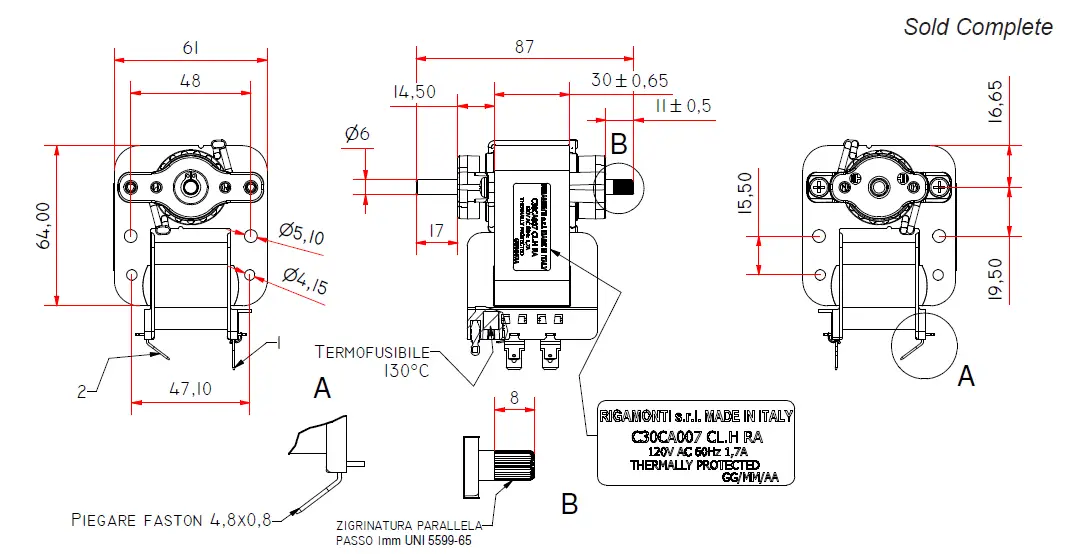

ALL NUMBERS REFER TO THE DIMENSIONS OF THE MOTOR IN MILLIMETERS.

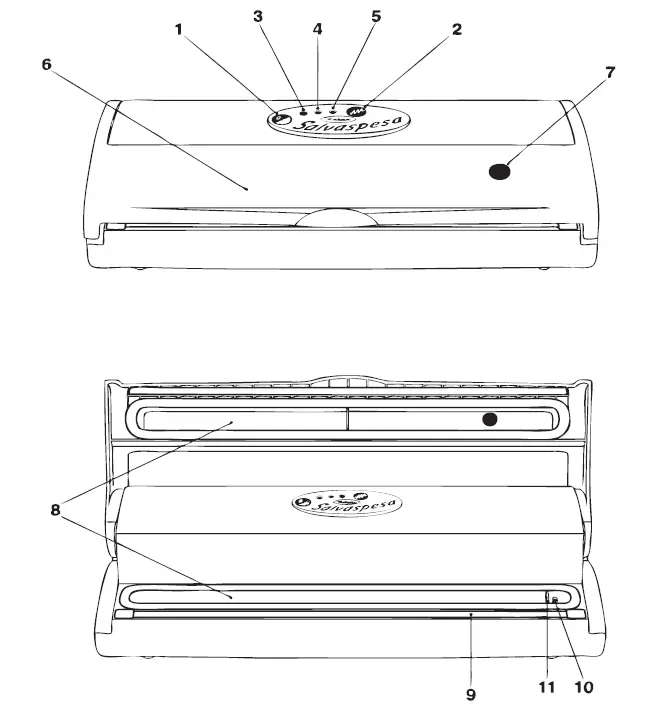

Figure Drawings

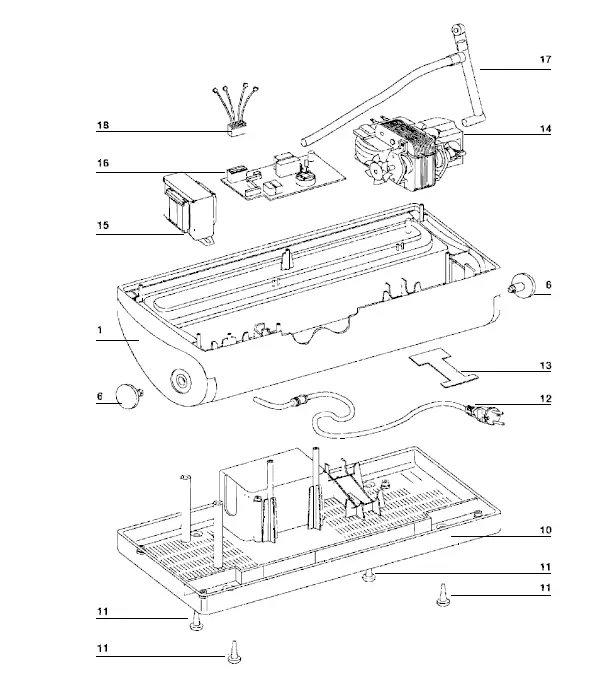

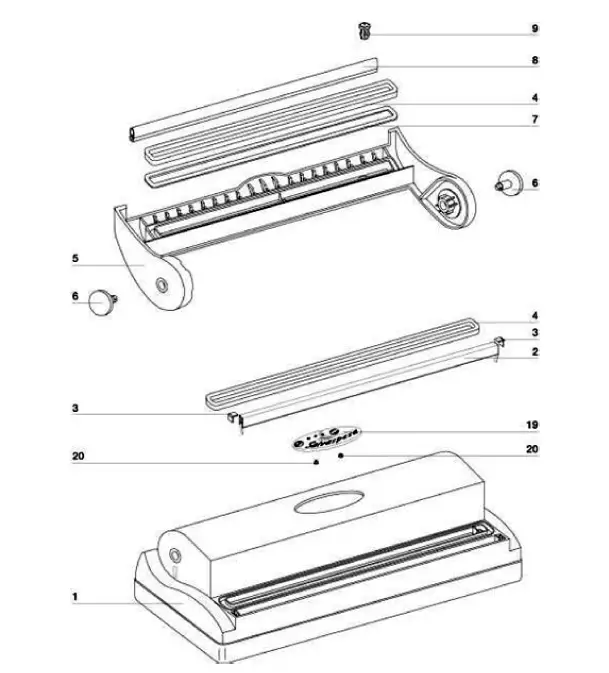

Parts Breakdown

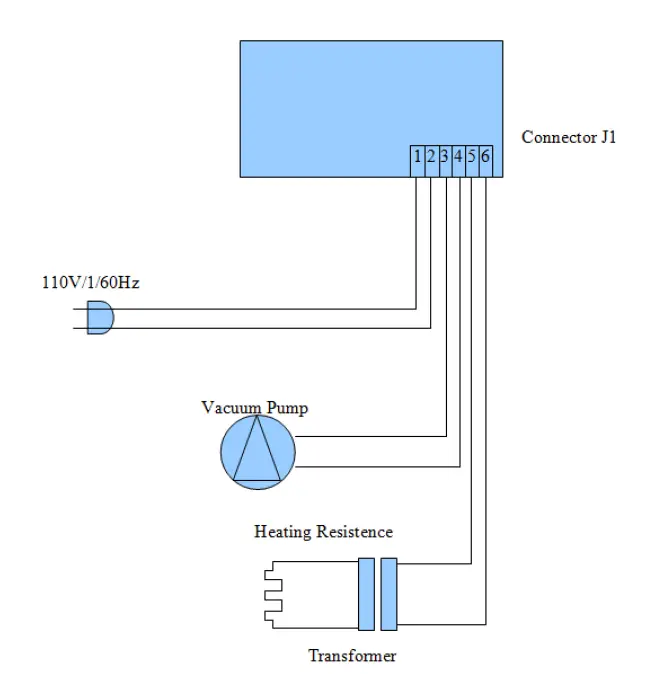

Electrical Schematics

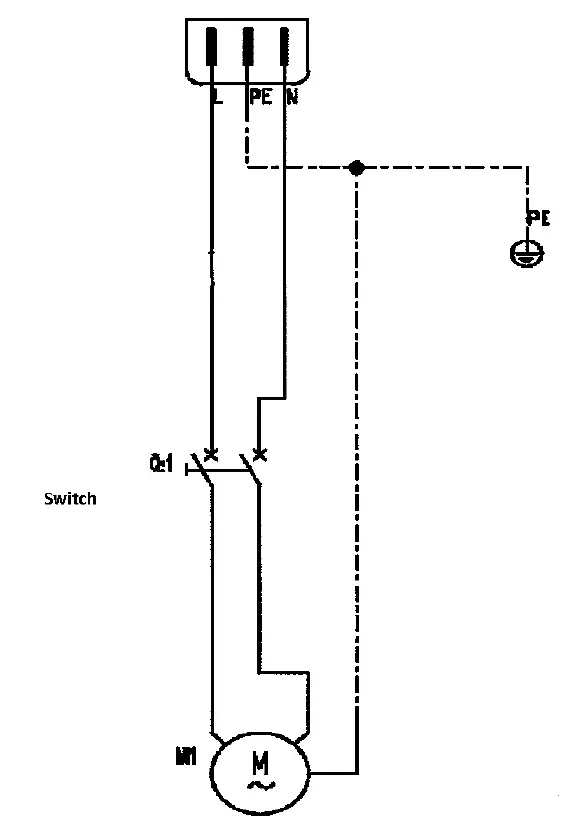

Electrical Schematics

Warranty Registration
