CARSON PG-10R Rechargeable LED Paperback Boo Light
Instructions for Use:
Charge your booklight fully using the included USB cord.

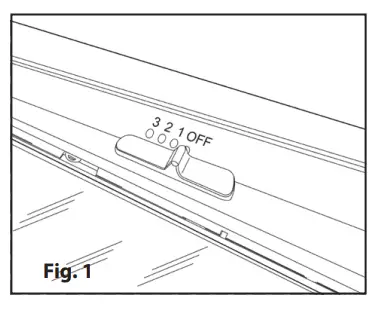

Select desired brightness using 3 stage dimming switch (Fig. 1).

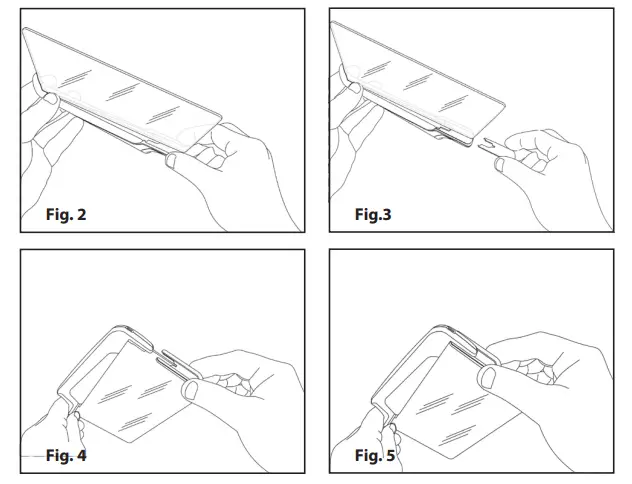

Place a clear acrylic portion of the item directly on the reading material.To use hands-free, detach the clip from the bottom portion of the handle and attach it to the top of the handle (Fig. 2-5). Rest clip on top of the book you are reading.
Instructions for Use (continued)

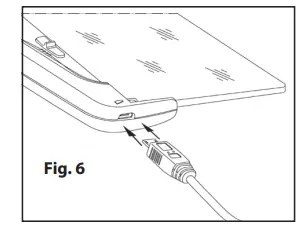

To charge the battery, plug the small end of the included USB cable into the top of the booklight (Fig. 6).
Plug the large end of the cable into your computer’s USB port.
Important: Battery must be fully charged before ÿrst use.
The LED indicator on the booklight will be red in color while charging and will turn green when fully charged (about 4 hours). It is recommended that you fully charge the batteries at least once every three months. LED lights should last approximately 30 hours on a single 4-hour charge. Once lights become noticeably dimmer it is time to recharge the batteries.
The operation of this item should be at normal room temperature.
- Recommended storage temperature: 68o Fahrenheit (20o Celsius)
- Charging voltage: 4.20V (Max. 4.23V)
- Standard capacity: 280 mAh
- Charging time: About 4 hours.
- Standard voltage: 3.7V Minimum voltage: 2.75V
Note: Rechargeable batteries may contain mercury. Dispose of according to Local, State, and Federal Laws.
