U-prox G1 Wireless Touch Mini Keypad User Manual

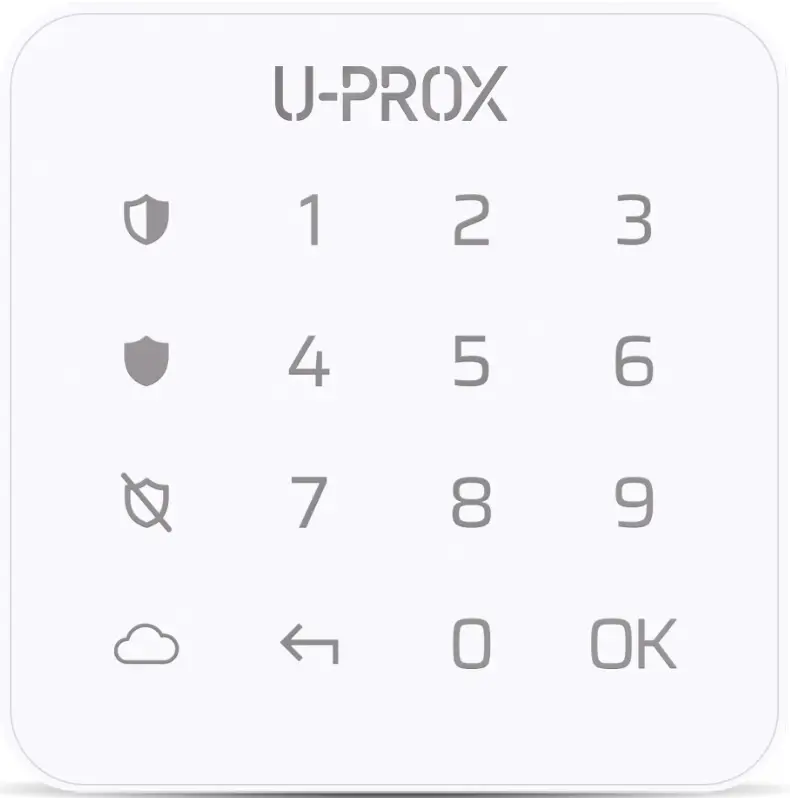

U-PROX G1 Wireless Touch Mini Keypad

U-Prox Keypad G1 – is a wireless keypad designed for arming and EN disarming, displaying alarms and device status, as well as interaction with the user of the alarm system.

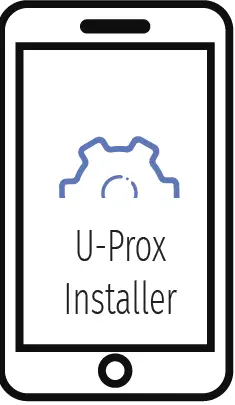

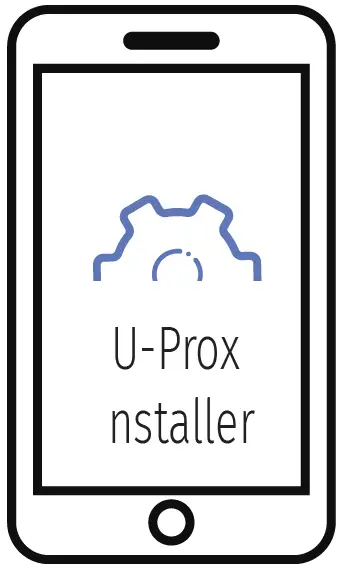

The device is connected to the control panel and is configured with the U-Prox Installer mobile application.

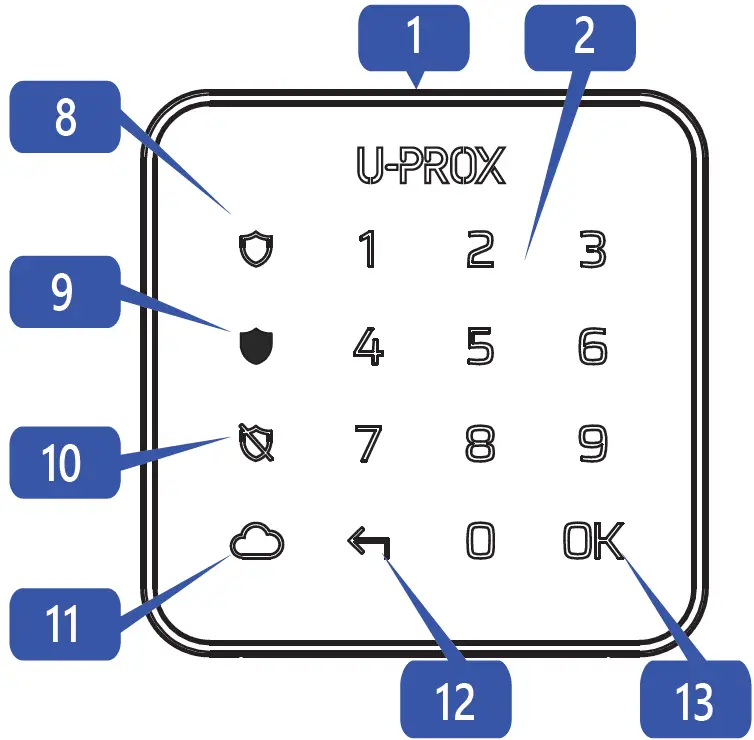

Functional parts of the device

1.  Keypad case
2. Numeric keypad

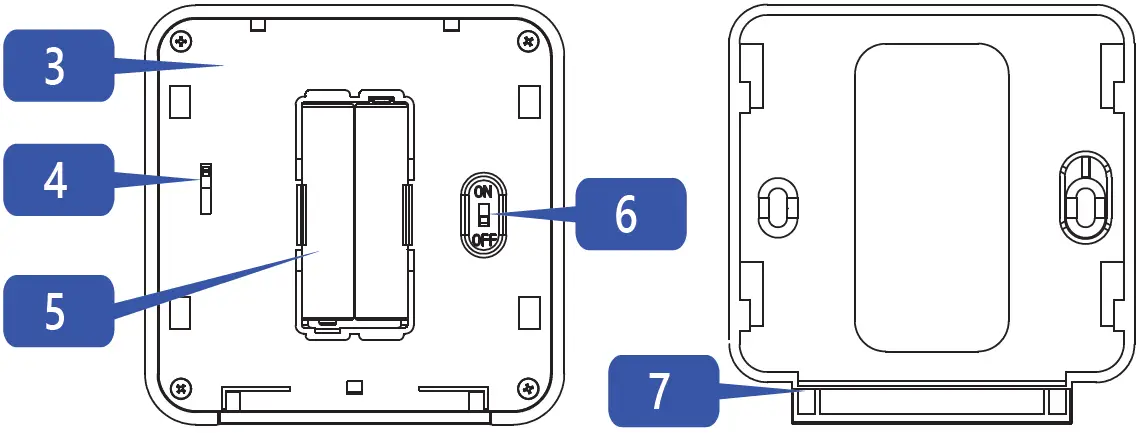

3.  Keypad case, rear view
4. Tamper switch
5. Batteries

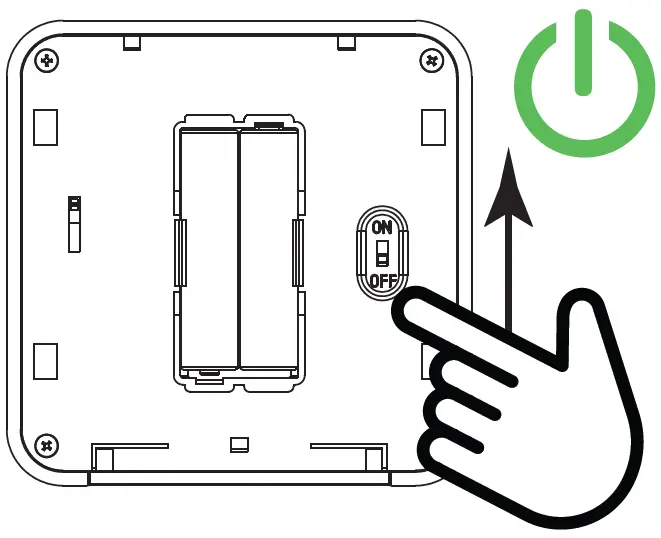

6.  On/Off switch
7. Keypad plate
8. “Partial Arming” button (“Stay” or “Night Mode”) and indicator
9.  “Arming” button and indicator
10. “Disarming” button and indicator
11. “Info” button and indicator with reprogramming capability
12. “Cancel” button
13. “OK” button – additional actions

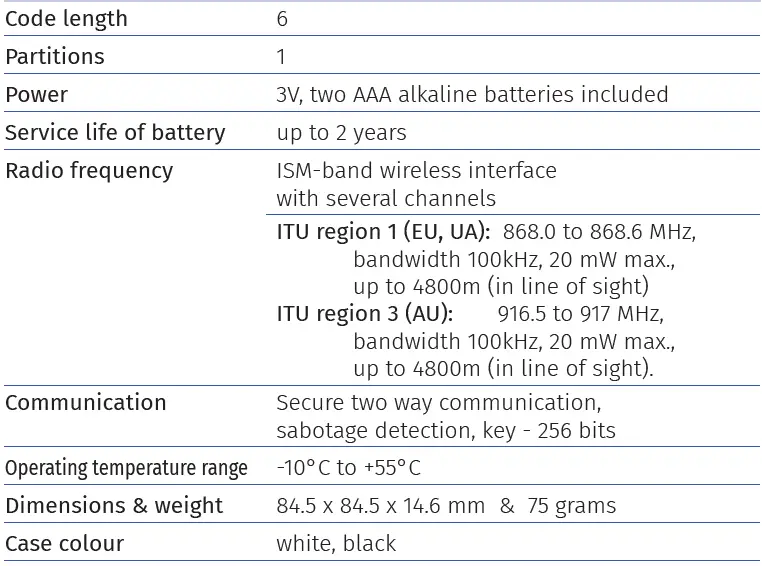

TECHNICAL SPECIFICATIONS

COMPLETE SET

1.  U-Prox Keypad G1;
2. Two AAA LR03 alkaline batteries (pre-installed);
3. Quick start guide

CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE USED BATTERIES ACCORDING TO THE NATIONAL REGULATIONS

•  Do not use salt batteries (R03)! FR03 lithium batteries or alkaline batteries (LR03) are highly recommended. Usage of alkaline batteries (LR03) allowed only at temperatures above +5°C.

WARRANTY

Warranty for U-Prox devices (except batteries) is valid for two years after the purchase date. If the device operates incorrectly, please contact [email protected] at first, maybe it can be solved remotely.

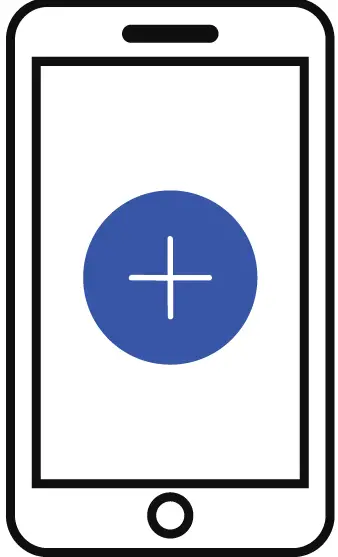

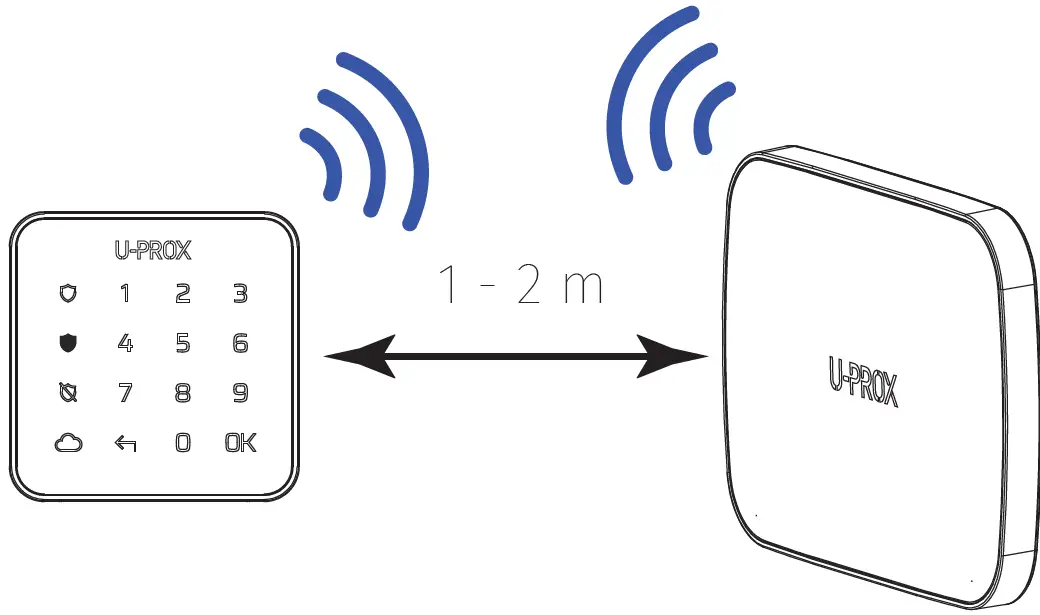

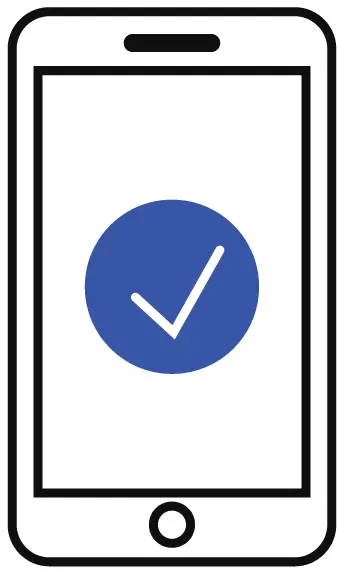

REGISTRATION

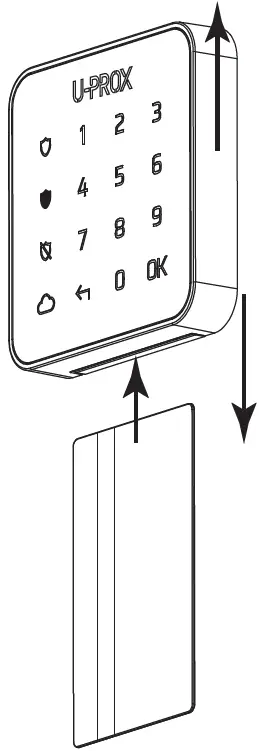

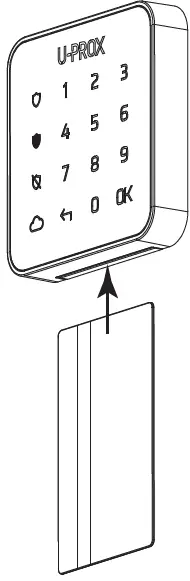

Use a plastic card to open the device




10-15 s

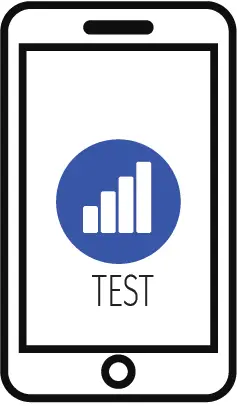

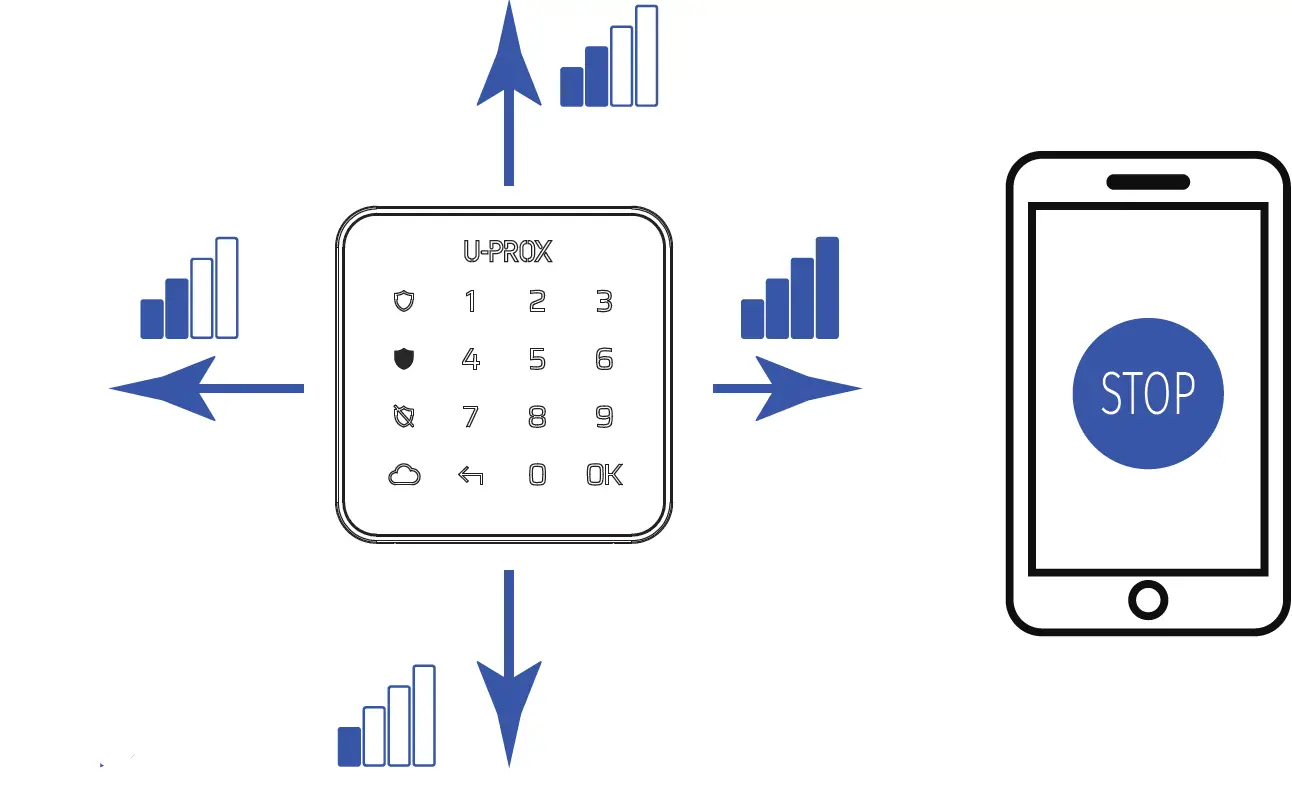

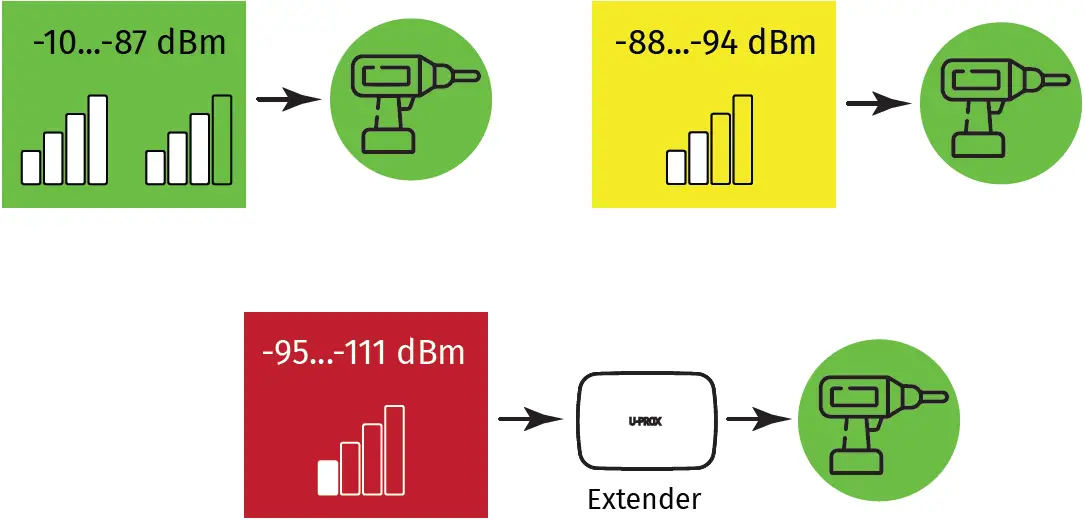

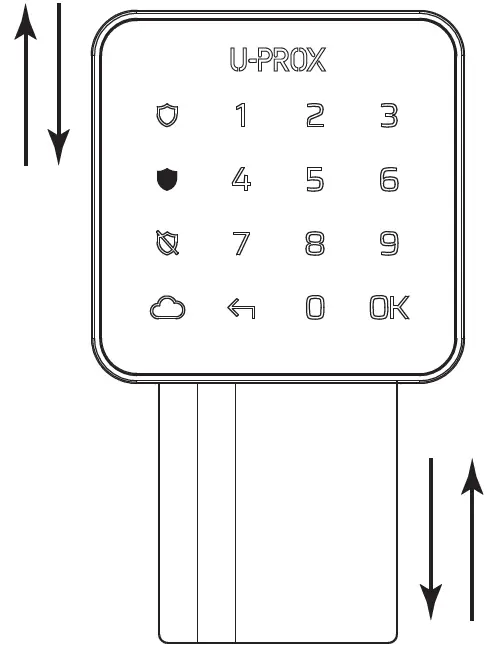

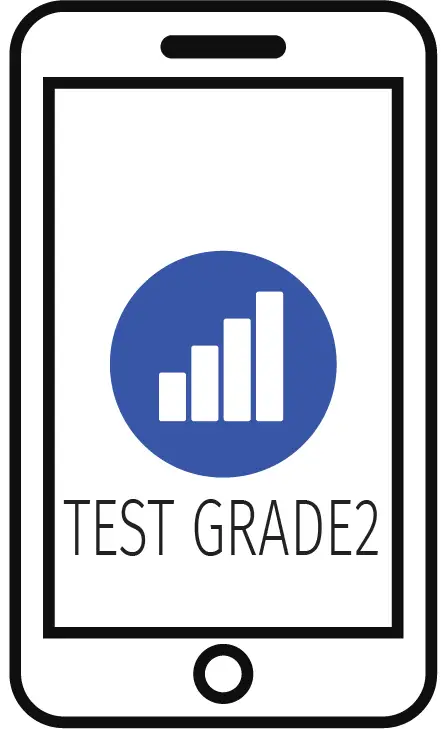

RANGE TEST FOR OPTIMAL INSTALLATION LOCATION

Due to Grade 2 requirement RF link works with reduction of power in 8 dB


30 min

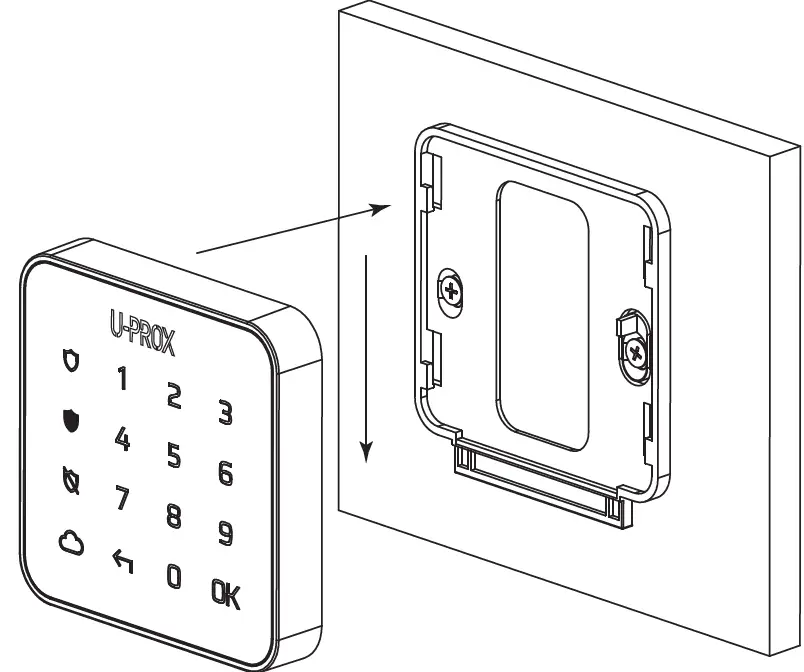

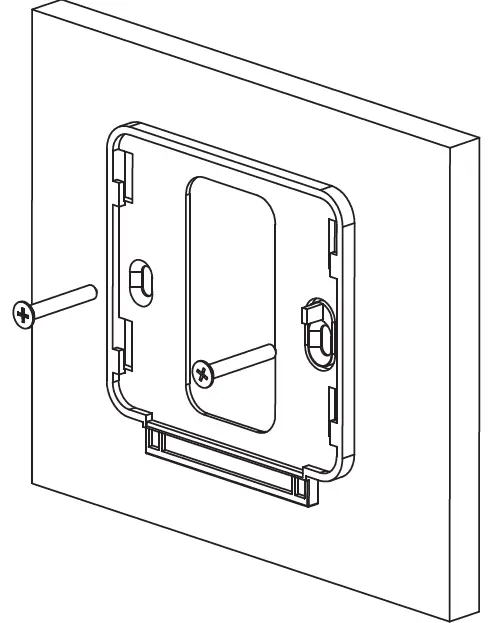

INSTALLATION

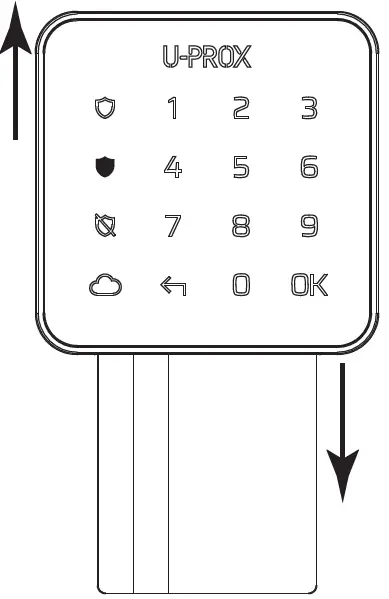

Use a plastic card to open the device

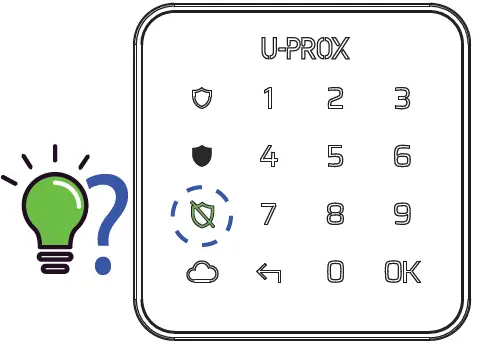

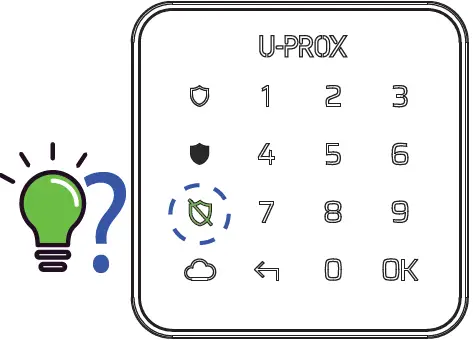

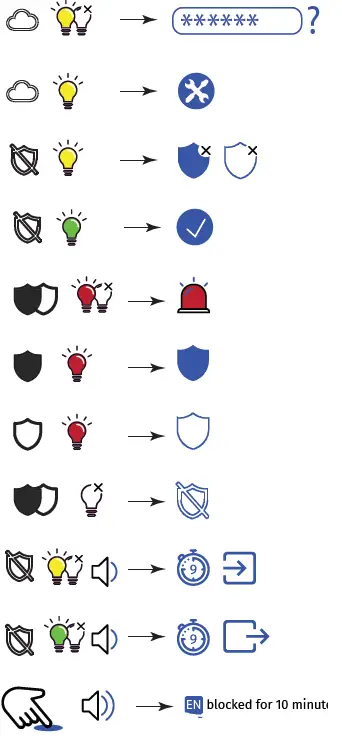

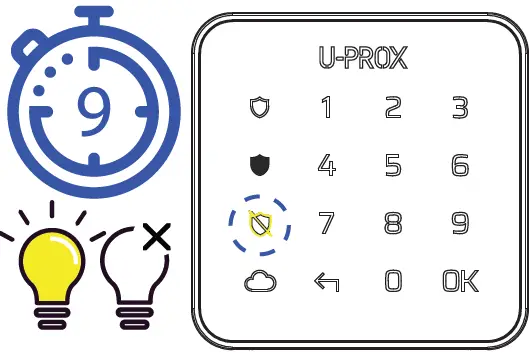

INDICATION

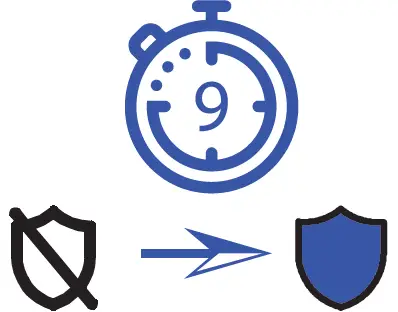

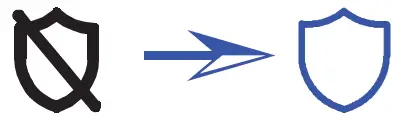

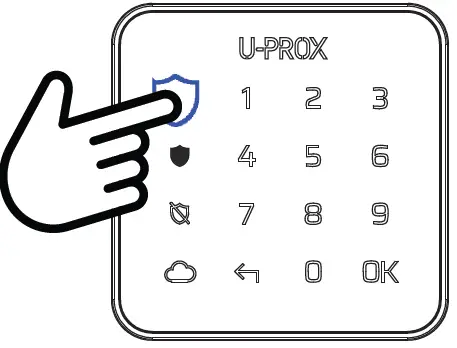

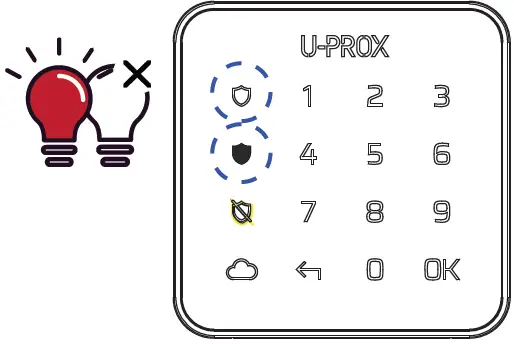

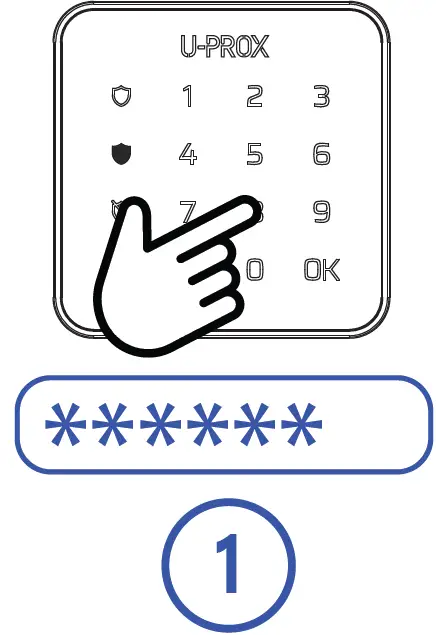

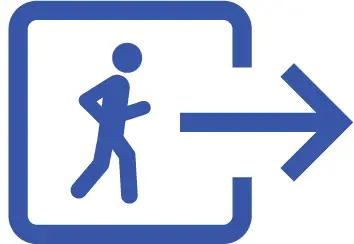

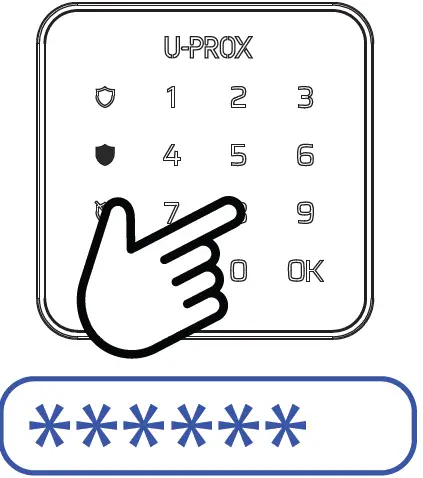

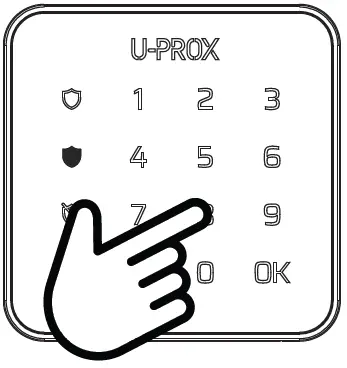

ARM

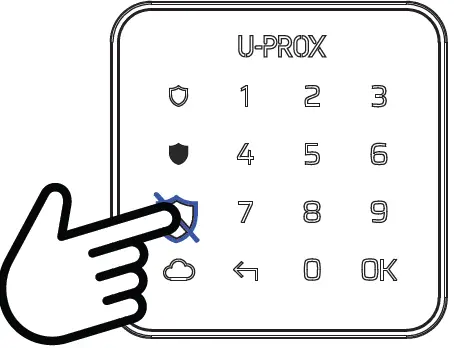

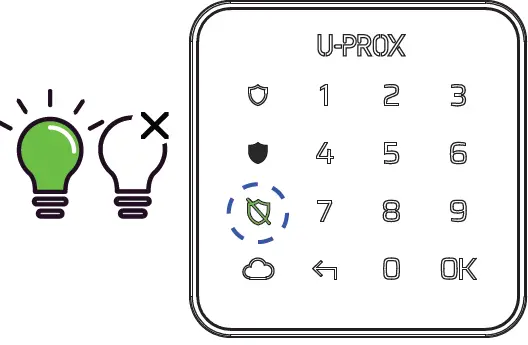

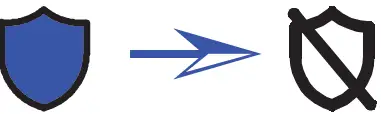

DISARM

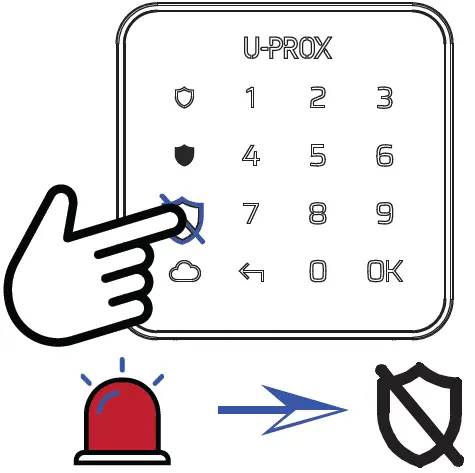

CANCELLING ALARM

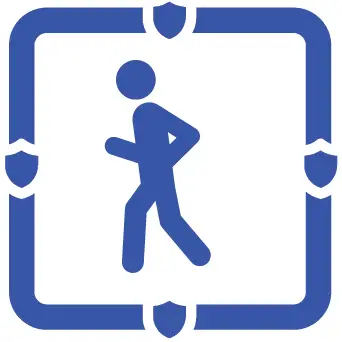

STAY ARM / NIGHT MODE

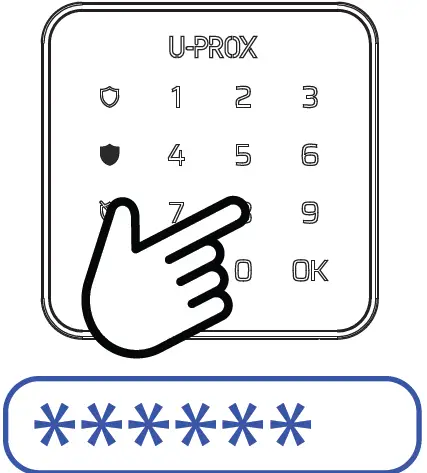

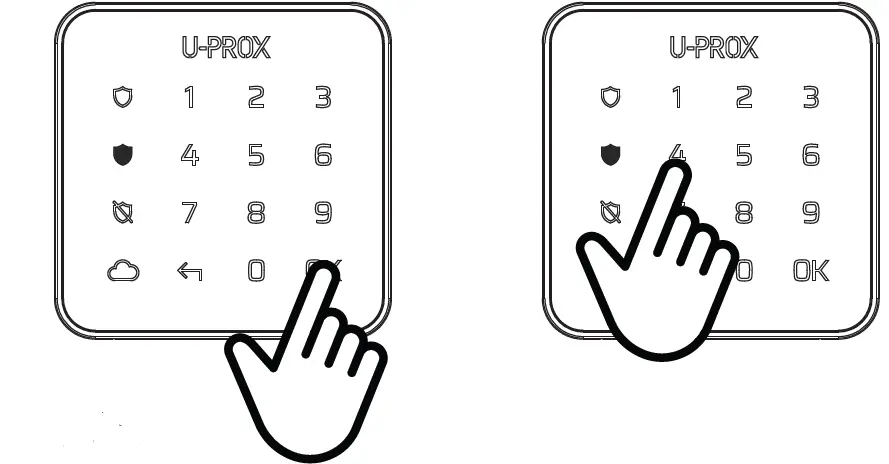

CHANGE CODE

• old
• 4-5 s
• Press 4
• new

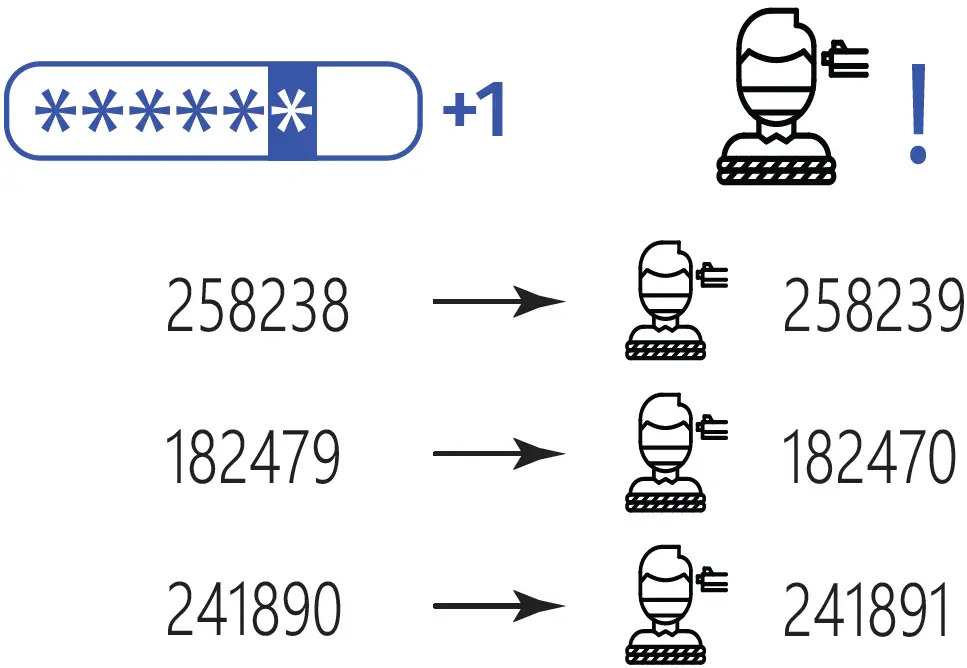

DURESS CODE
