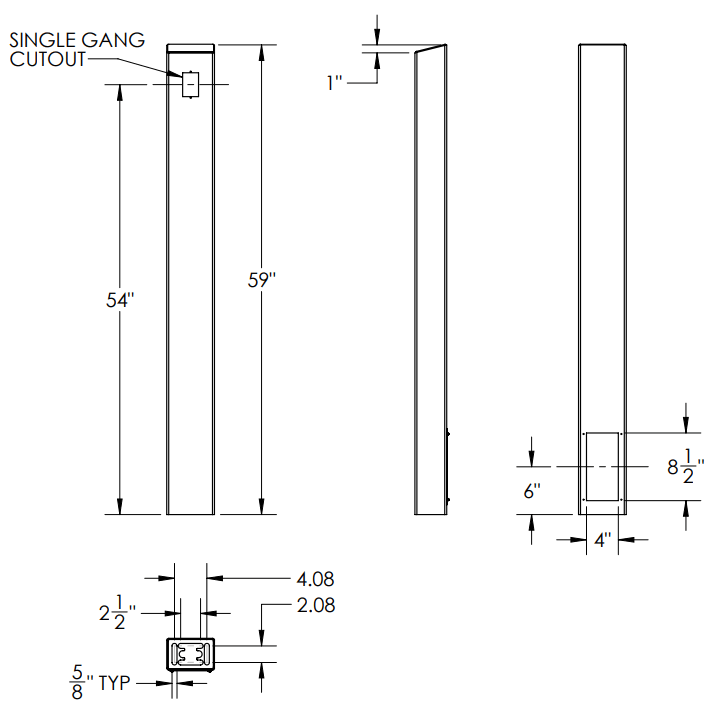

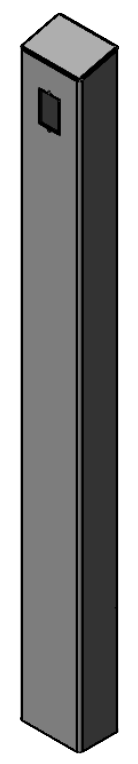

ADA-SS-TWR-60x4x6 ADA Compliant Stainless Steel Square
NOTES:
- 1/2″ ø MOUNTING HARDWARE IS RECOMMENDED FOR 5X5 BASEPLATE AND STAINLESS TOWER MODELS. L-BOLT-500, STUDANCHOR-500.
- MATERIAL OF CONSTRUCTION IS 304SS BRUSHED #4 FINISH.
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL ±1/32
ANGULAR: ±2º
TWO PLACE DECIMAL± 0.010
THREE PLACE DECIMAL ±0.005
INTERPRET GEOMETRIC
TOLERANCING PER: ASME Y14.5 -2009
| NAME | DATE | |
| DRAWN | ||
| CHECKED |
PROPRIETARY AND CONFIDENTIAL
THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF PEDESTALPRO LLC. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF PEDESTALPRO LLC IS PROHIBITED.
TITLE:
INSTALLATION
Tuesday, October 23, 2018 1:52:42 PM
WEIGHT:
SIZE A
PART NO.
ADA-SS-TWR-60x4x6
NO SCALE
REV B

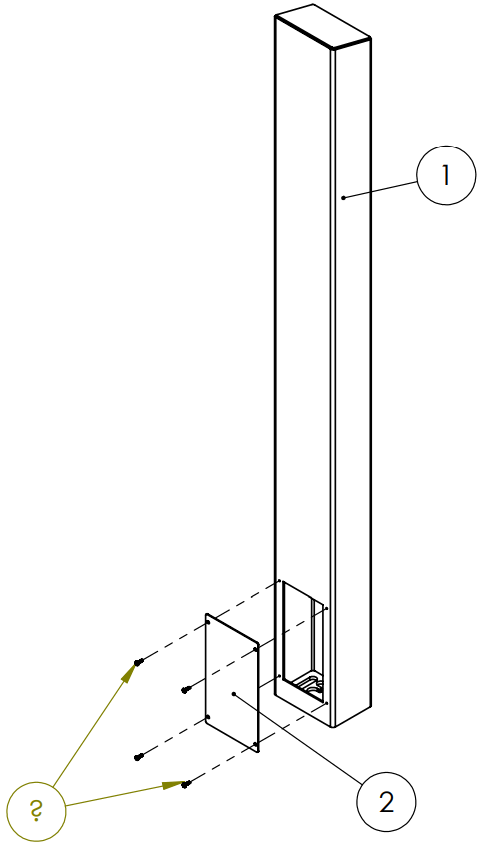

| ITEM NO. | PART NUMBER | DESCRIPTION | QTY. |
| 1 | ADA-SS-TWR-60x4x6 | 304SS 60″ BODY | 1 |
| 2 | PLTACC-510 | 304SS STND 4X8.5 ACCESS COVER | 1 |
| 3 | — | 8-32X5/8 SS BUTTON HEAD SCREW | 4 |
NOTES:
- SEE STANDARD PREPARATION AND COATING INSTRUCTIONS FOR COATING PROCEDURE AND COLOR
- SEE STANDARD PACKAGING INSTRUCTIONS FOR PACKAGING PROCEDURE
TITLE:
ASSEMBLY
