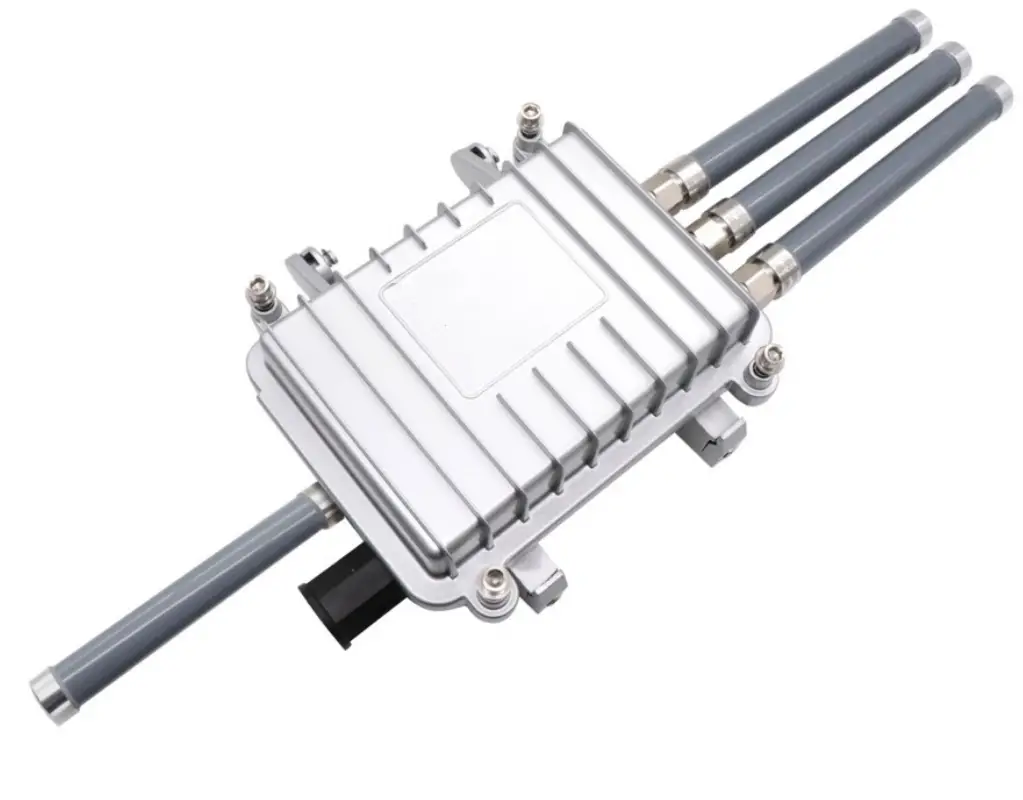

Seriallink SLK-R650 Industrial WIFI6 Router
Product introduction
SLK-R650-5G is a high-speed 5GP CPE based on 5G NR/LTE-FDD/LTE-TDD/HSPA+ cellular modem, with highperformance dual-core CPU, which provides two 10/100/1000m network ports, one of which is waterproof POE network port, supports standard or non-standard POE power supply, and one SIM card slot to receive high-speed 5G network. Aviation cast aluminum shell, IP65 protection grade, waterproof, dustproof, high and low temperature resistant, with good heat dissipation design. Main application: converting high-speed 5G signal into 1000M network port. It has been widely used in M2M industries of Internet of Things industry chain, such as self-service terminal, smart grid, intelligent transportation, smart home, finance, mobile POS terminal, supply chain automation, industrial automation, intelligent building, fire protection, environmental protection, meteorology, digital medical care, telemetry, agriculture, forestry, coal, petrochemical and other fields.
Features
- High performance dual-core CPU
- 2 x 10/100/1000M Ethernet LAN/WAN interface
- 5G NR/LTE-FDD/LTE-TDD/HSPA+ network
- The protection level reaches IP65, waterproof, dustproof and corrosion-proof.
- Standard POE network port supports standard POE48V power input or DC24V voltage input.
- 4-way FRP 5G antenna
Product parameters
Hardware:
| hardware | |
| CPU | High performance dual-core CPU |
| RAM | 2G bit |
| SPI FLASH | 16M(bytes) |
| Nand Flash | 128MB(Bytes) optional |
| operating system | The latest version of LINUX |
Network interface:
| network interface | ||
| Support frequency band | 5G/4G/3G version | |
| 5G | Sub-6G | n1,n2,n3,n5,n7,n8,n12,n20,n25,n28,n40,n41,n66,n71,n77,n7 8,n79 |
| 4G | LTE-FDD | B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/ B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| 4G | LTE-TDD | B34/B38/B39/B40/B41/B42/B48 |
| 3G | WCDMA | B1/B2/B3/B4/B5/B8 |
| Theoretical bandwidth | Sub ‐ 6G: Up to 300Mbps for upstream and 4Gbps for downstream. Lte cat20: up to 150Mbps for uplink and up to 2.4Gbps for downlink HspA+:Up to 5.76Mbps for upstream and 42.0Mbps for downstream The above data are only theoretical values, and the actual network speed is subject to the local environment. | |
| Routing function | ||
| firewall | Network address translation (NAT) | |
| State all-inclusive check (SPI) | ||
| Media access control | CSMA/CA with ACK | |
| VPN protocol | PPTP,L2TP ,OpenVPN Client | |
| DHCP | Build-in DHCP (Dynamic Host Configuration Protocol) | |
| Other agreements | Support PPP,PPOE, DDNS,ICMP,VRRP, etc | |
| Characteristic function | Support intranet penetration FRP client | |
Interface:
| joggle/interface | |
| LAN port | 1x 10/100/1000M network port inside |
| POE network port | Provide a standard or non-standard 10/100/1000M POE network port. POE port supports DC48V power supply. Non-standard POE supports DC12-55V power supply |
| Reset button | 1x reset button |
| aerial | 4x N female head antenna interface with 5G FRP antenna |
| LED | Power-SYS-LAN-5G LED internal display |
| SIM card slot | 1.8/3.3V SIM card support |
Power supply:
| Power Supply | |
| Default power supply | 24V/1A non-standard POE power adapter |
| Input voltage range | DC12~55VDC |
| power | 20W (Max) |
Physical data:
| operating temperature | Storage temperature: (-40 C to 85 C) |
| Operating temperature: (-20 c to 65 c) | |
| the protection grades | Support IP65 protection level, waterproof, dustproof and corrosion resistant. |
| relative humidity | 95% |
| inside measurement | L*S*H: 160mm x110mm x 60mm |
| weight | Net weight: 2.5kg |
| Packing weight: 3kg | |
| Relevant certificate | CCC,CE,FCC,RHOS |
Other:
| other | |
| guarantee to keep in good condition or repair | 2 years |
| Packaging content | Outdoor 5G CPE , 4x5G glass fiber reinforced plastic antenna, POE power adapter, 2 sets of holding pole steel belt with a circumference of 66cm, 1 set of mounting bracket, and electronic file of instructions. |
Ordering information:
| model | LAN (internal) | LAN(POE network port) | SIM card slot | 5G antenna |
| SLK-R650 | one | one | one | four |
Installation dimensions

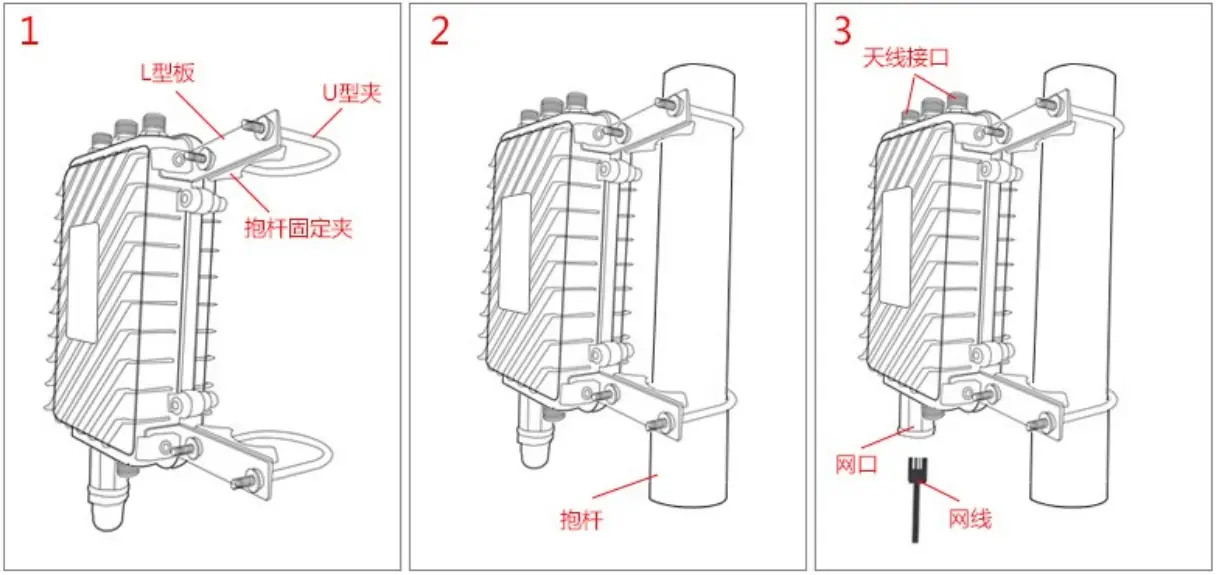

Mounted by bracket

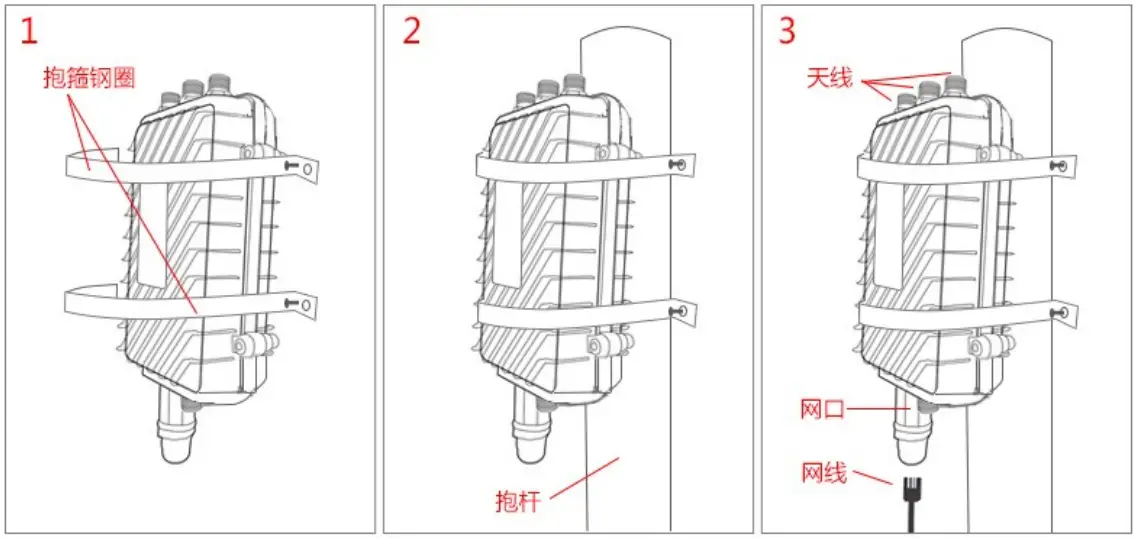

Through 304 stainless steel band binding installation
