TubeSpin Bioreactor
Instructions
TubeSpin Bioreactor
The TubeSpin® bioreactor is suitable for high throughput screening, cultivation and optimization processes of prokaryotic (aerobic bacteria) and eukaryotic (yeasts, algae, HEK, CHO, Sf-9) suspension cells. The TubeSpin® bioreactor is available with a filter screw cap with 5 or 10 openings over a PTFE filter membrane. The TubeSpin® Bioreactor is intended for single use only.
Note: Follow national regulations when handling biological material, use appropriate protective clothing Take note of the regulations of aseptic working during the work process.
Instructions
- Check the packaging material and the product for intactness. Use only faultless material.
- Check the expiry date (EXP) on label and packaging. Only use products with valid EXP.
- Open the packaging in a sterile environment and remove an entire system for use.
- Open the bioreactor and fill it with the medium and inoculum according to your laboratory routine. Please refer to the optimal filling quantity (see technical data).
- Close the filter screw cap with ventilation holes. Continuous gas exchange takes place through the integrated hydrophobic membrane 0.22 µm.

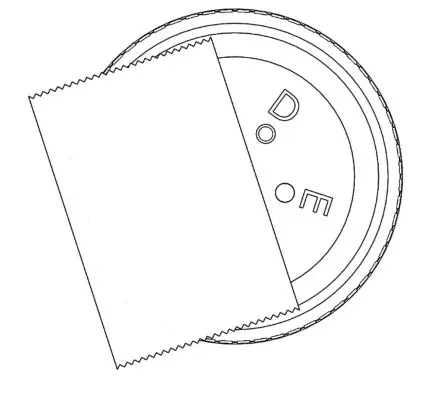

- If the aeration/gas exchange needs to be reduced, individual openings may be closed using lab-appropriate labels or tape (picture 1) Picture 1.
- Cultivate: Shake cells in appropriate incubation shakers. Refer to the cultivation conditions of the cells (temperature, CO2 and humidity control, shaking frequency.
- Shakers: Follow the safety instructions and operating instructions of the shaker manufacturer.
- Centrifuging: The use of suitable rotors or centrifuge adapters is recommended. Follow the safety instructions of the centrifuge manufacturer.
- The mechanical strength of the tubes during centrifugation is influenced by o Shape and material
o Accuracy of fit in the centrifuge adapter
o Temperature, centrifugation time, g-number
o Chemical and physical properties of the centrifuged material o Rotor type: fixed-angle or swing-out rotor - Test the multitude of influencing factors under routine conditions beforehand.
- Storage before use at room temperature, protected from UV light
Remarks and Recommendations
- The graduation serves as a guide for filling quantity and is no absolute value.
- Alcohol 90 % with mechanical stress (rubbing) might dissolve or blur the white color of the print.
- For freezing, TPP recommends transferring samples to the TPP cryo tubes. If TubeSpin® bioreactor storage in the minus temperature range is desired, TPP recommends testing the product beforehand according to your conditions.
- TPP assumes no liability for damage caused by, during or due to the use of centrifuge tubes in freezing processes.
Technical Data
Materials
| Screw Cap | PE |
| Membrane | PTFE |
| Tube | PP |
Additional: Instructions for use, chemical resistance lists,and quality certificates of the respective products are available for download on the homepage www.tpp.ch.
| Measurements | 87015 | 87017 | 87050 | 87056 |
| Volume grad. mL | 15 | 15 | 50 | 50 |
| Length mm | 120 | 120 | 115 | 115 |
| Diameter mm | 17.1 | 17.1 | 30 | 30 |
| Max. RCF x g | 15‘500 | 15‘500 | 15‘500 | 15‘500 |
| Form | conical | round | conical | round |
| Optimal | 1 – 10 | 1 – 10 | 1 – 35 | 1 – 35 |
| Shaker: | 50 | 50 | 50 | 50 |
| Shaker: | 250 | 250 | 180 | 180 |
| Measurements | 87450 | 87600 |
| Volume grad. mL | 450 | 600 |
| Length mm | 145 | 181 |
| Diameter mm | 96 | 98 |
| Max. RCF x g | 3‘500 | 3‘500 |
| Form | conical | conical |
| Optimal filling volume mL | >300 | >400 |
| Shaker & Screw Cap | 87450 | 87600 |
| Shaker: | 50 | 50 |
| haker: Recom. speed | 150 | 150 |
| Screw cap „solid“ | 87355 | 87355 |
| Screw cap „filter“ | 87356 | 87356 |
| Aberturas / Openings Ø mm | 87015 / 87017 | 87050 / 8705 | 87450 / 87600 |
| A | 0.4 | 0.4 | – |
| B | 0.6 | 0.6 | – |
| C | 1 | 1 | – |
| D | 1.25 | 1.5 | – |
| E | 1.5 | 2 | – |
| 10 x cada | – | – | 4 |
Note: TPP products are for research use only and not intended for use in clinical, diagnostic or therapeutic procedures. TPP does not assume any guarantee for
