Equator Ch 140 Advanced Appliances Cigar Humidor Owner's Manual

CIGAR HUMIDOR
Model – CH 140

OWNER’S MANUAL

Please read the instructions carefully and keep for future reference

Warranty

Equator Appliances undertakes to the consumer-owner to repair or, at our option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use, in USA and Canada, for a period of one year from the date of original purchase. During this period, we will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been assembled and operated in\accordance with the written instructions with the appliance.

Exclusions

In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service call which does not involve defective workmanship or materials will be the responsibility of the consumer-owner

Specifically, the following work is not covered under warranty and does not constitute warranty work:

Installation – Insufficient spacing around appliance
Maintenance – e.g. Not filling water in humidor
Mishandling – e.g. Breakage of shelves

Most work is covered. The defining factor is, has the machine malfunctioned (Equator Appliances is responsible) or has the customer omitted or done something to cause the appliance to malfunction (customer is responsible). Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

WARRANTY SERVICE

This warranty is given by:
Equator Appliances
10222 Georgibelle Drive, Suite 200,
Houston, Texas 77043-5249

For Customer Service:
Appliance Desk
Phone/Text: 1-800-776-3538
Email: [email protected]
Web: www.ApplianceDesk.com
Business hours: 9:00 am to 5:00 pm weekdays
You can register your Warranty by either of the following methods:

1. Scan the QR Code

https://appliancedesk.info/index.php?id=ch-140

2. Register online at ApplianceDesk.com/Warranty
3. Cut out and mail the Warranty Card located on the last page.

GENERAL

Since it is the responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose.
This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.
All rights reserved. Manual subject to change without notice.

Safety

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Refrigerant and foaming material is flammable. Take precautions during handling, installation, and maintenance.
Ensure that the refrigerant circuit is not damaged.
Keep ventilation openings clear of obstructions.
When positioning the appliance, ensure the electrical cord is not trapped or damaged.
Do not place multiple portable socket-outlets at the rear of the appliance.
Never unplug the appliance by pulling on the power cord. Grip the plug firmly and pull straight out to remove from wall socket.
Do not use a damaged power cord.
Do not use an extension cord.
Do not touch the compressor or air outlets.
Children should be supervised to ensure that they do not climb on or play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction.

Safe Disposal

Before discarding the appliance, remove the door in order to prevent risk of child entrapment.
Please dispose of this appliance in accordance with local regulations.

Installation

Do not tilt the Cigar Humidor at an angle of more than 45° when moving it.
Do not move the appliance while it is loaded with bottles or cans.

Place the appliance away from sources of heat and high humidity, and also away from areas or moisture and exposure to cold temperatures.
After moving the Cigar Humidor in place, let it stand upright for 10 minutes before turning it on.
Plug the appliance into a dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.
Check the plug and cable before you connect the power and ensure the correct voltage is 110V / 60Hz.
Ensure that the plug is accessible.
Place the Cigar Humidor on a flat level surface, leaving 2 inches (5 cm) on either side and at least 3 inches (8 cm) between back of appliance and the wall.
The feet of the appliance can be adjusted to make it level.
Before use, clean the outside and inside surfaces with a damp soft cloth.

General Use

This appliance is intended for storage of cigars for household use.
Ensure that the air outlets on the left and right sides are not blocked.
The appliance includes a water container for humidity. In order to function correctly, ensure that the container is always filled with tap water. If there is no water in the container, an error code of “E6” will flash on the control panel screen.

Ensure that the door is closed firmly.

Operation

Press the Power On/Off button to turn the appliance on.
Press the Light On/Off button to turn on the LED light.
The appliance should be placed in a room where the temperature is between 61°F – 90°F (16°C to 32°C).

Temperature and Humidity Setting
The temperature range of the appliance is 59°F-72°F (15°C-22°C).
The humidity range of the appliance is 65% -75%.

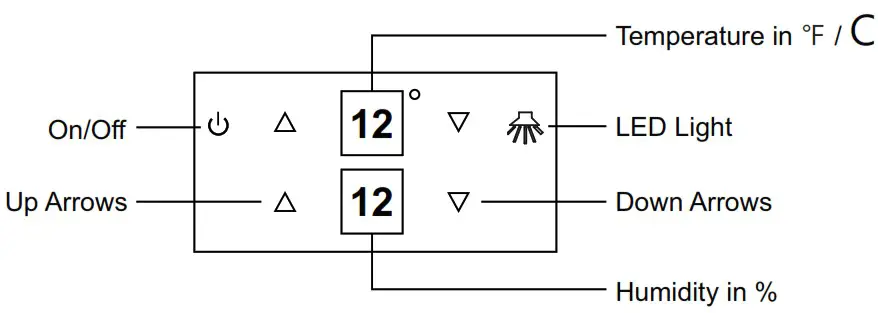

There are 2 sets of arrows and display screens on the control panel.

• The arrows and screen at the top are for the temperature.
• The arrows and screen at the bottom are for the humidity.

Press Up and Down arrows on top for 5 seconds to switch from °C or °F.

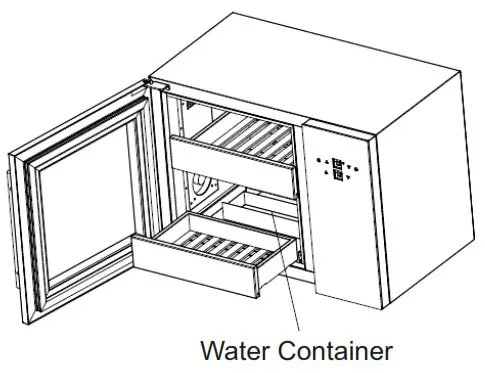

Adding

Open the door and pull out the lower shelf, remove the water container and add water.

Troubleshooting

The following are normal:

• Moisture on the glass door — wipe with dry cloth
• Sound of fluid is the compressor when it is starting or stopping
• Flowing sound of refrigerant in the refrigeration system
• Condensation forming inside the cabinet — wipe with dry cloth

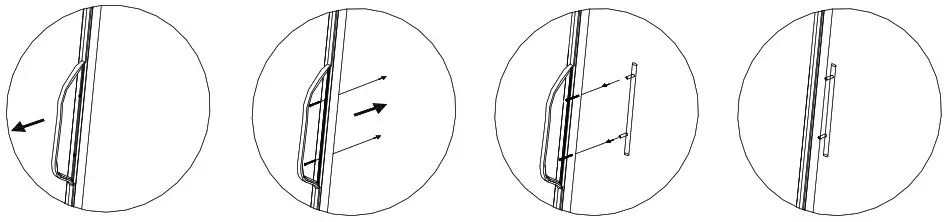

Installing the Door Handle

Install the handle according to the following steps:

1. Pull out the door seal where the handle is to be installed.
2. Using the screws provided and a screwdriver, fasten the  door handle.
3. Replace the door seal back in position.


Maintenance

Ensure the power cord is unplugged before moving or cleaning the back of the appliance.
Clean the outside and inside of the appliance regularly, using water and mild detergent.

Specification Table

California Proposition 65
WARNING: This product contains chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Warranty Registration Card

Name (Mr/Mrs/Ms):_________________________________
Address: ______________________________________  Apt#_______________________________________
City: ______________________ State: ___________________________ Zip:___________________________
Phone 1:_______________________________________ Phone 2:____________________________________
Email*: ___________________________________________________________________________________
Product: _______________________________________ Model#: ___________________________________
Purchased At: ___________________________________Purchase Date:_______________________________

Used in: House Apt/Condo Office Wacation Home RV/Boat Other

SERIAL#
This information Is for Internal Use only and vAll be kept confidential. ‘We do not sell your email or other Information

__________________________________________________
__________________________________________________
__________________________________________________

To: Warranty Registration
10222 Georgibelle Drive, Suite 20
Houston, TX 77043-5249
