Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

SAFETY INSTRUCTIONS

• Thank you for purchasing this cooker hood. Please read the instruction manual carefully before you use the cooker hood, and keep it in a safe place.
• The installation work must be carried out by a qualified electrician or competent person. Before you use the cooker hood, make sure that the voltage (V) and the frequency (Hz) indicated on the cooker hood are exactly the same as the voltage and the frequency in your home.
• The manufacturer and the agent will not bear any responsibility for the damage caused by inappropriate installation and usage.
• Children under the age of 8 must not use the cooker hood.
• The appliance is not intended for commercial use, but only for household and similar environments.
• The cooker hood and its filter mesh should be cleaned regularly in order to keep it in good working order.
• Before cleaning, switch the power off at the main supply.
• Clean the cooker hood according to the instruction manual and keep the cooker hood from the danger of burning.
• Prohibit putting the cooker hood by fire.
• If the appliance does not function normally, contact the manufacturer or a specialist company.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the range hood is used at the same time as appliances burning gas or other fuels, the room must be adequately ventilated.
• Do not flambé under the range hood. Accessible parts may become hot when used with cooking appliances.

Important hints on installation

• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• Regulations concerning the discharge of air have to be fulfilled.

Important notes about the extraction mode

WARNING
Risk of poisoning from exhaust gases sucked back. Never operate the device in extraction mode simultaneously with an open flue appliance when there is not adequate airflow guaranteed.

Open flue combustion equipment (for example, gas, oil, wood or coal-fi red heaters, tankless water heaters, water heaters) pulls combustion air from the room and runs it through an exhaust pipe or chimney to the outside. In the extraction mode, indoor air is removed from the kitchen and the adjacent rooms – without sufficient air intake this creates a vacuum. Toxic gases from the chimney or extraction flue can thereby be sucked back into the living spaces.

• Always ensure that a sufficient supply of fresh air is guaranteed and that the air can circulate.
• An air supply / extractor box alone does not ensure compliance with the limit value.

Safe operation is only possible when the negative pressure in the room where the appliance is located does not exceed 4 Pa (0.04 mbar). This can be achieved when the air required for combustion can fl ow through openings that are not closable, for example in doors, windows, in conjunction with an air supply / extractor box or through other technical measures. In any case, consult a qualified chimney sweep who can assess the entire ventilation of your house and propose appropriate measures for adequate ventilation.

If the hood is used exclusively in the recirculation mode, unrestricted operation is possible.

Important note on disassembly of the device

• Disassembly is similar to installation/assembly in reverse order.
• Take a second person to help you during disassembly to avoid injuries.

INSTALLATION

Preparation

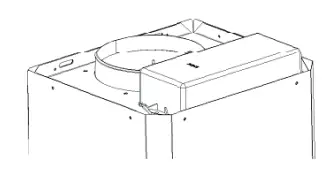

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminium, flexible pipe or inflammable material with an interior diameter of 150 mm).

• Before installation, turn the unit off and unplug it from the outlet.
• The cooker hood should be placed at a distance of 70-80 cm above the cooking plane for best effect.

Installation (Vent outside)

Note: When the range hood and appliance supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must be not exceed 4 Pa (4 x 10-5 Bar).

CAUTION
Risk of electric shock! Only use the supplied screws and fi xing devices to install the extractor hood and follow the instructions in this manual. Failure to do so may increase the risk of electric shock.

Drill 2 holes of top of the back kitchen cabinet. The distance between two holes should be 430mm.

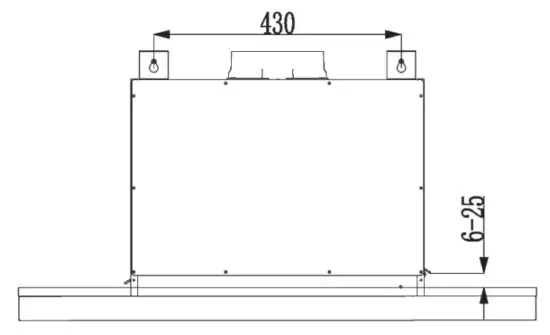

Fixing clip can be adjust from 6mm to 25mm..

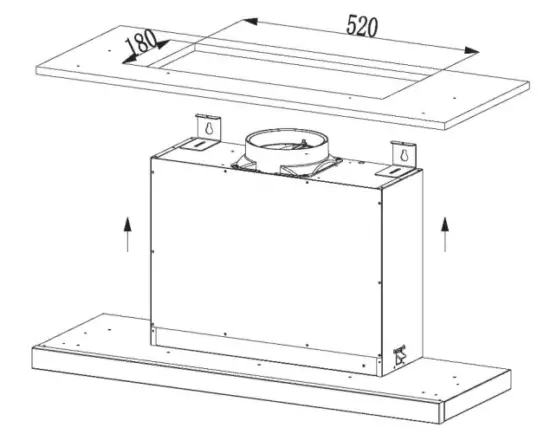

Kitchen cabinet cut out size is 520mm*180mm.
Fix the bracket on hood body first, and then insert the body into the cut out cabinet.

Raise the hood until fixing clip also come through the kitchen cabinet, so that the clip can seat on top of the cabinet, avoid unit falling.
By rotate the screw on picture 4, same direction as clockwise, you can fix this clip. When you want to loss the clip, you can rotate the screw at opposite direction of clock.
With ST6*40mm screw to fix the upper bracket on back kitchen cabinet.
With ST4*20mm screw to fix the hoods on the kitchen cabinet..

Note: The extensible pipe are optional accessory, not supplied. Take off protection film before installation.

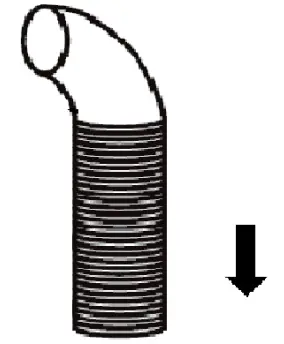

Fix the one-way-valve to the air outlet of the cooker hood. Then, attached the exhaust pipe onto the one-way-valve as shown below.

Exhaust pipe

Cooker hood

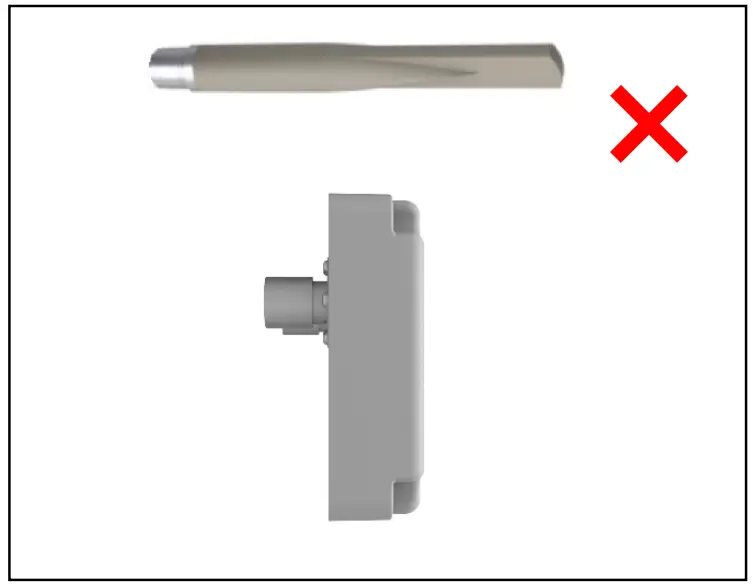

Installation (vent inside)

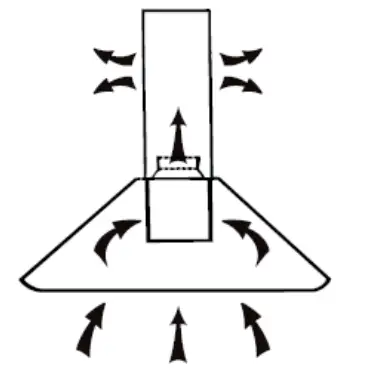

If you do not have an outlet to the outside, exhaust pipe is not required and the installation is similar to the one show in section “Installation (Vent outside)”.

TOUCH CONTROL

After plug in power, will into Stand By mode automatic.

On/Off button: It is used for turning on/off the fan.

FAN SPEED key: Button for changing the speed of motor following cycle “Low-MiddleHight-Low”.

Light button

Short press for lamp power control.
Kelvin adjustable function . under standy /working state .Long press to adjust Kelvin value, under kelvin adjustable state, LCD display shows current kelvin value(kelvin value from E1-E6; brightness value from L1-L3).

Can be adjusted kelvin value by long press brightness by short press button, and adjusted button brightness by short press button once Kelvin value is selected, long press , then current Kelvin value is set successfully

Timer button

1. In STANDBY MODE, long press to enter the TIME SETTING MODE. Hour display flashing, press or for setting. Once hours are setted, minutes display flashing, press or for setting.
   In this state: press  key for decrease. Press key for increase.
2. Short press during working mode to programme a COUNTDOWN TIME for the hood, pre-set cycle : OFF → 15mins → 30mins → 45mins → 60mins.
3. Under COUNTDOWN TIME state, you can use or to change the time, short press to change 1 minute,long press for continuous change.
4. After 5 seconds(without using any operating buttons) the countdown starts. The indicator of the TIMER remains on.
5. When time up, both motor & light will turn off automatically & come back to STANDBY MODE.

FAN SPEED button + LIGHT button :

1. When motor is working, long press & at the same time to enter quick timer function, after 5 minutes motor & light will turn off automatically.
2. For turning off the “Cleaning symbol” & reset total working time when “Cleanning symbol” is on & motor or lamp is on. For checking current total working time when “Cleaning symbol” is off.

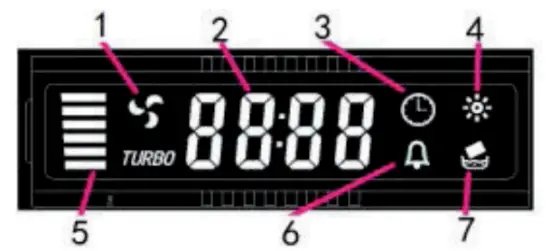

LCD DISPLAY

1. Fan symbol, will turn when the fan is working
2. Time display
3. Timer
4. Light
5. Fan speed
6. Alarm symbol
7. Cleaning symbol, appears when total working time up to 14 hours

LAMP REPLACEMENT

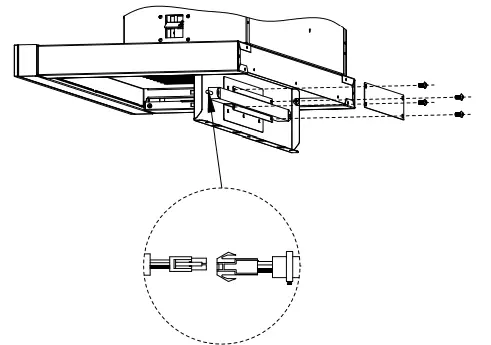

1. Remove the two filters and the 3pcs screws on the back of the lamp board.

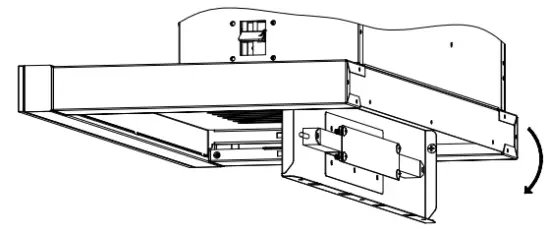

2. Flip the lamp board after remove the screws

3. Remove the 4pcs screws on the strip LED board and replace the strip LED.


REPLACING THE CARBON FILTER

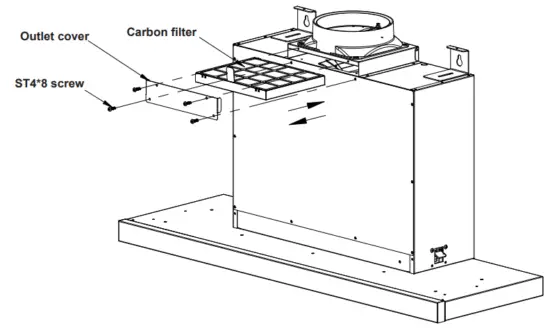

Remove the 4 screws from outlet cover first. Take down the outltet cover. Install or replace the carbon filter as shown in above picture.

CLEANING AND CARE

Note: Turn off the cooker hood before cleaning and maintenance and unplug the appliance from the wall outlet.

Regular cleaning
Use a soft cloth moistened with hand-warm mildly soapy water or household cleaning detergent. Never use metal pads, chemical, abrasive material or stiff brush to clean the unit.

Monthly Cleaning for Grease Filter

Note: Clean the filter every month can prevent any risk of fire.

The filter collects grease, smoke and dust, so the filter is directly affecting the efficiency of the cooker hood. If not cleaned, the grease residue (potential flammable) will saturate on the filter. Clean it with household cleaning detergent.

Annual Cleaning for Activated Carbon Filter

Note: Only applies to units that are installed as a recirculation unit (not vented to the outside).

This filter traps odours and must be replaced at least once a year depending on how frequent the cooker hood used.

Bulb replacement

1. Switch the unit off and unplug the appliance.
2. Remove the lamp cover by unscrewing the 2 screws.
3. Unscrew the incandescent bulb.
4. Replace with the same type and rated bulb/lamp.

TROUBLESHOOTING

NOTES ON ENVIRONMENTAL PROTECTION

• During cooking, make sure that there is sufficient air supply so that the cooker hood can operate efficiently and with low operating noise.
• Adjust the fan speed to the amount of steam produced during cooking. Use the intensive mode only when necessary. The lower the fan speed, the less energy is consumed.
• If large amounts of steam are produced during cooking, select a higher fan speed in good time. If the cooking steam has already dispersed in the kitchen, the cooker hood must be operated longer.
• Switch off the cooker hood when you no longer need it.
• Switch off the lighting when you no longer need it.
• Clean the filter at regular intervals and replace it if necessary to increase the effectiveness of the ventilation system and prevent fire hazards.
• Always put the lid on when cooking to reduce cooking steam and condensation.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 65/2014

Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

Information according to Regulation (EU) No. 66/2014
Measurement and calculation methods according to EN 61591:1997+A1:2006+A2:20 11+A11:2014+A12:2015

TECHNICAL DATA

• Item number 10035925, 10035926
• Power supply 220-240 V ~ 50/60 Hz

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
