Shoulder Pacemaker Spm01k2 Muscle Electro Stimulator User Manual

Shoulder Pacemaker SPM01K2 Muscle electro stimulator

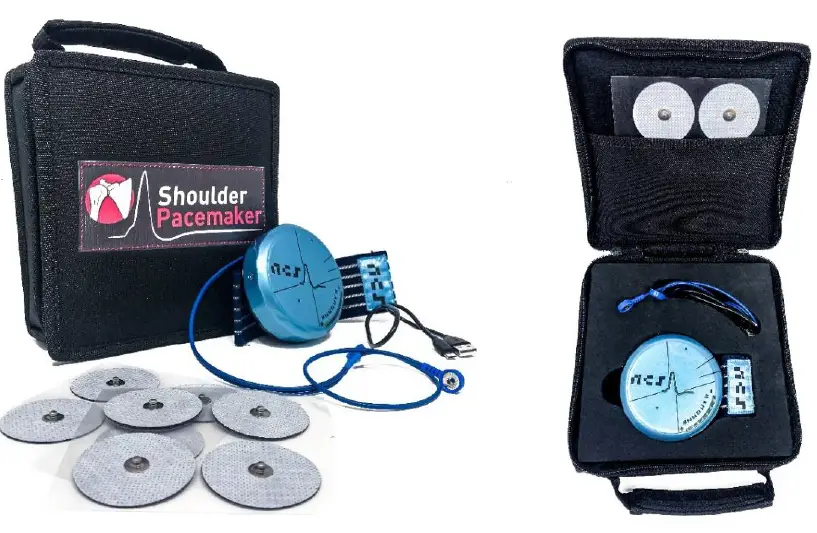

The product configuration SPM01K2 kit contains:

• 1 electrostimulator (REF: SPM02);
• 1 receiver (REF: GTWY02);
• Software Shoulder Pacemaker control 1.1.2.0;
• accessories and consumable material as in the SPM01K1 kit with stand-alone operation

SHOULDER PACEMAKER CONTROL SOFTWARE INSTALLATION

No procedure is required for installing the Shoulder Pacemaker Control software on the PC. Just copy the program folder from the installation key to the target PC in a location of your preference and launch the start link called “SPC_v1.1.2.0_Start”

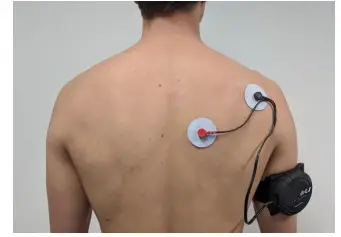

PATIENT PREPARATION

• Refer to the instructions for use provided in the KIT regarding the correct and safe positioning of the electrodes on the patient

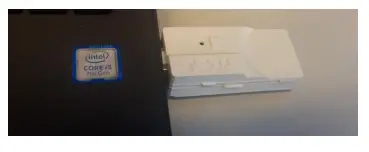

• If you want to start a wireless stimulation session, insert the USB receiver into the laptop and start the Shoulder Pacemaker control software

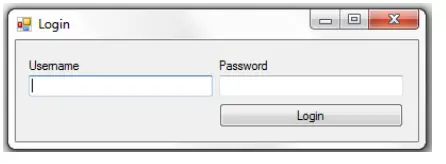

ACCESS PROCEDURE

When starting the software, the user will be asked to enter USERNAME and PASSWORD Once you have filled in the fields, click on LOGIN.. In case the compiled values are incorrect, an error message will be shown.

LAUNCH THE SHOULDER PACEMAKER CONTROL SOFTWARE

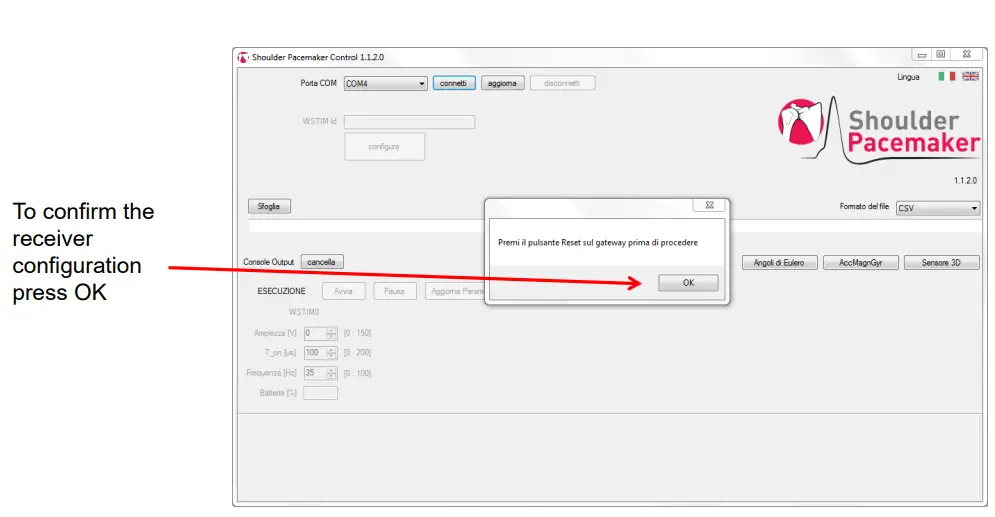

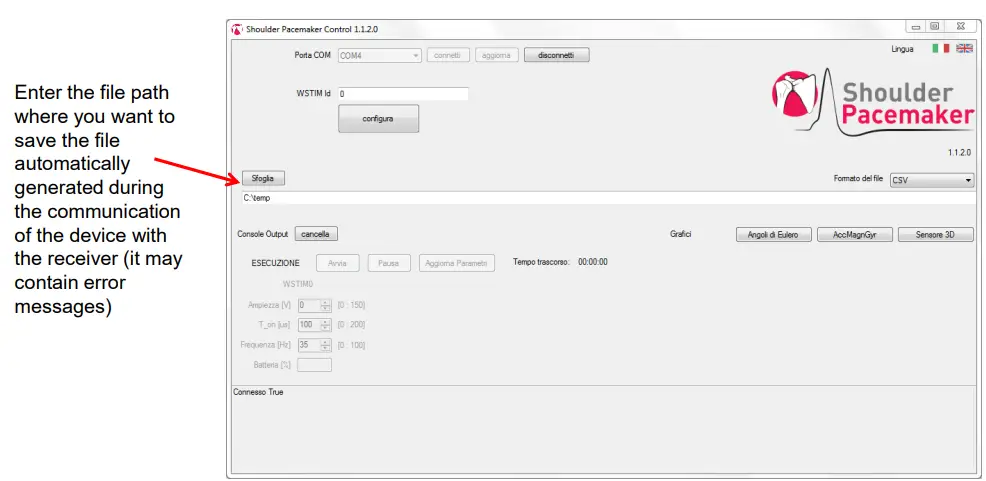

START RECEIVER CONFIGURATION

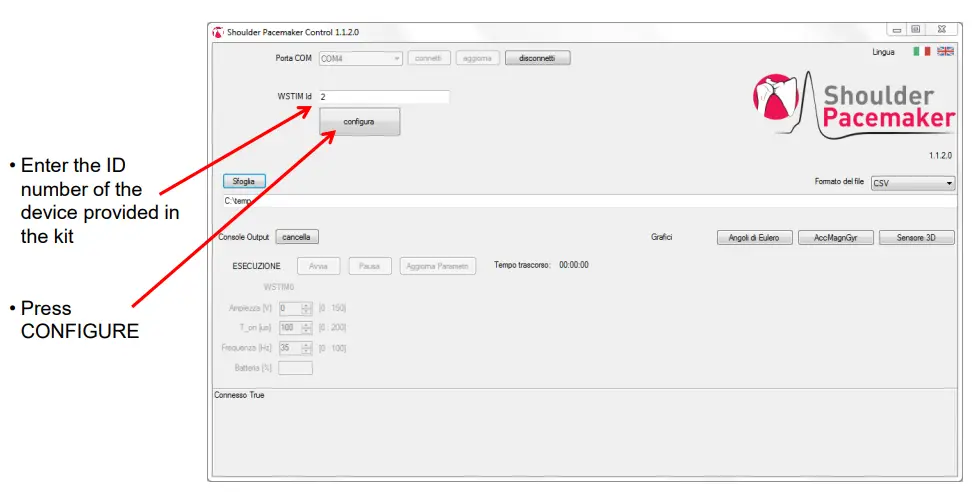

START DEVICE CONFIGURATION

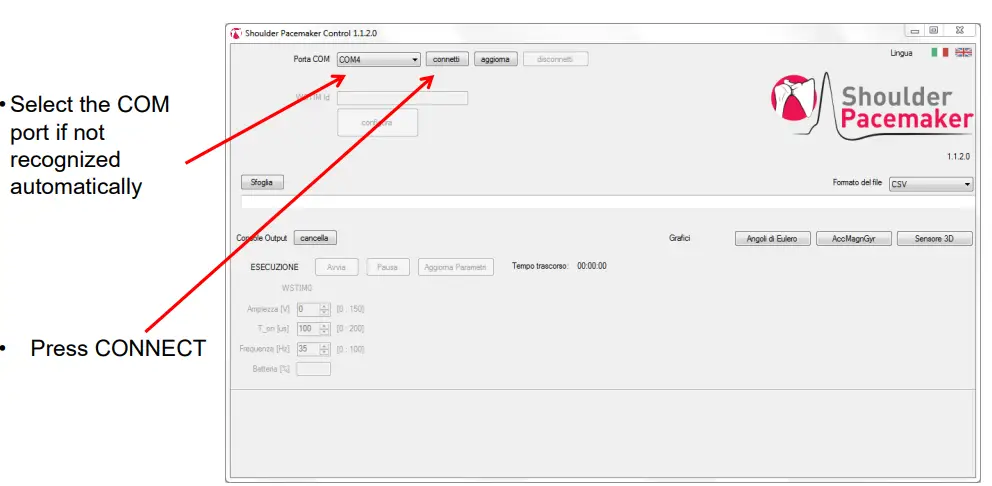

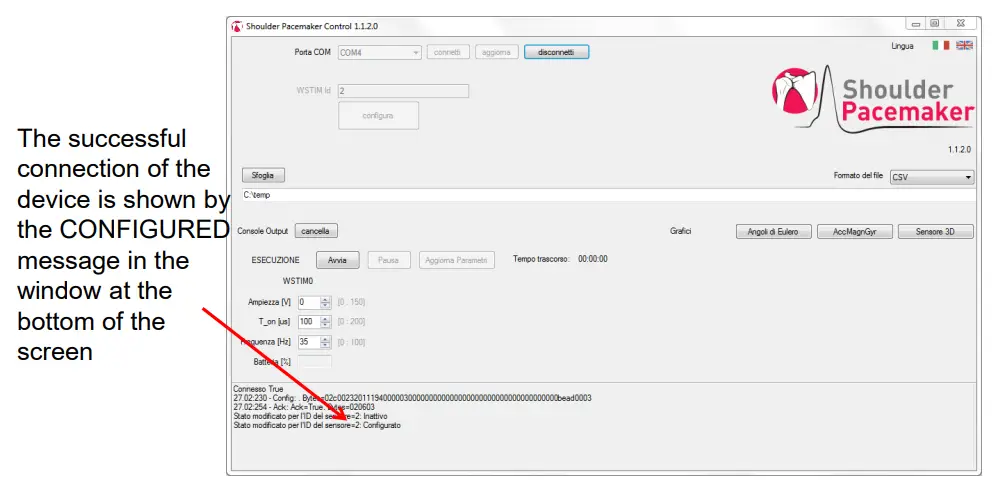

START DEVICE CONNECTION

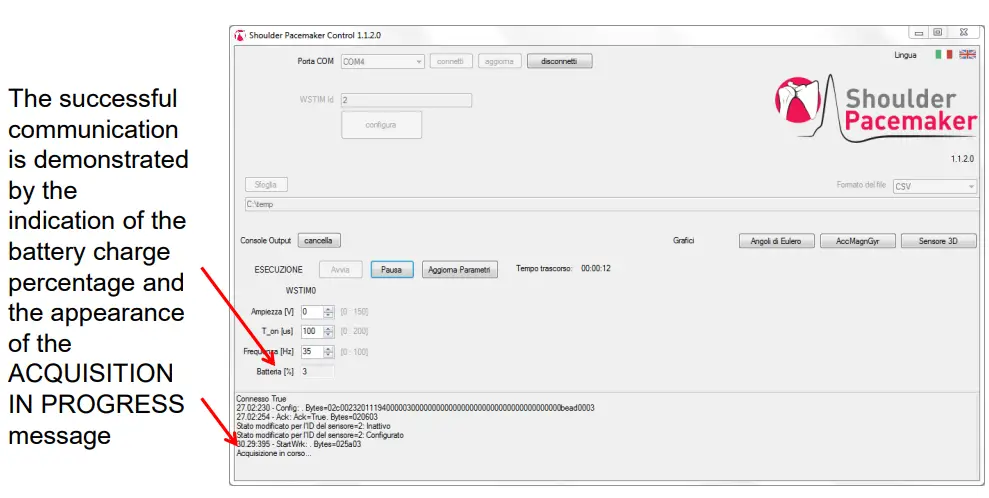

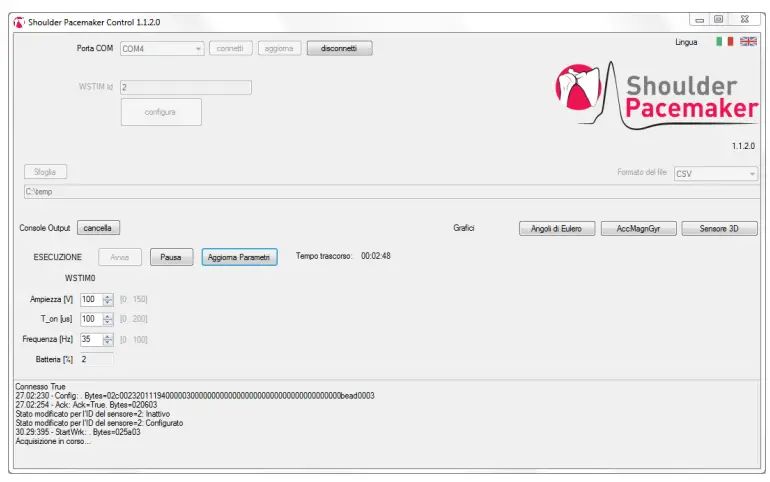

START DEVICE COMMUNICATION

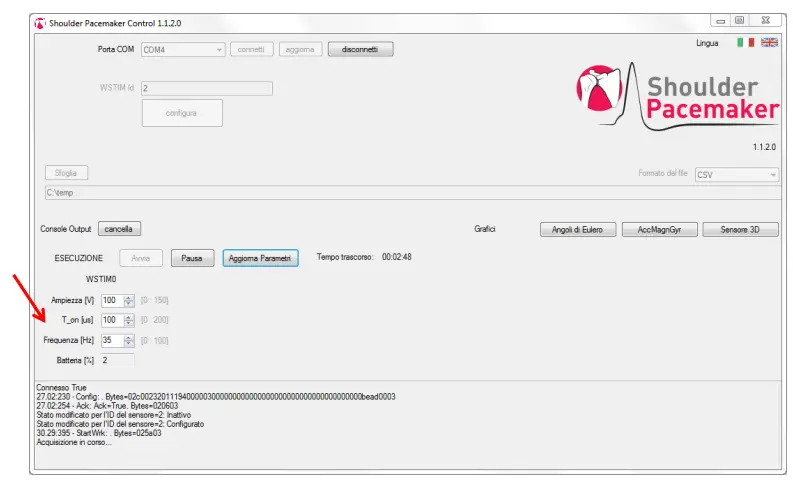

SET OF STIMULATION PARAMETERS

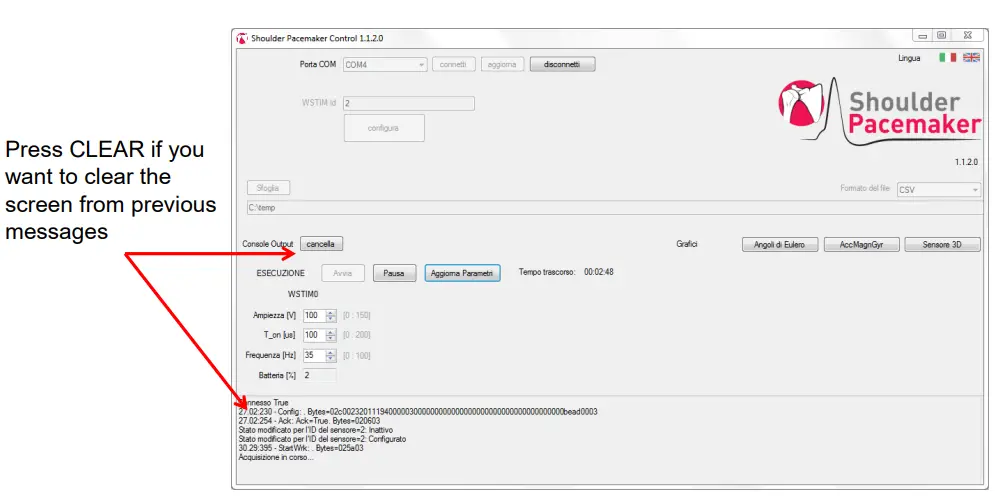

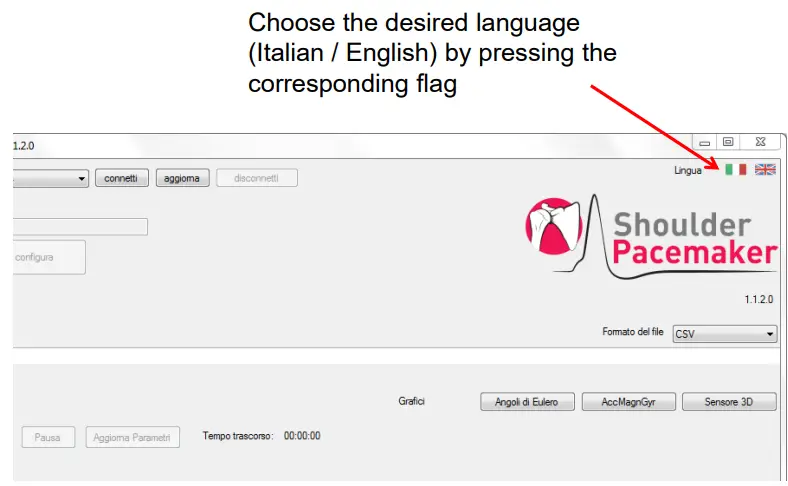

OTHER SETTINGS

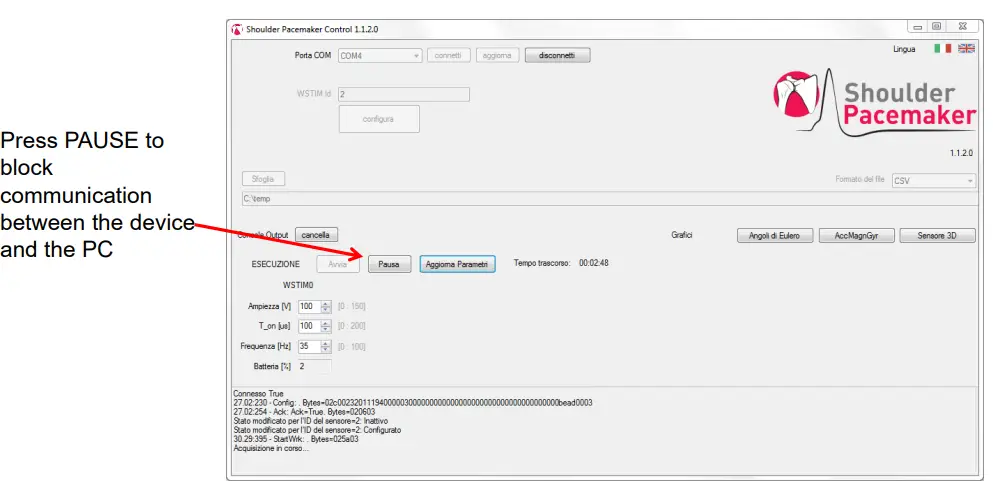

STOP AND END OF THE SESSION

To end the session, you must manually act on the stimulation device following the normal operating flow described in the user manual provided in the kit. It is necessary for the patient to manually operate the device button with a press to return to the menu selection mode and with a long press to turn off the device.

MANUFACTURER AND CONTACTS

For more information, contact the NCS Lab support team: NCS Lab Srl, Via Pola Esterna 4/12, 41012 Carpi (MO)-Italy, +39 059 669813, [email protected]
