SPORTSTECH Spulse Pulse Armband User Manual

Bluetooth
ANT+
5.3 kHz connectivity

Dear customer

we are pleased you chose a device from the SPORTSTECH product range. With sports equipment from SPORTSTECH you get the highest quality and latest technology.

To fully and safely use the potential of your device and to enjoy it for many years, read this manual carefully before starting up and beginning of training. Use the device according to the instructions.

We shall not assume any liability for damages resultingfrom improper use.

WARNING! Danger from improper use!

Make sure that ALL persons using the device have read and understood this user manual. Keep this manual in a safe place close to the device.
Adhere to ALL Safety Advices in this manual.
NEVER overexert yourself or others when using the device.

Contents hide

1 GENERAL INFORMATION

6 SWITCHING ON AND OFF

7 WEARING

8 CONNECTION

9 COMPATIBLE APPS

10 SET UP WITH FITNESS APP

11 PULSE COLOUR DISPLAY

16 Documents / Resources

16.1 References

17 Related Posts

GENERAL INFORMATION

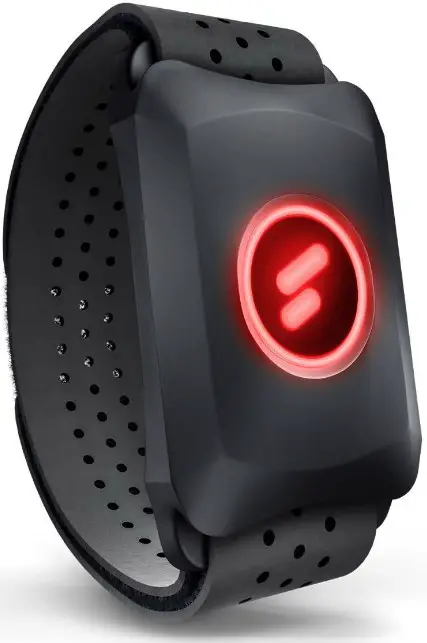

Thank you for choosing our heart rate armband. This product transmits the real-time heart rate data through Bluetooth, ANT+ or 5.3 kHz radio frequency to heart rate receiving device, sports and health App, helping you to manage your exercise intensity scientifically.

NOTE:
You MUST charge the device prior to the first use.

SAFETY ADVICES

Never overexert yourself or others during training! Stop exercising if there are signs of over-exertion.
Consult a doctor before exercising and in case of problems to determine suitable heart rate ranges.
Wearers of pacemakers and similar appliances may only wear the device with a doctor’s permission.
Children and people with limitations may only use the device with appropriate assistance.
The device may contain components that cause allergic reactions when they come into contact with the skin. Remove the device at the first signs (e.g. reddening).
This is not a medical device. It is intended for training and recreational use only

KEY FEATURES

Heart Rate, Steps Count, Calories Burned
Bluetooth 5.0, ANT+, 5.3 kHz
Rechargeable lithium battery
Stores 2 days heart rate data and 7 days fitness data
Vibration Reminder for charging
LED Indication of 7 heart rate zones

SCOPE OF DELIVERY

Heart rate monitor
USB docking charger
User Manual

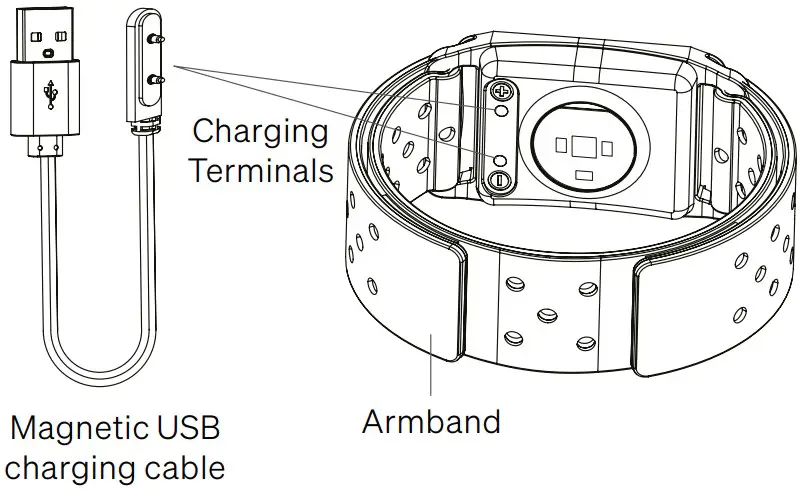

CHARGING

Plug in the USB charging cable and connect the charger to charge the device.

Low battery (20%)	Vibration notification
Charging	Red and Green LED
Charging	flashes alternately
Full batter	Green LED stays on

SWITCHING ON AND OFF

Switching on:
Press the Power Button. The armband is ready for pulse measuring. Additionally, it automatically searches for a compatible Bluetooth device. It slowly flashes when there is no Bluetooth connection. It shows a steady light when it is properly connected.

Switching off:
Press and hold the Power Button for 2 seconds. The red LED flashes fast and then turns off. The device is powered off.

WEARING

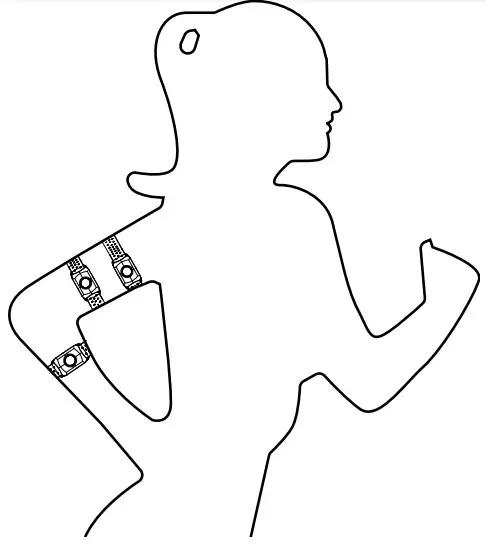

Wear the device on the upper forearm or on the upper arm, as shown in the figure. The sensor should be on the inside of the arm. Wear the device tight enough to keep it in position, but NOT so tight that it would affect arm circulation.

After use, remove sweat with wetted cloth, but no solvents.

CONNECTION

Bluetooth 5.0, ANT+ and 5.3 kHz transmission can be used simultaneously at the armband. If you need to connect mobile phone and sports watch, please make sure that the device you connect supports Bluetooth, ANT+ or 5.3 kHz transmission.

COMPATIBLE APPS

Wahoo, Zwift, Runtastic Pro, Nike Run Club, Polar Beat, X-fitness, and many more.

SET UP WITH FITNESS APP

Turn on the Bluetooth function of the mobile device, select the compatible app. The detailed connection method is subject to the corresponding app setting instructions.

Initial set up with smart Bluetooth devices (Sports watches, fitness equipment & Gym team training system): The detailed connection method is subject to the corresponding equipment setting instructions.

PULSE COLOUR DISPLAY

The LED colour depends on the current percentage of the maximum heart rate (MHR).

COLOUR	% of MHR	BPM @ MHR220
Blue	<50%	<110
Aqua	50 – 57%	110 – 126
Green	58 – 65%	127 – 144
Yellow	66 – 73%	145 – 161
Orange	78 – 81%	162 – 17
Red	82 – 89%	180 – 196
Purple	≥ 90%	≥ 197

Further informatio

Our video tutorials for you!

Link to the videos:
https://service.innovamaxx.de/spulse_video

Facebook-page
https://www.facebook.com/sportstech.de

TECHNICAL DATA

Dimension: L 51.0 x W 29.0 x H 12.0 mm
Weight: 15g
Battery Type: Rechargeable Lithium battery
Battery operating capacity between recharges: 20 hours for continuous heart rate monitoring
Working temperature: -10°C to 50°C / 14°F to 122°F
Transmission: ANT+, BLE, 5.3 kHz
Water resistance: IP67
ANT+ and Bluetooth frequency band: 2402-2480MHz;
Maximum power transmitted: +4dBm;
Frequency band: 5.3-5.6kHz;
Maximum power transmitted: 2mW.

CONFORMITY

Sportstech Brands Holding GmbH hereby declares that the radio system type sPulse is compliant with EU Directive 2014/53 / EU.

The full text of the EU declaration of conformity is available at the following internet address:

https://service.innovamaxx.de/spulse_conformity

DISCLAIMER

The information contained in this manual is just for reference. The product described above may be subject to alteration owing to the manufacturer‘s continuing research and development plans, without making an announcement in advance.
We shall not bear any legal responsibility for any direct or indirect, accidental or special damages, losses and expenses arising from or in connection with the disrespecting of this manual or improper use of the described product.

You may also be interested in this product:
SPORTSTECH

CX700 CROSSTRAINER

Many features, great fitness. The convincing CX700 LED cross-trainer from Sportstech gives your body a fresh boost in terms of strength and endurance. Its futuristic and smart design fits perfectly into any home. This effective cross-trainer gives you all the resources you need to achieve your dream body and stay healthy and strong for the long term. Order the fitness innovation for your home now.

DISPOSAL

Dear customers,
As an end user, you are legally obliged to collect waste electrical and electronic equipment and batteries as well as accumulators separately from municipal waste. We want to make this as easy as possible for you. Please note the information on this page and on the back.

Notes on EU directive 2012/19/EU (in Germany implemented in ElektroG (Law about electric and electronic devices); elsewhere implementation may differ)

We advise owners of electric and electronic equipment that waste electrical and electronic equipment must becollected separately from municipal waste in accordance with the applicable legal regulations. The symbol of a crossed-out garbage can, which is shown on waste electrical and electronic equipment, also indicates the obligation to collect this waste separately

B. Notes on disposal and symbols for an electrical appliance based on EU Directive 2006/66/EU (in Germany in accordance with the Battery Act (BattG); elsewhere, implementation may differ)

Old batteries and accumulators must not be disposed of with household waste. As an end user, you are legally obliged to return used batteries. The symbol with the crossed-out garbage can means that you are not allowed to dispose of old batteries in the household waste.

Use the official collection points for this, such as the collection points of public waste disposal carriers. You can also return used batteries to retail outlets, provided they sell batteries. If the symbol Cd, Hg, or Pb is displayed under the symbol of the crossed-out garbage can, this is an indication that the battery contains either cadmium, mercury or lead. These are toxic heavy metals that not only pose significant risks to the environment but also to human health.

Recycling loop

Packaging material can be conveyed back to the raw material cycle. Dispose of packaging material in accordance with legal provisions. Information can be retrieved from the return or collections systems of your community

Information on included batteries according to Section 4
Paragraph 4 of the Electrical and Electronic Equipment Act

Battery type: Li-ion battery
Chemical system: LiCoO2 lithium cobalt oxide
Battery manufacturer: Huizhou Everpower Technology Co.,Ltd.

Disposal information:

Dispose of the entire device according to the applicable guidelines. There is no need to remove the battery separately
