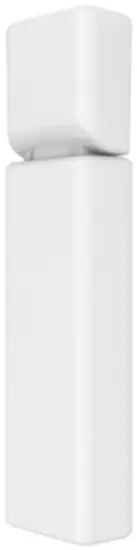

iEBELONG ED154 Wireless Self-Powered Door and window Sensor Instructions

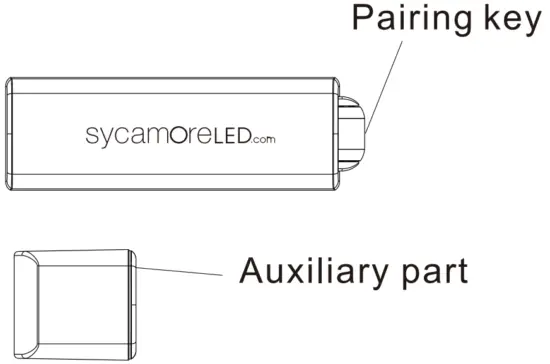

Product Description
This kinetic door contact could be paired with SY8989NEW controller and installed on the door or window to turn on /off the light once open or close it.
Product Parameters
Power Supply: Self-powered(No battery)
Working Frequency: 433MHz
Working Temperature: -20°C~+55°C
Control Distance: 80m (outdoor) 30m (indoor)
Life time: >100,000 times
Dimension: 109*27*17 mm
Installation

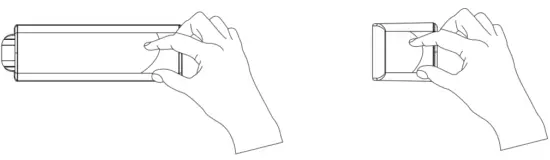

- Remove the double-sided tap on the back

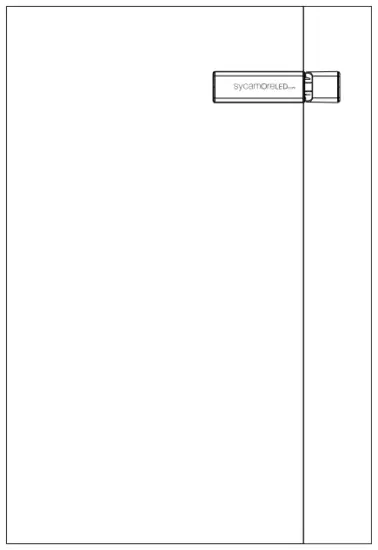

- Fix the door contact on selected door.
Do not attach to metal security doors as this may affect signal transmission.
Paring with controller

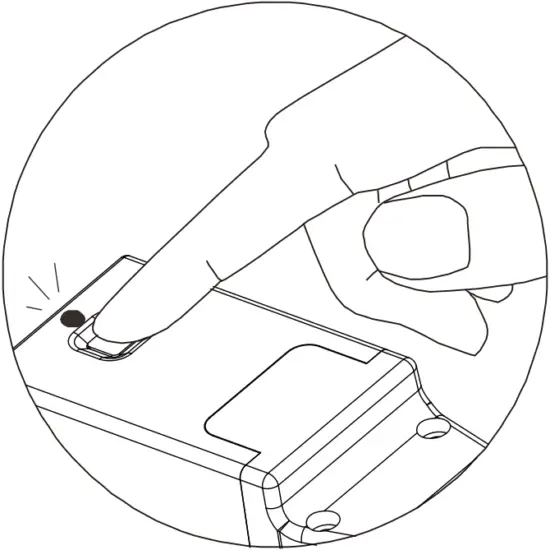

- Press pairing button on receiver for around 3 seconds until the indicator light blinks slowly

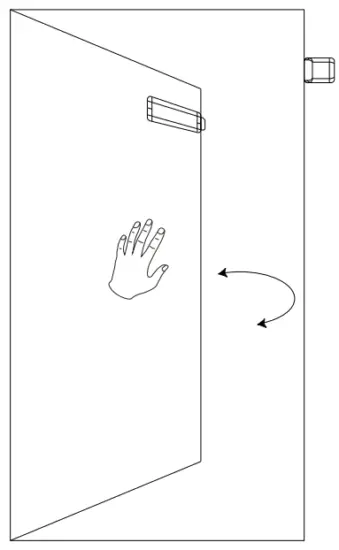

- Open/close the door quickly. Pairing will be successful if the indicator light stops blinking
