COMSTAR DVC-20 Interface Device
Update Table
| Version | Changelist | Author | Date |
| V1.0 | First Version | WURUI | 2022/12/15 |
| Reviewer：Peng Yincan | |||
Attention
Brand: Product name and brand mentioned in this user’s guide are the property of the company.
Notices
- Please read the instructions in detail before using the motherboard to avoid damaging the motherboard by wrong operation.
- Please store or use the product in the environment of -10℃ <=Work Station <=+50 ℃, 95%RH, to avoid damaging the product for too hot or cold.
- Please do not do strongly mechanical shake, and do not operate the product before ESD protection.
- Please disconnect all power cables from the existing system before you add or remove a device.
- Make sure your power supply is set to correct voltage, namely DC 12V
- Forbid to repair, modify or alter the product by self. If it causes any damage, we don’t take any responsibility.
specifications
| Main features | |
| Processor | Intel Apollo Lake-D J3455 Intel® Celeron® Processor (TDP 10W)① |
| Memory | 4G DDR3L-1600MT/s |
| Storage | 1×M.2 2280 M-Key 16GB EMMC |
| Network | 4×RJ45 Gigabit Ethernet Interfaces (Ethernet Controller: Realtek 8111H) |
| WNFQ-258ACN(BT) | |
| Extension features | |
|
IO interface | 1×HDMI 2.0 Display Port （Max Resolution：4096×2160@60Hz） |
| 4×RJ45 Gigabit Ethernet Interface | |
| 2×USB3.0 Ports | |
| 4× Serial Ports（COM1 supports TTL,COM2 supports RS232,COM3&4 supports RS232/485 selections） | |
| 1*LINE-OUT | |
| 1*CEC-IR | |
| 1*KNX | |
| 2×Reserved antenna holes | |
| Extension Slots | 1×M.2 2230 E-Key for WIFI & Bluetooth Module extension |
| System features | |
| O.S | Ubuntu |
| Power Supply | 12V/7.5A DC Input |
| DC2.5 metal threaded joint | |
| Mechanical features | |
| Materials | SGCC |
| Dimensions | 227mm（L）×116.2mm（W）×37.4mm（H） |
| Installation | Wall mount |
| Operating environment | |
| Temperature | Operating temperature：-10℃~+50℃ Storage temperature：-40℃~+85℃ |
| Relative humidity | Power Off: 95%，does not condense at 25 to 30 temperatures |
Notice:
①J3455: 4-core 4-thread, 1.5GHz main frequency, graphics:Intel® HD Graphics 500
Product view

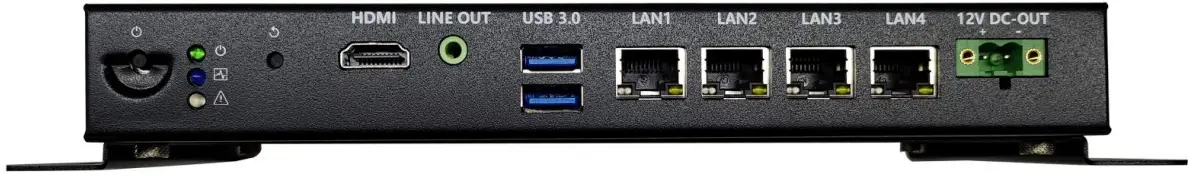

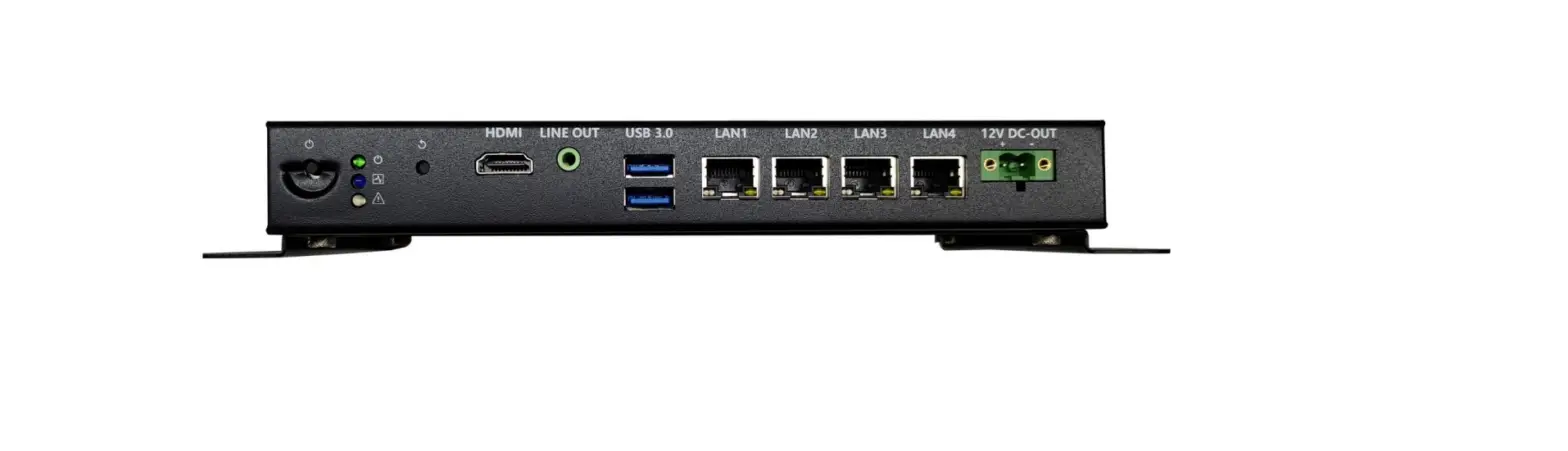

Product pictures

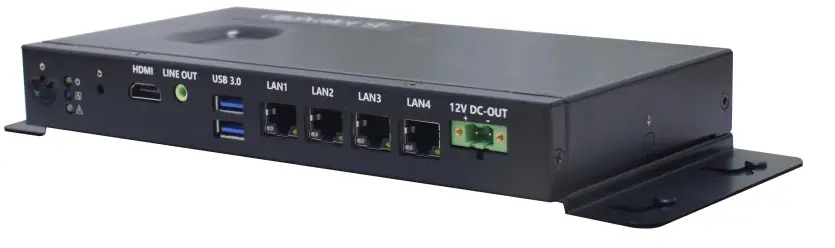

Side view

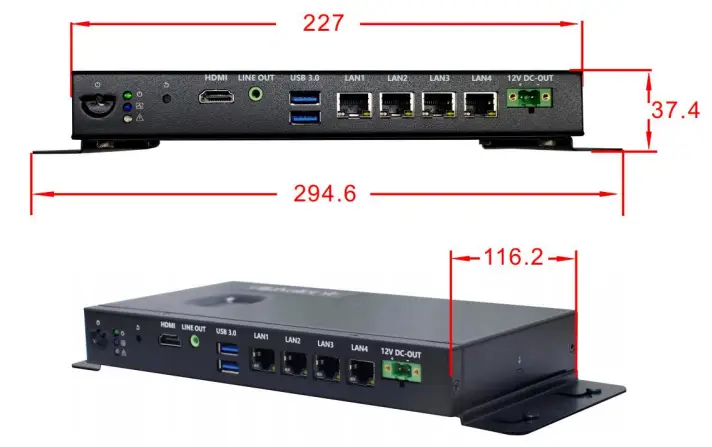

Physical dimensions
Notice: The dimensions in the drawing are uniform in millimeters（mm）.
Interface Introduce

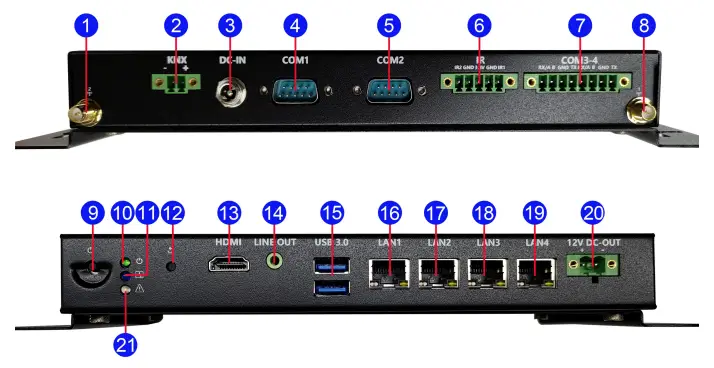

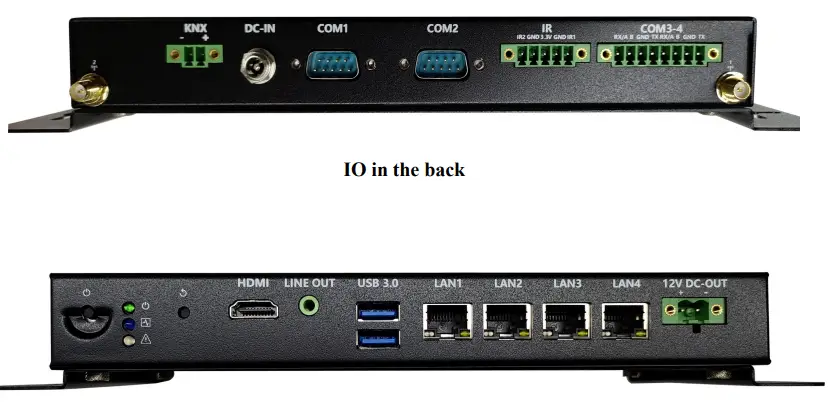

Function indication diagram of chassis interface
Interface Description
- Reserved antenna hole
- 2 3.81-2pin KNX Terminals
- DC2.5 metal threaded joint
- DB9 Serial Port 1
- DB9 Serial Port
- 2 3.81-5pin CEC_IR Terminals

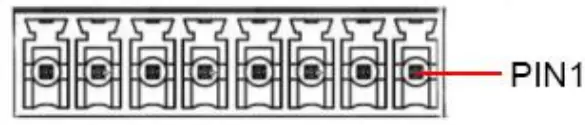

- 3.81-8pin Terminals(COM3~COM4)
- Reserved antenna hole 1
- Power button Power status indicator
- LED（green，on）
- Network connection light
- System reset button
- HDMI 2.0b display Port
- LINE-OUT audio output interface
- Double layer USB3.0 Type-A
- Port RJ45 Gigabit Ethernet 1
- RJ45 Gigabit Ethernet 2 RJ45
- Gigabit Ethernet 3
- RJ45 Gigabit Ethernet 4 5.08-2pin

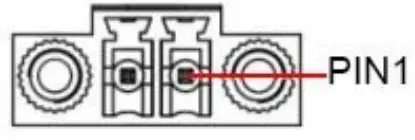

- DC-OUT Terminals
- Abnormal display indicator LED
Pin Definition
COM1~4 Serial Ports
Notice: COM1 supports TTL：
| pin# | Signal | pin# | Signal |
| 1 | 6 | DV-ICE | |
| 2 | TTL_RXD | 7 | |
| 3 | TTL_TXD | 8 | |
| 4 | 9 | ||
| 5 | GND |
Notice: COM2 supports RS232
| pin# | Signal | pin# | Signal |
| 1 | 6 | DV-ICE | |
| 2 | 232_RXD | 7 | |
| 3 | 232_TXD | 8 | |
| 4 | 9 | ||
| 5 | GND |
Notice: COM3、COM4 can select RS232/RS485 by Setting BIOS parameters. The Pin definitions are shown in the table below：
| pin | Pin definitions | |
| RS232 | RS485 | |
| 1 | DCD | D- |
| 2 | SIN | D+ |
| 3 | SOUT | |
| 4 | DTR | |
| 5 | GND | GND |
| 6 | DSR | |
| 7 | RTS | |
| 8 | CTS | |
| 9 | RI | |
HDMI Interface
Use standard HDMI definition, omitted here.
USB Interface
Use standard USB Type-A definition, omitted here.
Audio Interface
LINE-OUT Use standard 3.5mm audio interface definition, omitted here.
KNX
| JP/CN | pin# | Signal |
|
KNX | 1 | KNX- |
| 2 | KNX+ |
IR
| JP/CN | pin# | Signal |
|
IR | 1 | IR2 |
| 2 | GND | |
| 3 | +3.3V | |
| 4 | GND | |
| 5 | IR1 |
DC-OUT
| JP/CN | pin# | Signal |
|

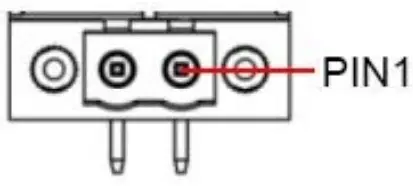

DC_OUT | 1 | 12V |
| 2 | GND |
DC-IN
| JP/CN | pin# | Signal |
| DC_IN | 1 | 12V |
| 2 | GND |
