Video Projector Interface

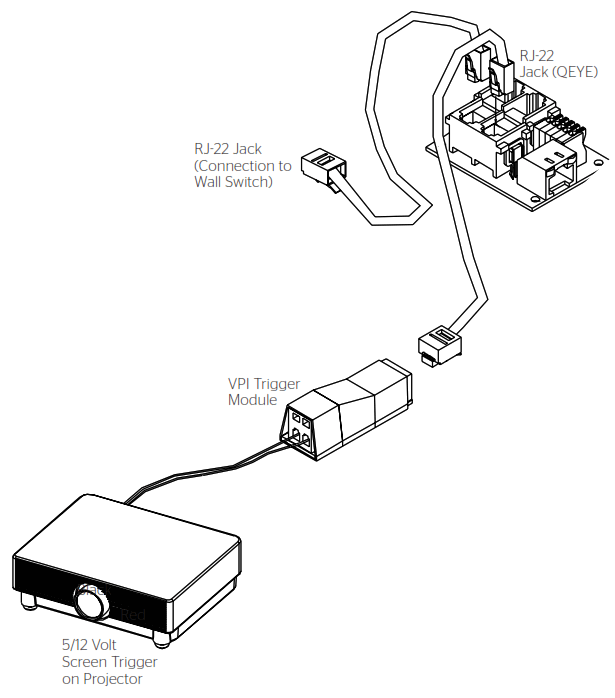

39021 Video Projector Interface
CAUTION: The projector must be turned off before connecting the trigger wires to the projector. Failure to do so may damage the controller.
Use 2-conductor 18–24 gauge wire to extend the low voltage
connection from the projector’s 5 or 12-volt screen trigger output to the length required to reach the VPI.
NOTE: When extending the low voltage connection from the projector’s screen trigger output polarity does not matter. The red and black wires from the VPI are interchangeable.
