M H -2 5 R Mini Horn Remote Signaling Device
Instruction Manual

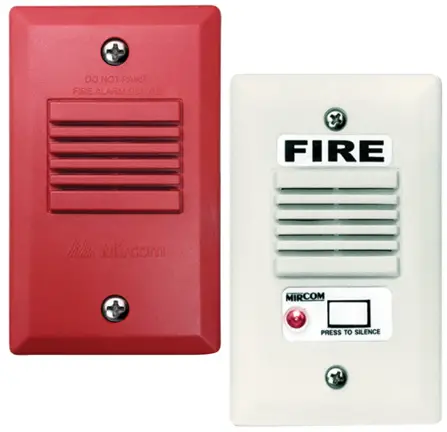

M H -2 5 R(RED)
M H -2 5 R (WHITE)
MINI HORN REMOTE SIGNALING DEVICE
INSTALLATION INSTRUCTIONS

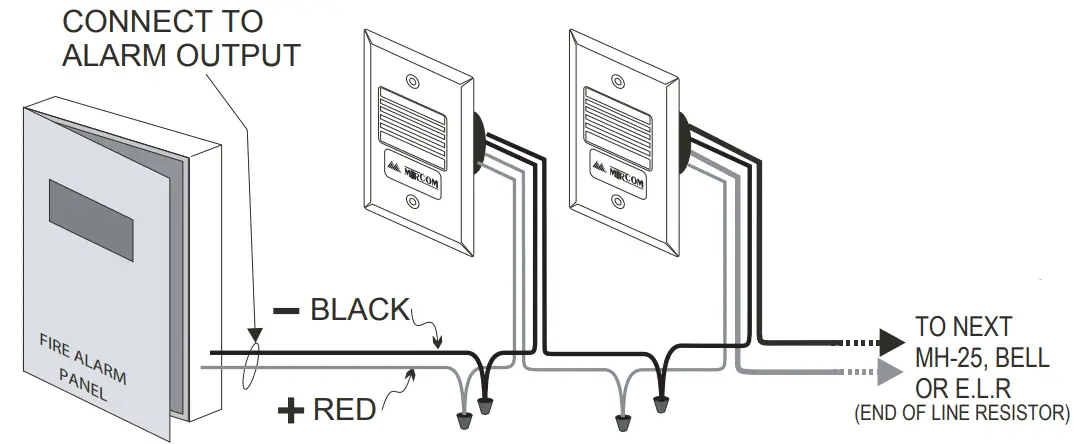

Use both leads for connection.
Break wire run to provide electrical supervision.
SPECIFICATIONS
| RATED VOLTAGE | 16-33Vdc Regulated 24Vdc/fwr | ||
| RATED CURRENT | 45 mA | ||
| OVERALL | TONE | @ 16 V | @ 33 V |
| SOUND | |||
| PRESSUE | Continuous | 81 | 87 |
| LEVEL (dBA. anechoic) | |||
| Temporal (via FACP) | 82 | 89 | |
| DIRECTIONAL | ANGLE | OSPL (dBA) | |
| CHARACTERISTIC (represents both horizontal and vertical axes) | 0 ° (on-axis) -90° & 90° | 0 (ref) -3 | |
Sound Level in the indoor installation may vary depending upon the space surroundings
Devices are intented for dwelling use ONLY
Mircom does not recommend any changes to the factory applied finish
Operating temperature: -20ºC ~ +60ºC (-4 F ~ +140ºF)
Plate: A.B.S
Color Selection: Red/White
Weight: 2.2 oz (63g)

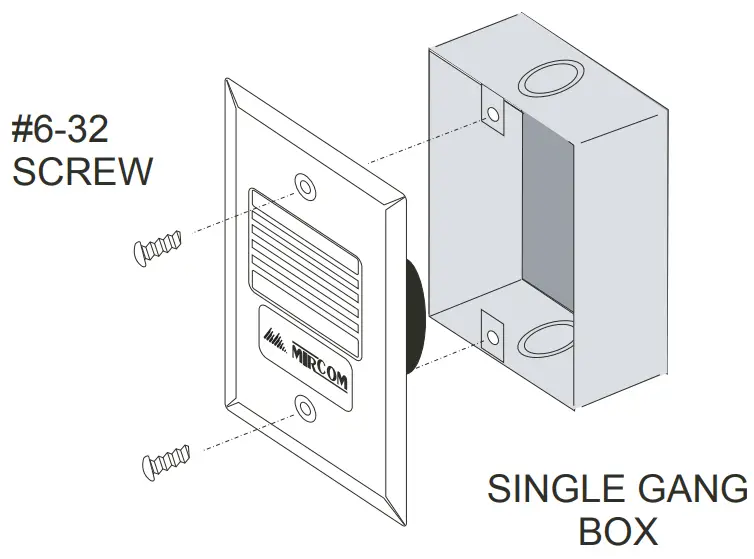

Two #6-32 screws provided

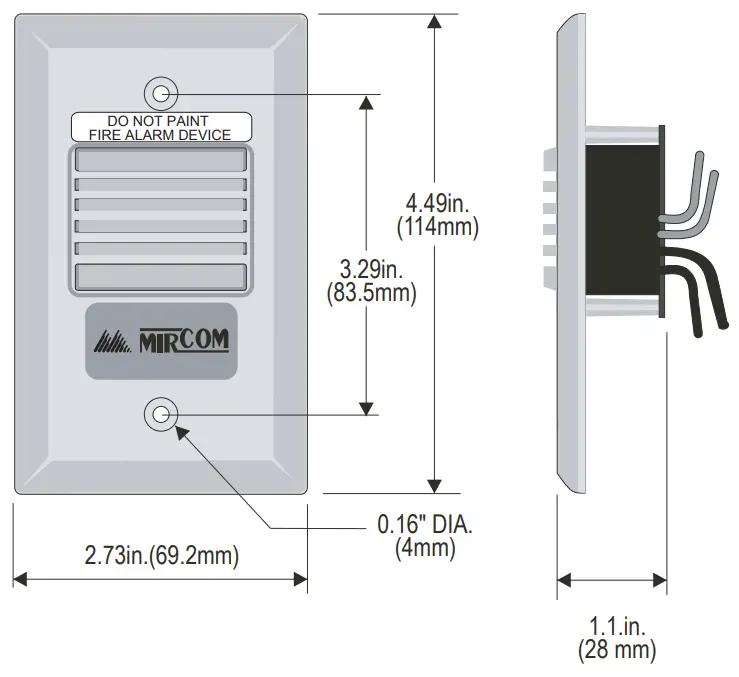

DIMENSIONS
MIRCOM TECHNOLOGIES LTD.
25 INTERCHANGE WAY,
VAUGHAN (TORONTO), ONTARIO L4K 5W3
TEL: (905)660-4655 FAX: (905) 660-4113
website: http://www.mircom.com
U.S. DISTRIBUTION CENTRE
MIRCOM TECHNOLOGIES LTD.
4575 WITMER INDUSTRIAL ESTATES
NIAGARA FALLS, NY 14305
TEL: (888)660-4655
FAX: (888) 660-4113
email: [email protected]
firealarmresources.com
LT-839B
Rev.7, MAY 2014
