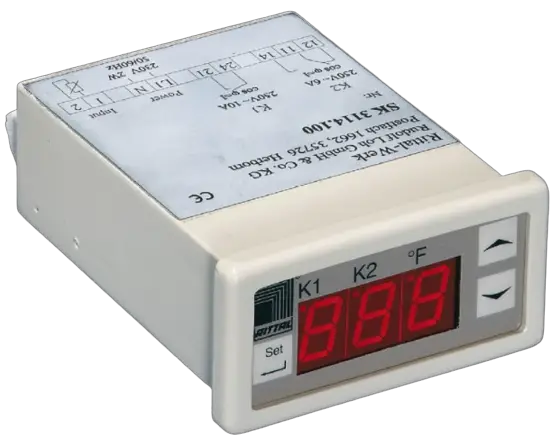

RITTAL SK 3114.200 Digital Enclosure Internal Temperature Display and Thermostat Instructions
Features
| Model No | SK 3114.200 |
| Product description | For installation in the enclosure door or wall |
| Color | RAL 7035 |
| Technical specifications | Three-digit, 7-segment display Option of switching between °C/°F. With 1800 mm long NTC sensor Two relay outputs as change-over contact and normally open contact (max. contact load 230 V, 6 A). Freely selectable switching difference. |
| Operating temperature range | 0 °C…50 °C 32 °F…122 °F |
| Setting range | 5 °C…55 °C 41 °F…131 °F |
| Rated operating voltage | 100 V – 230 V, 1~, 50 Hz/60 Hz 24 V – 60 V (DC) |
| Storage temperature range | -20 °C…70 °C -4 °F…158 °F |
| Packaging unit | 1 pc(s) |
| Weight/packaging unit | 0.26 kg 0.6 lb. |
| Copper weight (kg per piece) | 0 |
| Customs tariff number | 90321020 |
| EAN | 4028177631434 |
| ETIM 7.0 | EC002014 |
| ECLASS 8.0 | 27210707 |
Approvals
| Approvals | UR |
| Certificates | EAC |
| Explanations | Declaration of conformity Declaration of conformity UK |
