THITRONIK Wipro III Safe. Lock Motorhome Alarm System
Wipro III safe. lock
Handling
Your Wipro III is equipped with the safe. lock function. Thus the Wipro recognizes the original doors of the vehicle, but ignores the car‘s remote (to close the vehicles security gap).
Handling of alarm system and central locking is always possible with the Thitronik remote control 868 (smaller and bigger button) and with the delivered remote control 868 (new).
Every use of the buttons switches to the next state – both buttons can open and close. And every time the whole central locking is activated!
A new feature: The smaller button, respectively the upper button with the crossed speaker symbol works without switching tone. The bigger/lower button switches always with tone. So passengers can leave the car without waking up the others. On demand this feature can be disabled using DIP switch number 6:
| DIP 6 on (standard) | Small/upper button switches without signal tone |
| DIP 6 off | Small/upper button switches with signal tone |
| DIP 5 on (standard for safe. lock) | Ignoring the vehicle remote, still evaluation of CAN doors |

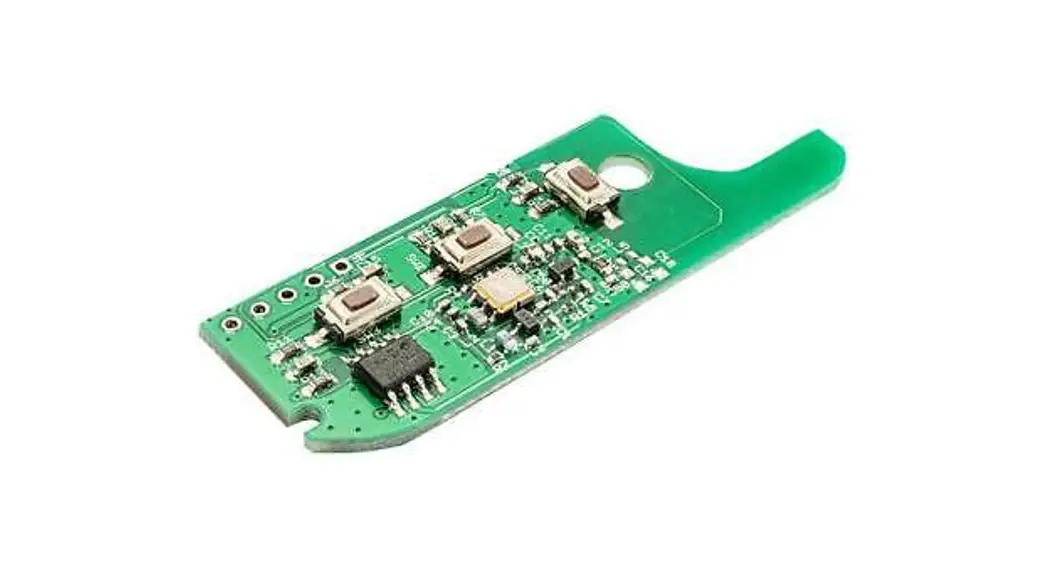

The original vehicle key can also be equipped with an optional conversion printed circuit board (Art. no.: 101052), so use of the key can continue without reservation.
Installation
Additional to normal installation to Ducat and similar, there are two wires to be con- nested to the green connector of the body computer(see picture 1, yellow circle; front of the body computer/fuse box):
| Model year | Pin Fiat (picture 2) | Cable color Fiat | Cable color WiPro | Function | |
| 2006- 2012 (Euro4) | Pin 28 | blue/yellow | → | blue/black | Central locking front |
| Pin 50 | pink/violet | → | blue | Central locking rear (if existing) | |
| 2012+ | Pin 53 | blue/yellow | → | blue/black | Central locking front |
| Pin 27 | grey/white | → | blue | Central locking rear (if existing) |
Hersteller/Manufacturer
Thitronik GmbH
Finkenweg 11 – 15
D 24340 Eckernförde
(Germany)
www.thitronik.de
[email protected]
Tel.: +49 (0)4351 76744-0
Fax: +49 (0)4351 76744-127
