Honeywell MPIPKTSMF MAXPRO Intrusion Keypad
PARTS OVERVIW AND DESCRIPTION
The MAXPRO Intrusion Keypads are designed to provide a simple day-to-day interface with MPI Control Panels. Each keypad connects to the IB2 communication bus.
Packing List
Keypad / 3 x wall mounting screw / 1 x tamper screw / 1 x lid screw.
Parts

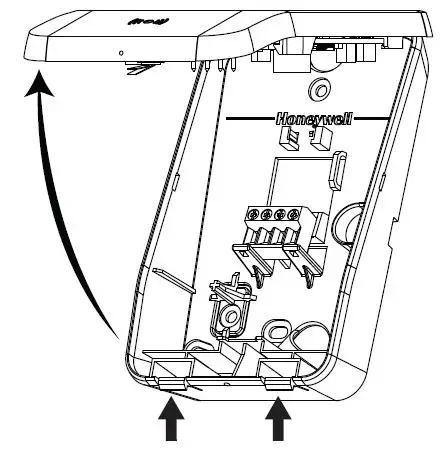

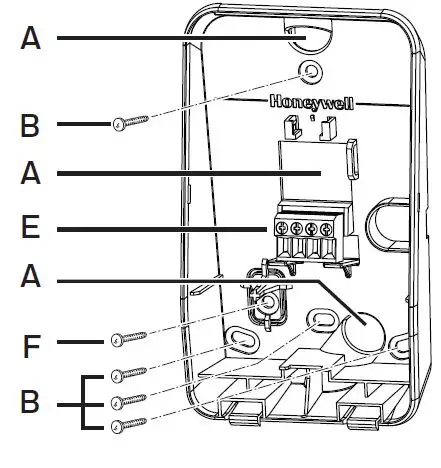

| A | Opening for wiring (x 3) | G | Lid screw (x 1) |
| B | Mounting screw holes (x 4). Use the one at the top. At the bottom, use the one in the middle or the two at the edges, depending on your needs. | H | Touch screen display |

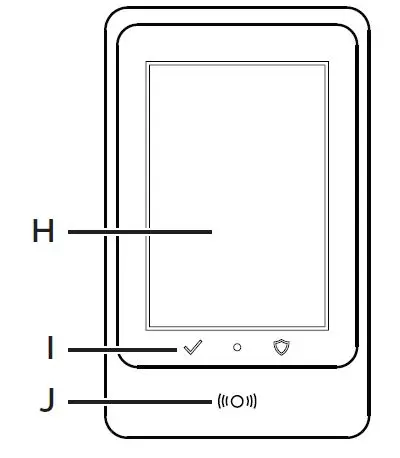

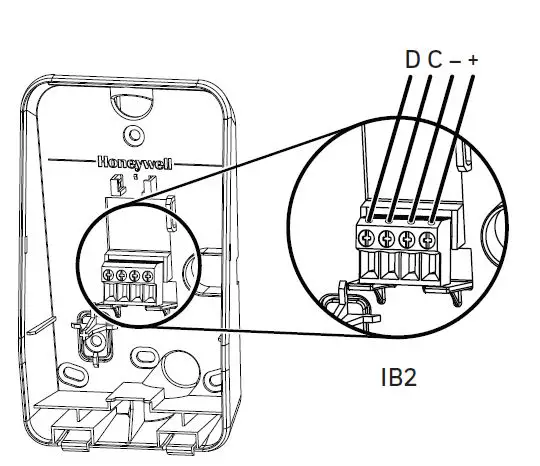

| E | IB2 bus connector | I | LED indicators |

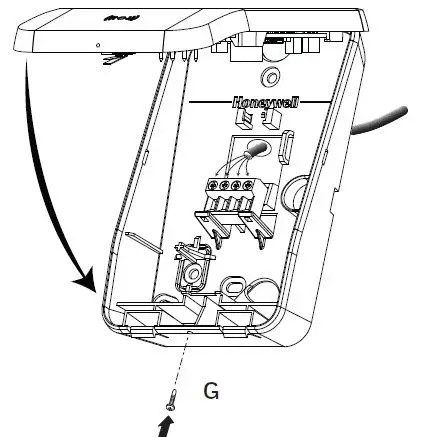

| F | Tamper screw (x Required for off-wall tamper protection. | J | Card reader |
| LED Colour | Icon | Function | |
| Green |  | Area is ready to arm: All zones in the keypad’s home area are in their normal state; the area is ready for arming. | |
| Red |  | Area armed: The keypad’s home area is armed. | |
| EN To comply with EN standards, the red Area armed LED is disabled in Europe. | |||
| Green |  | Power: Power is present. | |
Caution
For security reasons, change the default codes as soon as possible from MAXPRO Cloud. For instructions, see the MAXPRO Cloud Configuration Guide (EMEA version doc. no. 800-24096-1 North America version doc no. 800-24096).
Programming
On the keypad: set display brightness and sound level: log on, tap Menu > Keypad settings > General settings. All additional security settings are configured in MAXPRO Cloud. For details, see the MAXPRO Cloud Configuration Guide (EMEA version doc. no. 800-24096-1; North America version doc no. 800-24096). For daily use of the keypad, see the MAXPRO Intrusion User Guide (EMEA version doc. no. 800-23041-1; North America version doc. no. 800-23041). The user guide is available with the control panel, and you can find the latest version online. Refer to the installation instructions for the control panel that this device is used with, for detail regarding limitations of the entire alarm system. For details, see the MAXPRO Intrusion Installation Guide (EMEA version doc. no. 800-23044-1; North America version doc. no. 800-23044)
Specifications
| Input voltage | 13.8 VDC nominal (10–14.5 VDC) |
| Current, idle | MPIKTSMF: 100 mA / MPIKTSPRX: 75 mA |
| Current, max. (display and buzzer on) | MPIKTSMF: 130 mA / MPIKTSPRX: 110 mA |
| Sounder | Full Power, -3 dB, -6 dB, and -9 dB (85 dB at 10 cm/4 in) |
| MPIKTSMF card types | MIFARE (Classic 32-bit, DESFire 56-bit (EU only)); reading CSN only EM4102 ASK 125 kHz; up to 40 bits |
| MPIKTSPRX card types | EM4102 ASK 125 kHz; up to 40 bits |
| Operating temperature | –10 to +50 °C / 14–122 °F; Indoor use only |
| Humidity | Max. 93% RH non-condensing |
| Ingress and impact protection | IP42 (EN 60529:1992+A2:2013) / IK06 (EN 62262:2002) |
| Dimensions (W x H x D) | 8.45 cm x 13.96 cm x 4.01 cm / 3.33 in x 5.55 in x 1.58 in |
| Weight | 169 g / 5.96 oz |
| Ancillary Control Equipment (ACE) | Type B |
| Options | MPIKW1: MAXPRO Intrusion Keypad Wall Mounting Plate |
Environmental Information (EU)
This symbol on our product shows a crossed-out “wheelie-bin” as required by law regarding the Waste of Electrical and Electronic Equipment (WEEE) disposal. This indicates your responsibility to contribute in saving the environment by proper disposal of this Waste i.e. Do not dispose of this product with your other wastes. To know the right disposal mechanism please check the applicable law.
Compliance (EU)
This product is suitable for use in systems designed to comply with PD 6662:2017. This product has been tested for compliance by BRE Global Ltd. UK to:EN 50131-3:2009 Grade 3, Environmental Class II.
Note
The MPIKW1 keypad wall mounting plate is not part of certification.
Product Certification (EU)
RSS Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions. This device may not cause interference. This device must accept any interference, including interference that may cause
undesired operation of the device.
