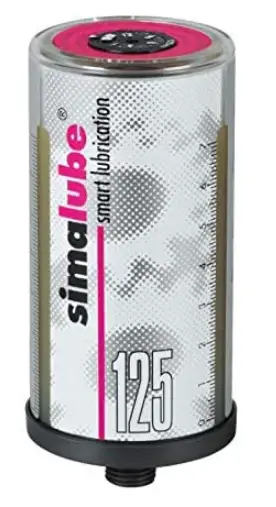

simalube 27764029 Automatic Single-Point Lubricator
Calculation and preparation of lubrication point

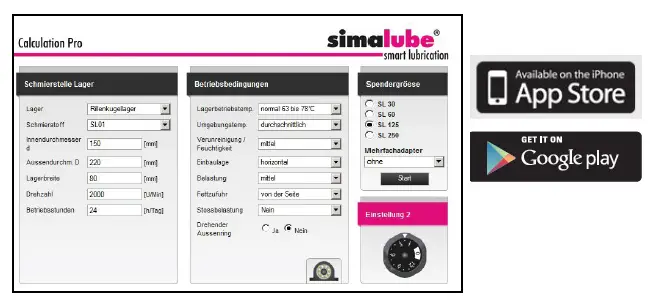

Use „Calculation Pro“ to choose correct dispensing time and lubricator size.
(“Calculation Pro” is available at www.simatec.com, in the App Store, and in the Android Market.)

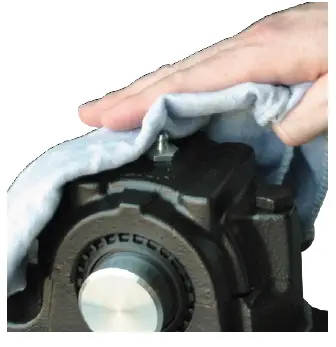

Clean lubrication point

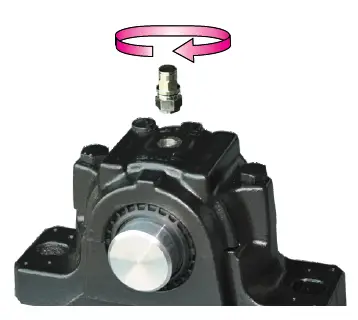

Remove connector nipple and screw in quick connection coupling

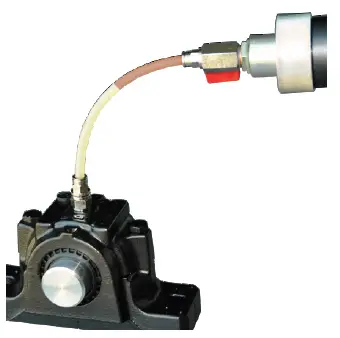

Connect hose and prefill with a grease gun
(fill tubes completely)
Install and activate simalube and IMPULSE

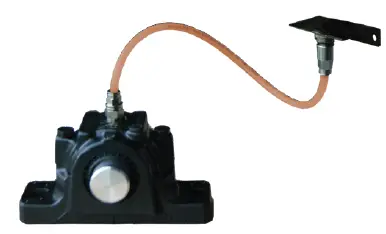

Connect hose to mounting bracket

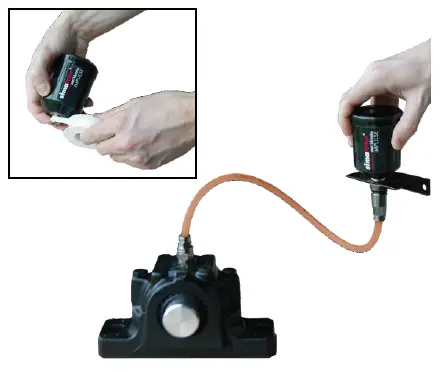

Seal IMPULSE and screw onto lubrication point
ATTENTION: IMPULSE logo must face the front

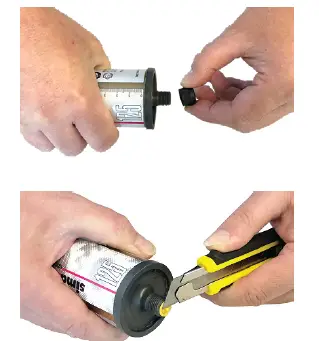

Cut off plug from lubricator or remove black plug

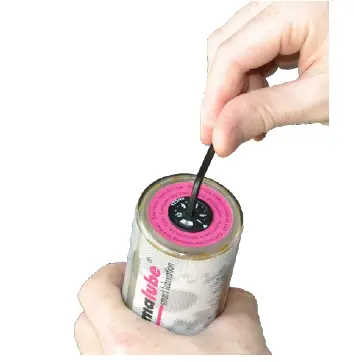

Activate calculated dispensing time with 3 mm Allen key

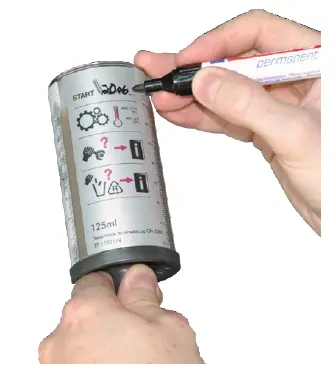

Write in activation date

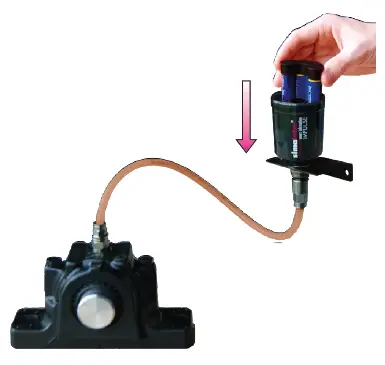

Insert the battery pack

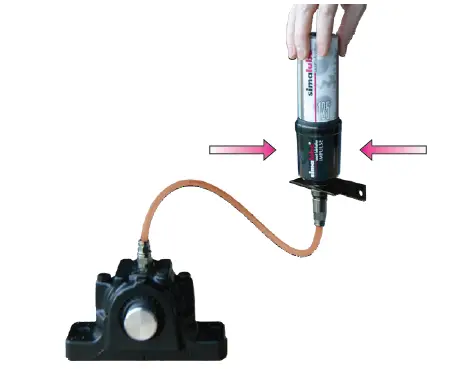

Screw on lubricator, device will be activated, green LED will blink 2x. The first pump cycle will begin within 30 seconds

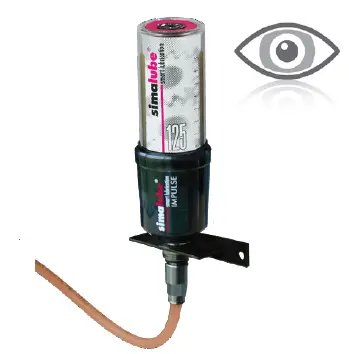

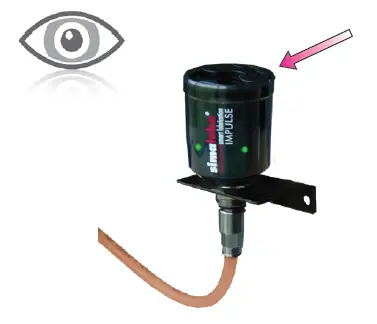

Check simalube and IMPULSE regularly
Replace and recycle the lubricator
Replace or refill the empty lubricator

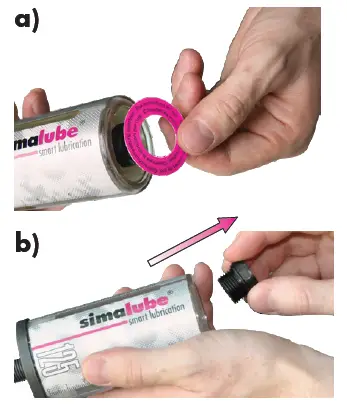

a) Remove cover disk
b) Remove gas generator with a socket wrench (SW21 mm)

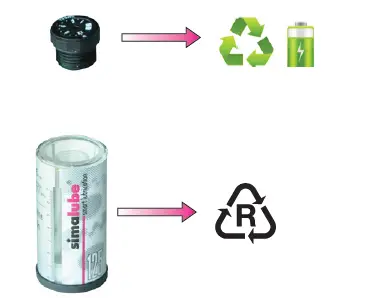

Dispose of intact gas generator in battery recycling and empty housing in plastic recycling.
(Warning: dispose of leftover grease separately)

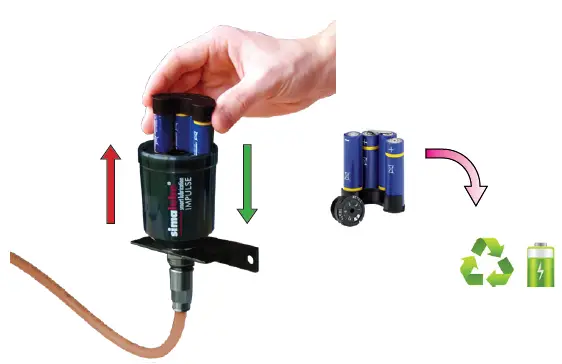

Remove the used battery pack and replace it with a new one
Put IMPULSE with new lubricator into operation
Check and clean the gasket IMPULSE remains on lubrication point

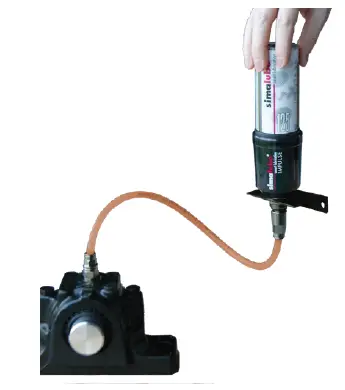

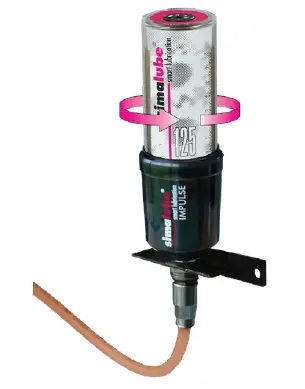

Screw refilled or new lubricator onto the lubrication point

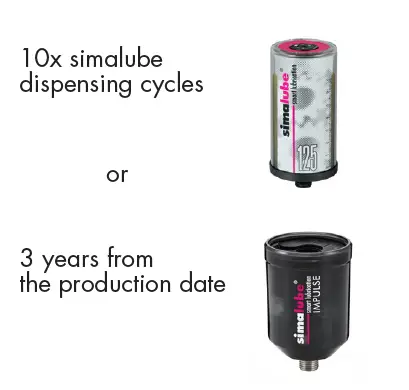

Period of use of the simalube IMPULSE:
