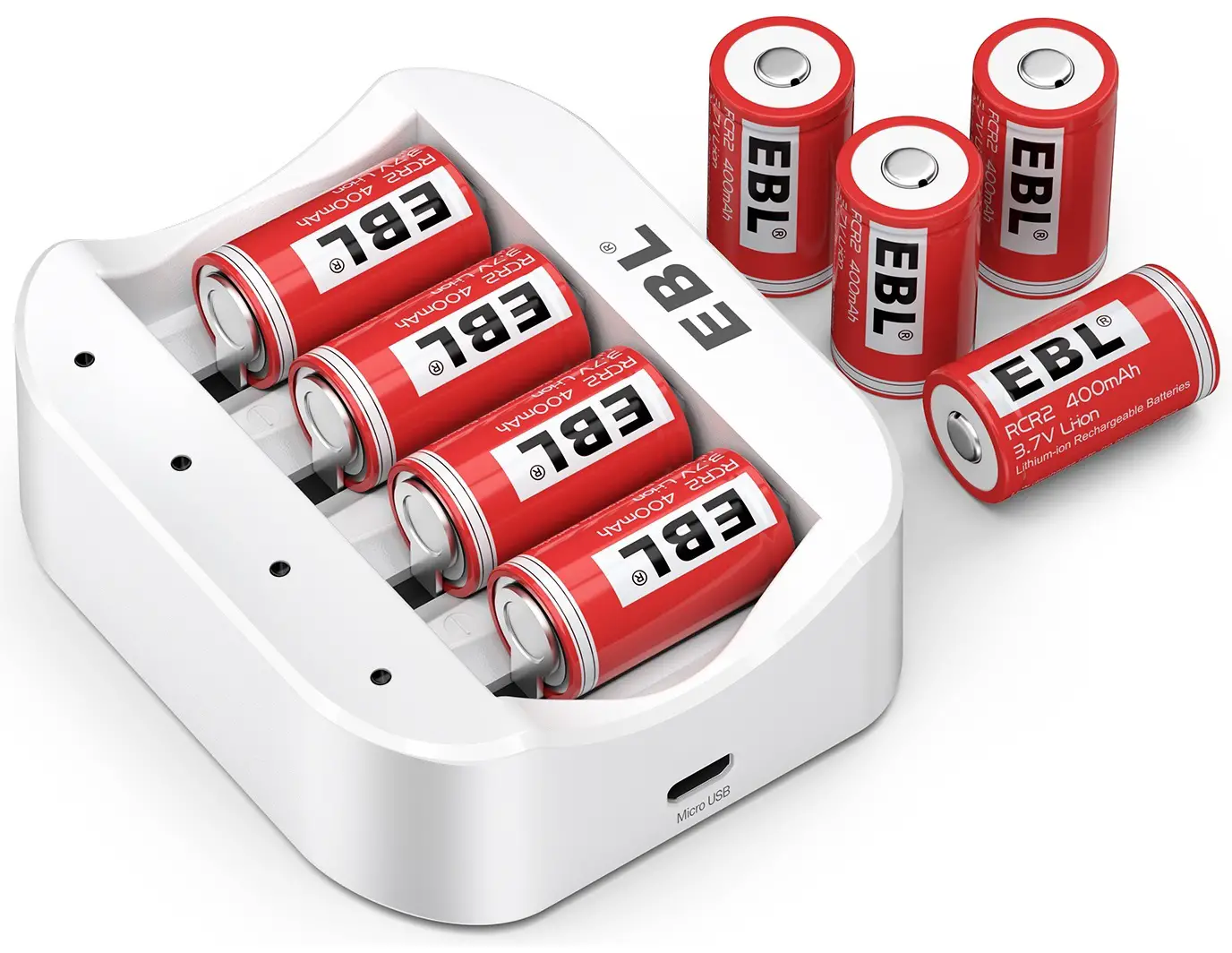

Ebl-c668 Professional Care On Batteries And Charger User Guide (+ PDF)

Read these instruction carefully and retain them for future use. If this product is passed to a third party, then these instructions must be included.

When using electrical devices, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons including the following:

SAVE THESE INSTRUCTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, CAREFULLY FOLLOW THESE INSTRUCTIONS.

TEST DATA

SPECIFICATIONS

Model	EBL-C668
Input	DC 5V/1.5A
Output Voltage	DC 4.2V
Output Current	350mA x 4 (Max)
No-load Power Consumption	0.5W(Max)
Battery Charging Rate	Up to 85%
Charging Way	Constant voltage and current
Size	86.4mm×71.4mm×28mm
Weight	73g

CHARGING TIMES

Charging times are a guide only. Real charging time will vary depending upon the brand, capacity and condition of battery being charged.

Battery Size (Li-ion)	Related Capacity (mAh)	Battery Number (pcs)	Charging Current (mA)	Approximate Charging Time (Hrs)
RCR2/ 15270	450-800	1- 4	350	1.3-2.3

WORKING & STORAGE CONDITION

Storage Temperature	-10°C-50°C	Storage Humidity	45%-85%
Working Temperature	0°C-40°C	Working Humidity	35%-95%
Surface Temperature of Charger	≤60°C	Surface Temperature of Battery	≤60°C

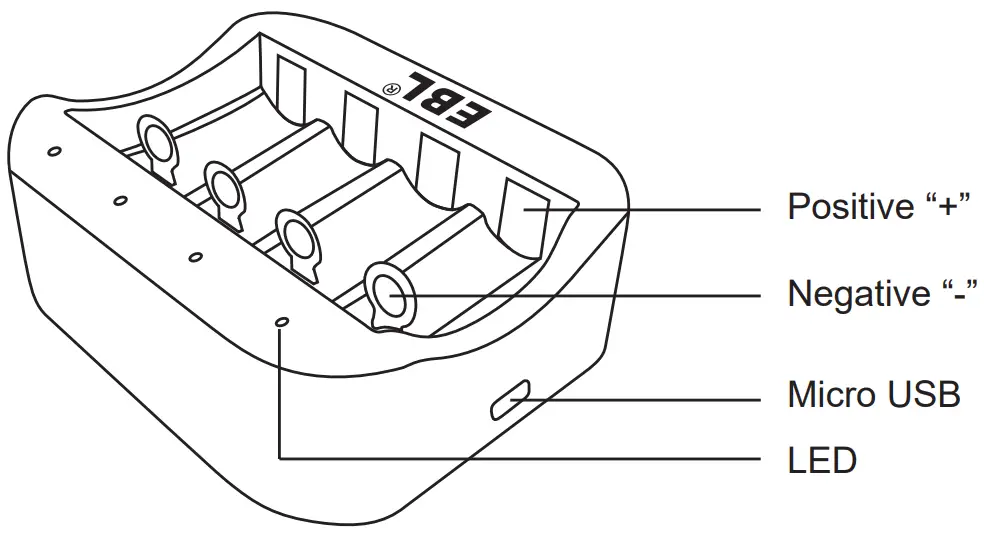

HOW TO USE

USE STEPS

Independent charging channels, can charge 1-4 pieces RCR2/15270 lithium-ion rechargeable batteries.
Connect the charger with 5V USB devices like power bank, adapter etc.
Place the battery into charger and make sure the “+/-” pole of battery matches “+/-” pole of charger completely.
LED shows its charging progress: Red – Charging; Green – Fully Charged.

TO PROTECT YOUR CHARGER & BATTERIES

When installing battery for charging, make sure to insert the negative (-)terminal of battery first, then press the top of battery to connect the positive(+) contact the plate. Incorrect direction to install the battery will cause damage to the negative terminal of the charger and the battery sleeve.

Correct direction to install theb battery	Incorrect direction to install the battery
RCR2/15270 Li-ion batteries	RCR2/15270 Li-ion batteries

WARNINGS

TO AVOID PERSONAL INJURY AND PROPERTY DAMAGE FROM, BUT NOT LIMITED TO, THE RISK OF ELECTRIC SHOCK OR FIRE:

DO NOT disassemble and reassemble the charger, or it may cause short-circuit.
DO NOT charge batteries whose cover are damaged, or it may cause short circuit and fire hazard.
DO NOT charge non-rechargeable batteries. It might cause battery leakage, battery explosion, personal injuries, etc.
DO NOT put anything on the charger while charging batteries, it will accumulate heat to cause fire hazard.
Indoor use only, keep it away from direct sunlight and moist/high-temperature environment.
Children should not use this charger without any adult’s supervision.
Please use the power cable provided by EBL.
Place the batteries into the charger correctly by making sure the +/- pole of battery matches the +/- pole of the charger.
The absolute 0 volt battery can not be charged in this charger.
EBL-C668 is ONLY designed for RCR2/15270 lithium-ion rechargeable batteries. Please DO NOT charge 1.5v alkaline or AA/AAA Ni-MH Ni-CD battery, otherwise they will leak or cause explosion.
New battery will reach the best performance after using 2-3 times.
Battery power will lose because of long time storage. Please charge the battery fully if it is not used for long time.
It’s normal that the battery becomes hot while charging. The temperature will cool down to normal later, please feel free to use it.
Please cut off the power and take the batteries out when batteries get fully charged.

WARRANTY

WE PROVIDE 30 DAYS WORRY-FREE MONEY BACK AND ONE YEAR LIMITED WARRANTY.

Our professional and friendly support team members will be here offering hassle-free service for you 24hour*7days.
We will go on to provide sincere customer service and technical support for you and hope you have a good experience with EBL.
